Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

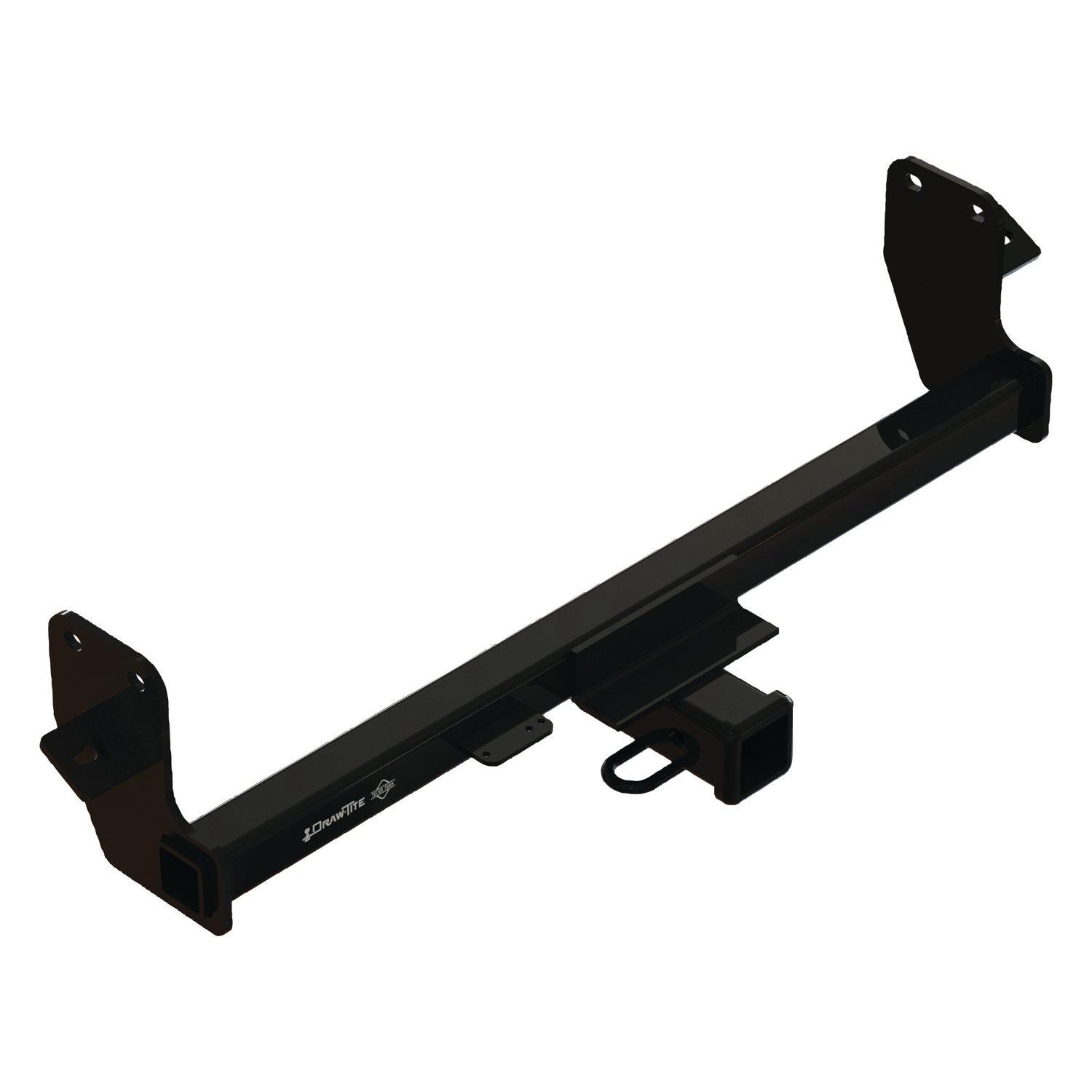

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76523 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Mitsubishi Eclipse Cross | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Eclipse Cross 76523 (Part #DT76523) fits the following vehicles: 2022-2025 Mitsubishi Eclipse Cross. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Eclipse Cross 76523 (Part #DT76523) is designed to fit the 2022-2025 Mitsubishi Eclipse Cross.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Eclipse Cross 76523 (Part #DT76523) fits 2022-2025 Mitsubishi Eclipse Cross models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Mitsubishi Eclipse Cross 76523 (Part #DT76523) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76523, 84523, and CQT76523 are designed for 2022-Current Mitsubishi Eclipse Cross models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
The 76523 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1588 kg) and maximum tongue weight of 525 lb. (238 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: ratchet, torque wrench, safety glasses, 14mm socket, 17mm socket, 3/4" socket, socket extensions, wire brush, and 3/4" wrench. The fastener kit 76523F is also required and includes all bolts, washers, and nuts.
Yes. Using a 14mm socket, remove the two bolts from the tie-down bracket on the rear passenger side of the vehicle. Return the bolts and bracket to the vehicle owner.
No. First, loosely install all fasteners. Using a 3/4" wrench and socket, loosely install the two 1/2" bolts, flat washers, conical washers, and hex nuts on both sides. Using a 17mm socket, loosely install the M10 bolt and 3/8" conical washer on both sides. Only after all fasteners are in place should you tighten them to the specified torque values.
Tighten all 1/2"-13 fasteners to 75 Ft.-Lb. (102 N·M) using a torque wrench.
Tighten all M10 fasteners to 42 Ft.-Lb. (57 N·M) using a torque wrench.
The conical washer teeth side must be oriented against the hitch. This is shown in Figure 1 of the installation instructions.
Use a wire brush to remove paint and debris from the weldnuts before installing the fasteners. This ensures proper contact and secure mounting.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the structural integrity and safety of the hitch.
Yes, part numbers 76523, 84523, and CQT76523 fit 2022-Current Mitsubishi Eclipse Cross. Check www.horizonglobal.com for the most current trim level information.
Maximum gross trailer weight: 3500 lb. (1588 kg). Maximum tongue weight: 525 lb. (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Fastener kit 76523F includes: four 1/2"-13 x 4.50 GR5 bolts, four 1/2" flat washers, four 1/2" conical washers, four 1/2"-13 GR5 hex nuts, two M10 x 1.25-35 GR8.8 bolts, and two 3/8" conical washers.
Yes. Remove the two bolts from the tie-down bracket on the rear passenger side using a 14mm socket, then return the bolts and bracket to the vehicle owner.
1/2"-13 fasteners: 75 Ft.-Lb. (102 N·M). M10 fasteners: 42 Ft.-Lb. (57 N·M). Use a torque wrench for all final tightening.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
