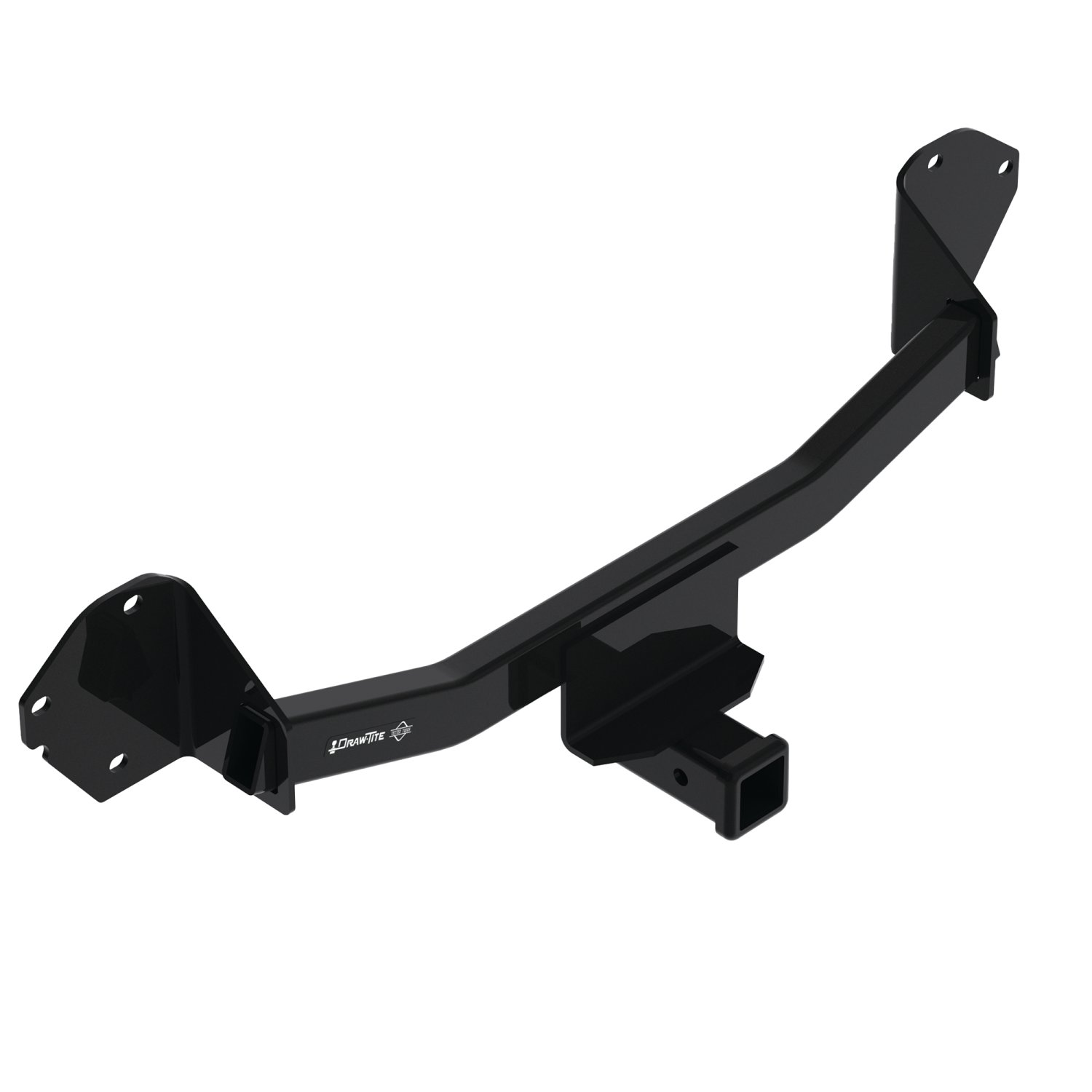

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76525 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30.78 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime

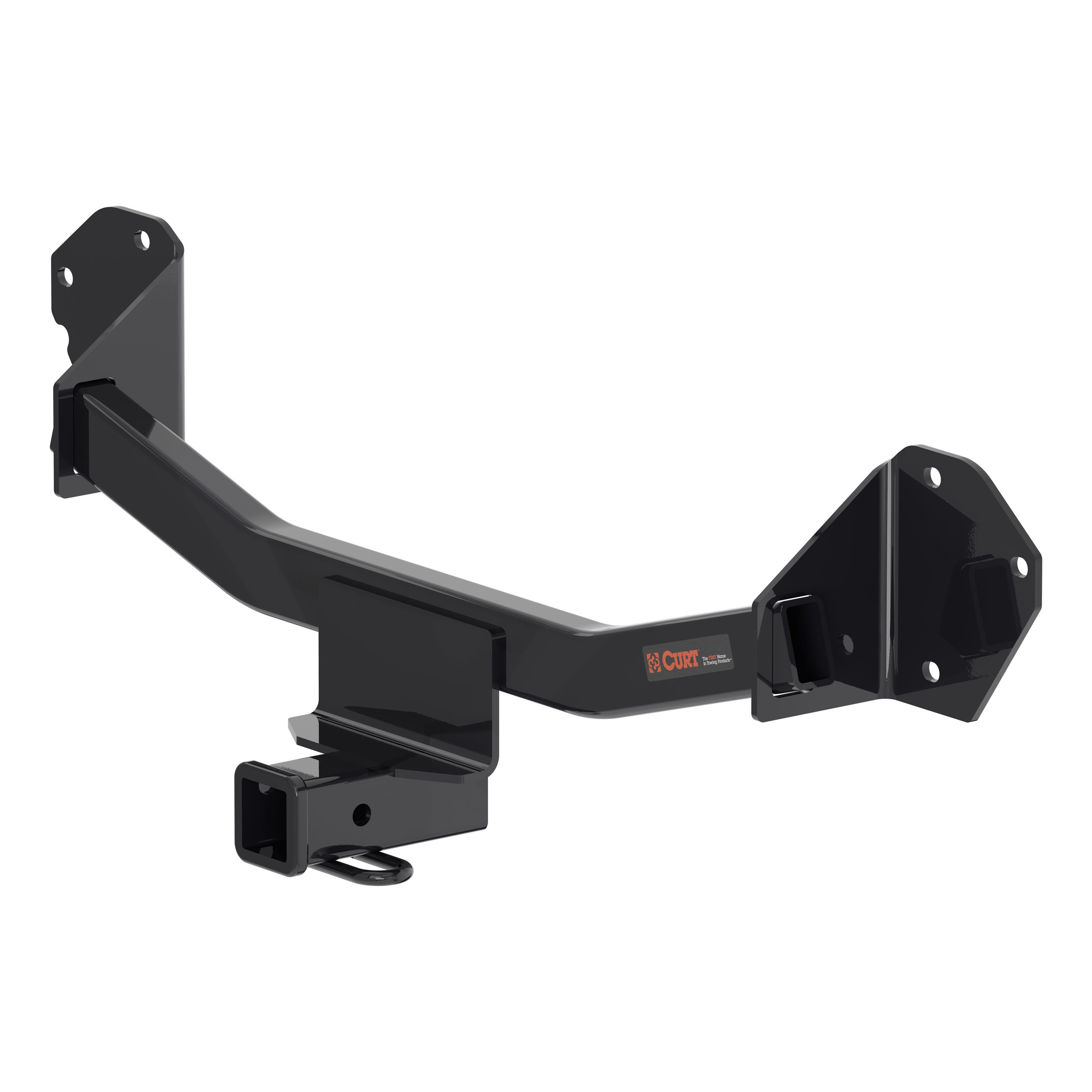

Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chevrolet Bolt EUV | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Bolt EUV 76525 (Part #DT76525) fits 2022-2023 Chevrolet Bolt EUV models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Bolt EUV 76525 (Part #DT76525) fits the following vehicles: 2022-2023 Chevrolet Bolt EUV. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Bolt EUV 76525 (Part #DT76525) is designed to fit the 2022-2023 Chevrolet Bolt EUV.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chevrolet Bolt EUV 76525 (Part #DT76525) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76525, 84525, and CQT76525 are designed for 2022-Current Chevrolet Bolt models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb. (907 kg) and the maximum tongue weight is 300 lb. (136 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
The 76525 hitch fits 2022-Current Chevrolet Bolt models. Check the Horizon Global website for the most current application information.
Maximum gross trailer weight: 2000 lb. (907 kg); maximum tongue weight: 300 lb. (136 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, 7 mm socket, 15 mm socket, 6-inch socket extension, safety glasses, tape measure, utility knife, marker, flat head screwdriver, T15 Torx bit, and plastic trim tools.
Ratchet, torque wrench, 7 mm and 15 mm sockets, 6-inch socket extension, safety glasses, tape measure, utility knife, marker, flat head screwdriver, T15 Torx bit, and plastic trim tools.
No. Fasteners are not provided with this hitch. You must source M10x1.5 flange nuts separately. The installation requires six (6) M10 flange nuts.
The average installation time for professional installers is 1 hour 15 minutes. If you do not feel comfortable performing this installation on your own or need assistance, contact a professional installer.
Open the tailgate. Using a plastic trim tool, remove two (2) round plastic covers from panels near the taillight on both sides. Using a T15 Torx bit, remove two (2) screws from those panels. Remove the plastic panels.
Using a T15 Torx bit, remove two (2) screws at the bottom of the wheel well liner on each side. Gently loosen the wheel well trim on the wheel well liner up to the edge of the fascia. Using a 7 mm socket, remove one (1) bolt behind the wheel well trim on each side.
Using a T15 Torx bit, remove one (1) screw near the bottom tailgate on each side. Using a flat head screwdriver and T15 Torx bit, remove two (2) rivets and two (2) screws respectively at the bottom of the fascia. Use plastic trim tools to remove the fascia starting at the outer edges near the wheel wells and gently pull the fascia. Disconnect the wiring harness male part on the driver side if present.
Remove the electric wiring harness female part on the bumper beam by gently sliding it. Using a 15 mm socket, remove two (2) nuts from the metal bracket on the left-hand side of the bumper beam and remove the metal bracket holding the wiring harness. Secure the wiring harness with tape on the vehicle body. Using a 15 mm socket, remove the remaining four (4) nuts from the bumper beam. Remove the bumper beam.
Align the bumper beam with the hitch on the floor. Raise the hitch and bumper beam into position, aligning the holes to the studs on the end panel. Reinstall the metal wiring harness bracket to the stud and loosely install six (6) M10 flange nuts to the bumper beam and hitch. Do not fully tighten at this stage.
Tighten all M10x1.5 fasteners with a torque wrench to 38 Ft.Lb. (52 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
All M10x1.5 fasteners must be tightened with a torque wrench to 38 Ft.Lb. (52 N·M). Proper torque is essential to keep the hitch securely mounted to the vehicle when towing.
Using a tape measure, marker, and utility knife, measure, mark, and trim the lower fascia as shown in Figure 2 of the manual. The trim dimensions are 8 3/8 inches (C) and 1 1/8 inches (L) from the front of the vehicle.
Yes. The lower fascia must be trimmed using a utility knife. The trim dimensions are 8 3/8 inches (C) and 1 1/8 inches (L) from the front of the vehicle, as shown in Figure 2. This is a permanent modification to the vehicle's fascia.
Reinstall all fasteners, wiring harness, fascia, wheel well trim, wheel well liner, and taillight panels in reverse order of removal.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. The manual also recommends that if you do not feel comfortable performing this installation on your own or need assistance, contact a professional installer.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum capacity (2000 lb. gross trailer weight, 300 lb. tongue weight). If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but recommends periodic checks to ensure the hitch remains securely mounted to the vehicle.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
The 76525 hitch comes with a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in accordance with the manufacturer's instructions. Product replacement is the sole remedy under this warranty. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290.
Contact Horizon Global technical support at 800-632-3290 or email TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
