Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2024 - 2026 Buick Envista
Confirmed to Fit
2024 - 2026 Chevrolet Trax
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

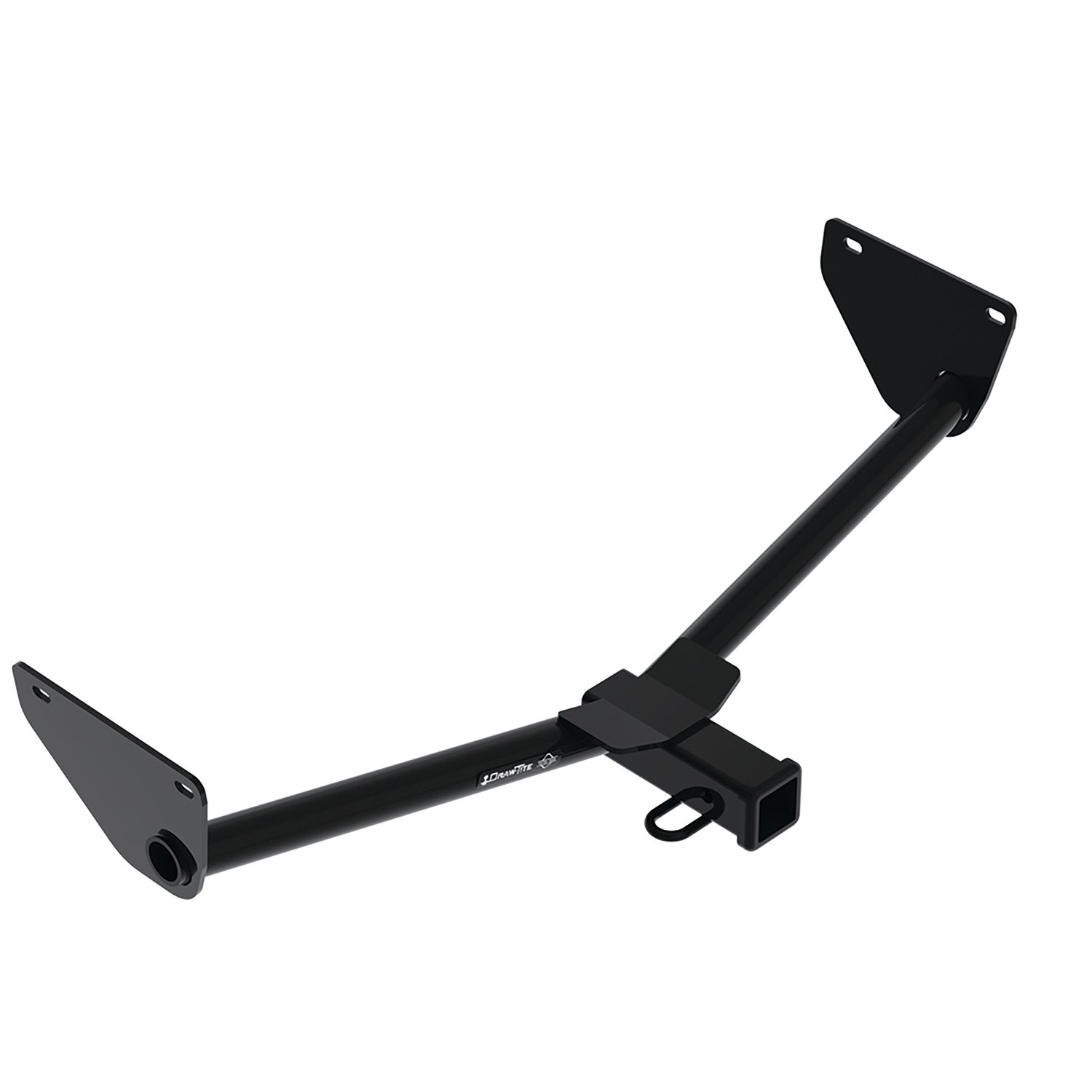

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76643 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2026 | Buick Envista | Class 3 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2024 - 2026 | Chevrolet Trax | Class 3 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Envista, Chevrolet Trax 76643 (Part #DT76643) fits the following vehicles: 2024-2026 Buick Envista; 2024-2026 Chevrolet Trax. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Envista, Chevrolet Trax 76643 (Part #DT76643) is designed to fit the 2024-2026 Buick Envista.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Envista, Chevrolet Trax 76643 (Part #DT76643) fits 2024-2026 Buick Envista models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Envista, Chevrolet Trax 76643 (Part #DT76643) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part numbers 76643, 84643, and CQT76643 are designed for Chevrolet Trax and Buick Envista. However, fitment depends on specific model year, sub-model, and trim level. Visit the Horizon Global website at www.horizonglobal.com for the most up-to-date information regarding which years and trim levels are compatible with your vehicle.
Yes, part numbers 76643, 84643, and CQT76643 are designed for Buick Envista. However, fitment depends on specific model year, sub-model, and trim level. Visit the Horizon Global website at www.horizonglobal.com for the most up-to-date information regarding which years and trim levels are compatible with your vehicle.
The maximum gross trailer weight (GTW) is 2000 lb. (907 kg) and the maximum tongue weight is 200 lb. (90.7 kg). This is a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity. The lowest capacity of any component in your towing system—gross trailer weight, tongue weight, trailer hitch, or vehicle—determines the maximum load you can safely tow.
You will need: a ratchet, a torque wrench, 11/16" sockets, and safety glasses. The installation difficulty is rated as Beginner.
The fastener kit 76643F includes: (4) carriage bolts 7/16-14 x 1.50 Gr5, (2) spacer blocks 0.10 x 0.88 x 2.00, (2) spacer blocks 1/4 x 7/8 x 3.00, (4) conical washers 7/16-14, (4) hex nuts 7/16-14 GR2, and (4) pull wires 7/16. The small spacer block (0.10 x 0.88 x 2.00) is located at the rearmost attachments.
1. Feed the coiled end of pull wires through existing holes on the outer side of the frame rail and out of the access hole at the bottom of the frame (2 per side). 2. Attach the 7/16" carriage bolts and spacer blocks to the pull wires and pull fasteners inside the frame rails. Install rear fasteners first. Leave pull wires attached. 3. Temporarily leave fasteners inside the frame rails. 4. Raise the hitch into position by installing the driver's side of the hitch first over the top of the exhaust tailpipe. 5. Feed the ends of all pull wires through the mounting holes in the hitch. 6. Align holes in the hitch with holes in the frame. Using pull wires, pull bolts through hitch mounting holes and into position. 7. Remove pull wires and loosely install conical washers and hex nuts onto carriage bolts (4 places, 2 per side). 8. Torque all 7/16-14 Gr5 fasteners to 50 Lb.-Ft. (68 N·M).
Install the driver's side of the hitch first. Raise the hitch into position by installing the driver's side over the top of the exhaust tailpipe.
No. After removing the pull wires, loosely install the conical washers and hex nuts onto the carriage bolts (4 places, 2 per side). Only after all fasteners are in place should you torque them to the specified value of 50 Lb.-Ft. (68 N·M).
All 7/16-14 Gr5 fasteners must be torqued to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
The spacer blocks are attached to the pull wires and fasteners inside the frame rails to maintain proper spacing and alignment during installation. Two sizes are included: the small spacer block (0.10 x 0.88 x 2.00) is located at the rearmost attachments, and the larger spacer block (1/4 x 7/8 x 3.00) is used at the forward attachments.
The conical washers (7/16-14) are installed with the teeth side against the hitch. They help distribute the load and maintain proper clamping force when the hex nuts are torqued to specification.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut access or attachment holes with a torch. This could damage the hitch and create safety hazards.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Regularly check that all fasteners are tight and your hitch is securely mounted to the vehicle. Check the hitch frequently, making sure all fasteners and ball are properly tightened. In order to ensure hitch towing capacity and longevity of the product, ensure that all fasteners are torqued to the prescribed torque within the installation instructions.
Yes. For additional security, thread locker can be used on all fasteners.
The maximum gross trailer weight (GTW) is 2000 lb. (907 kg). However, you must never exceed your vehicle manufacturer's recommended towing capacity. The lowest capacity of any component in your towing system—gross trailer weight, tongue weight, trailer hitch, or vehicle—determines the maximum load you can safely tow.
The maximum tongue weight is 200 lb. (90.7 kg). However, you must never exceed your vehicle manufacturer's recommended towing capacity. The lowest capacity of any component in your towing system—gross trailer weight, tongue weight, trailer hitch, or vehicle—determines the maximum load you can safely tow.
No. Do not cut, weld, or modify this trailer hitch. Modifications will void the warranty and may compromise safety and towing capacity.
The 76643 hitch comes with a Limited Lifetime Warranty from Horizon Global Corporation. The warranty covers material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if the products are installed, maintained, and used in accordance with the installation instructions. Product replacement is your sole and exclusive remedy. For warranty claims, contact Horizon Global at 127 Public Square Suite 5300, Cleveland, OH, 44114, or call 800-632-3290. You must provide the product and purchase receipt to process a warranty claim.
Yes, the 76643 is designed for Chevrolet Trax and Buick Envista. Check the Horizon Global website for specific model years, sub-models, and trim levels compatible with your vehicle.
Maximum gross trailer weight is 2000 lb. (907 kg) and maximum tongue weight is 200 lb. (90.7 kg). Never exceed your vehicle manufacturer's recommended towing capacity.
You will need a ratchet, torque wrench, 11/16" sockets, and safety glasses. Installation is rated as Beginner difficulty.
All 7/16-14 Gr5 fasteners must be torqued to 50 Lb.-Ft. (68 N·M) using a torque wrench.
No drilling is required. The hitch uses existing holes on the frame rail and an access hole at the bottom of the frame. Do not use a torch to cut any holes.
Regularly check that all fasteners are tight and the hitch is securely mounted. Check frequently to ensure all fasteners and the ball are properly tightened.
Yes. For additional security, thread locker can be used on all fasteners.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
