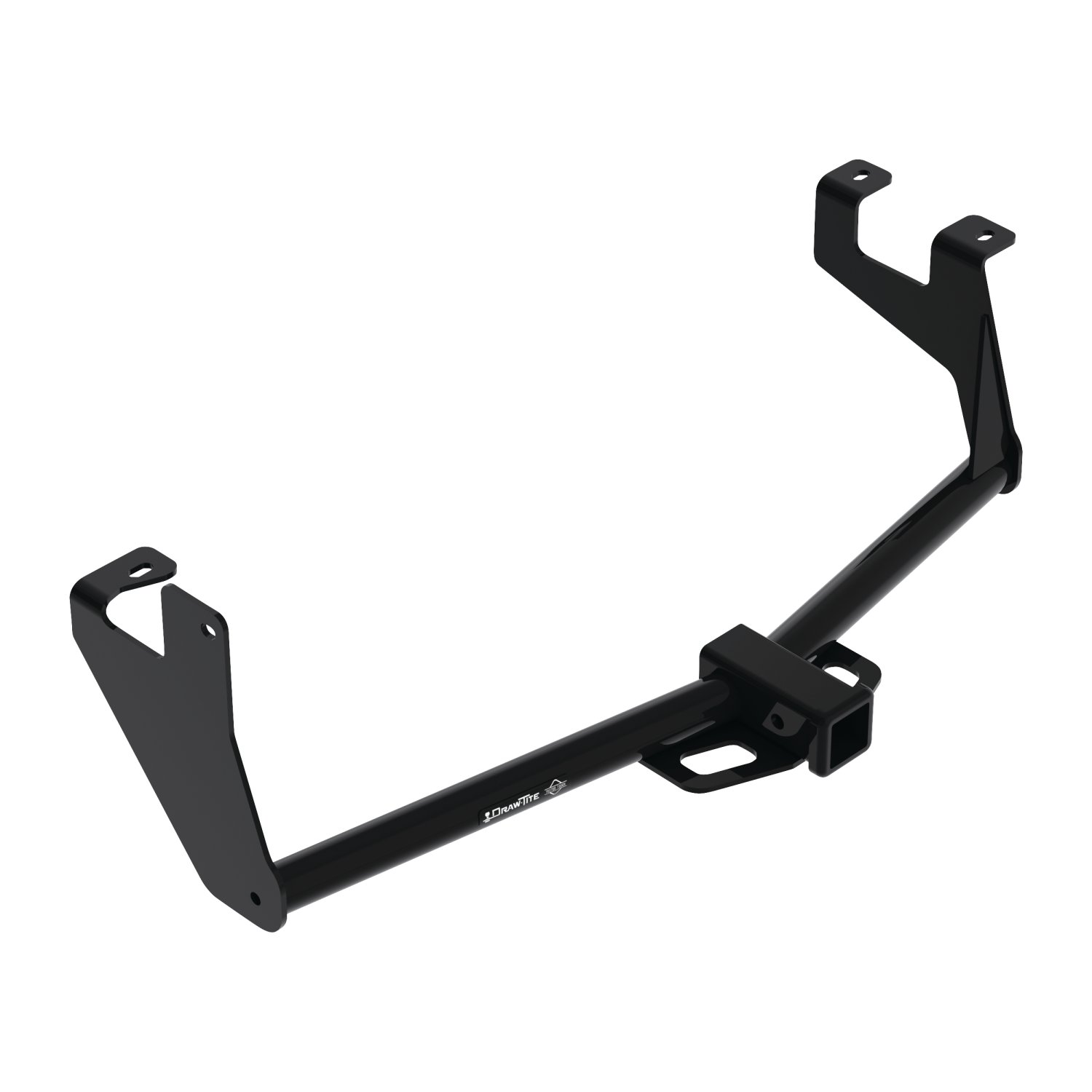

Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Envista, Chevrolet Trax 76643Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2022 Buick Encore
Confirmed to Fit
2013 - 2022 Chevrolet Trax
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76593 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 29 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2022 | Buick Encore | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2013 - 2022 | Chevrolet Trax | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
On Sale Today
You save $123.50 (33%)
Free Shipping
Ships free on all orders
Authorized DealerFREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Encore, Chevrolet Trax 76593 (Part #DT76593) fits the following vehicles: 2013-2022 Buick Encore; 2013-2022 Chevrolet Trax. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Encore, Chevrolet Trax 76593 (Part #DT76593) is designed to fit the 2013-2022 Buick Encore.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Encore, Chevrolet Trax 76593 (Part #DT76593) fits 2013-2022 Buick Encore models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Encore, Chevrolet Trax 76593 (Part #DT76593) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76593 is designed for 2013-Current Chevrolet Trax models. However, the manual recommends visiting the manufacturer's website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
Yes, part number 76593 is designed for 2013-Current Buick Encore models. However, the manual recommends visiting the manufacturer's website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary.
The 76593 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and a maximum tongue weight of 525 lb (238 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, sockets (19 mm and 11/16"), socket extension, exhaust pliers, wire brush, and soapy water or lubricant. The manual notes that if you do not feel comfortable performing the installation yourself or need assistance, you should contact a professional installer.
Yes. Step 2 of the installation requires you to lower the exhaust system at the two rubber isolators. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. Use an exhaust support stand to prevent damaging the muffler. The exhaust is reinstalled in step 6 after the hitch is secured.
1. Insert pull wires into frame rails and use them to feed carriage bolts and spacers into frame rails through access holes. 2. Lower exhaust system at two rubber isolators. 3. Add one spacer to flange on driver's side bracket, raise hitch into position, and slide it over exhaust pipe on passenger side first. 4. Remove pull wires and loosely install conical washers and hex nuts. 5. Tighten all fasteners to specified torque. 6. Reinstall exhaust at rubber isolators.
Slide the hitch over the exhaust pipe on the passenger side first, then position it fully. This is specified in step 3 of the installation instructions.
All 7/16"-14 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
All M12-1.75 CL8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N·M) using a torque wrench. This applies when the driver's side frame has a weldnut and an M12 bolt is used instead of the standard carriage bolt.
The fastener kit 76593F includes: 4 carriage bolts (7/16"-14 x 1.75 GR5), 5 spacers (0.250 x 0.875 x 3), 4 conical washers (7/16"), 4 hex nuts (7/16"-14 GR2), 4 pull wires (7/16"), 1 M12 bolt (M12 x 1.75 x 40 CL8.8), 1 conical washer (1/2"), and 1 bevel washer. The M12 bolt and associated washers are used only if the driver's side frame has a weldnut.
The pull wires are used to feed the carriage bolts and spacers into the frame rails through the access holes. They are left attached during initial positioning and then removed in step 4 before the conical washers and hex nuts are installed.
A bevel washer (item 8) is needed on the driver's side rear attachment only if there is a gap between the vehicle frame and the hitch. If no gap exists, the bevel washer is not required.
If the driver's side frame has a weldnut, use the M12 bolt (M12 x 1.75 x 40 CL8.8) and conical washer (1/2") instead of the standard carriage bolt and hex nut. Tighten this M12 bolt to 68 Lb.-Ft. (92 N·M). A bevel washer may still be needed if there is a gap between the vehicle frame and hitch.
In step 4, the conical washers and hex nuts should be installed loosely. All fasteners are then tightened to their specified torque values in step 5 using a torque wrench. Do not fully tighten fasteners until step 5.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
After installation, check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure when towing.
Load the trailer heavier in front. Do not exceed the lower of your vehicle manufacturer's towing rating or the hitch limits (3500 lb GVWR, 525 lb tongue weight). Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel steady. Do not apply brakes and do not speed up.
The 76593 is a weight-carrying hitch. Weight-distributing is not available for this model (marked as X in the specifications table).
No. The manual explicitly states: "DO NOT cut, weld or modify this receiver." Any cutting, welding, or modification of the hitch is prohibited and will void the warranty and compromise safety.
The 76593 includes a Limited Lifetime Warranty covering material defects and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt.
Yes, the 76593 is designed for 2013-Current Chevrolet Trax and Buick Encore. Check the manufacturer's website for the most current trim-level compatibility.
Maximum gross trailer weight: 3500 lb (1589 kg). Maximum tongue weight: 525 lb (238 kg). Do not exceed your vehicle manufacturer's towing rating.
Ratchet, torque wrench, safety glasses, sockets (19 mm and 11/16"), socket extension, exhaust pliers, wire brush, and soapy water or lubricant.
Yes, the exhaust system must be lowered at the two rubber isolators. Use soapy water or lubricant to ease removal and an exhaust support stand to prevent muffler damage.
7/16"-14 GR5 fasteners: 50 Lb.-Ft. (68 N·M). M12-1.75 CL8.8 fasteners: 68 Lb.-Ft. (92 N·M). Use a torque wrench for all fasteners.
No. Do not cut access or attachment holes with a torch. This is prohibited and will compromise the integrity and safety of the hitch.
Plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
If a gap exists between the vehicle frame and the hitch at the driver's side rear attachment, a bevel washer (item 8) is required. Install the bevel washer along with the conical washer and hex nut (or M12 bolt if a weldnut is present) to close the gap and ensure proper fastening.
Check all fasteners periodically to ensure they remain tight. If fasteners have loosened, retighten them to the specified torque values: 50 Lb.-Ft. (68 N·M) for 7/16"-14 GR5 fasteners and 68 Lb.-Ft. (92 N·M) for M12-1.75 CL8.8 fasteners. Proper torque is essential to keep the hitch secure to the vehicle when towing.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not attempt to repair a damaged hitch. Continued use of a damaged hitch compromises towing safety.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
