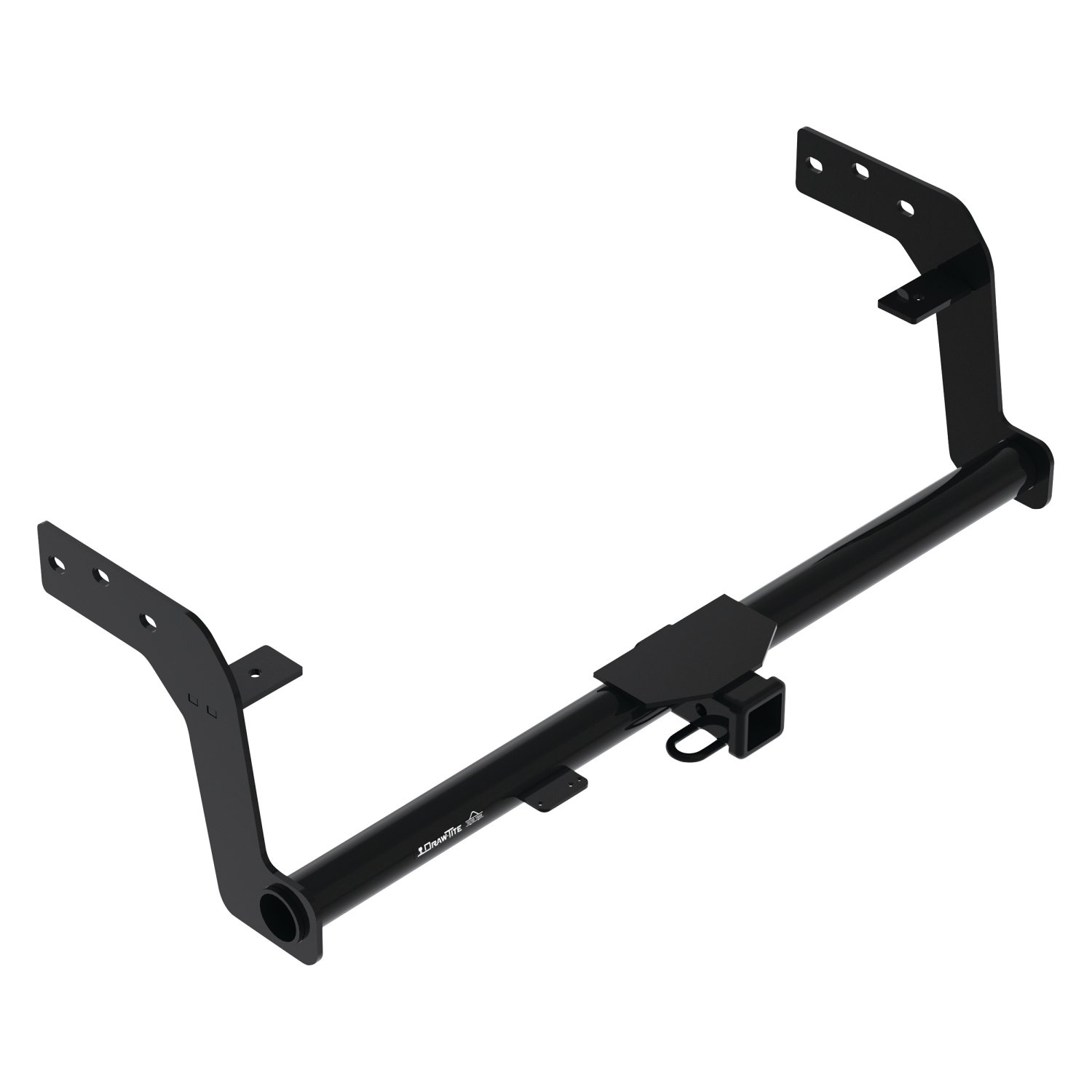

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76577 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 38.5 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Genesis GV70 | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 60 minutes |
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 1 - Fri, Sep 4
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Genesis GV70 76577 (Part #DT76577) fits 2022-2025 Genesis GV70 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Genesis GV70 76577 (Part #DT76577) fits the following vehicles: 2022-2025 Genesis GV70. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Genesis GV70 76577 (Part #DT76577) is designed to fit the 2022-2025 Genesis GV70.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Genesis GV70 76577 (Part #DT76577) Drilling is required for installation. Basic hand tools are typically all you need.
Yes. Part numbers 76577, 84577, and CQT76577 are designed for 2022-current Genesis GV70 models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 3500 lb (1587 kg) and the maximum tongue weight is 525 lb (238 kg) for the weight-carrying version. Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, sockets (11/16" and 19 mm), 6" socket extension, safety glasses, drill with ½" drill bit, die grinder, wire brush, flat head screwdriver, exhaust hanger removal pliers, marker, and soapy water or lubricant. Professional installation is recommended if you are not comfortable performing the work yourself.
Yes. The exhaust must be lowered before installation. Using a flat head screwdriver, remove 6 plastic rivets from the bottom of the fascia on both the passenger and driver sides. Using an exhaust hanger removal plier, remove 1 rearmost rubber hanger per side. Spray lubricant or soapy water on the rubber hangers to make removal easier. Lower the exhaust mufflers by gently pulling the lower fascia. Ensure the exhaust is properly supported before removing the rubber hangers.
Yes. Drilling is required. You must drill ½" holes in the frame rails at marked locations on both sides. After drilling, use a die grinder to enlarge the holes to accommodate the feed blocks into the vehicle frame rails. The holes are marked by positioning the hitch with spacer plates and using a marker to mark the drill point at the bottom frame rails based on the hitch bracket hole center.
Drill a ½" (0.5 inch) hole at the marked location on each side of the frame rails. After drilling, use a die grinder to enlarge the holes to feed the blocks into the vehicle frame rails. The enlargement area is shown in Figure 2 with dimensions of 1⅛" by ¼".
All M12 X 1.25 X 65 fasteners must be tightened to 76 ft.lb. (103 N·m) using a torque wrench. Proper torque is critical to keep the hitch securely mounted to the vehicle when towing.
All 7/16-14 X 1.50 fasteners must be tightened to 50 ft.lb. (68 N·m) using a torque wrench. Proper torque is critical to keep the hitch securely mounted to the vehicle when towing.
The fastener kit 76577F1 includes: (2) carriage bolts 7/16-14 X 1.50 GR5, (2) blocks 3/16 X 1.00 X 2.00, (2) conical washers 7/16, (2) nuts 7/16-14, (6) bolts M12 X 1.25 X 65 CL10.9, (6) conical washers ½, and (2) pull wires 7/16. Spacer plates are also provided with the hitch.
The teeth side of the conical washer must be against the hitch. This applies to both the conical washers ⑥ (½ size) installed on the M12 bolts at the hitch, and the conical washers ③ (7/16 size) installed on the carriage bolts.
The carriage bolts ① and blocks ② are fed through the drilled holes using the pull wires ⑦. Pull the bolts through the blocks using the pull wires. Leave the pull wires attached. Raise the hitch into position and feed the pull wires through the bracket bottom holes. Then loosely install the spacer plates, conical washers, and bolts to the hitch before removing the pull wires.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Ensure the exhaust is properly supported before removing rubber hangers. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to the vehicle. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps with proper weight distribution and towing stability.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the structural integrity and safety of the hitch.
Check all fasteners periodically to ensure they are tight and the hitch is securely mounted to your vehicle. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, part numbers 76577, 84577, and CQT76577 fit 2022-current Genesis GV70 models. Check the manufacturer's website for the most current trim level information.
Maximum gross trailer weight is 3500 lb (1587 kg) and maximum tongue weight is 525 lb (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must drill ½" holes in the frame rails and use a die grinder to enlarge them. The exhaust must also be lowered before installation.
Required tools: ratchet, torque wrench, sockets (11/16" and 19 mm), 6" socket extension, safety glasses, ½" drill bit, drill, die grinder, wire brush, flat head screwdriver, exhaust hanger removal pliers, marker, and soapy water.
M12 X 1.25 X 65 bolts: 76 ft.lb. (103 N·m). 7/16-14 X 1.50 carriage bolts: 50 ft.lb. (68 N·m). Use a torque wrench for proper installation.
Always wear safety glasses. Ensure exhaust is properly supported before removing hangers. Do not cut holes with a torch. Observe safety precautions when working beneath the vehicle. Plug all holes if the hitch is removed.
Check all fasteners to ensure they are tight. Retighten M12 X 1.25 X 65 bolts to 76 ft.lb. (103 N·m) and 7/16-14 X 1.50 bolts to 50 ft.lb. (68 N·m) using a torque wrench. The manual recommends checking fasteners periodically to maintain secure mounting.
A hitch or ball that has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch, as this compromises safety when towing.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
