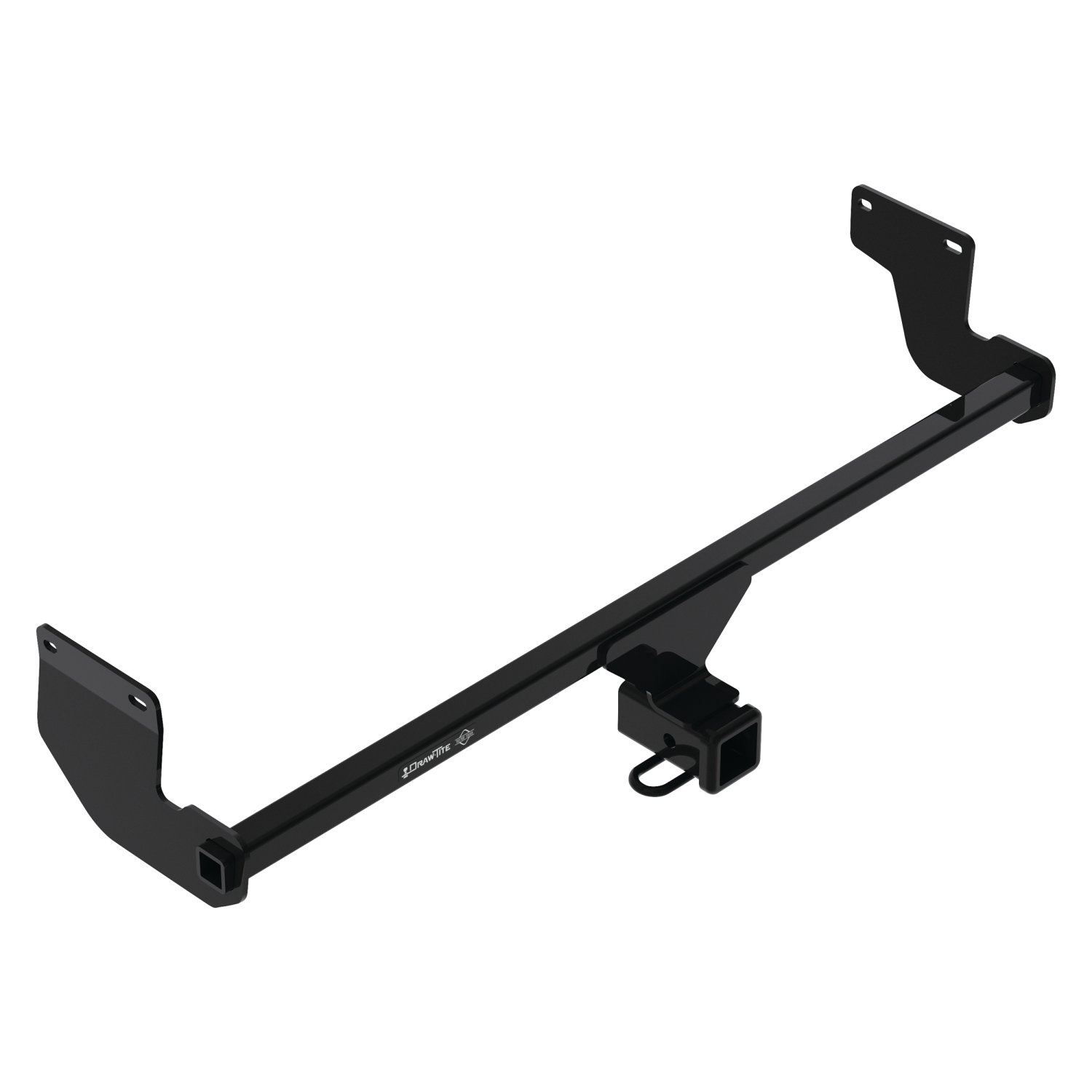

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76591 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Kia Soul | Class 3 Trailer Hitch: 2000 lbs 300/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Soul 76591 (Part #DT76591) fits the following vehicles: 2020-2025 Kia Soul. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Soul 76591 (Part #DT76591) is designed to fit the 2020-2025 Kia Soul.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Soul 76591 (Part #DT76591) fits 2020-2025 Kia Soul models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select KIA Soul 76591 (Part #DT76591) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76591, 84591, and CQT76591 are designed for 2020-current Kia Soul models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
No. The 76591 is a weight-carrying hitch only. Weight-distributing capability is marked as not available (X) in the product specifications.
The fastener kit 76591F includes (4) M10 × 1.25 × 30 CL8.8 bolts and (4) conical washers 7/16". These are the only fasteners supplied and are used to attach the hitch to the vehicle frame.
Required tools include: Phillips screwdriver, flat head screwdriver, exhaust hanger removal tool (pliers), tape measure, marker, utility knife, wire brush, 17mm sockets, socket extensions, ratchet wrench, torque wrench, and safety glasses. A die grinder is listed in the equipment section but its necessity is not explicitly stated.
Yes. You must lower the vehicle exhaust by removing the rearmost driver side and rearmost passenger side rubber hangers using an exhaust hanger removal tool. Be sure the exhaust is supported before removing the hangers. Spray lubricant or soapy water on the rubber hangers makes them slide off the metal pins more easily.
Yes. Using a Phillips screwdriver and flat head screwdriver, remove (2) push pin rivets and (2) screws from the plastic panel near the wheel well on both sides before installing the hitch.
Yes. Using a tape measure, marker, and utility knife, you must measure, mark, and trim the lower fascia. The trim dimensions are 1" from the top and 5½" from the rear, measured from the bottom view of the lower fascia as shown in Figure 2.
No drilling is required. The hitch uses existing weldnuts in the vehicle frame. However, it may be necessary to clean debris from existing weldnuts using a wire brush before installation.
1. Remove wheel well trim (both sides). 2. Lower vehicle exhaust by removing rubber hangers. 3. Trim lower fascia to dimensions shown in Figure 2. 4. Raise hitch into position, raising passenger side bracket first around exhaust, then driver side. Loosely install (4) M10 bolts and conical washers. 5. Tighten all fasteners to specification. 6. Reinstall exhaust and wheel well trim.
The M10 bolts should be loosely installed first (Step 4), then tightened to specification in Step 5. This allows proper positioning of the hitch before final tightening.
All M10 CL8.8 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Raise the passenger side bracket first around the exhaust, then raise the driver side into position. This sequence prevents interference with the lowered exhaust.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Verify that the ball is properly tightened. Check the hitch frequently to ensure all fasteners and the ball remain properly tightened.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to ensure the hitch remains securely mounted during towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering control.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch or ball.
Yes, part numbers 76591, 84591, and CQT76591 fit 2020-current Kia Soul. Check the Horizon Global website for the most current trim-level information.
Maximum 2000 lb (908 kg) gross trailer weight and 300 lb (136 kg) tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Fastener kit 76591F includes (4) M10 × 1.25 × 30 CL8.8 bolts and (4) conical 7/16" washers.
No. The hitch uses existing weldnuts in the vehicle frame. Trimming of the lower fascia is required (1" × 5½"), but no drilling.
Yes. Remove the rearmost driver and passenger side rubber exhaust hangers and support the exhaust before installation.
Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle.
Verify all fasteners are tight and the hitch is securely mounted. Check frequently during use to ensure fasteners remain tight.
It may be necessary to clean debris from existing weldnuts in the frame using a wire brush. This will allow the bolts to engage properly with the weldnuts.
Apply spray lubricant or soapy water to the rubber hangers. This will make them slide off the metal pins more easily. Allow the lubricant to soak for a moment before attempting removal.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
