Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

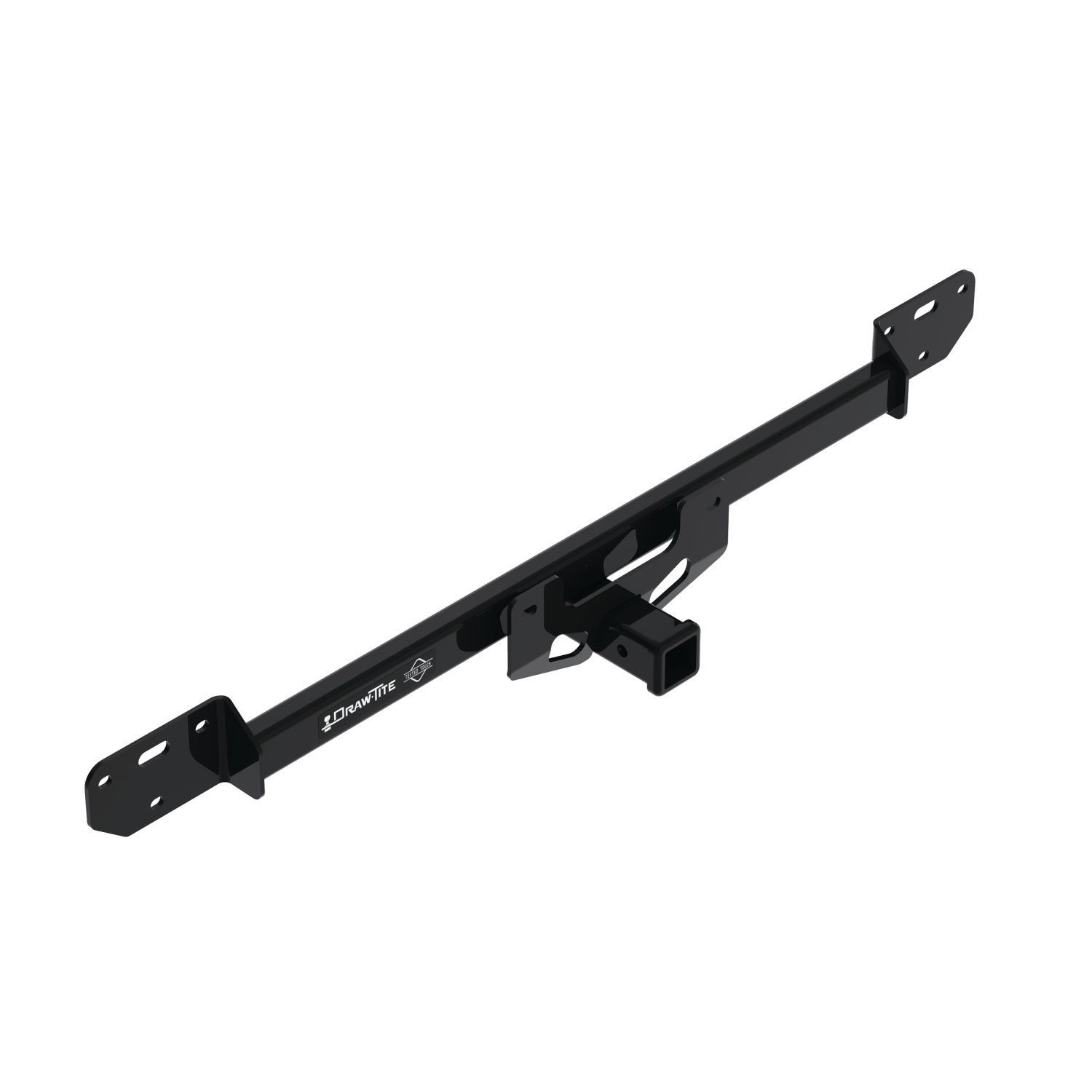

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76637 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2024 | Ram ProMaster 1500 | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2014 - 2024 | Ram ProMaster 2500 | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2014 - 2024 | Ram ProMaster 3500 | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 76637 (Part #DT76637) is designed to fit the 2014-2024 Ram ProMaster 1500.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 76637 (Part #DT76637) fits 2014-2024 Ram ProMaster 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 76637 (Part #DT76637) fits the following vehicles: 2014-2024 Ram ProMaster 1500; 2014-2024 Ram ProMaster 2500; 2014-2024 Ram ProMaster 3500. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select RAM ProMaster 1500, RAM ProMaster 2500, RAM ProMaster 3500 76637 (Part #DT76637) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part numbers 76637, 84637, and CQT76637 are designed for the RAM Promaster 1500. However, the manual directs you to visit the Horizon Global website for the most up-to-date information regarding specific application years, sub-models, and trim levels, as fitment may vary.
The 76637 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 5000 lb (2267 kg) and a maximum tongue weight of 500 lb (226 kg). However, the lowest capacity of any component in your towing system—including your vehicle's manufacturer rating, the hitch, the trailer, and all hardware—determines the actual maximum load you can safely tow.
No. The 76637 is a weight-carrying hitch only. Weight-distributing capability is listed as N/A for this model.
You will need: a ratchet, safety glasses, sockets (15 mm, 16 mm, and 3/4"), a torque wrench, a socket extension, a T30 Torx bit socket, and a 3/4" crowfoot adaptor. A socket extension is also required.
The fastener kit 76637F includes: (4) M10×1.25×40 mm CL10.9 bolts, (4) 7/16" lock washers, (2) ½"-13×1.75 GR5 carriage bolts, (2) blocks measuring 0.25×1.00×3.00 inches, (2) 1/2" conical washers, (2) ½"-13 GR5 hex nuts, and (2) ½"-13 fish wires (bolt leaders).
Yes. The bumper fascia and bumper structure must be removed from the vehicle. The hitch is then installed onto the removed bumper structure using the large access holes and included bolt leaders, and the entire assembly is raised back into place on the vehicle.
If your vehicle has a backup camera, disconnect the wires before completely removing the bumper fascia in step 1. In step 4, when raising the bumper structure and hitch back into place, pass the camera wires through the slot in the middle of the side attachment brackets.
No. The four factory M10 bolts that attach the bumper structure to the vehicle are given to the vehicle owner and are not reused. However, the two factory hex nuts are reused. The installation uses four new M10×1.25×40 mm CL10.9 bolts included in the fastener kit.
All ½"-13 GR5 fasteners must be tightened with a torque wrench to 75 lb-ft (102 N·m).
All M10×1.25 CL10.9 fasteners must be tightened with a torque wrench to 71 lb-ft (96 N·m).
The conical washers must be installed with the teeth side facing against the hitch.
The fish wire (bolt leader) is used to guide the carriage bolts and blocks through the large access holes in the bumper structure. The fish wire should be kinked to keep the block independent of the bolt, ensuring proper alignment of the bolt attachment hole.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
After installation, verify that the hitch is securely mounted to the vehicle and that all fasteners are properly tightened to the prescribed torque values (75 lb-ft for ½"-13 GR5 fasteners and 71 lb-ft for M10×1.25 CL10.9 fasteners). Reattach the backup camera (if present) and the bumper fascia.
You should regularly check that all fasteners are tight and that the hitch is securely mounted to the vehicle. The manual emphasizes that proper torque is needed to keep the hitch secure during towing and that the hitch should be checked frequently to ensure all fasteners and the ball are properly tightened.
Yes. For additional security, thread locker can be used on all fasteners.
A hitch or ball that has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. Do not cut, weld, or modify this trailer hitch. Modifications will void the warranty and compromise the structural integrity and safety of the product.
The 76637 hitch comes with a Limited Lifetime Warranty from Horizon Global Corporation. The warranty covers the original consumer purchaser only and warrants that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if the products are installed, maintained, and used in accordance with the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 127 Public Square Suite 5300, Cleveland, OH 44114, or call 800-632-3290.
Yes, the 76637 is designed for RAM Promaster 1500. Check the Horizon Global website for specific application years, sub-models, and trim levels.
Maximum gross trailer weight is 5000 lb (2267 kg) and maximum tongue weight is 500 lb (226 kg). Your vehicle's manufacturer rating may be lower and will determine your actual towing limit.
You need a ratchet, safety glasses, sockets (15 mm, 16 mm, 3/4"), torque wrench, socket extension, T30 Torx bit socket, and 3/4" crowfoot adaptor.
Yes, the bumper fascia and bumper structure must be removed. The hitch is installed onto the removed bumper structure, then the assembly is raised back into place.
Tighten all ½"-13 GR5 fasteners to 75 lb-ft (102 N·m) and all M10×1.25 CL10.9 fasteners to 71 lb-ft (96 N·m) using a torque wrench.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that the hitch is securely mounted to the vehicle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
