Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

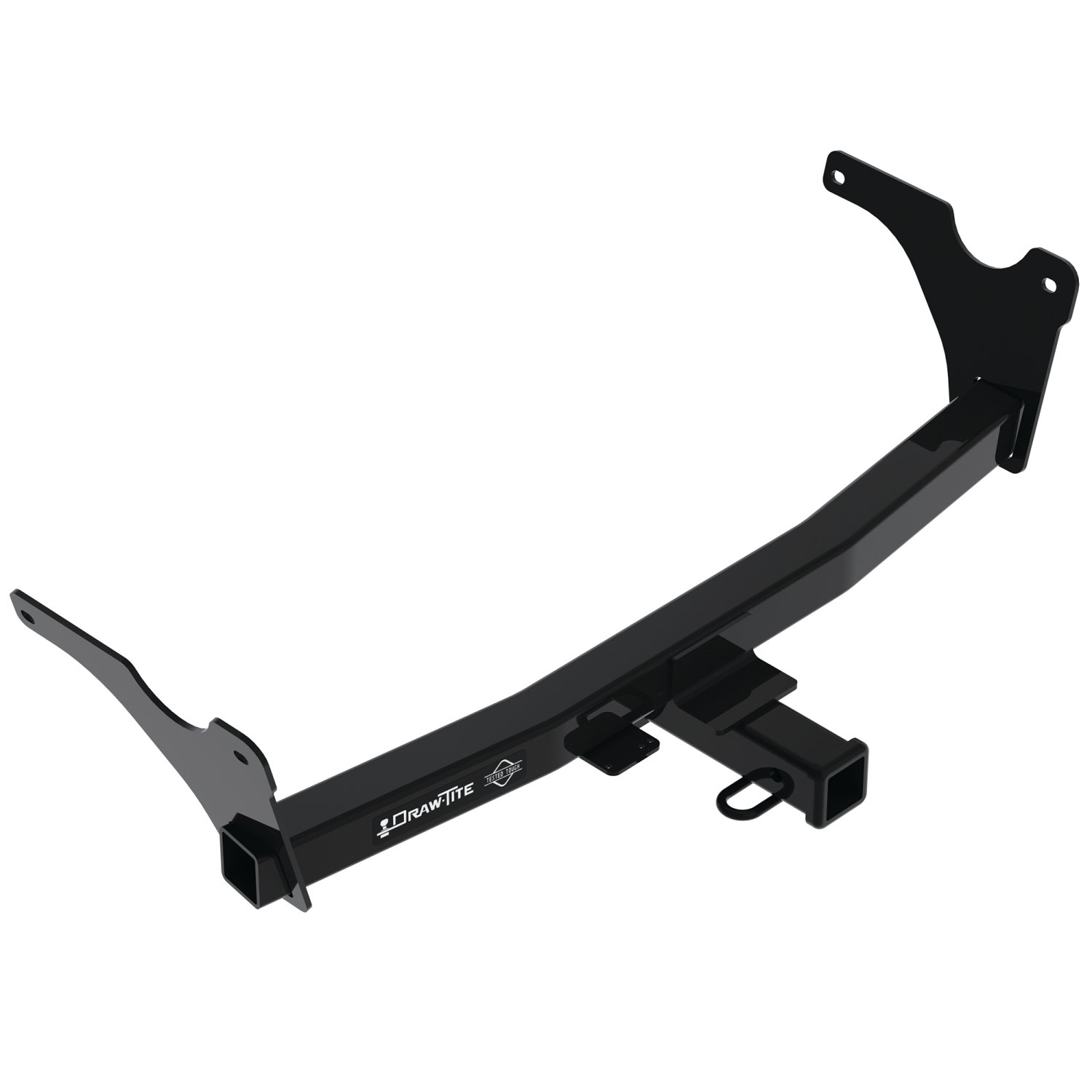

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 500 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76639 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 40 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 500 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2026 | Lexus TX350 | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2024 - 2026 | Lexus TX500h | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2024 - 2026 | Lexus TX550h+ | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2024 - 2026 | Toyota Grand Highlander | Class 3 Trailer Hitch: 5000 lbs 500/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus TX350, Lexus TX500h, Lexus TX550h+, Toyota Grand Highlander 76639 (Part #DT76639) is designed to fit the 2024-2026 Lexus TX350.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus TX350, Lexus TX500h, Lexus TX550h+, Toyota Grand Highlander 76639 (Part #DT76639) fits the following vehicles: 2024-2026 Lexus TX350; 2024-2026 Lexus TX500h; 2024-2026 Lexus TX550h+; 2024-2026 Toyota Grand Highlander. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus TX350, Lexus TX500h, Lexus TX550h+, Toyota Grand Highlander 76639 (Part #DT76639) fits 2024-2026 Lexus TX350 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Lexus TX350, Lexus TX500h, Lexus TX550h+, Toyota Grand Highlander 76639 (Part #DT76639) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76639, 84639, and CQT76639 are designed for the Toyota Grand Highlander. However, the manual does not list specific model years. Visit www.horizonglobal.com for the most up-to-date information regarding application years, sub-models, and trim levels to confirm your vehicle is covered.
The maximum gross trailer weight (GTW) is 5000 lb. (2267 kg) and the maximum tongue weight is 500 lb. (226 kg). These limits apply to both weight-carrying and weight-distributing hitch types. However, the lowest capacity of any component in your towing system—including your vehicle, trailer, and hitch—determines the maximum load you can safely tow. Never exceed your vehicle manufacturer's recommended towing capacity.
Fastener Kit 76639F includes 4× M12 x 1.25 x 30mm hex bolts and 4× 1/2" conical washers. The conical washers must be installed with the teeth side facing toward the hitch.
You will need: a ratchet, 19mm sockets, a socket extension, a torque wrench, a flat-head screwdriver, and safety glasses. A 19mm torque wrench is essential to tighten fasteners to the correct specification of 68 Lb.-Ft. (92 N·m).
Yes. Using a flat-head screwdriver, you must remove the plastic expanding weldnuts plugs from the outside of the frame rail on both sides of the vehicle. These plugs should be returned to the vehicle owner after installation.
All M12 fasteners must be tightened to 68 Lb.-Ft. (92 N·m) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing. For additional security, thread locker can be applied to all fasteners.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation is critical for proper fastener function and hitch security.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regularly verify that all fasteners remain tight and that the hitch is securely mounted to the vehicle. This is essential to maintain hitch towing capacity and product longevity.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is critical to maintain hitch security and towing capacity.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch, as it may fail during towing and cause loss of vehicle control or injury.
No. Do not cut, weld, or modify this trailer hitch. Any modification will void the warranty and may compromise the structural integrity and safety of the hitch.
The product is covered by a Limited Lifetime Warranty from Horizon Global Corporation to the original consumer purchaser only. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions, and is not caused by misuse, neglect, improper installation, unsuitable storage, improper repair, alteration, or accident. Product replacement is the sole remedy. Contact Horizon Global at 127 Public Square Suite 5300, Cleveland, OH 44114, or call 800-632-3290 to initiate a claim. You must provide the product and purchase receipt.
Yes, part numbers 76639, 84639, and CQT76639 fit the Toyota Grand Highlander. Check www.horizonglobal.com to confirm your specific model year, sub-model, and trim level are covered.
Maximum gross trailer weight is 5000 lb. (2267 kg) and maximum tongue weight is 500 lb. (226 kg). Never exceed your vehicle manufacturer's towing capacity, as the lowest capacity in your entire towing system determines your safe limit.
You need a ratchet, 19mm sockets, socket extension, torque wrench, flat-head screwdriver, and safety glasses. The torque wrench is essential to tighten fasteners to 68 Lb.-Ft. (92 N·m).
All M12 fasteners must be torqued to 68 Lb.-Ft. (92 N·m) using a torque wrench. Proper torque is essential for hitch security during towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Regular inspection is critical to maintain hitch security and towing capacity.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
