Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

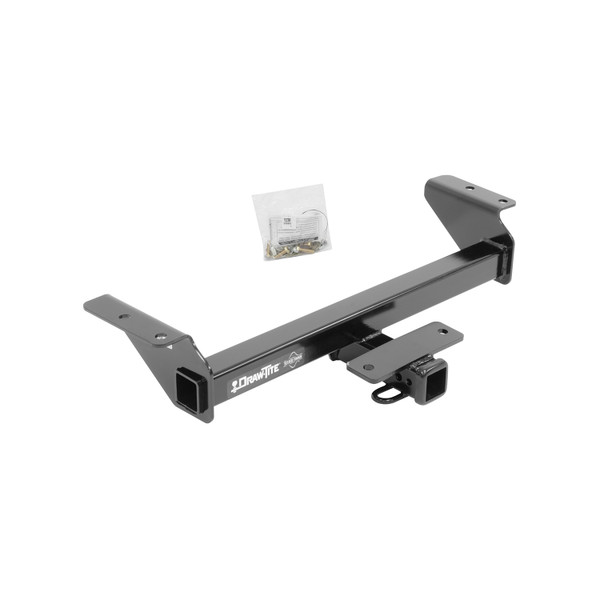

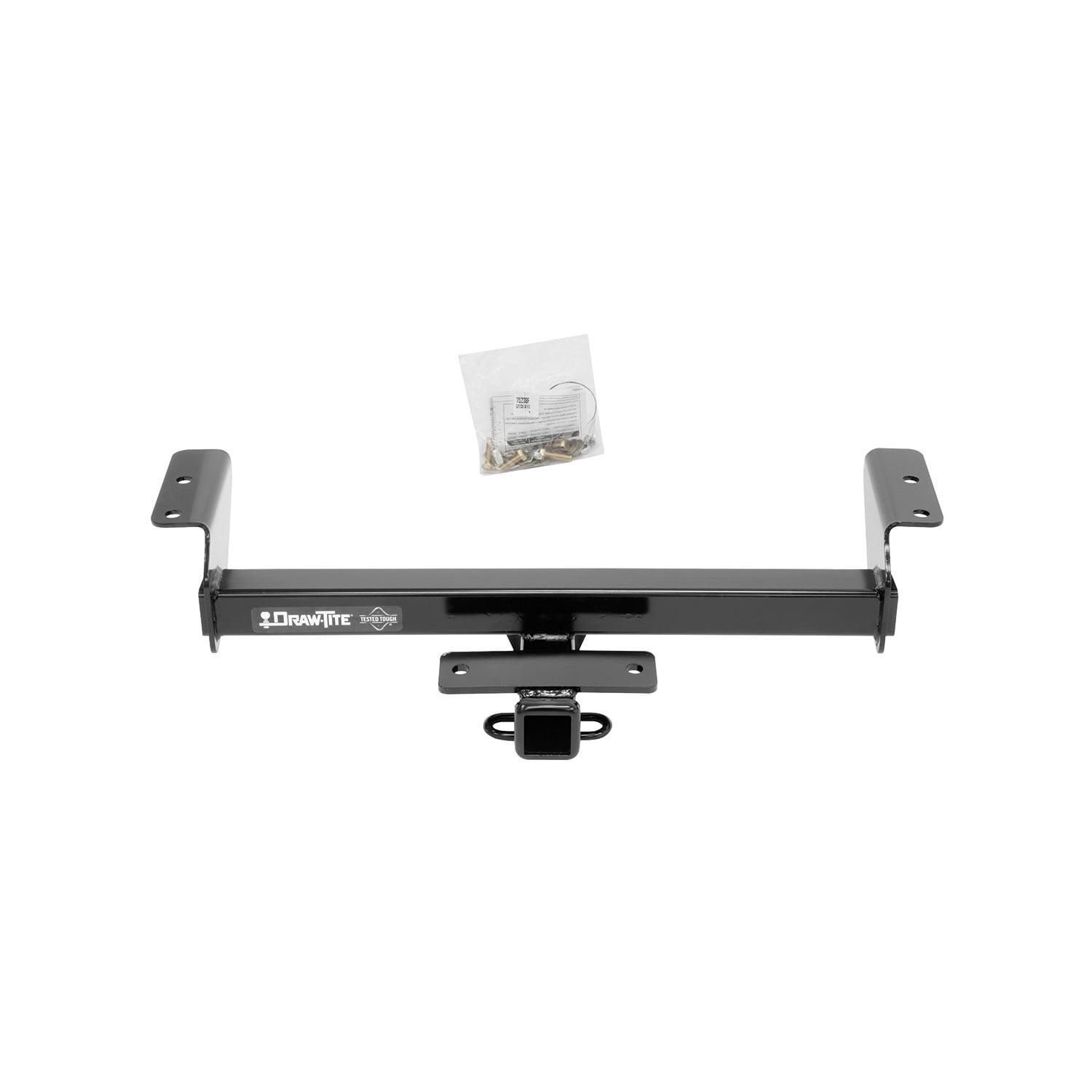

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 7,000 lbs. gross trailer weight (GTW) and up to 1,050 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 1,200 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75238 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35.35 LBS |
| GROSS TOWING WEIGHT: | 7,000 LBS. |
| GROSS TONGUE WEIGHT: | 1,050 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 8,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 1,200 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2023 | Toyota Tacoma | Class 4 Trailer Hitch: 7000 lbs 1,050/7,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 1,200/8,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Tacoma 75238 (Part #DT75238) fits the following vehicles: 2016-2023 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Tacoma 75238 (Part #DT75238) is designed to fit the 2016-2023 Toyota Tacoma.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Tacoma 75238 (Part #DT75238) fits 2016-2023 Toyota Tacoma models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Tacoma 75238 (Part #DT75238) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 75238 hitch is designed for 2016 Toyota Tacoma. Visit the Cequent website for the most up-to-date information regarding specific trim levels and current model year compatibility.
You will need: a ratchet, torque wrench, safety glasses, 19mm and 11/16" sockets, a 6" socket extension, and an M12x1.25 tap (to clean weldnuts if necessary).
Tighten all M12 fasteners to 105 Lb.-Ft. (142 N·M) and all 7/16" fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The 75238 is a weight-carrying hitch with a maximum gross trailer weight of 7000 lb. (3178 kg) and maximum tongue weight of 1050 lb. (476 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
No drilling is required. The hitch uses existing frame weldnuts. You may need to use an M12x1.25 tap to clean the weldnuts if necessary.
The maximum tongue weight is 1050 lb. (476 kg) for the weight-carrying configuration. Do not exceed this limit or your vehicle manufacturer's rating, whichever is lower.
No bumper removal is mentioned in the installation instructions. The hitch is installed by feeding carriage bolts through the bumper beam side opening using pull wires.
The fastener kit 75238F includes: (4) M12 1.25x40 bolts CL10.9, (4) 1/2" conical washers, (2) 7/16"-14x1.25 carriage bolts GR5, (2) 0.109" spacers with square hole, (2) 7/16" pull wires, (2) 7/16" conical washers, and (2) 7/16"-14 hex nuts GR2.
1. Clean the frame weldnuts using an M12x1.25 tap if necessary. 2. Insert pull wires into the bumper beam side opening and use them to feed carriage bolts and spacer into the bumper beam; leave pull wires attached. 3. Raise the hitch into position and feed carriage bolts through top plate holes. 4. Loosely install M12 bolts and conical washers through bracket holes into frame weldnuts. 5. Loosely install hex nuts and conical washers on carriage bolts. 6. Tighten all M12 fasteners to 105 Lb.-Ft. (142 N·M) and all 7/16" fasteners to 50 Lb.-Ft. (68 N·M).
Fasteners are left loose during initial installation to allow the hitch to be properly positioned and aligned before final tightening. This ensures correct fitment to the vehicle frame and bumper beam.
Pull wires (part ⑤) are inserted into the bumper beam through the side opening and used to feed the carriage bolts (③) and spacer (④) into the bumper beam. They are left attached during installation to assist with positioning.
All M12 fasteners must be tightened to 105 Lb.-Ft. (142 N·M) using a torque wrench.
All 7/16" fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
An M12x1.25 tap is used to clean the two weldnuts at the end of the frame rail on each side if necessary. This ensures the threads are clear before installing the M12 bolts.
Always wear safety glasses during installation. Observe safety precautions when working beneath the vehicle. Do not cut access or attachment holes with a torch. Keep the installation instructions for future reference.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
Load the trailer heavier in front to maintain proper weight distribution and stability.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut, weld, or modify this receiver. Doing so will compromise the structural integrity and safety of the hitch.
The 75238 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt.
The manual lists 2016 Toyota Tacoma as the application. For current model year compatibility and specific trim level information, visit the Cequent website at www.cequentgroup.com for the most up-to-date application information.
Insert the pull wires into the bumper beam through the bumper beam side opening. Use the pull wires to feed the carriage bolts and spacer into the bumper beam. Then raise the hitch into position and feed the carriage bolts through the top plate holes. The spacer should be positioned with the square hole aligned with the carriage bolt.
The conical washers should be positioned with the teeth side against the hitch when installed on the carriage bolts.
The M12 bolts are M12 1.25x40, Class 10.9 (CL10.9). There are 4 bolts in the fastener kit. They are tightened to 105 Lb.-Ft. (142 N·M).
The carriage bolts are 7/16"-14x1.25, Grade 5 (GR5). There are 2 carriage bolts in the fastener kit. They are tightened to 50 Lb.-Ft. (68 N·M).
The hex nuts are 7/16"-14, Grade 2 (GR2). There are 2 hex nuts in the fastener kit, installed on the carriage bolts and tightened to 50 Lb.-Ft. (68 N·M).
The spacers are 0.109" thick with a square hole. There are 2 spacers in the fastener kit, positioned on the carriage bolts inside the bumper beam.
Two types of conical washers are used: (4) 1/2" conical washers for the M12 bolts, and (2) 7/16" conical washers for the carriage bolts. The 7/16" washers should be positioned with the teeth side against the hitch.
The average installation time for professional installers is 20 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
The 75238 is a weight-carrying hitch with a maximum gross trailer weight of 7000 lb. (3178 kg) and maximum tongue weight of 1050 lb. (476 kg). A weight-distributing hitch has higher capacity limits: 8000 lb. (3632 kg) gross trailer weight and 1200 lb. (545 kg) tongue weight. Do not exceed the lower of your vehicle manufacturer's rating or the hitch capacity limits.
The 75238 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The manual does not specify whether battery disconnection is required for this installation.
Use an M12x1.25 tap to clean the weldnuts at the end of the frame rail on each side. Debris or corrosion in the weldnut threads may prevent proper bolt installation. After cleaning, attempt to install the bolts again.
Check all fasteners and retighten them to the correct torque specifications: M12 fasteners to 105 Lb.-Ft. (142 N·M) and 7/16" fasteners to 50 Lb.-Ft. (68 N·M). Check the hitch frequently to ensure all fasteners remain properly tightened, as vibration during towing can cause fasteners to loosen.
If the hitch has been removed, holes in the trunk pan or other body panels must be plugged to prevent entry of water and exhaust fumes. Inspect all holes created during installation and seal them appropriately.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
