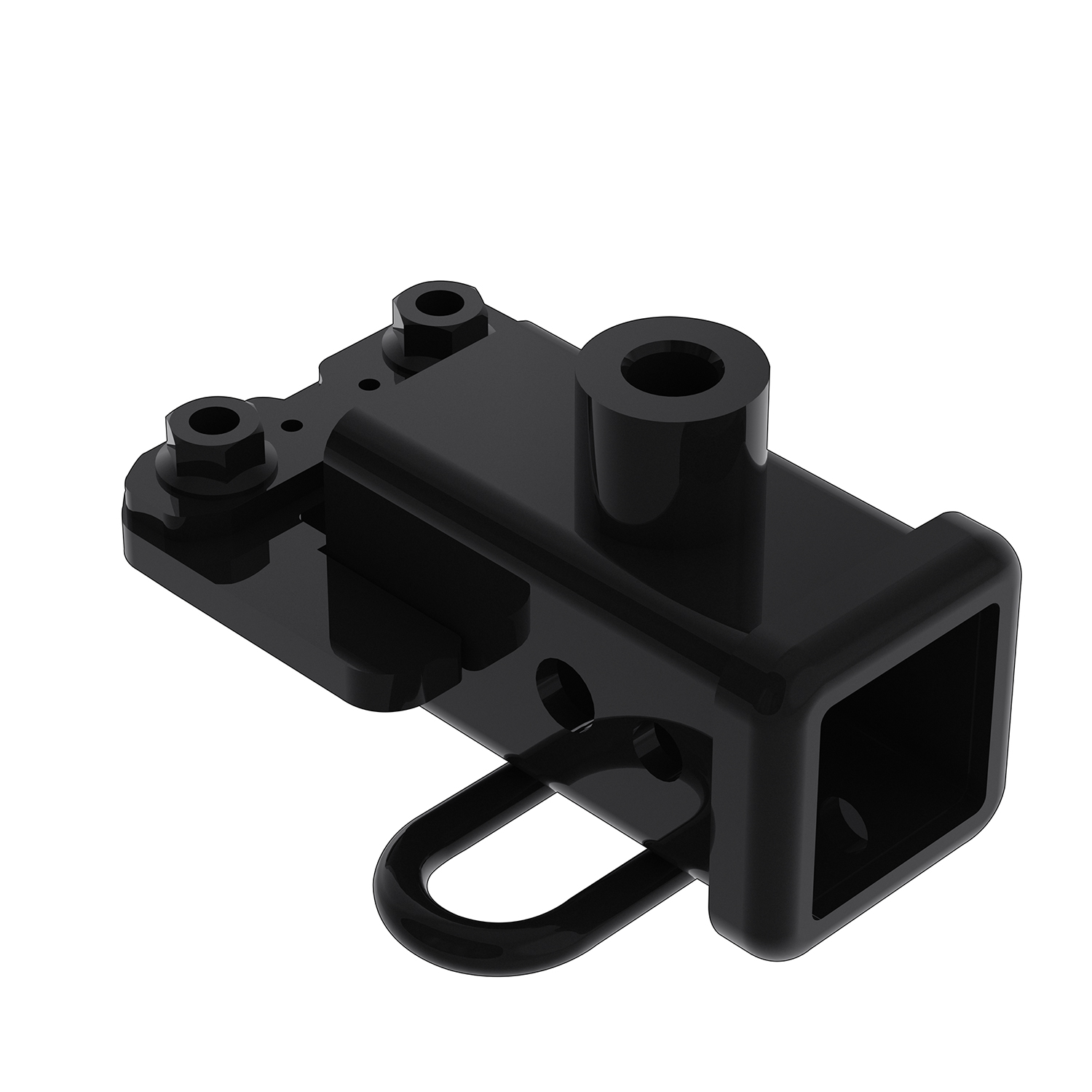

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76328 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 7.51 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
Yes. Part numbers 76328, 84328, and CQT76328 are designed for 2019-current Dodge RAM 1500. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and model years.
Maximum Gross Trailer Weight is 6000 lb (2722 kg) and maximum tongue weight is 600 lb (272 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You will need: safety glasses, a ratchet, 1/2" and 3/4" sockets (1/2" drive), and a torque wrench. The fastener kit 76328F is included.
Tighten the 3/4-10 X 3.00 GR8 fastener to 380 ft-lb and the 1/2-13 X 1.75 GR5 fasteners to 75 ft-lb using a torque wrench.
No drilling is required. The hitch uses an existing opening in the rear bumper fascia. Do not use a torch to cut access or attachment holes.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
The fastener kit 76328F includes: (2) 1/2-13-1.75 GR5 hex bolts, (2) 1/2" conical washers, (1) 3/4-10x3.00 GR8 hex bolt, (1) 3/4" flat washer, and (1) black rubber cap bolt (part no. 116133).
No. The 76328 is designed for 2019-current Dodge RAM 1500 models only. Check the manufacturer's website for fitment information on other model years.
1. Remove the plug from the center of the rear bumper fascia by hand. 2. Using a 3/4" socket, remove the (2) hex bolts and conical washers holding the support plate on the hitch, then insert the support plate into the opening on top of the safety chain loop of the bumper beam, keeping the weld nuts on top. 3. Raise the hitch into position and loosely install (1) 3/4" bolt with (1) flat washer. 4. Loosely install (2) 1/2" bolts with (2) conical toothed washers from the bottom of the hitch into the weld nut of the support plate. 5. Tighten the 3/4-10 X 3.00 GR8 fastener to 380 ft-lb and the 1/2-13 X 1.75 GR5 fasteners to 75 ft-lb with a torque wrench. 6. Install the bolt cap on the head of the 3/4" bolt.
Leave all bolts loose during the initial installation steps. Only after the hitch is positioned and all bolts are installed should you tighten them to the specified torque values: 380 ft-lb for the 3/4-10 X 3.00 GR8 fastener and 75 ft-lb for the 1/2-13 X 1.75 GR5 fasteners.
The conical washers have a teeth side and a smooth side. The teeth side must face against the hitch. Install the (2) conical toothed washers with the teeth side toward the hitch when inserting the 1/2" bolts from the bottom into the support plate weld nuts.
The support plate is inserted into the opening on top of the safety chain loop of the bumper beam. It provides a mounting surface for the hitch and is secured with (2) 1/2" bolts and conical washers. The weld nuts on the support plate must remain on top during insertion.
The black rubber cap bolt (part no. 116133) is installed on the head of the 3/4" bolt after the hitch is fully tightened. It covers and protects the bolt head.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact retorque interval, but periodic inspection is required.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps with stability and proper weight distribution.
No. The hitch installation uses an existing opening in the rear bumper fascia. You only need to remove the plug from the center of the bumper fascia to access the mounting point.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
No. The 76328 is a weight carrying hitch only. Weight distributing is listed as N/A in the specifications.
The average installation time is 15 minutes for professional installers. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
The main hitch mounting bolt is 3/4-10 X 3.00 GR8 (3/4" diameter, 10 threads per inch, 3.00" length, Grade 8). It must be tightened to 380 ft-lb.
The support plate bolts are 1/2-13 X 1.75 GR5 (1/2" diameter, 13 threads per inch, 1.75" length, Grade 5). There are (2) of these bolts, and they must be tightened to 75 ft-lb each.
The (2) 1/2" support plate bolts are installed from the bottom of the hitch and threaded into the weld nut of the support plate.
The 76328 hitch is covered by a Limited Lifetime Warranty from Horizon Global Americas Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt to process a claim.
For technical assistance, contact Horizon Global Americas Inc. at 1-800-632-3290 or email TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com.
The 76328 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
No. Do not cut, weld, or modify the receiver. Modifications are not permitted and will compromise the safety and integrity of the hitch.
No. Do not cut access or attachment holes with a torch. The hitch is designed to use the existing opening in the rear bumper fascia.
Check all fasteners to ensure they are tight. Retighten the 3/4-10 X 3.00 GR8 fastener to 380 ft-lb and the 1/2-13 X 1.75 GR5 fasteners to 75 ft-lb using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened.
Ensure that the weld nuts of the support plate are positioned on top during insertion into the opening on top of the safety chain loop of the bumper beam. The support plate must be oriented correctly with the weld nuts facing upward for proper fitment.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
