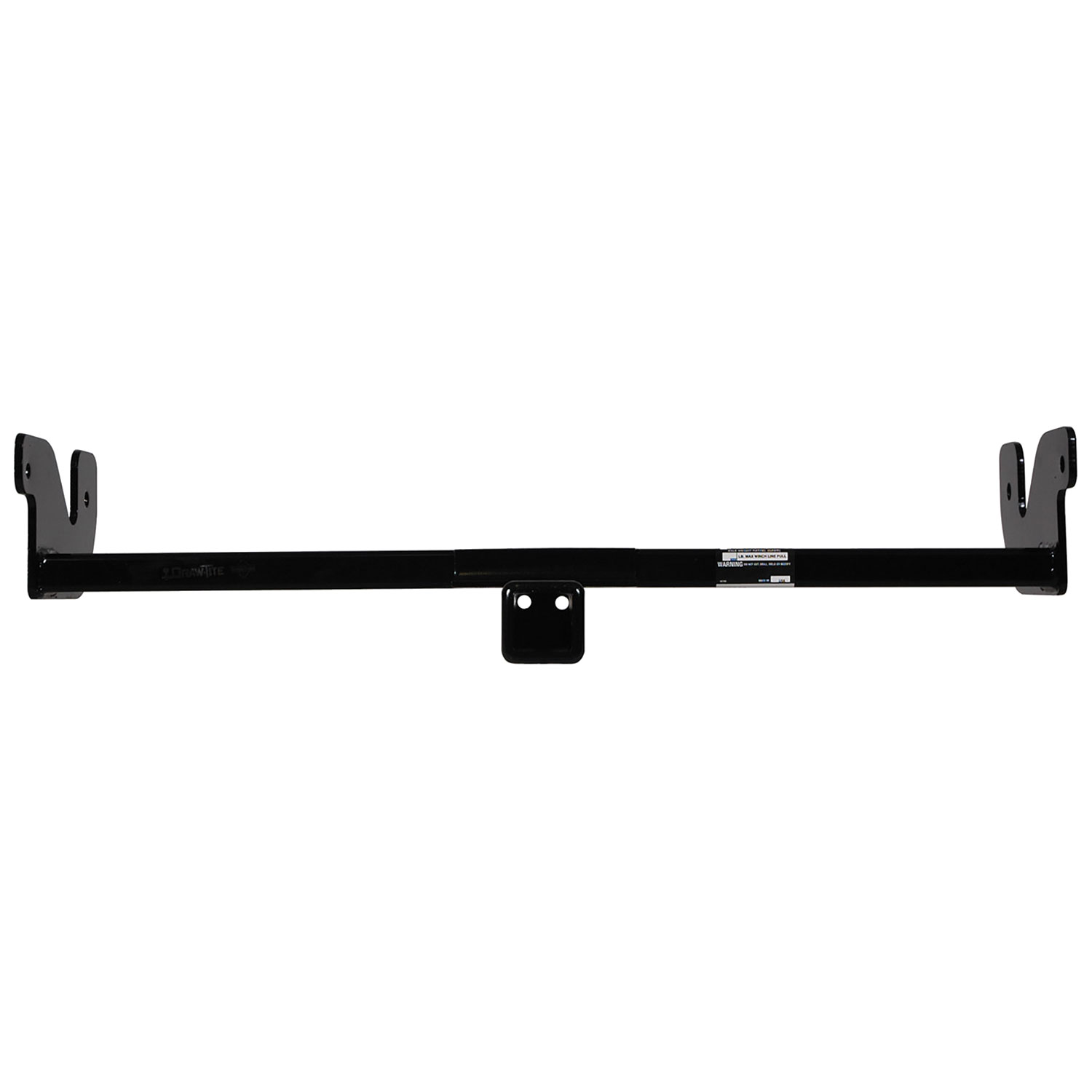

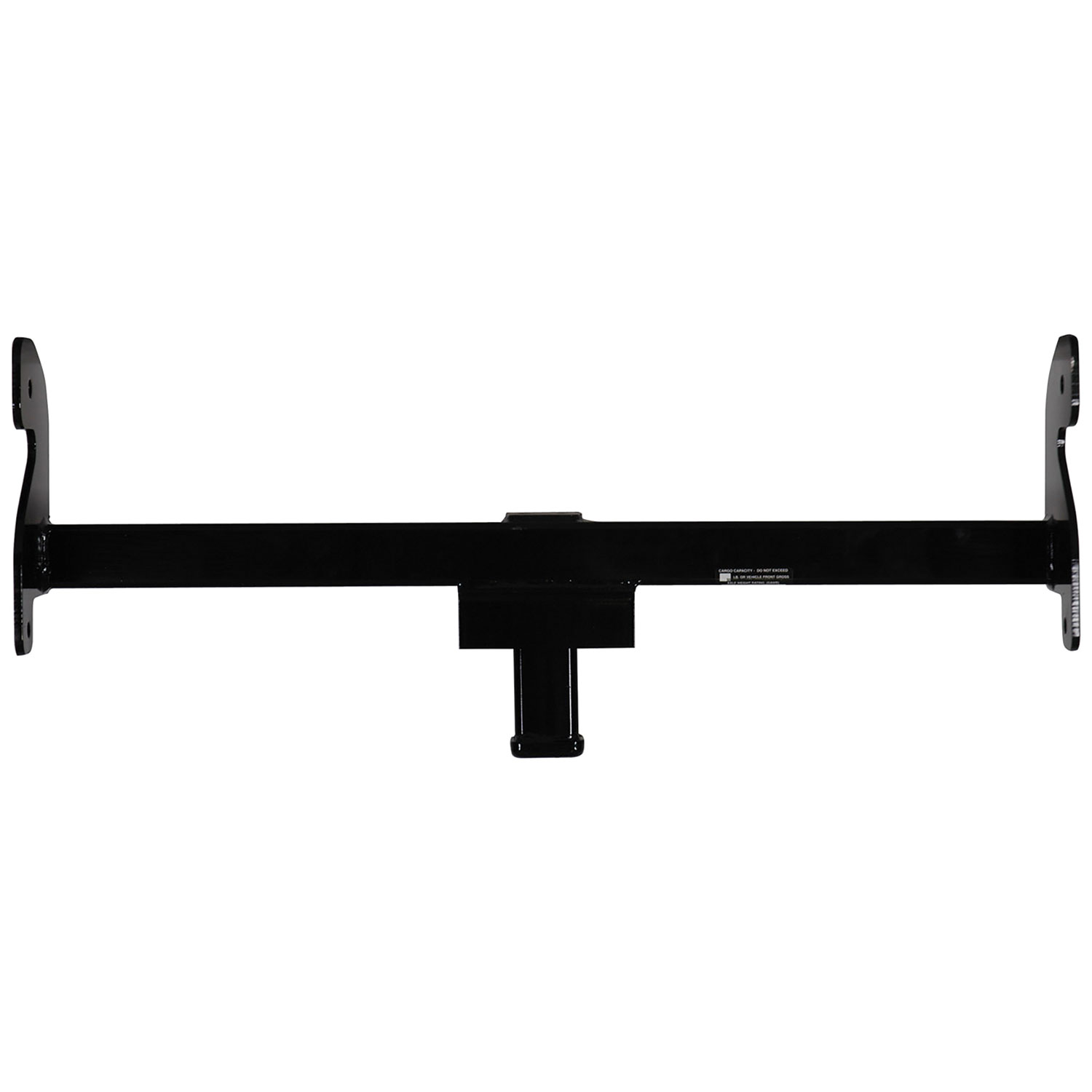

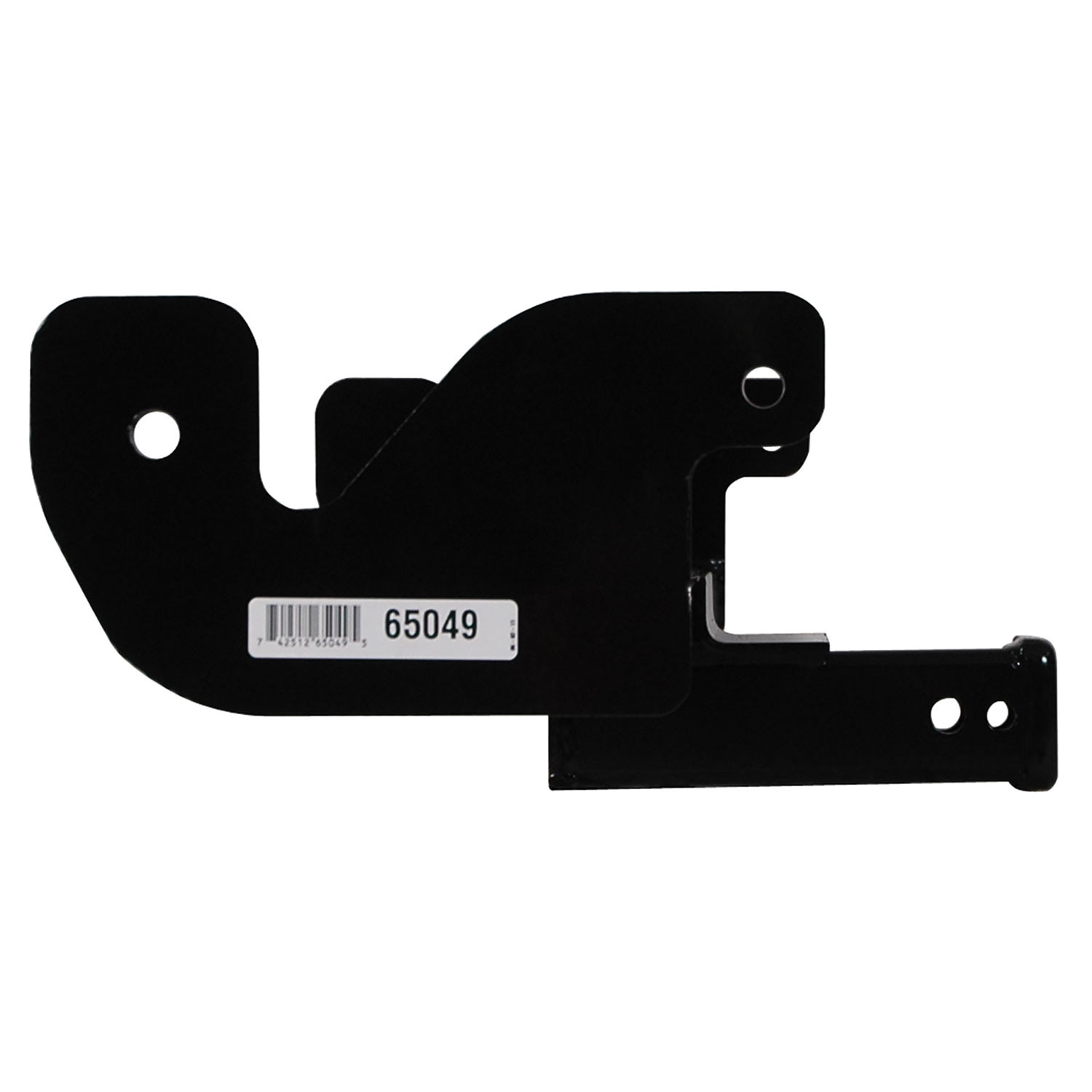

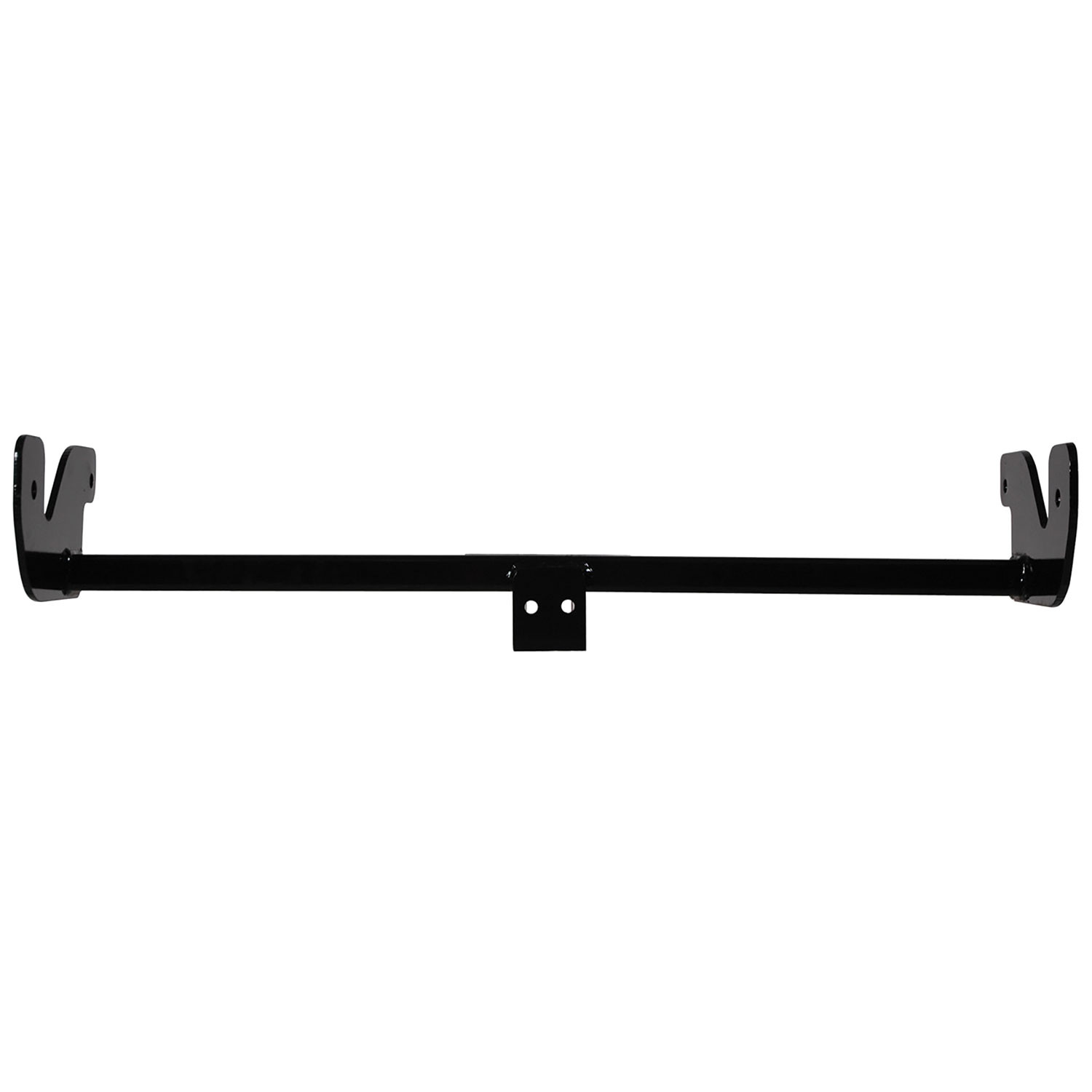

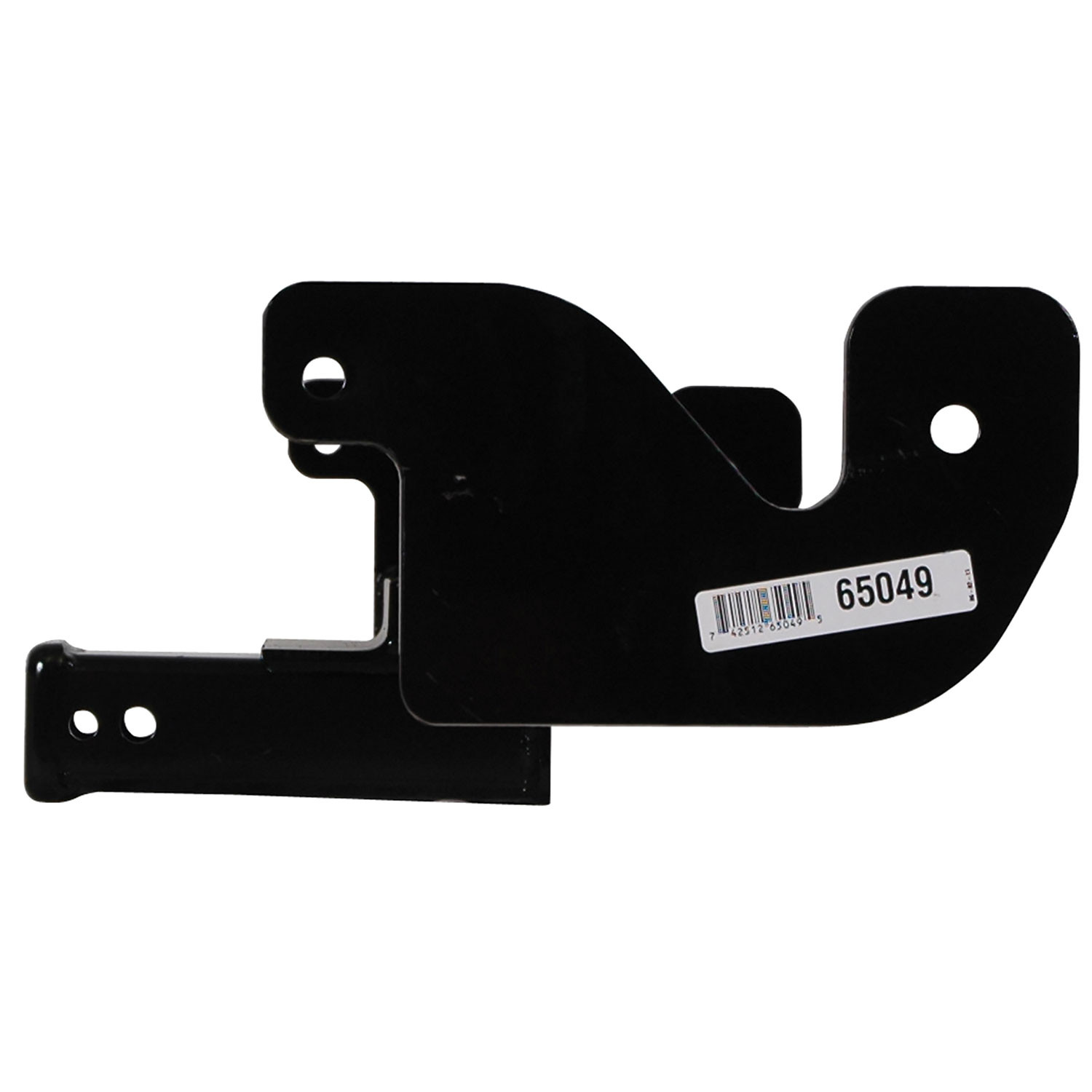

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65049 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
6 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2016 | Ford F-250 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2008 - 2016 | Ford F-350 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2008 - 2025 | Ford F-350 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes Cab & Chassis Only |
| 2008 - 2016 | Ford F-450 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2008 - 2025 | Ford F-450 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes Cab & Chassis Only |
| 2008 - 2018 | Ford F-550 Super Duty | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 20 minutes Cab & Chassis Only |
The Trailer Hitch for 08-16 Ford F-250 Super Duty, 08-23 Ford F-350 Super Duty, 08-23 Ford F-450 Super Duty, 08-18 Ford F-550 Super Duty (Part #DT65049) fits the following vehicles: 2008-2016 Ford F-250 Super Duty; 2008-2025 Ford F-350 Super Duty; 2008-2025 Ford F-450 Super Duty; 2008-2018 Ford F-550 Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the Trailer Hitch for 08-16 Ford F-250 Super Duty, 08-23 Ford F-350 Super Duty, 08-23 Ford F-450 Super Duty, 08-18 Ford F-550 Super Duty (Part #DT65049) is designed to fit the 2008-2016 Ford F-250 Super Duty.
The Trailer Hitch for 08-16 Ford F-250 Super Duty, 08-23 Ford F-350 Super Duty, 08-23 Ford F-450 Super Duty, 08-18 Ford F-550 Super Duty (Part #DT65049) fits 2008-2016 Ford F-250 Super Duty models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Trailer Hitch for 08-16 Ford F-250 Super Duty, 08-23 Ford F-350 Super Duty, 08-23 Ford F-450 Super Duty, 08-18 Ford F-550 Super Duty (Part #DT65049) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 65049 is designed for Ford SuperDuty 250/350/450, including all Cab-on-Chassis models.
The maximum cargo capacity is 500 LB or the truck front Gross Axle Weight Rating (GAWR), whichever is lower. For this receiver, the truck front GAWR limit is 9,000 lb. Do not exceed either limit.
You will need wrenches in the following sizes: 13/16", 7/8", 15/16", and 18mm. A torque wrench is also required to tighten fasteners to specification. No drill bits are needed.

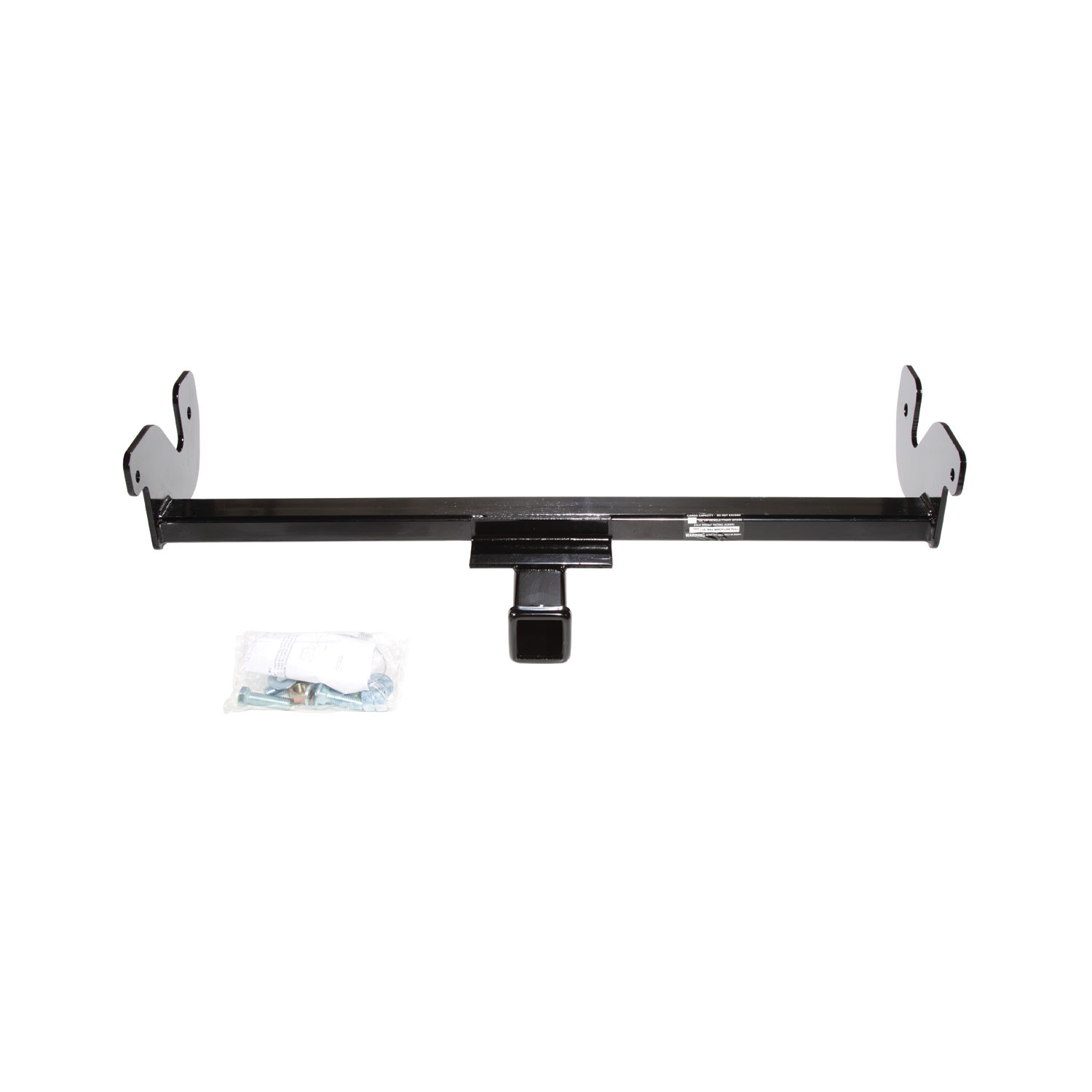

The kit includes: 2× Hex Bolt 9/16"-12 × 2" Gr5, 2× Carriage Bolt 5/8"-11 × 2" Gr5, 2× Flat Washer 9/16", 2× Lock Washer 5/8", 2× Lock Washer 9/16", 2× Hex Nut 5/8", 2× Hex Nut 9/16", and 1× Bolt Leader 5/8".
Yes, if existing frame end brackets are present on both sides of the truck, they must be removed before installation. Return the removed brackets to the vehicle owner.
On newer model trucks, it is necessary to trim or cut the opening in the plastic air dam attached to the bottom of the bumper. You must consult the vehicle owner before trimming or cutting the plastic air dam. The manual does not specify the exact extent of trimming required for all models.
The 5/8" bolt leader is used to pull the 5/8" carriage bolt into the frame slot. Insert the bolt leader through the slot in the truck frame, attach the carriage bolt to it, and pull the carriage bolt into position. On newer model trucks with a bracket on the outside of the frame, insert the bolt from the opposite direction.
Tighten all 9/16" GR5 fasteners with a torque wrench to 110 Lb.-Ft (149 N-M).
Tighten all 5/8" GR5 fasteners with a torque wrench to 150 Lb.-Ft (203 N-M).
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to pinch electrical wiring between the hitch and bumper during installation.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
A hitch or ball which has been damaged should be removed and replaced immediately.
Yes, the 65049 is designed for Ford SuperDuty 250/350/450, including all Cab-on-Chassis models.
No, no drilling is required. The receiver uses existing frame slots and fasteners from the included 65049F kit.
On newer model trucks, trimming or cutting the plastic air dam attached to the bumper is necessary. You must consult the vehicle owner before doing so.
9/16" GR5 fasteners: 110 Lb.-Ft (149 N-M). 5/8" GR5 fasteners: 150 Lb.-Ft (203 N-M). Use a torque wrench for all fasteners.
Maximum 500 LB or truck front GAWR of 9,000 lb, whichever is lower. Do not exceed either limit.
Check frequently that all fasteners and the ball are properly tightened. Ensure electrical wiring is not pinched between the hitch and bumper.
