Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

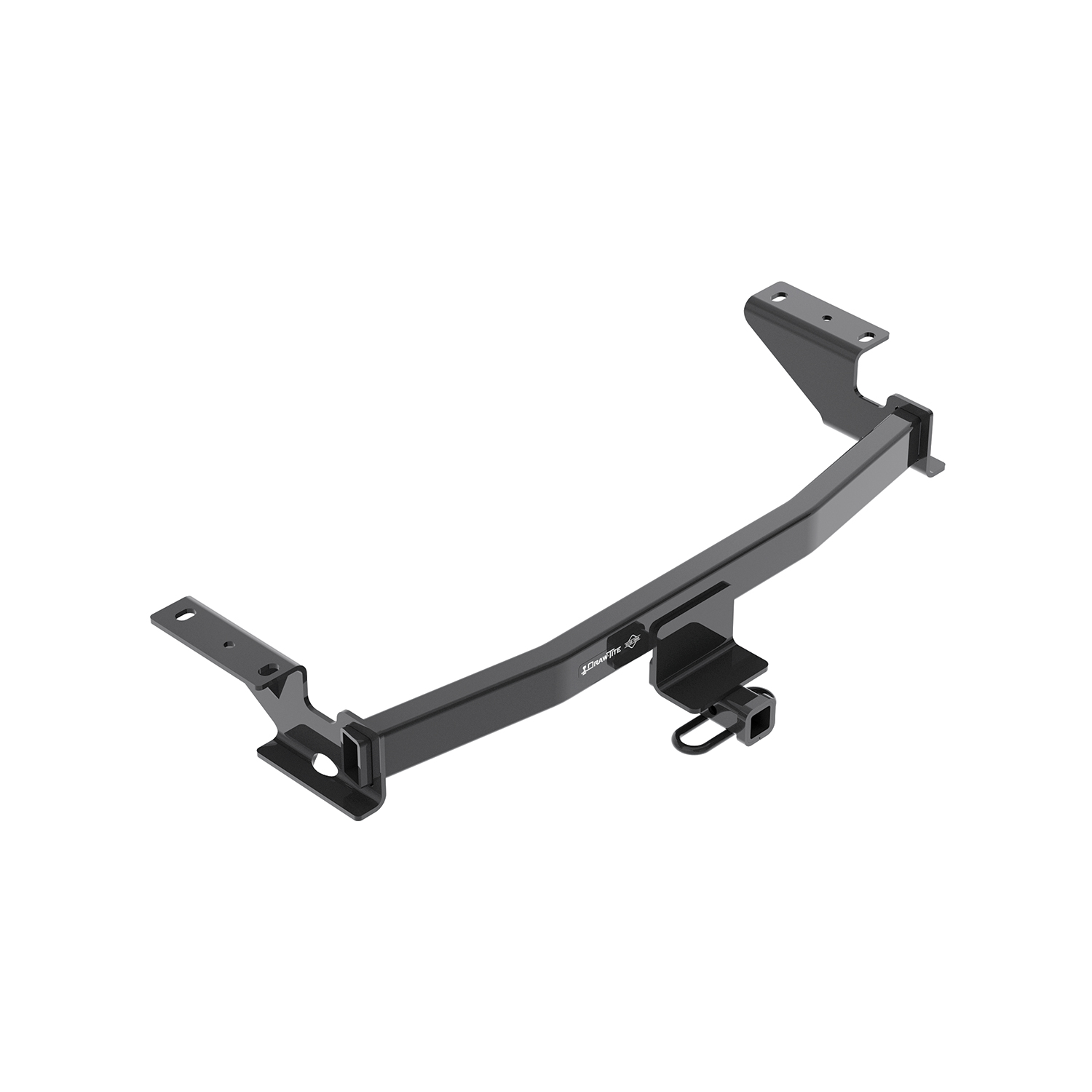

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36601 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.1 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
How to Install a Receiver (Trailer) Hitch - Draw•Tite®
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2024 | Mazda CX-5 | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2013 - 2016 | Mazda CX-5 | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda CX-5 36601 (Part #DT36601) fits 2013-2024 Mazda CX-5 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda CX-5 36601 (Part #DT36601) is designed to fit the 2013-2024 Mazda CX-5.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda CX-5 36601 (Part #DT36601) fits the following vehicles: 2013-2024 Mazda CX-5. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda CX-5 36601 (Part #DT36601) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 36601 fits 2013-current Mazda CX-5 models. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
The 36601 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, and 3/4" sockets. Optional tools include a 6" socket extension, universal joint socket, small flat-head screwdriver, exhaust removal pliers, pry bar, ratchet tie-down, lubricant or soapy water, and bungee cord.
Yes. The exhaust must be lowered by removing four rubber hangers and supported to prevent it from falling under its own weight. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal and reinstallation.
All 1/2 GR5 fasteners must be tightened to 75 lb-ft (102 N·M). A universal joint socket may be needed to tighten the rearward fasteners on both sides.
No drilling is required. The hitch uses a pull wire fastening system that threads through existing frame holes. The forward attachment hole and access hole in the frame are pre-existing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to the vehicle.
The fastener kit 36601F includes: (4) carriage bolts 1/2-13 x 1.50 GR5, (4) spacers .250 x 1 x 3 (part 3022), (4) conical washers 1/2", (4) hex nuts 1/2-13 GR5, and (4) fish wires 1/2-13. All fasteners are included and no additional hardware is required.
The 36601 is a weight-carrying hitch only. Weight-distributing capability is not available for this model, as indicated by the "---" entries in the weight-distributing row of the specifications table.
The pull wire system uses a coiled wire (fish wire) to thread fasteners through frame holes that are difficult to access. The coiled end of the pull wire is fed through the forward attachment hole and out the access hole. The spacer and carriage bolt are threaded onto the pull wire, then the pull wire is pulled to draw the fasteners into position. The pull wire remains attached until the conical washer and hex nut are installed.
The reverse pull wire procedure is used to install fasteners on the rear side of the frame rails. The carriage bolt is threaded onto the pull wire and fed into the access hole on the frame rail, then the spacer is fed onto the pull wire and into the access hole, and finally the carriage bolt is pulled into position through the spacer.
Plastic fascia rivets may be present. If they are present, remove them by extracting the center of the rivet with a flat-head screwdriver. Keep the rivets for reinstallation after the hitch is installed.
The conical washer must be positioned with the teeth side against the hitch. The conical washer is used to hold the bolt in place before the hex nut is attached.
Yes. After installing the conical washer and hex nut, hand-tighten both sides before applying final torque. All 1/2 GR5 fasteners are then tightened to 75 lb-ft (102 N·M) with a torque wrench.
Gently pull the fascia rearward as needed to gain access between the fascia and exhaust hanger when raising the hitch above the exhaust and feeding the pull wires through the attachment points on the hitch brackets.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust to prevent it from falling under its own weight.

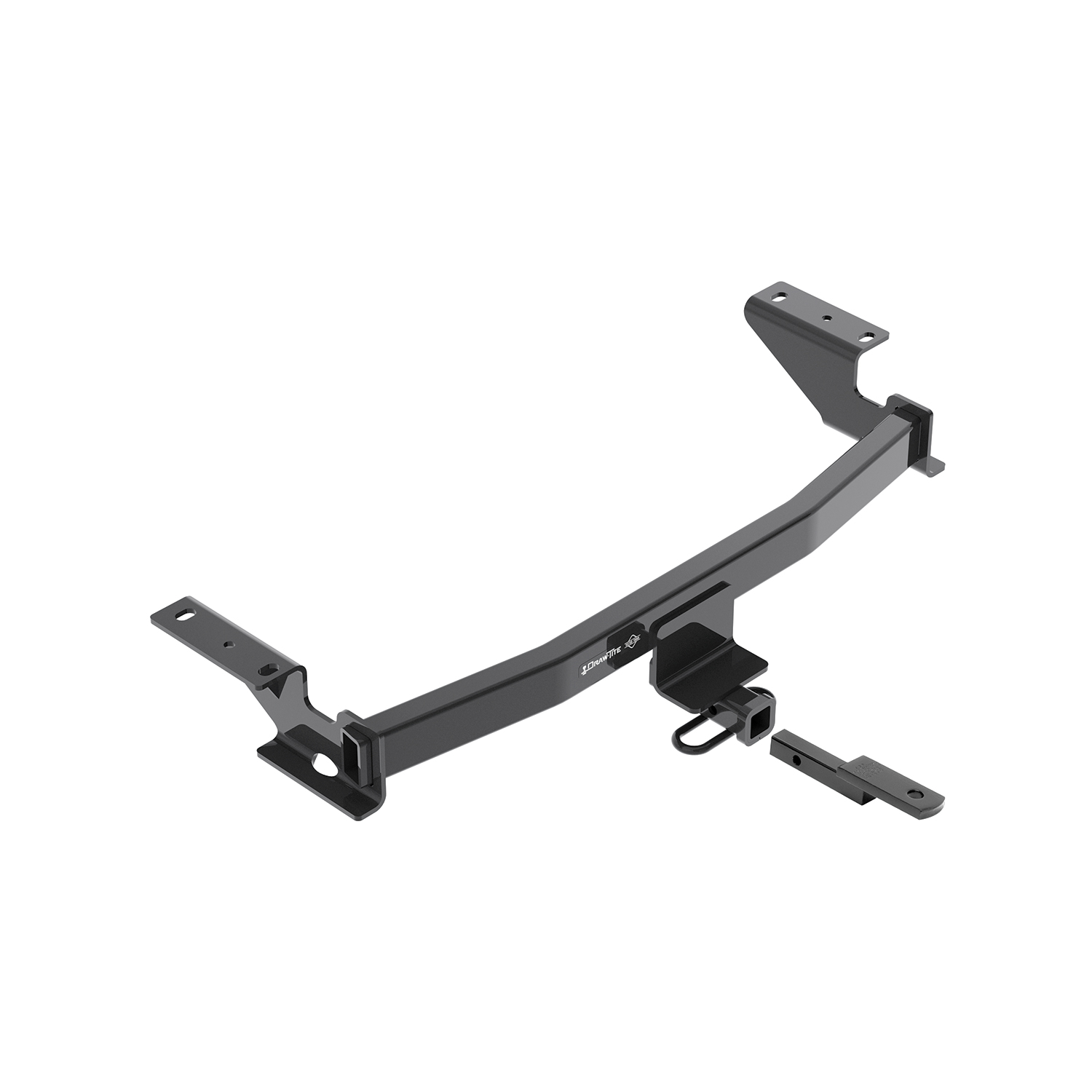

The authorized drawbar kit is part number 36051, sold separately. The drawbar must be used in the RISE position only.
Load the trailer heavier in front. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's maximum gross trailer weight of 3500 lb and maximum tongue weight of 350 lb.
Spray a lubricant or soapy water on the metal hanger rod and the rubber isolator. This helps with both removal and reinstallation of the exhaust.
The average installation time for professional installers is 20 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
No permanent modifications are required. The hitch uses existing frame holes for attachment. The exhaust must be temporarily lowered and supported during installation, then reinstalled. Plastic fascia rivets may need to be temporarily removed and reinstalled.
The 36601 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the instructions. To make a warranty claim, contact Cequent at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, and provide the product model number and purchase receipt.
Spray lubricant or soapy water on the metal hanger rod and the rubber isolator. This helps reduce friction and makes removal easier. Allow the lubricant to soak for a few minutes if needed before attempting removal.
Use a small flat-head screwdriver to remove the center of the rivet. If it is stuck, apply gentle pressure and work the screwdriver around the rivet center to loosen it before pulling it out. Keep the rivets for reinstallation.
Gently pull the fascia rearward to create more space. If access is still limited, ensure the exhaust is fully lowered and supported. You may need to lower it further or adjust the support to gain adequate clearance.
Stop and carefully work the pull wire free. Do not force it, as this may damage the wire or fasteners. Ensure the coiled end is properly fed through the forward attachment hole and out the access hole. If the wire is damaged, it may need to be replaced before continuing.
Ensure you are using a calibrated torque wrench and that all fasteners are properly seated. If a fastener resists tightening before reaching 75 lb-ft (102 N·M), stop and check that the carriage bolt, spacer, conical washer, and hex nut are all properly aligned and installed. Do not force the fastener, as this may strip the threads or damage the components.
Check that all fasteners are tight and properly torqued to 75 lb-ft (102 N·M). Verify that the conical washers are positioned correctly with the teeth side against the hitch. If fasteners are loose, retighten them to the specified torque. Check the hitch frequently after installation to ensure all fasteners remain tight.
