Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

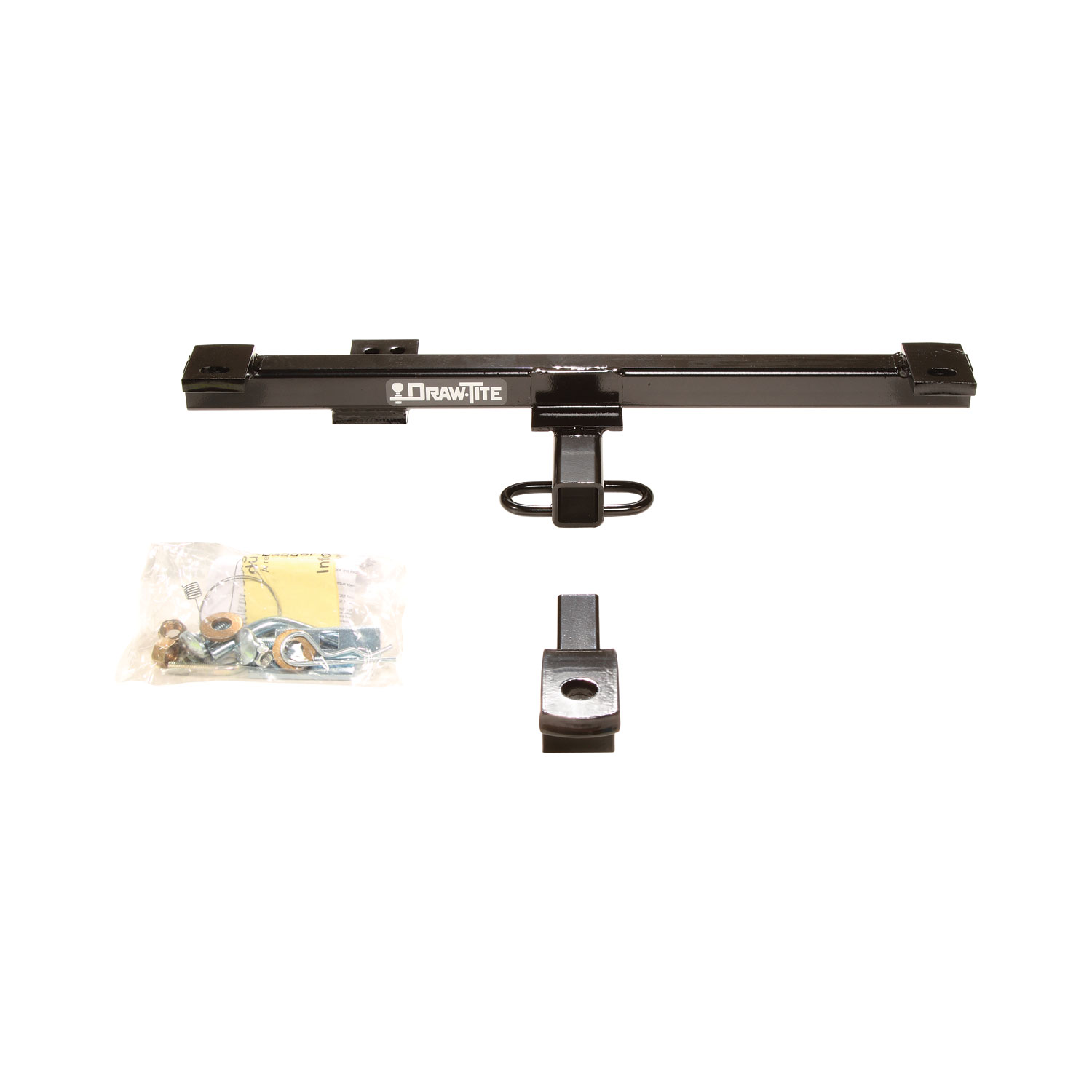

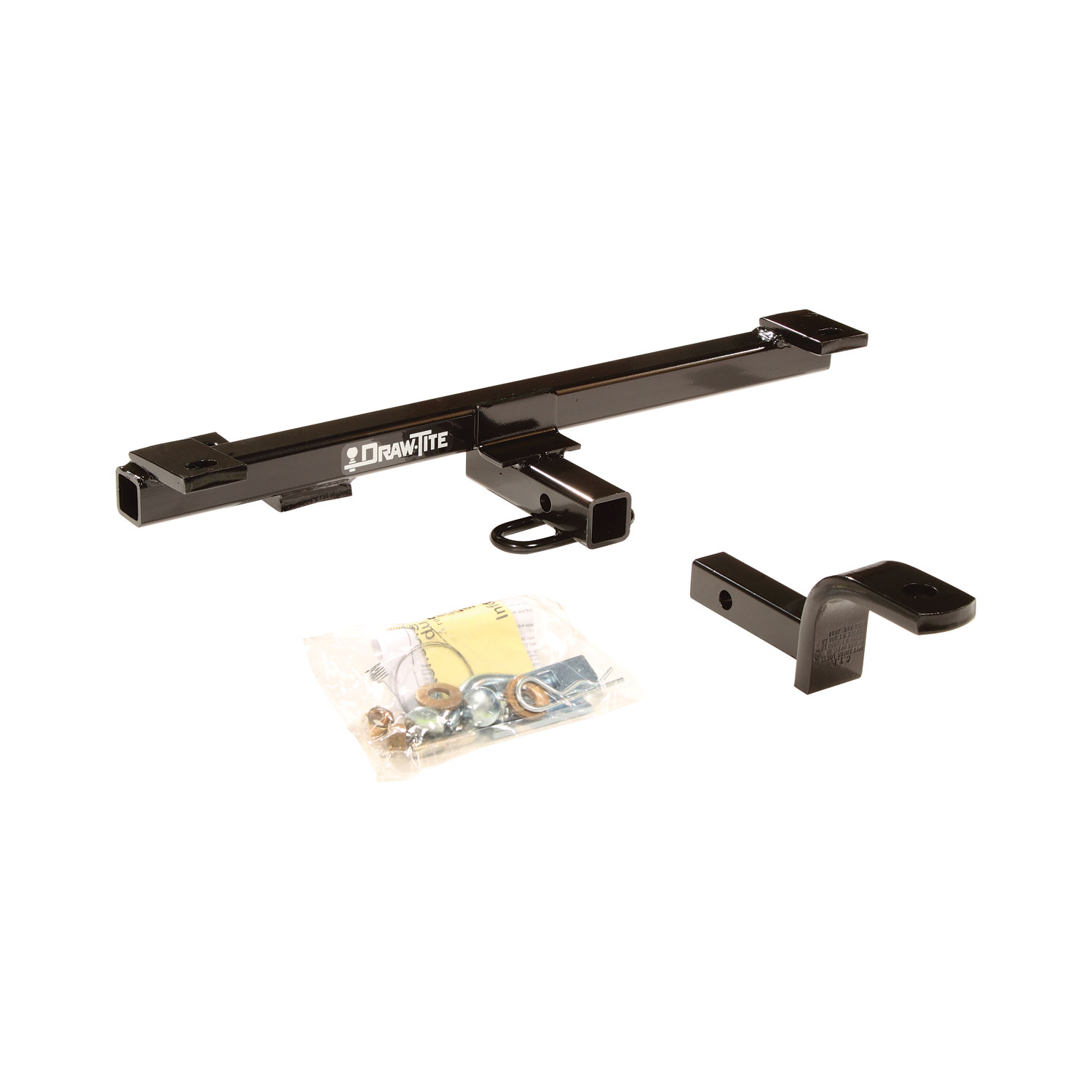

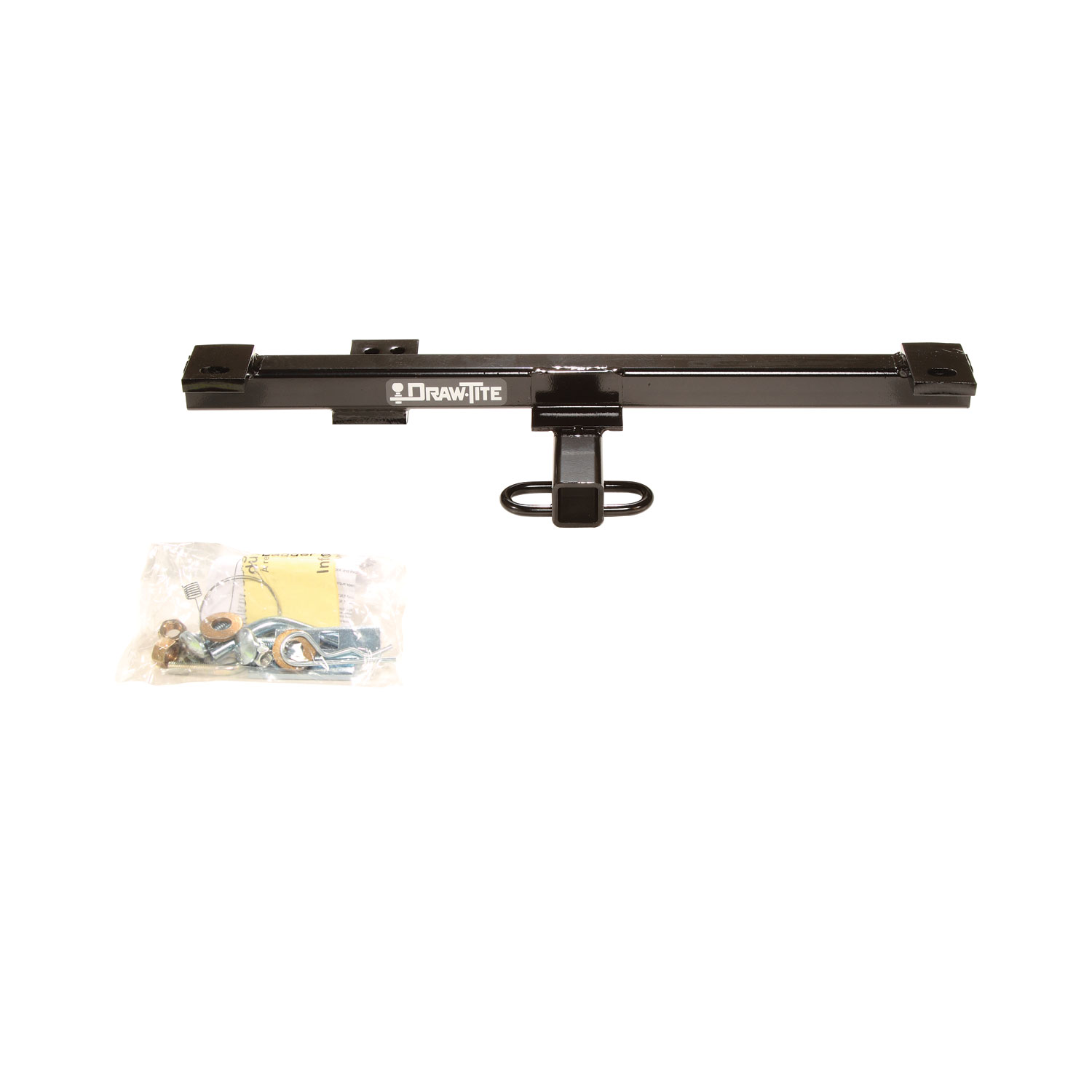

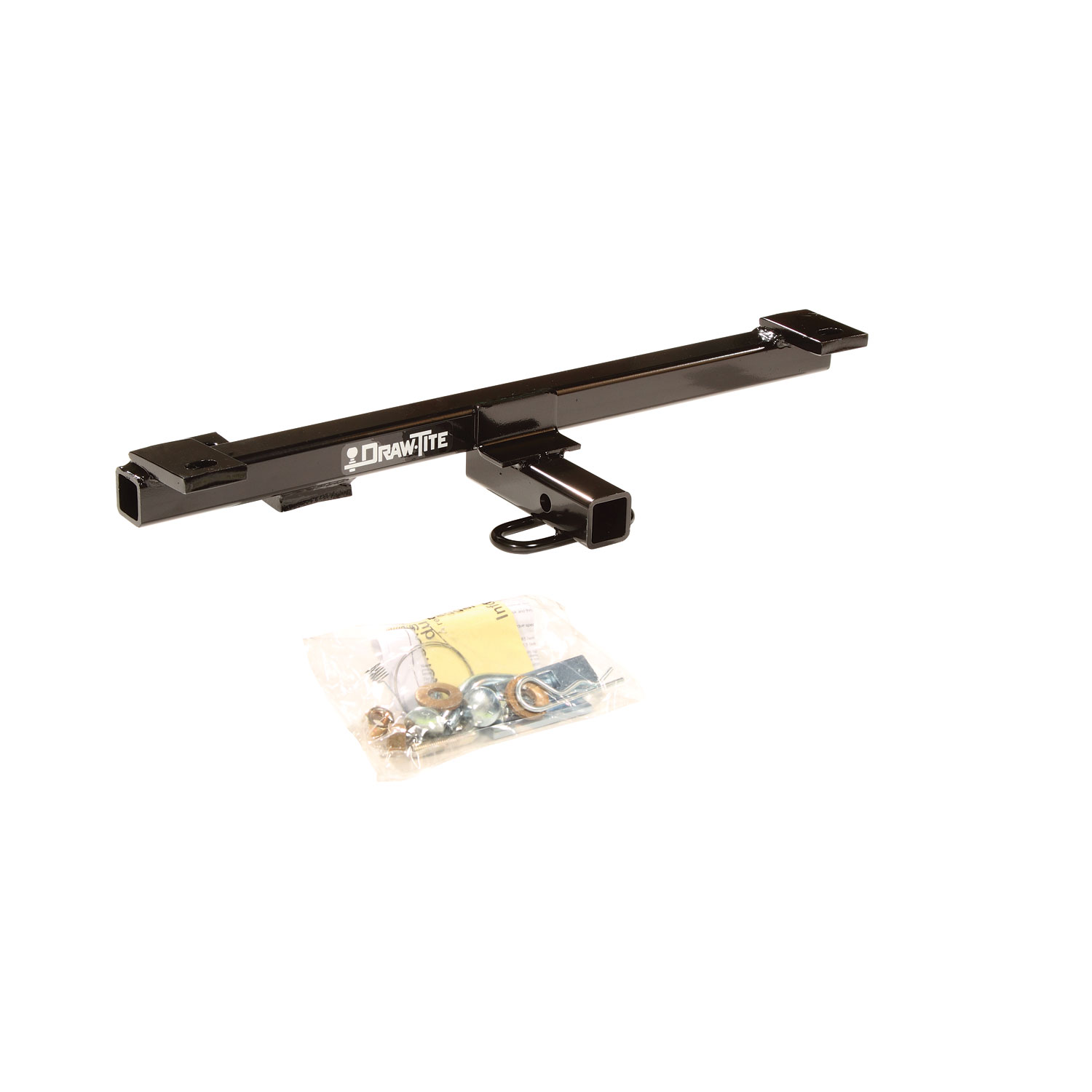

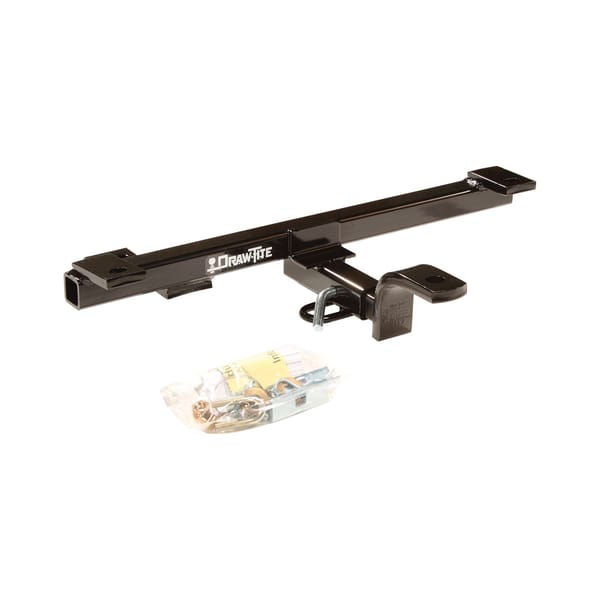

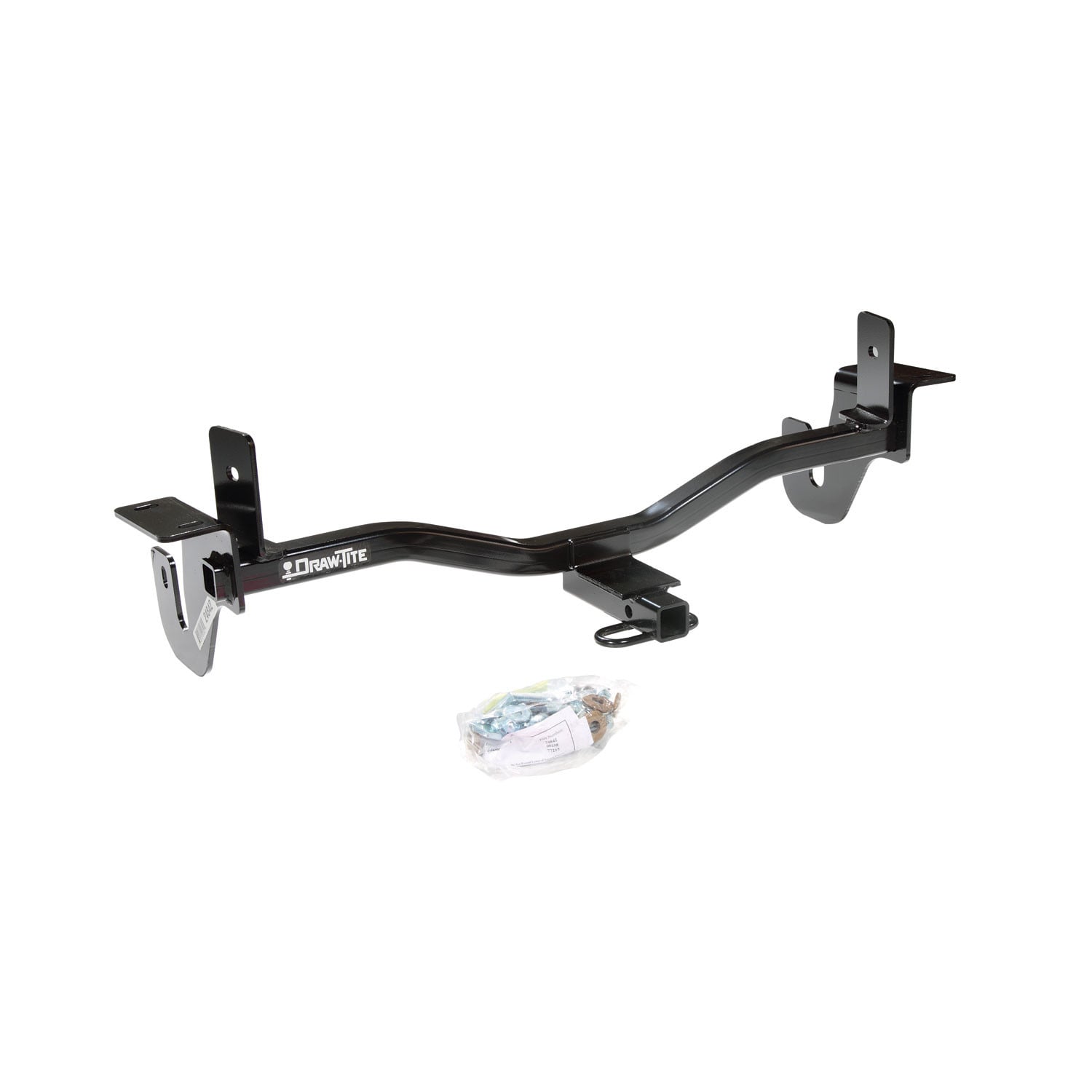

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24773 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 17.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® Receiver Hitches Commercial
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2010 | Mazda Sidekick | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 25 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 5 24773 (Part #DT24773) fits the following vehicles: 2006-2010 Mazda Sidekick. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 5 24773 (Part #DT24773) fits 2006-2010 Mazda Sidekick models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 5 24773 (Part #DT24773) is designed to fit the 2006-2010 Mazda Sidekick.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 5 24773 (Part #DT24773) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 24773 is designed for Mazda 5 vehicles from 2006 to 2015. The hitch assembly includes part numbers 77150 and 60841 as well.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need wrenches in 11/16" and 3/4" sizes, a 1/2" drill bit, and a torque wrench. A drawbar kit (part number 3593) is sold separately and required for towing.
Yes, drilling is required. You must enlarge existing holes on the bottom surface of the vehicle bumper structure using a 1/2" drill bit. Do not use a torch to cut access or attachment holes.
1. Enlarge existing holes on the bumper structure with a 1/2" drill bit. 2. Use fishwire to pass carriage bolts and blocks through the bumper structure and drilled holes. 3. Raise the hitch into position and loosely install conical toothed washers and 1/2 hex nuts. 4. Install the 3/8 U-bolt through the vehicle tow hook and receiver tow hook attachment, with lock washers and 3/8 hex nuts. 5. Tighten all fasteners to the required torque specifications.
All 1/2-13 GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
All 3/8-16 GR5 fasteners, including the U-bolt, must be tightened to 30 Lb.-Ft. (41 N·M) using a torque wrench.

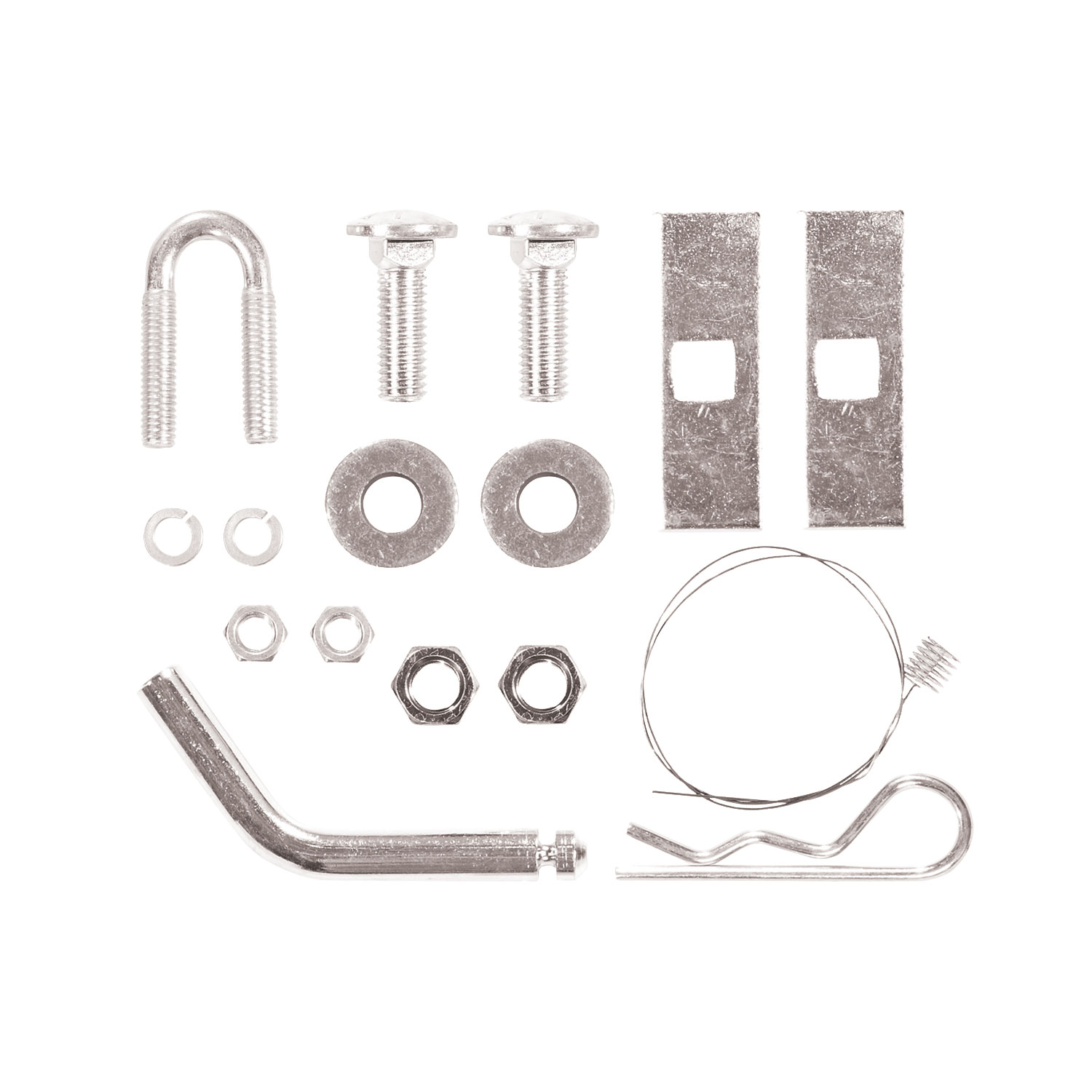

The hitch includes: (2) 1/2-13 X 1.50 carriage bolts, (1) 3/8-16 U-bolt, (2) 1/4 X 1.00 X 3.00 blocks, (2) conical toothed washers, (2) 1/2 hex nuts, (2) lock washers, and (2) 3/8 hex nuts. A separate fastener kit (part number 24773F) is available.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during use.
No, the drawbar kit (part number 3593) is sold separately. The drawbar must be used in the rise position only.
No, the fascia is sold separately.
The wiring access locations are PC3 and PC4.
Yes, it fits Mazda 5 models from 2006 to 2015.
You need 11/16" and 3/4" wrenches, a 1/2" drill bit, and a torque wrench.
Yes, you must enlarge existing holes in the bumper structure using a 1/2" drill bit. Do not use a torch.
Tighten 1/2-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M) and 3/8-16 GR5 fasteners to 30 Lb.-Ft. (41 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
No, the drawbar kit (part number 3593) is sold separately and must be used in the rise position only.
Wear eye protection, work safely beneath the vehicle, do not use a torch to cut holes, and plug all holes if the hitch is removed to prevent water and exhaust fumes from entering.
