Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

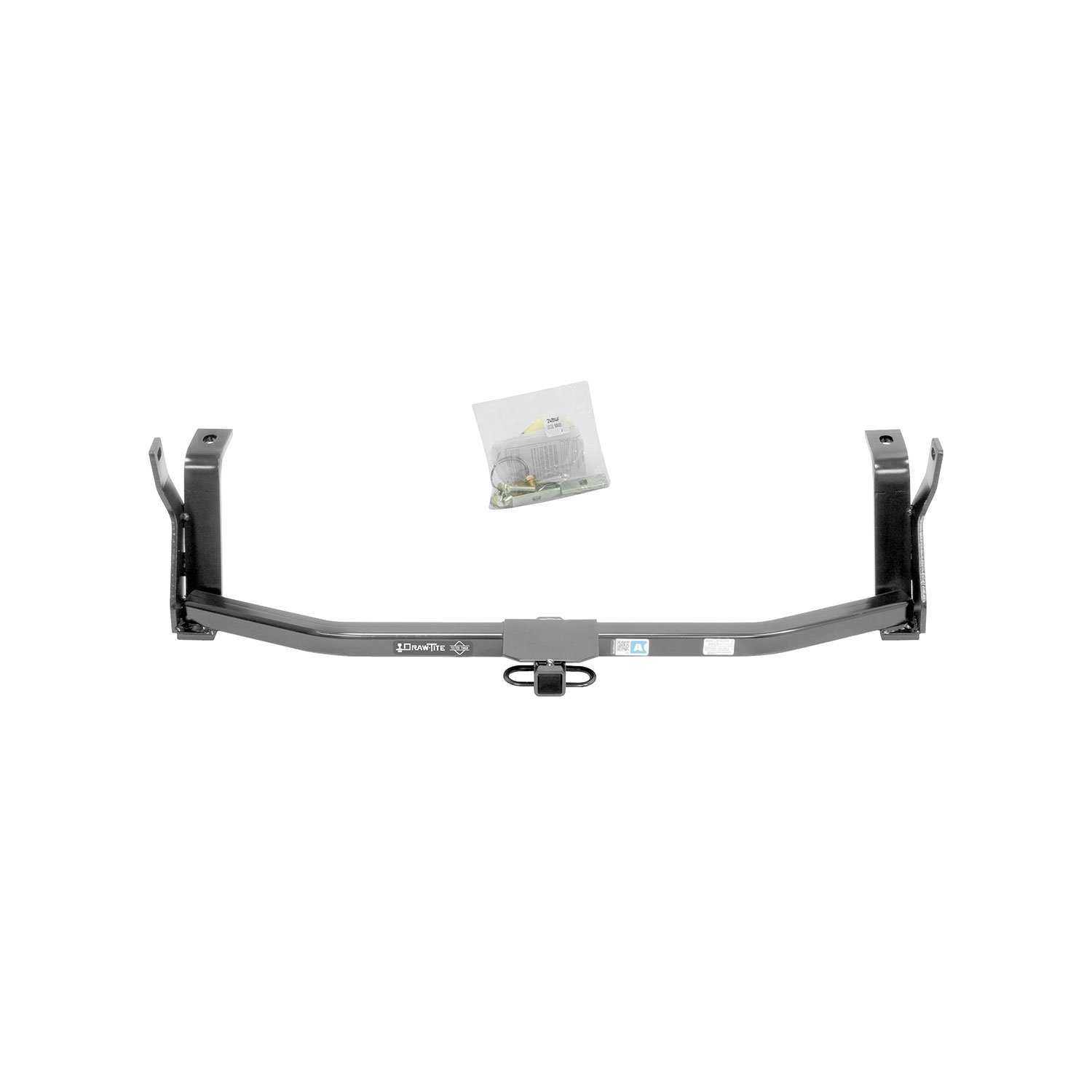

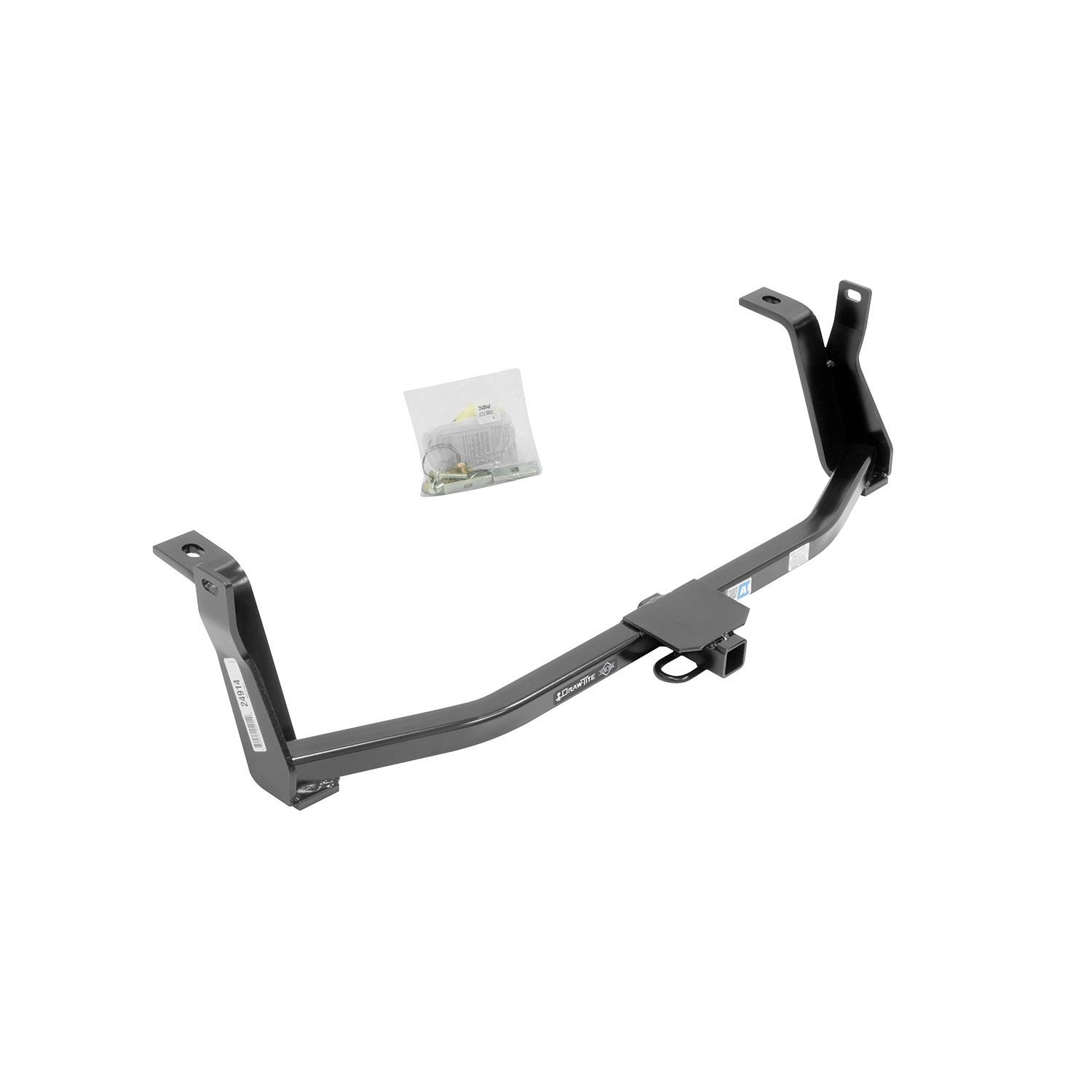

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24914 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2018 | Mazda Grand Vitara | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 30 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24914 (Part #DT24914) is designed to fit the 2014-2018 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24914 (Part #DT24914) fits 2014-2018 Mazda Grand Vitara models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24914 (Part #DT24914) fits the following vehicles: 2014-2018 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24914 (Part #DT24914) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Hitch part number 24914 is designed for the Mazda 3 5 Door. The installation manual confirms this application.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of these limits or your vehicle manufacturer's towing rating.
You will need: pullwire (provided with the hitch), lubricant or soapy water, a flashlight, a utility knife, and wrenches in 11/16" and 19mm sizes. No drill bits are required because no drilling is needed for this installation.
No. The manual explicitly states "Drill Bits: None". This hitch uses existing factory weldnuts and does not require any drilling.
The wiring access location is PC3, 4. This information is provided in the manual for reference during installation.
Yes. Step 3 of the installation requires you to lower the exhaust system at the rubber isolator. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. You must support the exhaust during installation and not let it drop.
Use the pullwires provided with the hitch. Feed the spacers and carriage bolts into position through the middle slot of each frame rail. Keep the pullwire attached. It is easier if the bolt and spacer are not engaged (not connected together) while inserting them into the frame. Kink the pullwire to keep the spacer independent of the bolt.
1. Locate and verify the rear weldnut on the outside of each frame rail above the access hole using an M12 hex bolt. 2. Feed spacers and carriage bolts into position using pullwires. 3. Lower the exhaust system. 4. Raise the hitch into position, feed pullwires through the slots on the bars, and slide the hitch through the exhaust cutouts on the fascia. 5. Attach the 7/16" conical washer and hex nut loosely to the hitch for support. 6. Install the ½" conical washer and M12 bolt into the existing weldnut. 7. Raise the exhaust back into position. 8. Torque all fasteners to specification.
Leave fasteners loose during the initial positioning steps. In step 4, attach the 7/16" conical washer and hex nut loosely to the hitch for support only. Tighten all fasteners to their final torque specifications only after the hitch is fully positioned and the exhaust system is raised back into place (step 7).
All M12 CL8.8 fasteners must be tightened with a torque wrench to 68 Lb.-Ft. (92 N·M).
All 7/16-14 GR5 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M).

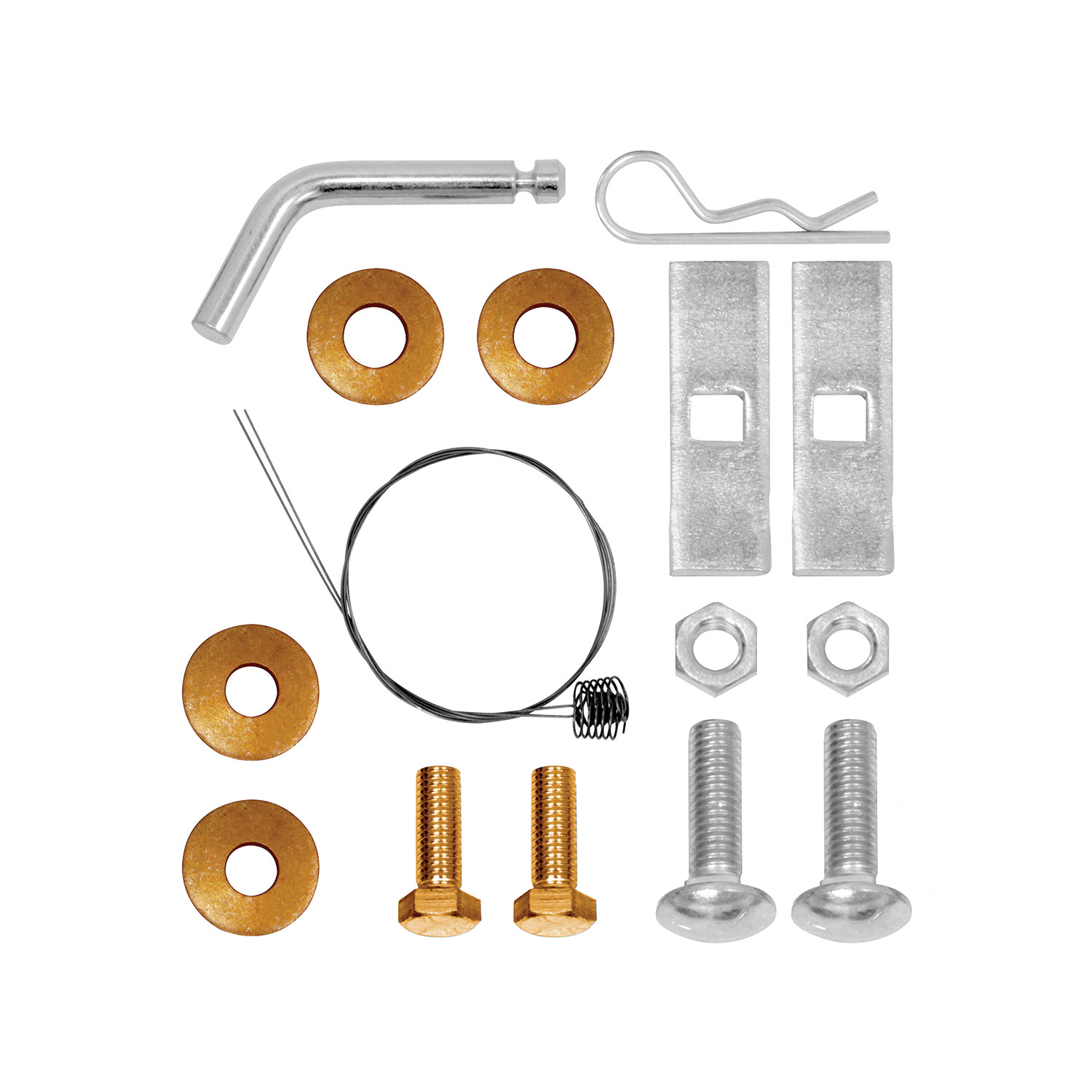

The hitch includes: 2 M12 x 1.25 x 30 CL8.8 hex bolts, 2 spacers (.250 x .875 x 3.00), 2 ½" conical washers, 2 7/16" conical washers, 2 7/16-14 x 14 x 1.75 GR5 carriage bolts, and 2 7/16-14 hex nuts. Pullwires are also provided. Additional fasteners are available in fastener kit 24914F if needed.
Yes. The manual states: "sort hardware prior to hitch installation to confirm conical washers are kept coordinated with bolts." The ½" conical washers are used with the M12 bolts, and the 7/16" conical washers are used with the 7/16-14 carriage bolts.

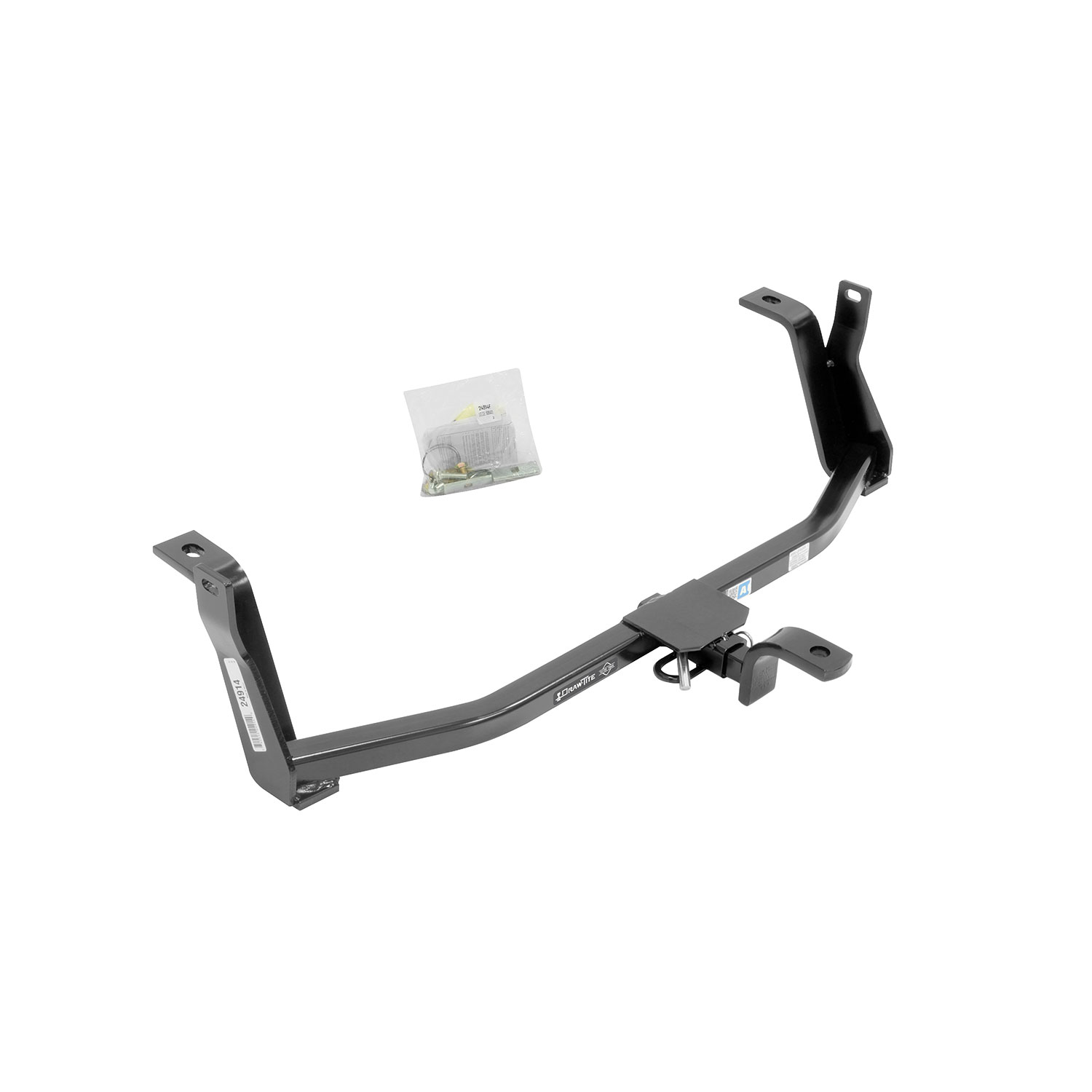

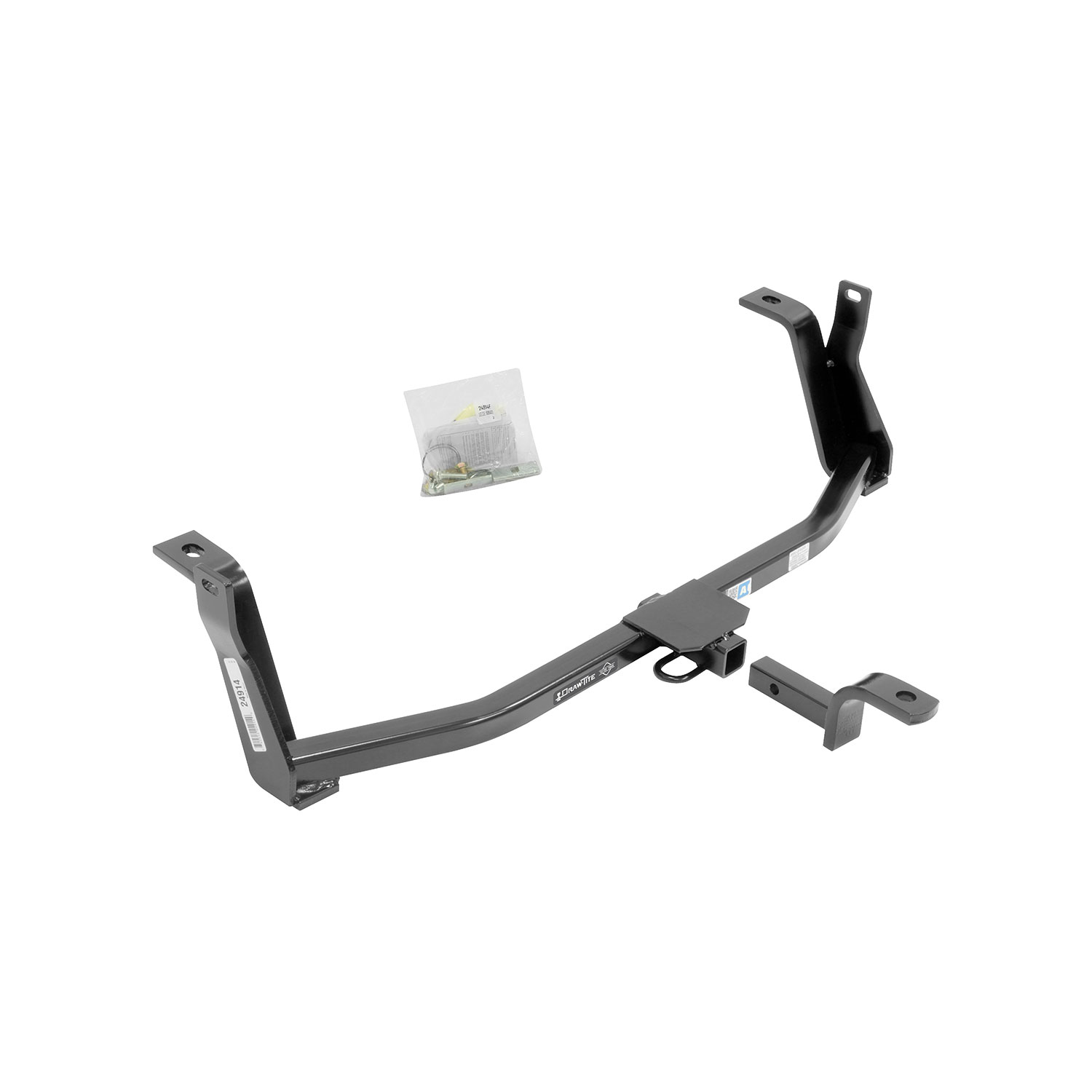

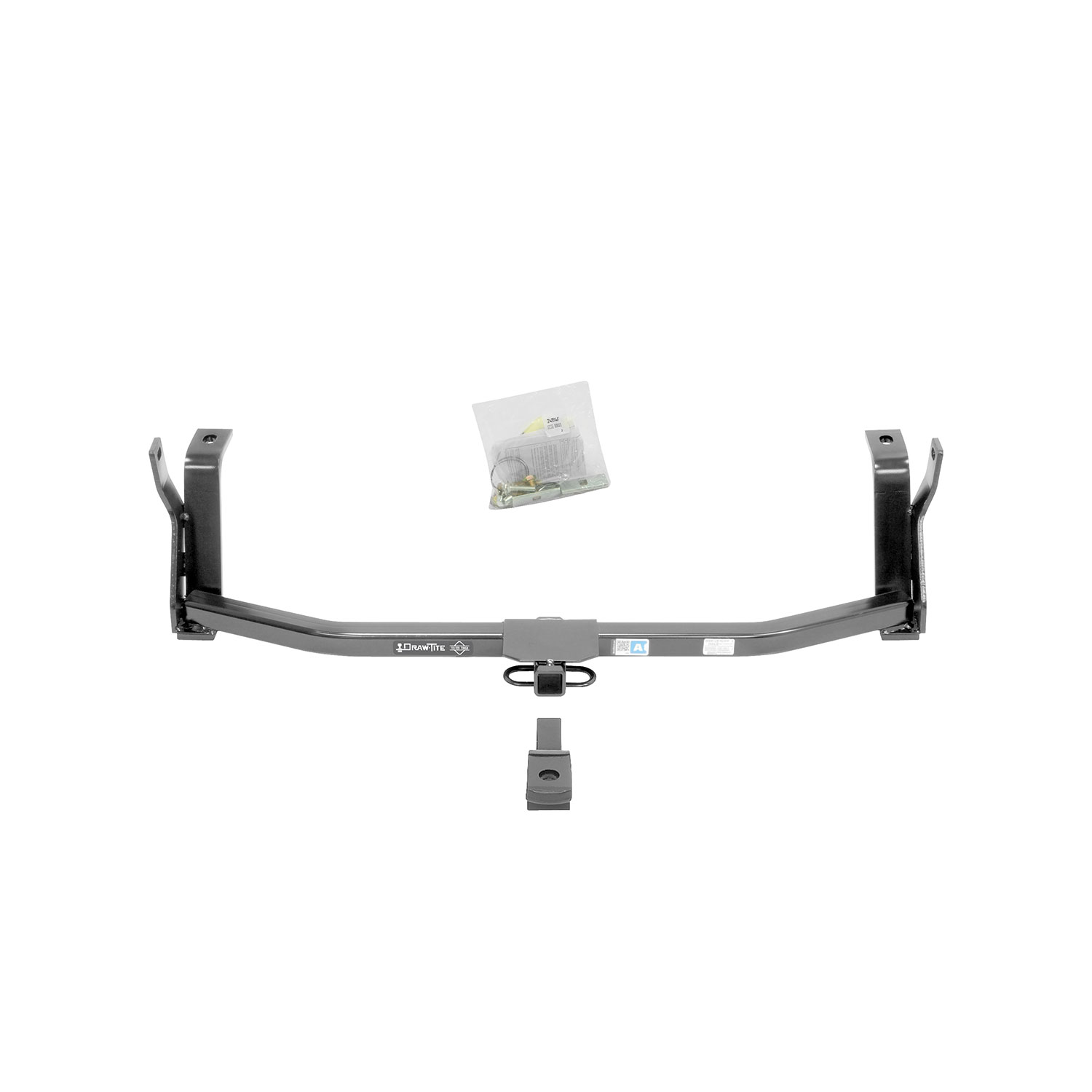

No. The drawbar kit (part number 3593) is sold separately and must be purchased if you need a drawbar for towing.
The drawbar must be used in the RISE position only. Do not use it in any other position.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust system during installation and do not let it drop. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval; contact the manufacturer for guidance on how often to inspect and retorque fasteners after initial installation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes, hitch 24914 is designed for the Mazda 3 5 Door.
No drilling is required. You will need wrenches (11/16" and 19mm), pullwire (provided), lubricant or soapy water, flashlight, and utility knife.
M12 CL8.8 fasteners: 68 Lb.-Ft. (92 N·M). 7/16-14 GR5 fasteners: 50 Lb.-Ft. (68 N·M). Use a torque wrench for all fasteners.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these limits or your vehicle manufacturer's rating.
Wear eye protection. Do not cut holes with a torch. Support the exhaust system during installation. If removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
