Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

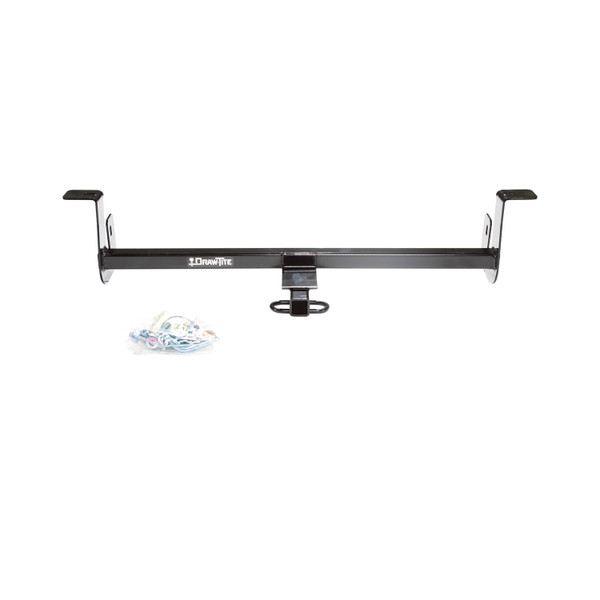

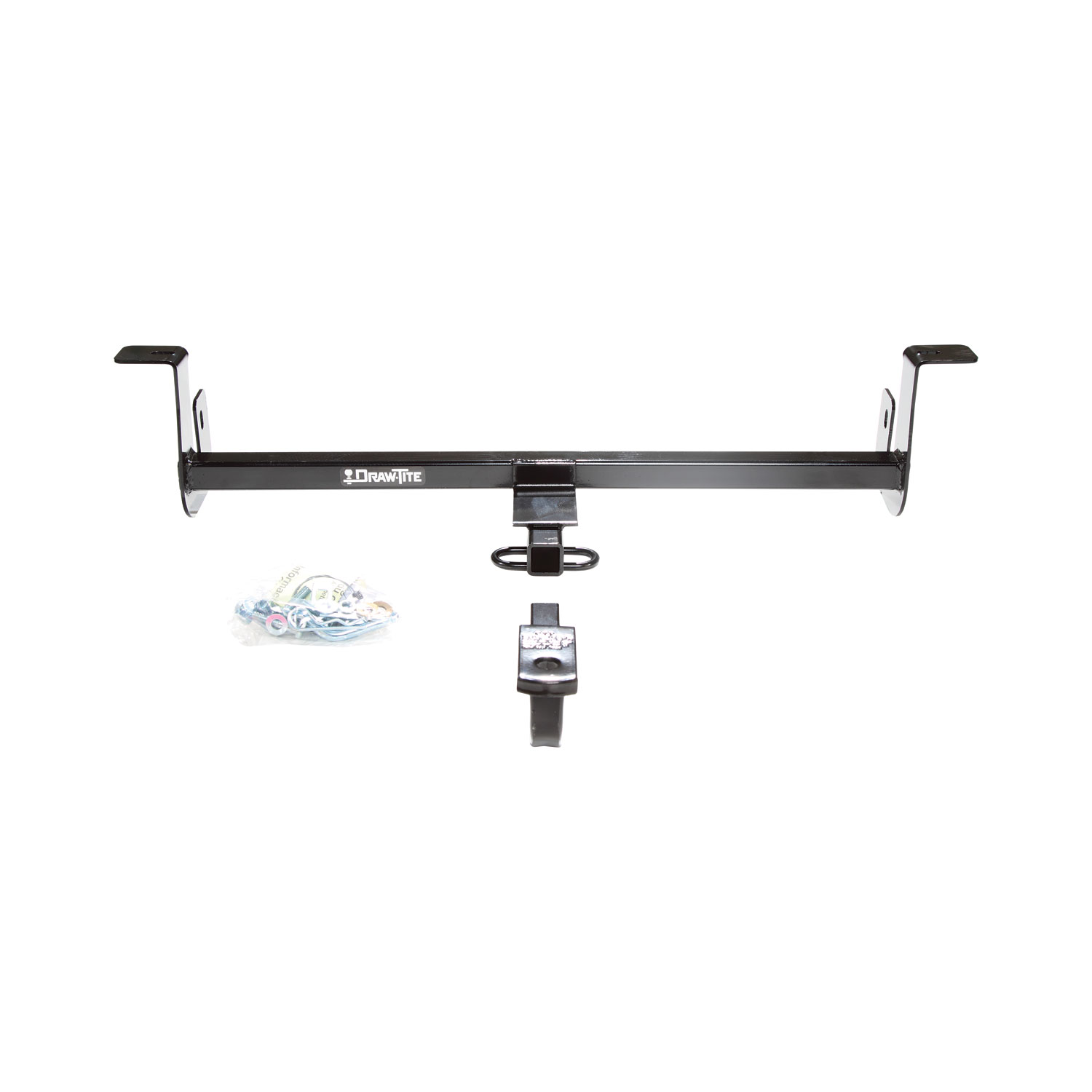

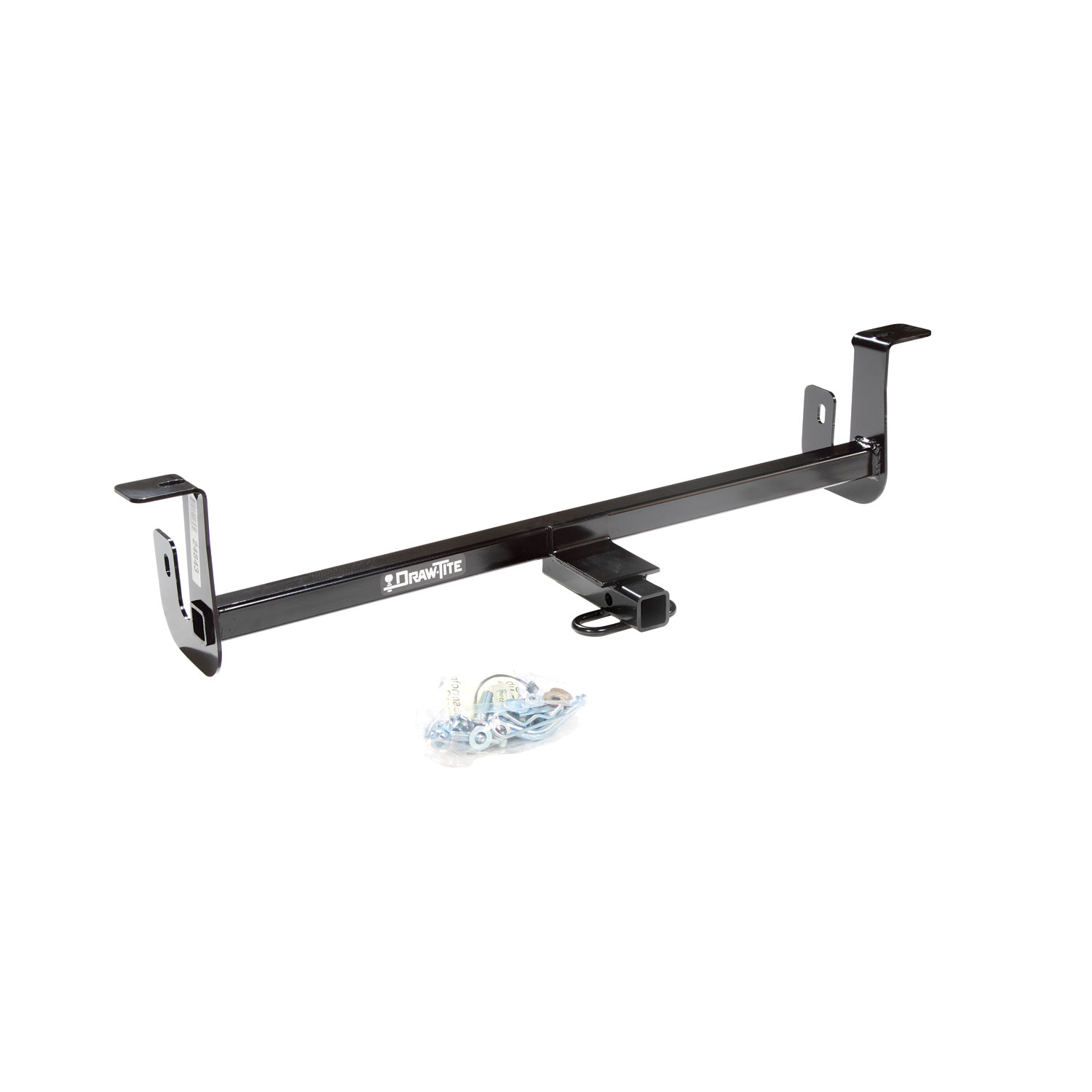

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24843 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 17.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2013 | Mazda Grand Vitara | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24843 (Part #DT24843) is designed to fit the 2010-2013 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24843 (Part #DT24843) fits 2010-2013 Mazda Grand Vitara models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24843 (Part #DT24843) fits the following vehicles: 2010-2013 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24843 (Part #DT24843) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24843 is designed for Mazda 3 5-Door models from 2009, 2011, 2012, and 2015. The hitch is compatible with these model years.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of this rating or your vehicle manufacturer's towing rating.

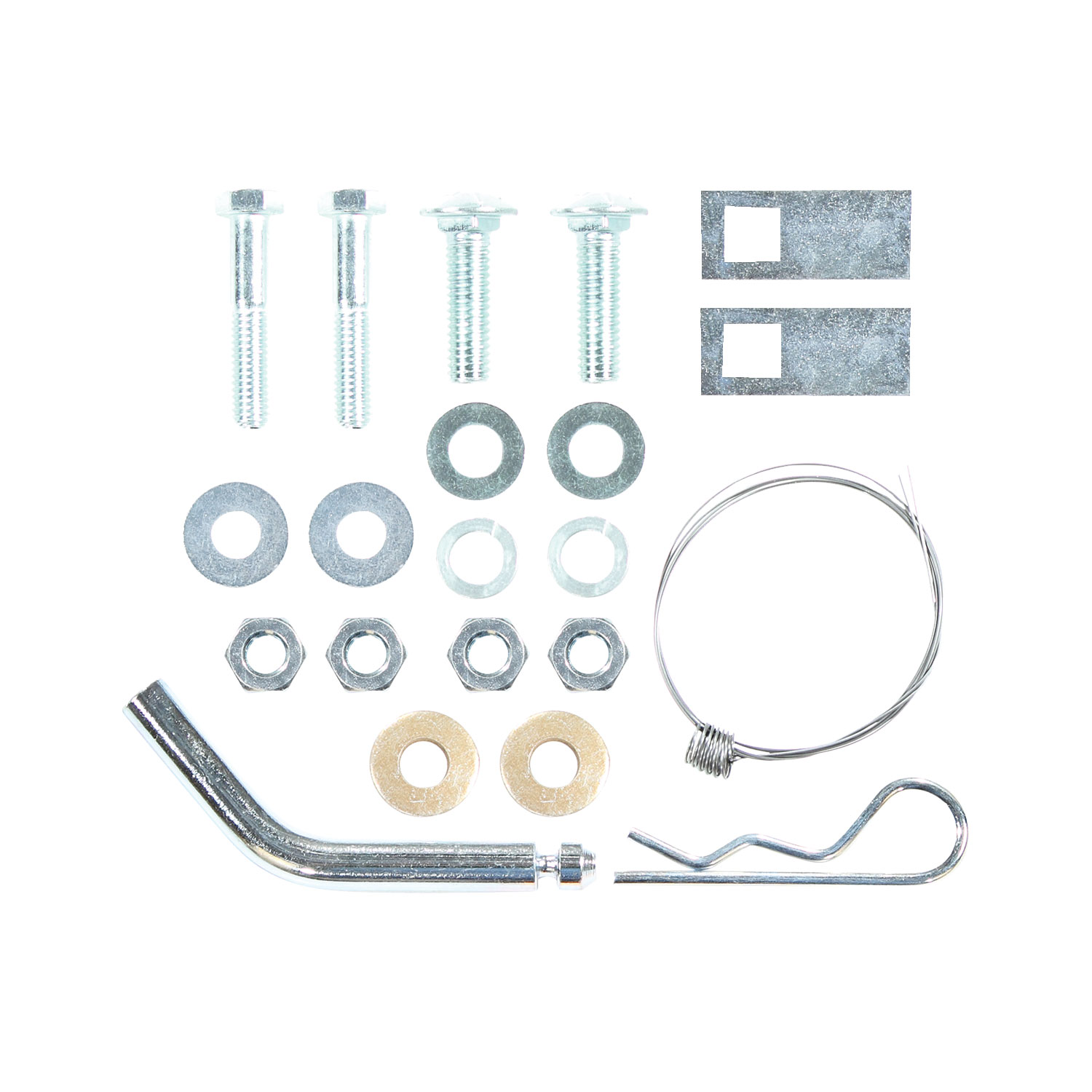

The fastener kit 24843F includes: 2 carriage bolts 7/16-14 X 1-1/2" GR5, 2 hex bolts 3/8-16 X 2.00 GR5, 2 spacers, 2 flat washers 7/16", 2 flat washers 3/8", 2 conical washers 3/8", 2 lock washers 7/16", 2 hex nuts 3/8-16, and 2 hex nuts 7/16-14.
You will need wrenches in 11/16" and 9/16" sizes, a torque wrench, and a pullwire (which is provided with the hitch).

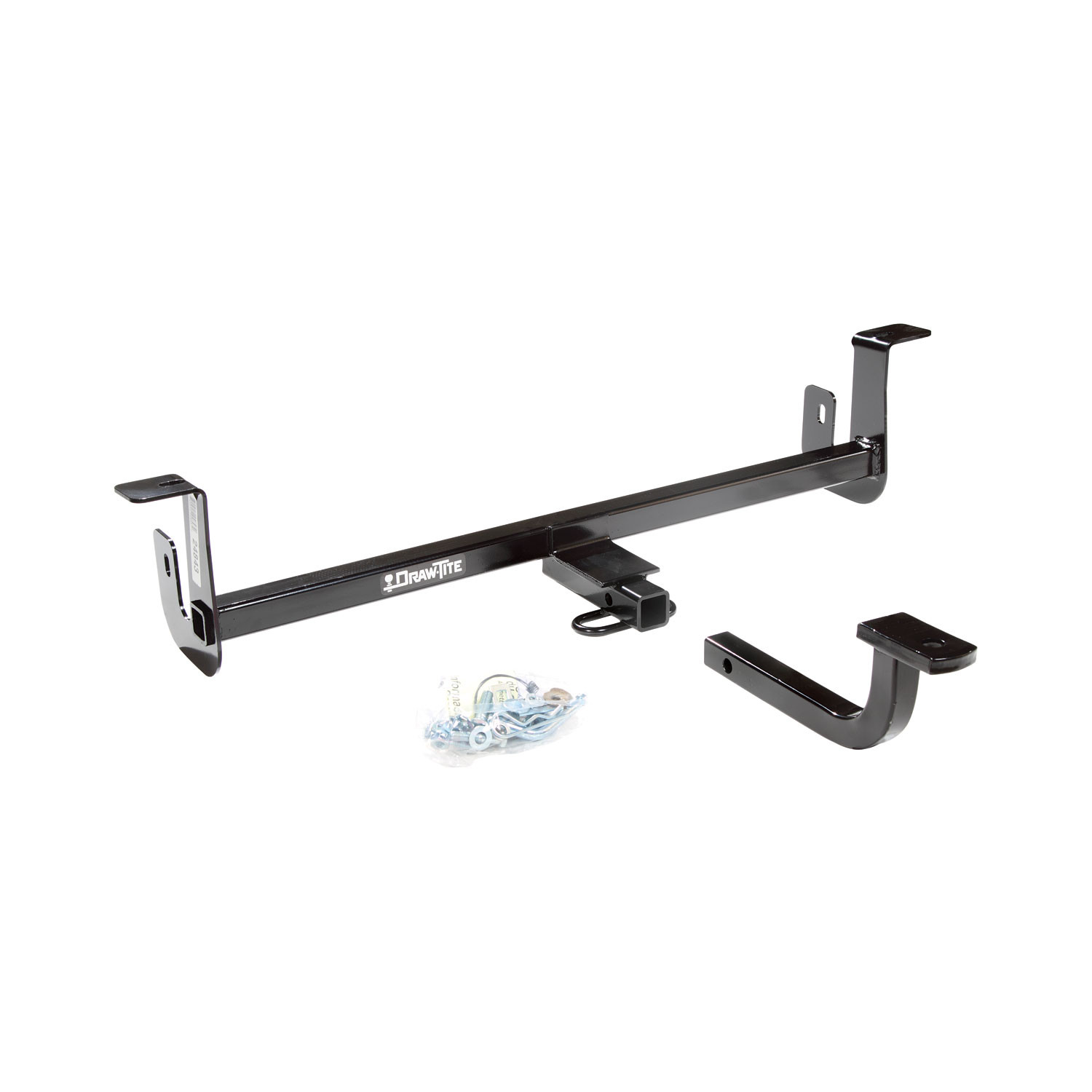

No. The drawbar kit 3594 is sold separately and must be purchased if you need a drawbar.
The pullwire (provided) is used to feed the carriage bolts and blocks into the frame rails through the access holes. You leave the pullwire attached to the fasteners, then feed the pullwires through adjacent holes in the hitch, and finally remove the pullwires before installing the washers and nuts.
1. Use pullwires to feed carriage bolts and blocks into frame rails through access holes; leave pullwire attached. 2. Raise hitch into position, feed pullwires through adjacent holes in the hitch, remove pullwires, and attach flat washers, lock washers, and nuts finger tight only. Hand tighten only until all fasteners are installed. 3. Install remaining fasteners as shown. 4. Torque all fasteners to specifications.
No. During step 2, tighten fasteners finger tight only and hand tighten only until all fasteners are installed. Do not push fasteners back into the frame rail. Final torque all fasteners to specifications only after all fasteners are in place.
Tighten all 7/16-14 GR5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).
Tighten all 3/8-16 GR5 fasteners with a torque wrench to 30 Lb.-Ft. (41 N·M).
The drawbar must be used in the RISE position only.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Retorque fasteners as needed to maintain the specifications of 50 Lb.-Ft. for 7/16-14 GR5 fasteners and 30 Lb.-Ft. for 3/8-16 GR5 fasteners.
Yes, it fits Mazda 3 5-Door models from 2009, 2011, 2012, and 2015.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg), but do not exceed your vehicle manufacturer's towing rating.
You need 11/16" and 9/16" wrenches, a torque wrench, and the provided pullwire. The fastener kit 24843F is included.
Torque 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N·M) and 3/8-16 GR5 fasteners to 30 Lb.-Ft. (41 N·M).
The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
