Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

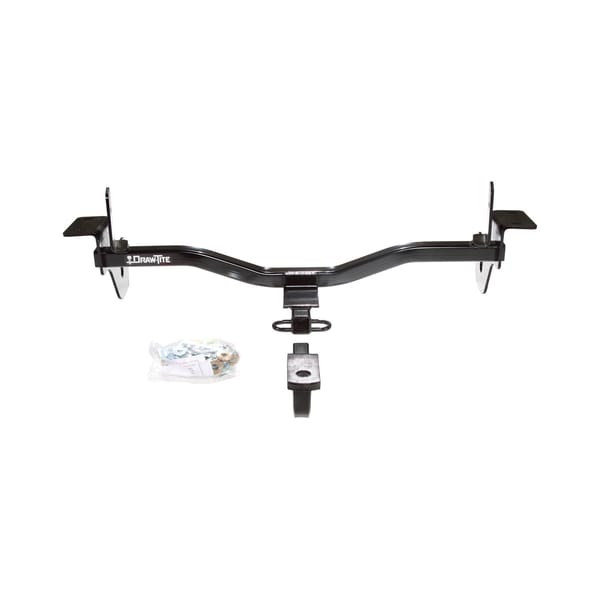

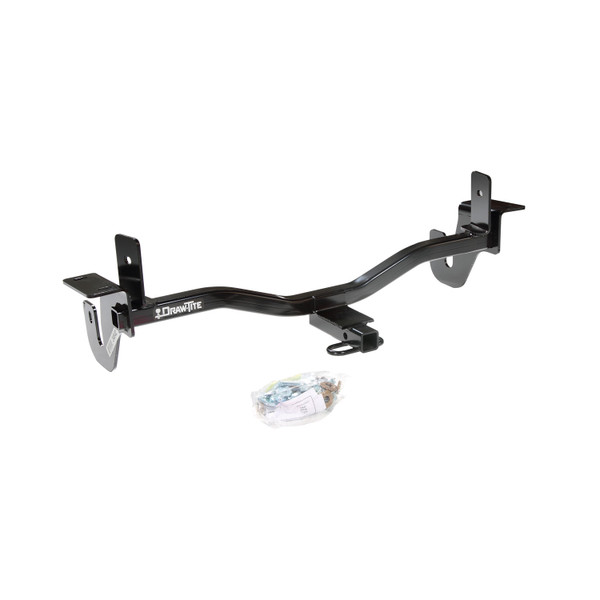

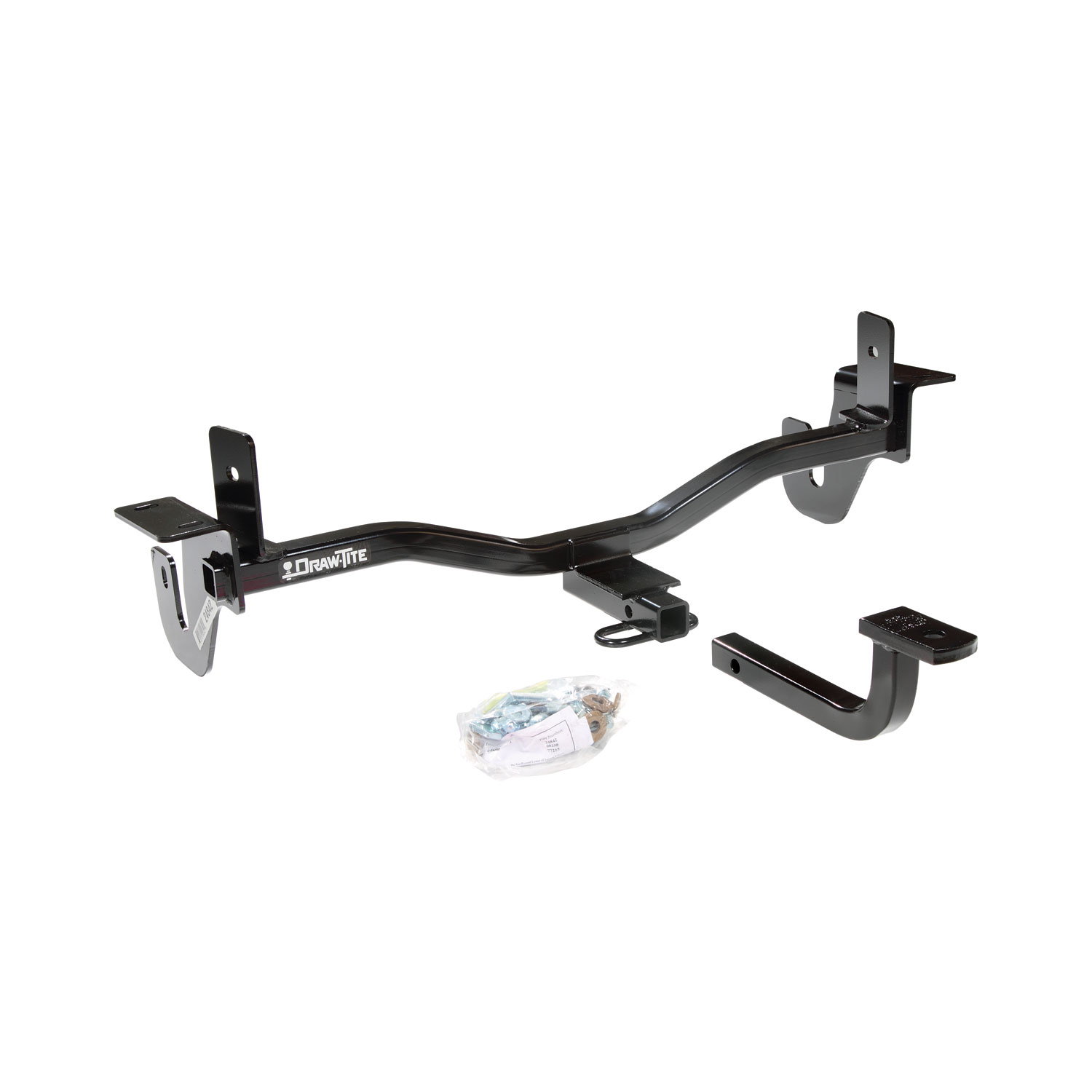

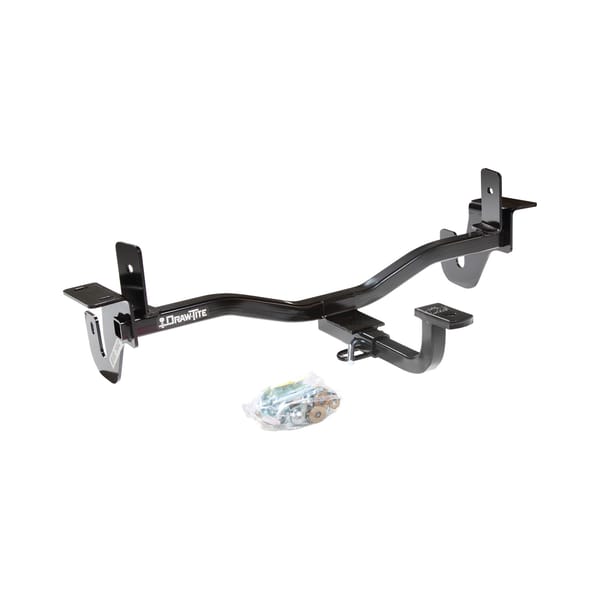

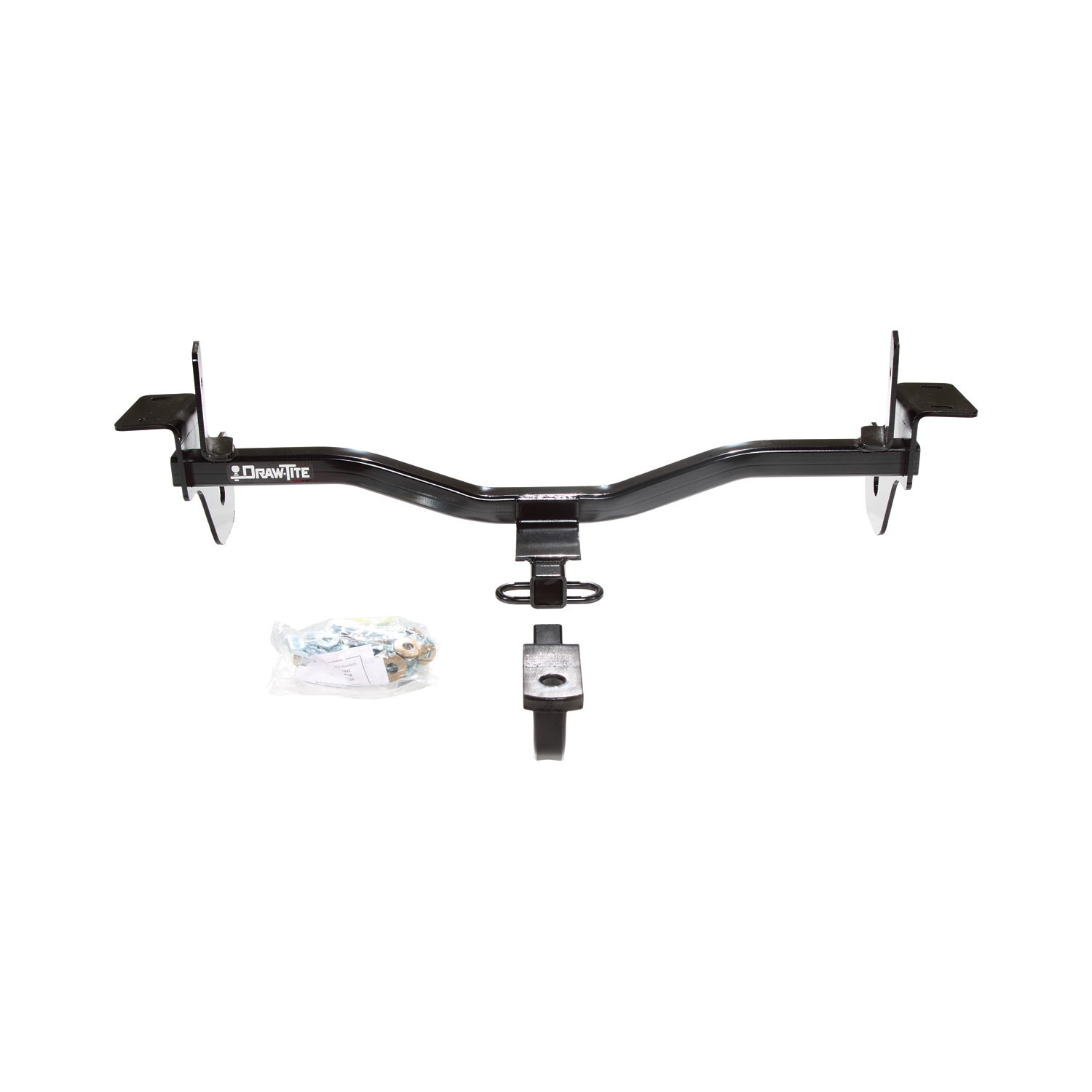

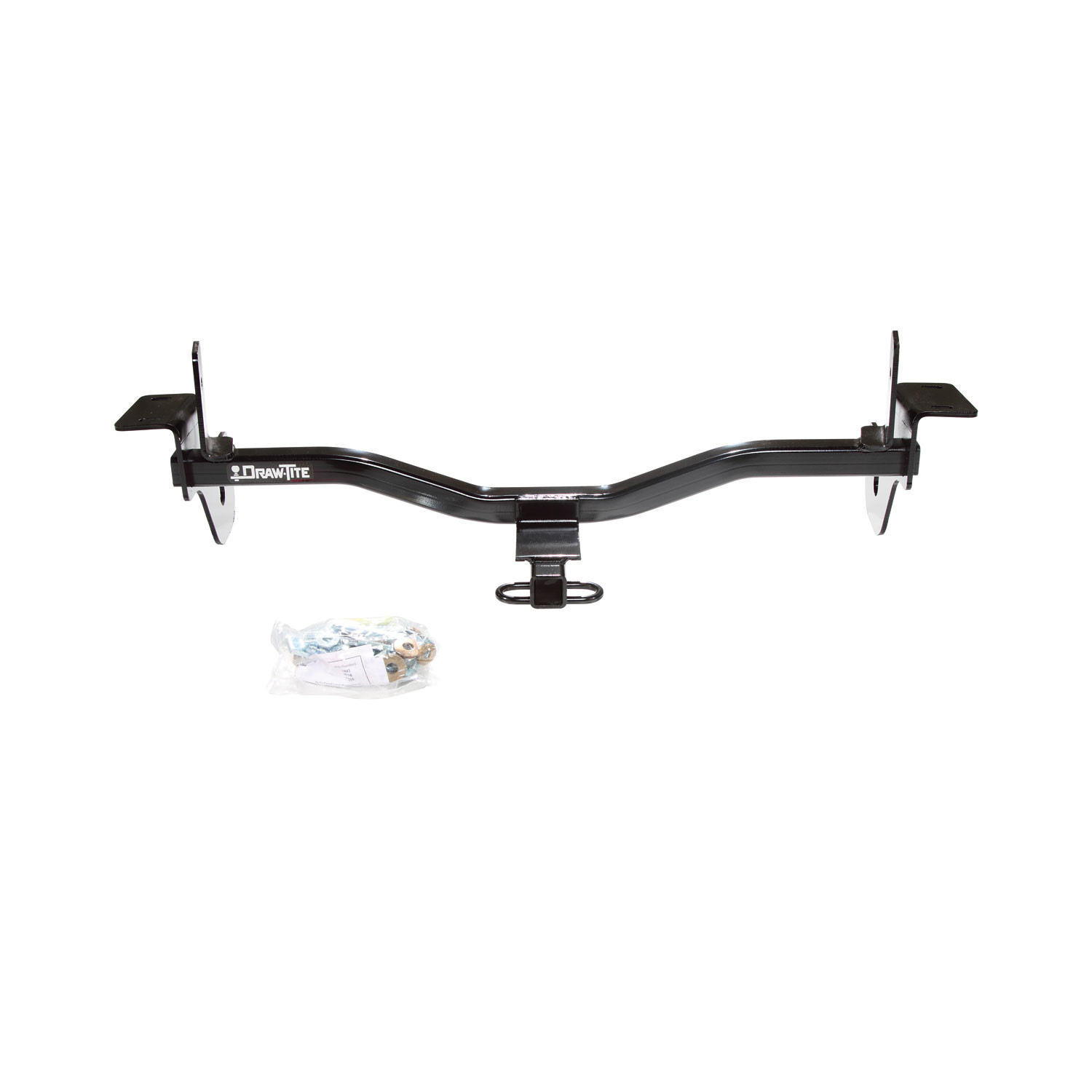

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24842 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2013 | Mazda Grand Vitara | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24842 (Part #DT24842) fits 2010-2013 Mazda Grand Vitara models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24842 (Part #DT24842) is designed to fit the 2010-2013 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24842 (Part #DT24842) fits the following vehicles: 2010-2013 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24842 (Part #DT24842) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 24842 is designed for Mazda 3 4-Door models. The manual does not specify which model years are compatible. If you have a different body style (such as a 2-door or hatchback) or model year not listed, contact the manufacturer to confirm fitment before purchasing.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating.
You will need wrenches in sizes 11/16, 9/16, and 10MM, and a torque wrench. The pullwire for feeding fasteners through the frame rails is provided with the hitch.

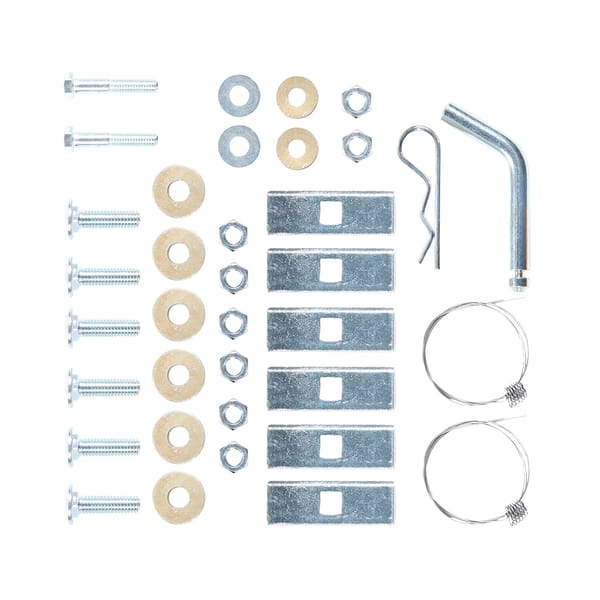

The hitch includes carriage bolts (7/16-14 X 1-1/2" GR 5), hex bolts (3/8-16 X 2.00 GR5), spacers, flat washers, conical washers (7/16" and 3/8"), and hex nuts (7/16-14 and 3/8-16). A separate Fastener Kit 24842F is also available. Note: the manual shows conflicting quantities for some fasteners between pages; contact the manufacturer if you need to verify exact quantities.
Yes. Step 1 requires you to remove fascia tabs forward attachment fasteners. The fascia tabs remain in place during installation but their fasteners must be removed first. After installation is complete, you reattach the fascia straps in Step 6.
The pullwire is used to feed the carriage bolts and blocks into the frame rails through the access holes. Thread the pullwire through the access holes, attach it to the fasteners, and pull them into position. Leave the pullwire attached until you raise the hitch into position, then feed the pullwires through adjacent holes in the hitch, remove them, and install the conical washers and nuts.
No. When installing the conical washers and nuts in Step 3, tighten them finger tight only. Hand tighten all fasteners only until all of them are installed. Only after all fasteners are in place should you use a torque wrench to tighten them to specification in Step 5.
All 7/16-14 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N*M) using a torque wrench.
All 3/8-16 GR5 fasteners must be tightened to 30 Lb.-Ft. (41 N*M) using a torque wrench.
If you remove the hitch, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch or ball becomes damaged, it must be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval; regular visual inspection is recommended.
No. The Drawbar Kit 3594 is sold separately. The manual notes that the drawbar must be used in the RISE position only.
The wiring access location is PC3, 4. However, the manual does not provide wiring installation instructions. Contact the manufacturer or a professional installer for wiring guidance.
Yes, part number 24842 is designed for Mazda 3 4-Door models. Confirm your specific model year with the manufacturer before purchasing.
You need wrenches in 11/16, 9/16, and 10MM sizes, plus a torque wrench. The pullwire is provided.
Tighten 7/16-14 fasteners to 50 Lb.-Ft. (68 N*M) and 3/8-16 fasteners to 30 Lb.-Ft. (41 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
Yes, you must remove the fascia tabs forward attachment fasteners in Step 1. Reattach the fascia straps after installation is complete.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering. Replace the hitch or ball if damaged.
