Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

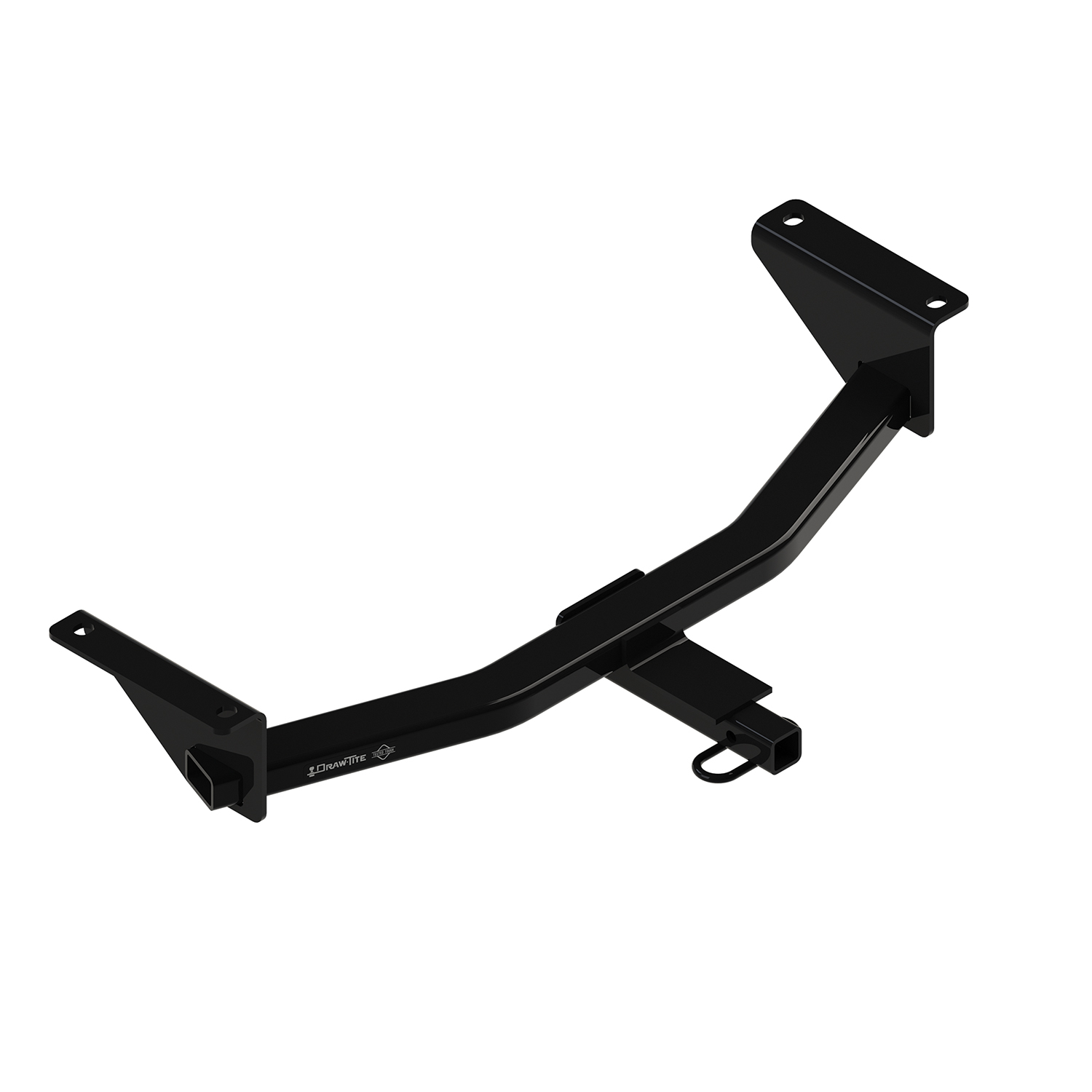

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24982 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.3 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Mazda Grand Vitara | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24982 (Part #DT24982) fits 2019-2024 Mazda Grand Vitara models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24982 (Part #DT24982) fits the following vehicles: 2019-2024 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24982 (Part #DT24982) is designed to fit the 2019-2024 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24982 (Part #DT24982) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 24982, 77982, and CQT24982 are designed for 2019-Current Mazda 3 models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 2000 lb. (908 kg) and the maximum tongue weight is 200 lb. (90.8 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, safety glasses, 10 mm socket, 11/16 inch socket, 6 inch socket extension, die grinder, Phillips screwdriver, and flat head screwdriver.
Yes. You must remove the bottom appearance panel (7 screws and 2 rivets) and the bottom bracket attachment (1 screw per side) before installing the hitch. Both parts should be returned to the vehicle owner.
Yes. You must use a die grinder to enlarge the access holes to 1 inch diameter on each side of the vehicle. Do not use a torch to cut the access holes.
Feed the carriage bolt and spacer through the access hole using the pull wires. Leave the pull wires attached. Raise the hitch and feed the pull wire through the hitch bracket slot. Then remove the pull wires and loosely install the conical washer and hex nut to the hitch.
All 7/16 inch fasteners must be tightened with a torque wrench to 50 Ft.-Lb. (68 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
The conical washer teeth side must be against the hitch.
The Fastener Kit 24982F includes: (4) carriage bolts 7/16-14 x 1.75 GR5, (4) spacers .875 x 2.00 x .109 (Part #1204-020), (4) conical washers 7/16 inch (Part #01292007), (4) hex nuts 7/16-14 GR2, and (4) pull wires 7/16 inch (Part #5481).
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A.
Leave the pull wires attached while feeding the carriage bolt and spacer through the access hole. After raising the hitch and feeding the pull wire through the hitch bracket slot, remove the pull wires before installing the conical washer and hex nut.
Check frequently that all fasteners and the ball are properly tightened. Periodically verify that the hitch is securely mounted to your vehicle.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and towing stability.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
No. Do not cut, weld, or modify this receiver. Modifications will compromise the structural integrity and safety of the hitch.
The average installation time for professional installers is 30 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
No. The authorized drawbar kit 3593 is sold separately. If you purchase a drawbar, it must be used in the RISE position only.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch.
Yes, part numbers 24982, 77982, and CQT24982 fit 2019-Current Mazda 3 models. Check the manufacturer's website for specific trim level compatibility.
Maximum gross trailer weight is 2000 lb. (908 kg) and maximum tongue weight is 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. You must use a die grinder to enlarge the access holes to 1 inch diameter on each side. Do not use a torch.
Required tools: ratchet, torque wrench, safety glasses, 10 mm and 11/16 inch sockets, 6 inch socket extension, die grinder, Phillips and flat head screwdrivers.
All 7/16 inch fasteners must be tightened to 50 Ft.-Lb. (68 N·M) with a torque wrench.
Yes. Remove the bottom appearance panel (7 screws and 2 rivets) and bottom bracket attachment (1 screw per side) before installation.
Check all fasteners frequently and re-tighten them to 50 Ft.-Lb. (68 N·M) if they have loosened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to the vehicle. Loose fasteners can compromise towing safety.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not attempt to repair or continue using a damaged hitch, as it may fail during towing and cause loss of control of the trailer.
