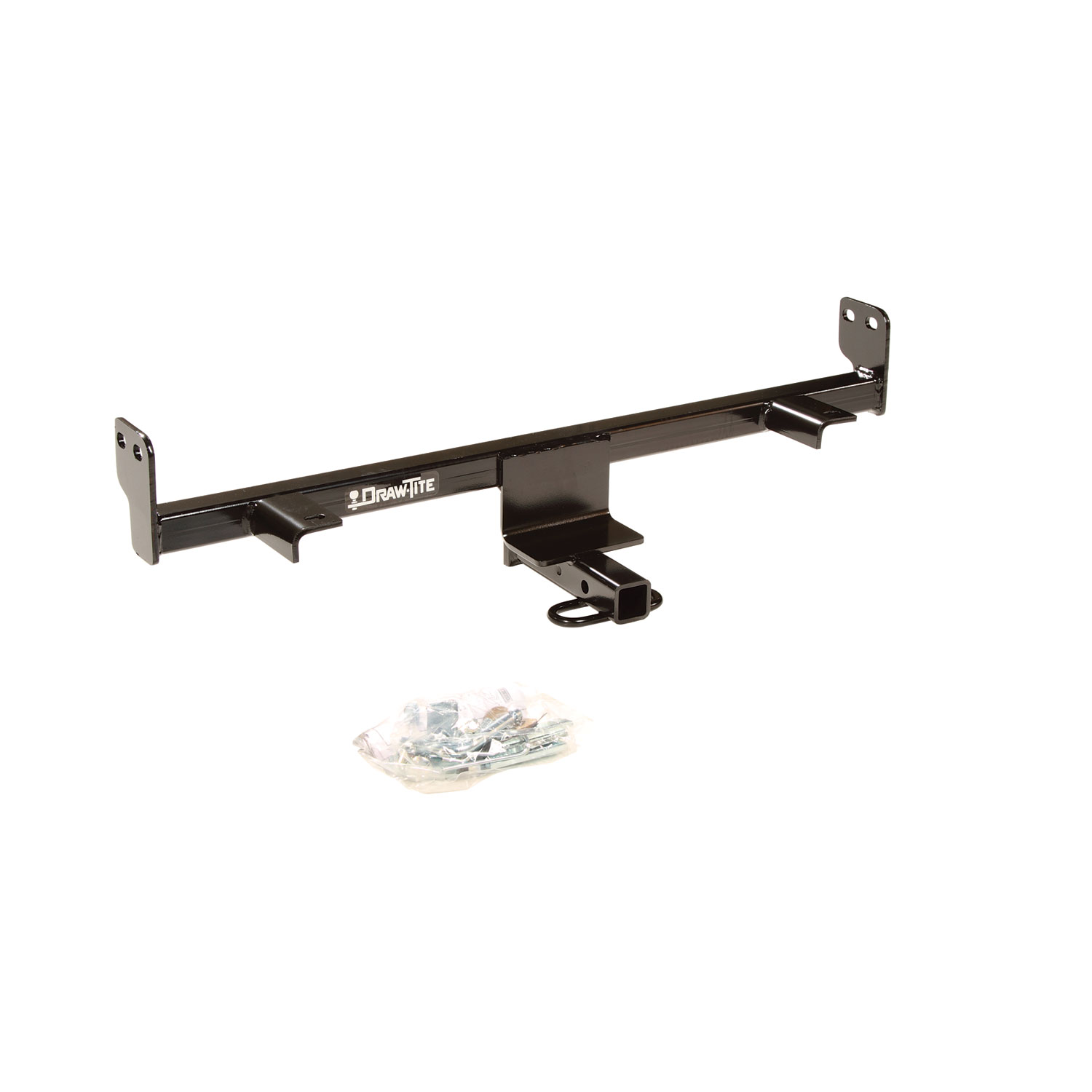

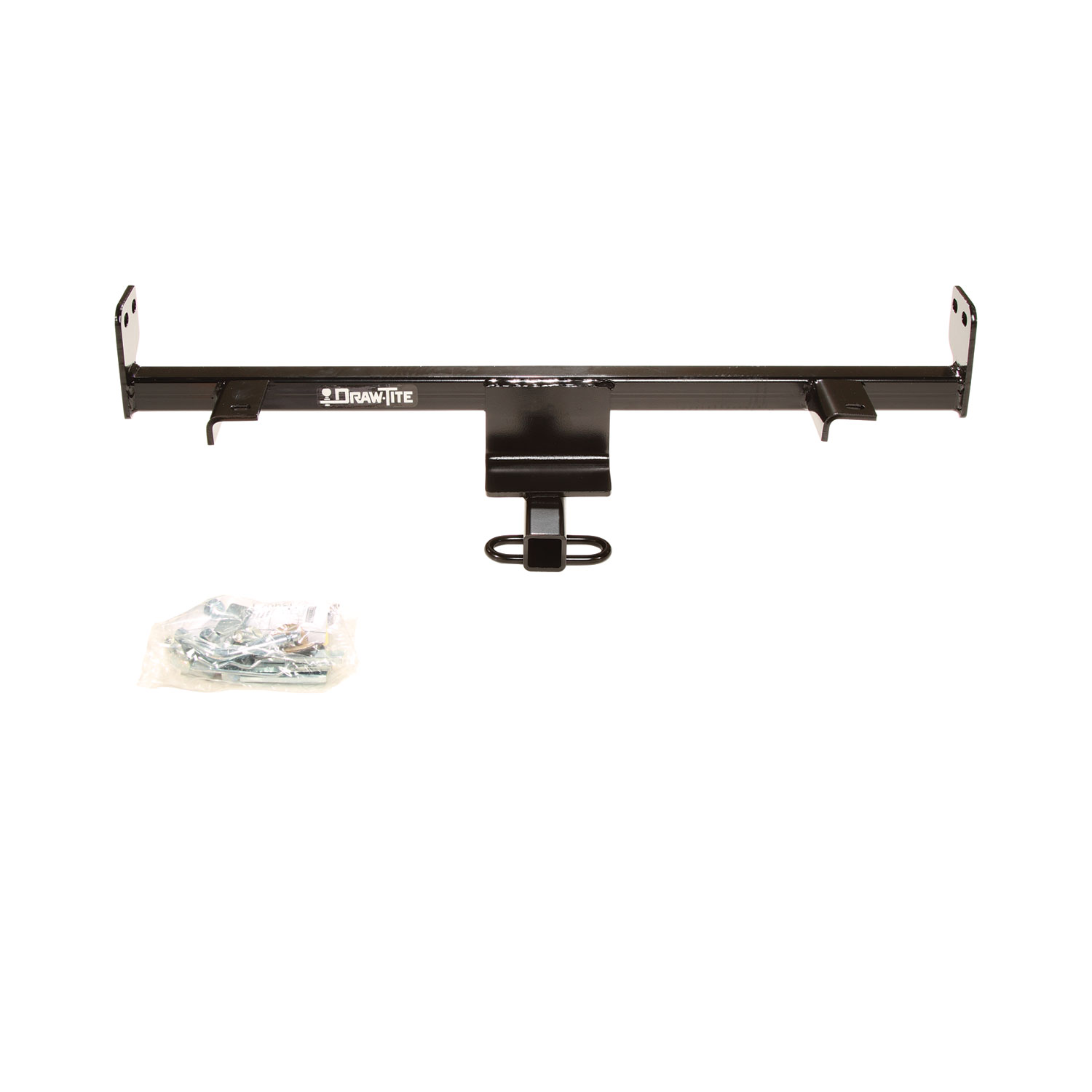

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24816 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.8 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |

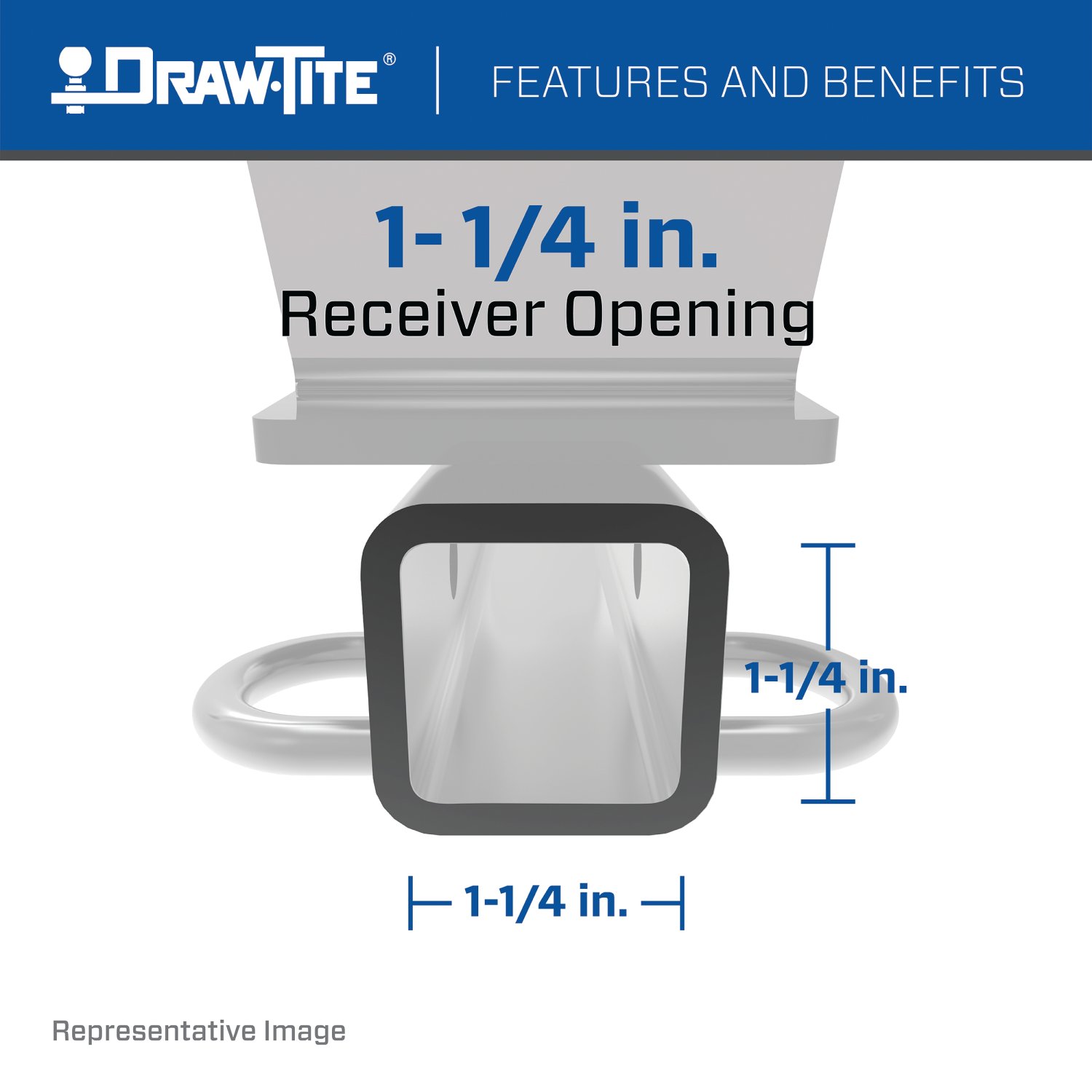

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2009 | Mazda Grand Vitara | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 35 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24816 (Part #DT24816) is designed to fit the 2004-2009 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24816 (Part #DT24816) fits the following vehicles: 2004-2009 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24816 (Part #DT24816) fits 2004-2009 Mazda Grand Vitara models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24816 (Part #DT24816) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 24816 is designed for Mazda 3 models including Speed 3 from model years 2006, 2007, 2008, 2009, and 2015. The installation instructions include separate mounting slots for 4-door and 5-door models, as well as Speed 3 variants.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (91 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You will need a flat blade screwdriver, an 11/16" wrench, and a 1/2" drill bit. Fishwire is provided with the hitch.

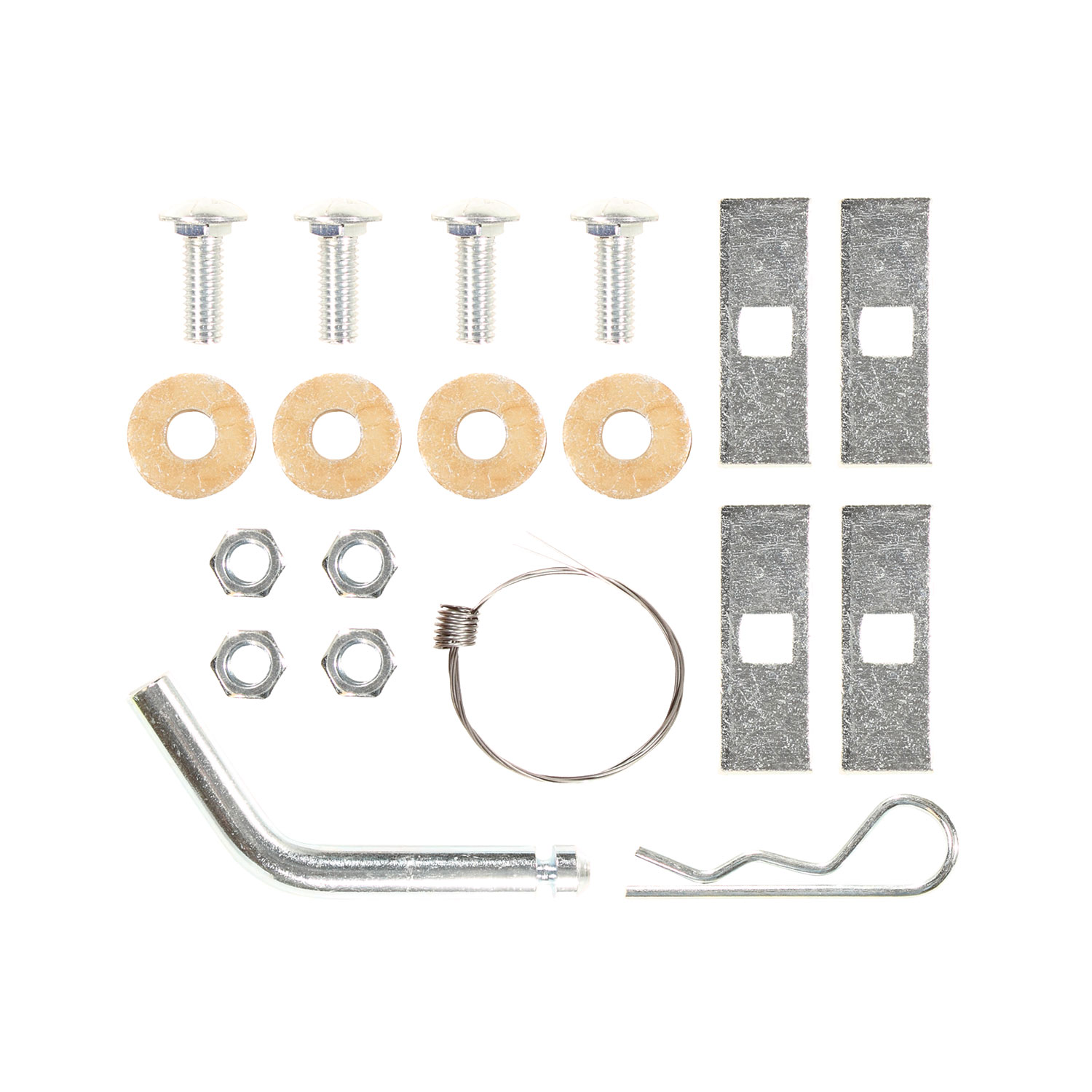

The hitch includes four 7/16"-14 x 1-1/4" Grade 5 carriage bolts, four 7/16" conical toothed washers, four 1/4" x 1" x 3" blocks, and four 7/16"-14 hex nuts. A separate fastener kit 24816F is available if additional fasteners are needed.
Yes. Step 1 requires you to use a 1/2" drill bit to enlarge four existing attachment holes. The manual does not specify whether these holes are factory-drilled or require initial drilling.
1. Use a 1/2" drill bit to enlarge the four existing attachment holes. 2. Remove and retain two plastic push rivets that attach lower fascia supports to the vehicle using a flat blade screwdriver. 3. Use fishwire to route carriage bolts and blocks through the bumper ends (Figure 1). 4. Position the hitch as shown in Figure 2, using the slot for 4-door models or the slot for 5-door and Speed 3 models. 5. Use fishwire to route carriage bolts and blocks through the bumper mount ends (Figure 2). 6. Tighten all fasteners. 7. Replace the plastic rivets removed in Step 2.
Tighten all 7/16" fasteners (carriage bolts and hex nuts) with a torque wrench to 50 Lb.-Ft. (68 N*M).
The wiring access locations are PC3 and PC4. However, the manual does not provide detailed wiring instructions or explain what these access points are used for.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection as part of ongoing maintenance.
No. The drawbar kit 3592 is sold separately. When used, the drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry. A damaged hitch or ball must be removed and replaced.
Hitch 24816 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. Part 24816 fits Mazda 3 including Speed 3 models from 2006, 2007, 2008, 2009, and 2015. Installation uses a separate mounting slot for 5-door and Speed 3 variants.
Yes. A 1/2" drill bit is required to enlarge four existing attachment holes.
Flat blade screwdriver, 11/16" wrench, 1/2" drill bit, and fishwire (provided).
All 7/16" fasteners must be tightened to 50 Lb.-Ft. (68 N*M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (91 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. Drawbar kit 3592 is sold separately and must be used in the RISE position only.
Wear eye protection. Do not cut holes with a torch. Work safely beneath the vehicle. Plug all holes if the hitch is removed to prevent water and exhaust fume entry.
