Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

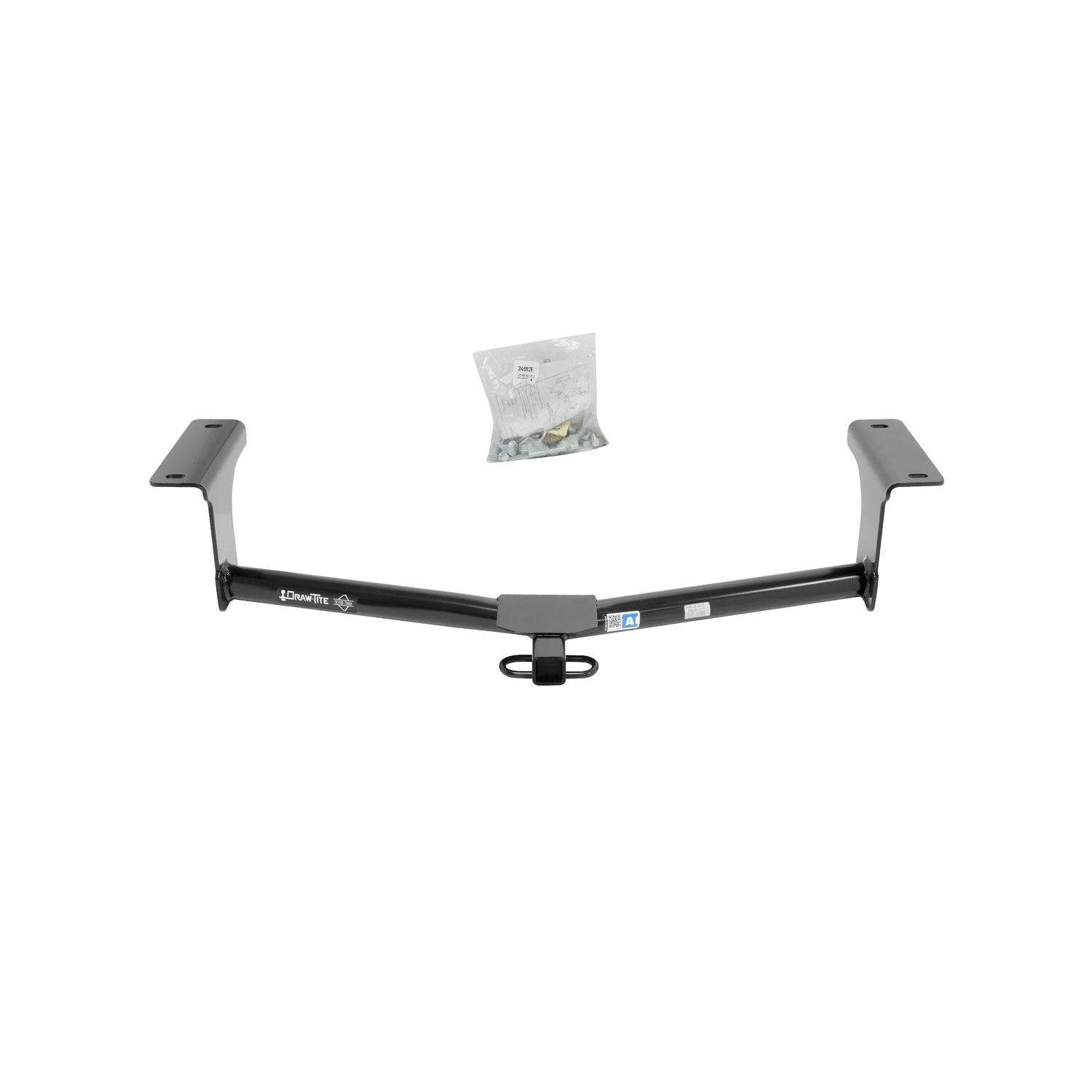

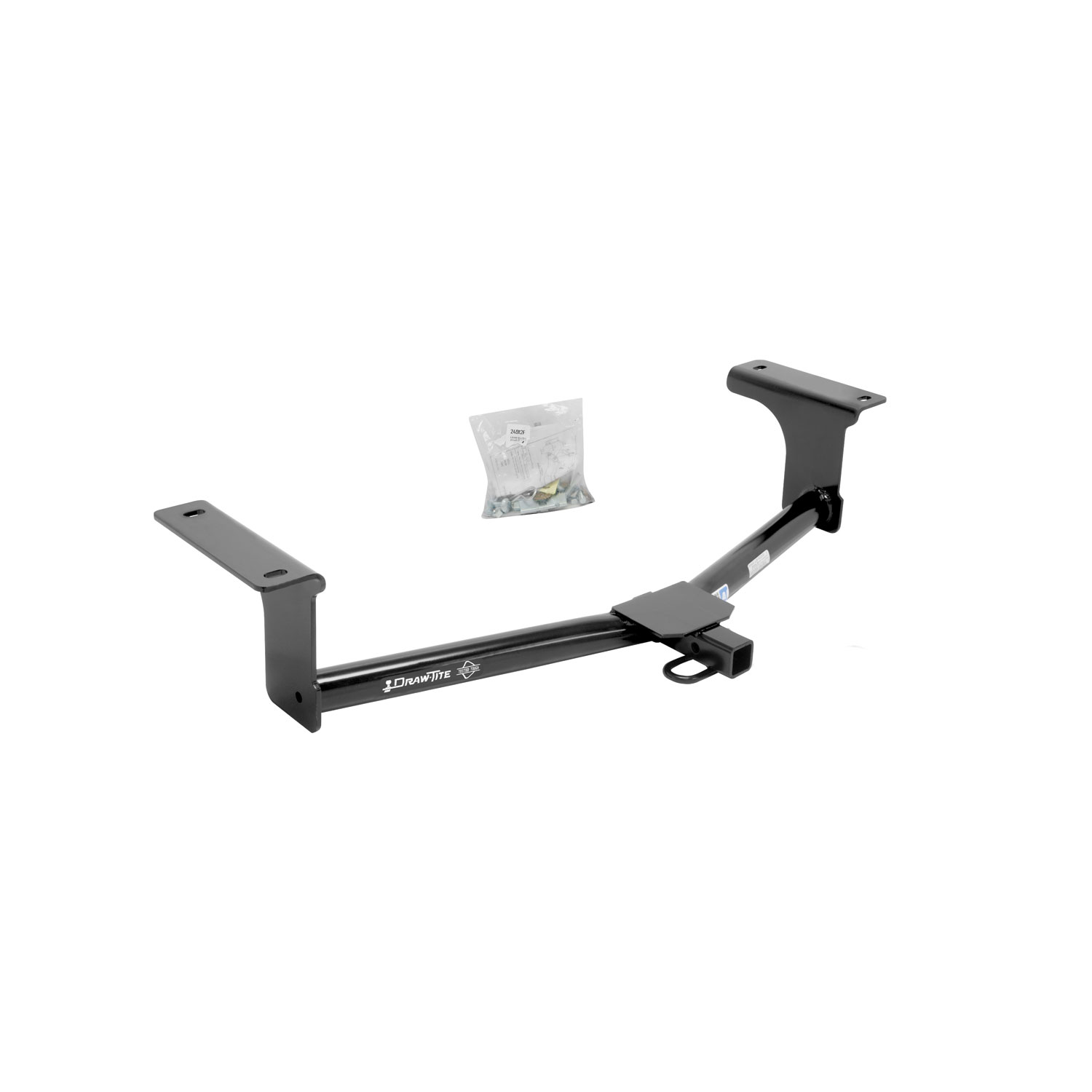

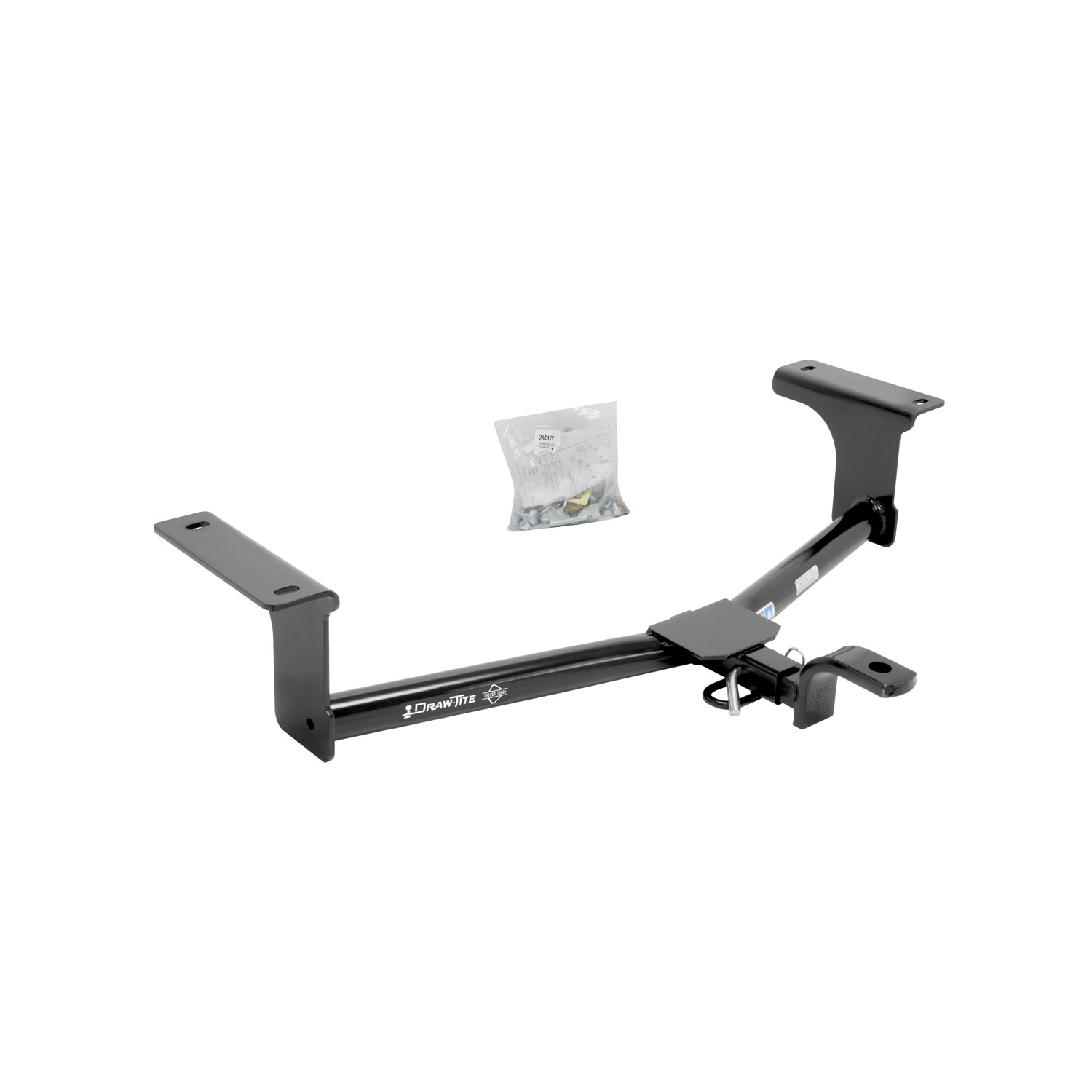

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24912 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2018 | Mazda Grand Vitara | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24912 (Part #DT24912) fits the following vehicles: 2014-2018 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24912 (Part #DT24912) fits 2014-2018 Mazda Grand Vitara models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24912 (Part #DT24912) is designed to fit the 2014-2018 Mazda Grand Vitara.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3 24912 (Part #DT24912) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24912 is designed for Mazda 3 sedan. The manual does not specify model years, so contact the manufacturer or your retailer to confirm your specific year is supported.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these ratings or your towing vehicle manufacturer's rating.
You need an 11/16" wrench and a torque wrench. No drill bits are required—the manual specifies no drilling is needed for this installation.
Only if additional clearance is needed. If required, lower the exhaust system at the rubber isolators. Spraying lubricant on the metal hanger rod and rubber isolator helps with removal.
The hitch uses a pull wire system to position fasteners inside the frame rails. Raise the hitch into position and feed pull wires through the adjacent slots. Feed the pull wire into the rearward slot and out the access hole, attach the spacer and carriage bolt to the pull wire, then pull into position on both sides. Use the reverse pull wire procedure to feed the pull wire into position in both rails. Once positioned, carefully remove the pull wires one at a time, place a washer over each pull wire to hold the bolt in place, then remove the pull wire and attach the hex nut.
Tighten all 7/16-14 GR5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).

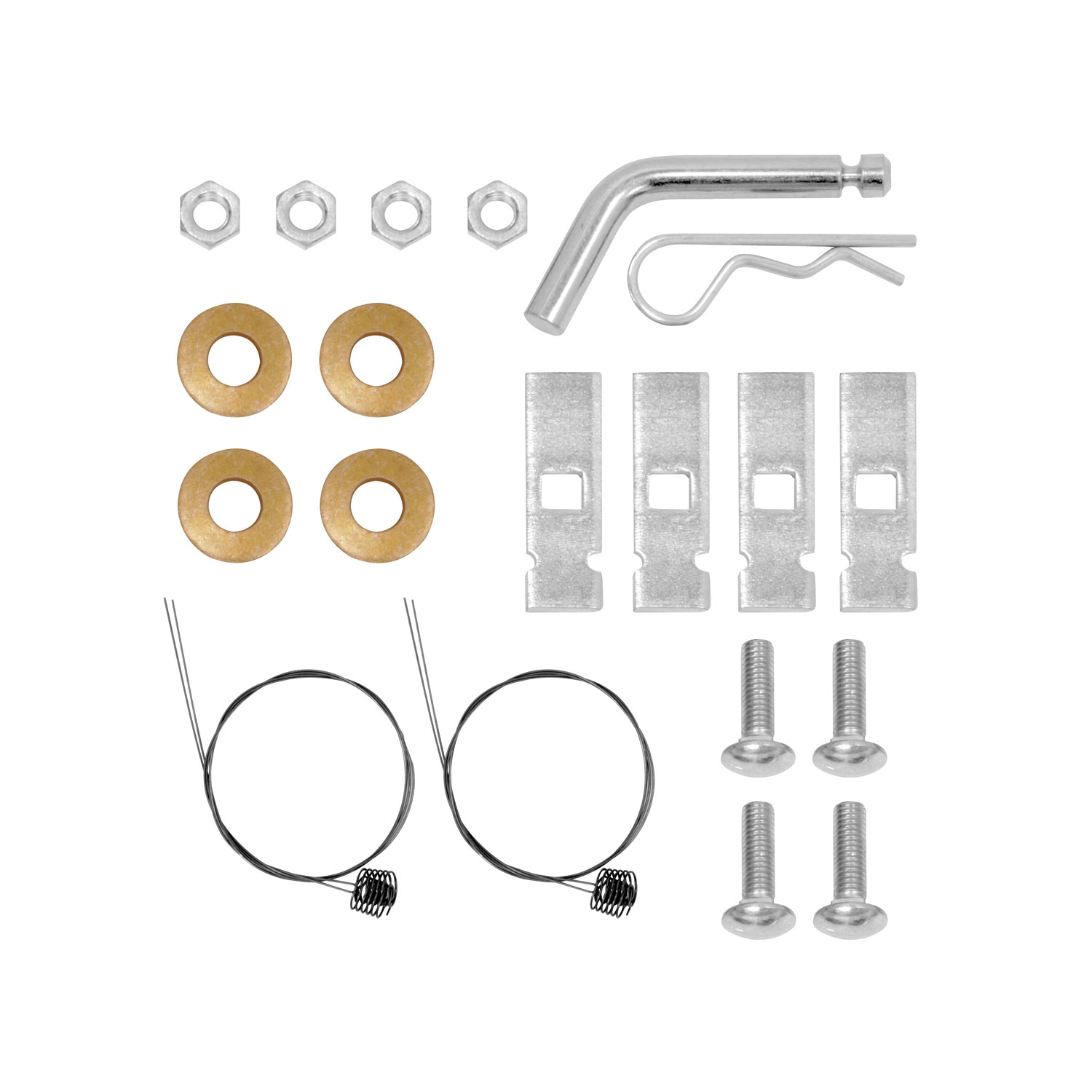

The hitch includes: 4 carriage bolts 7/16-14 × 1.50 GR5, 4 hex nuts 7/16-14, 4 spacers 1/4" × 7/8" × 3", 4 pull wires 7/16", and 4 conical tooth washers 7/16". A separate fastener kit 24912F is also available.
Yes. Kink the pull wire to keep the spacer independent of the bolt. This is shown in the installation diagram and helps maintain proper spacing during the installation process.
No. The drawbar must be used in the RISE position only. Using it in any other position is not permitted.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is essential for safe operation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.

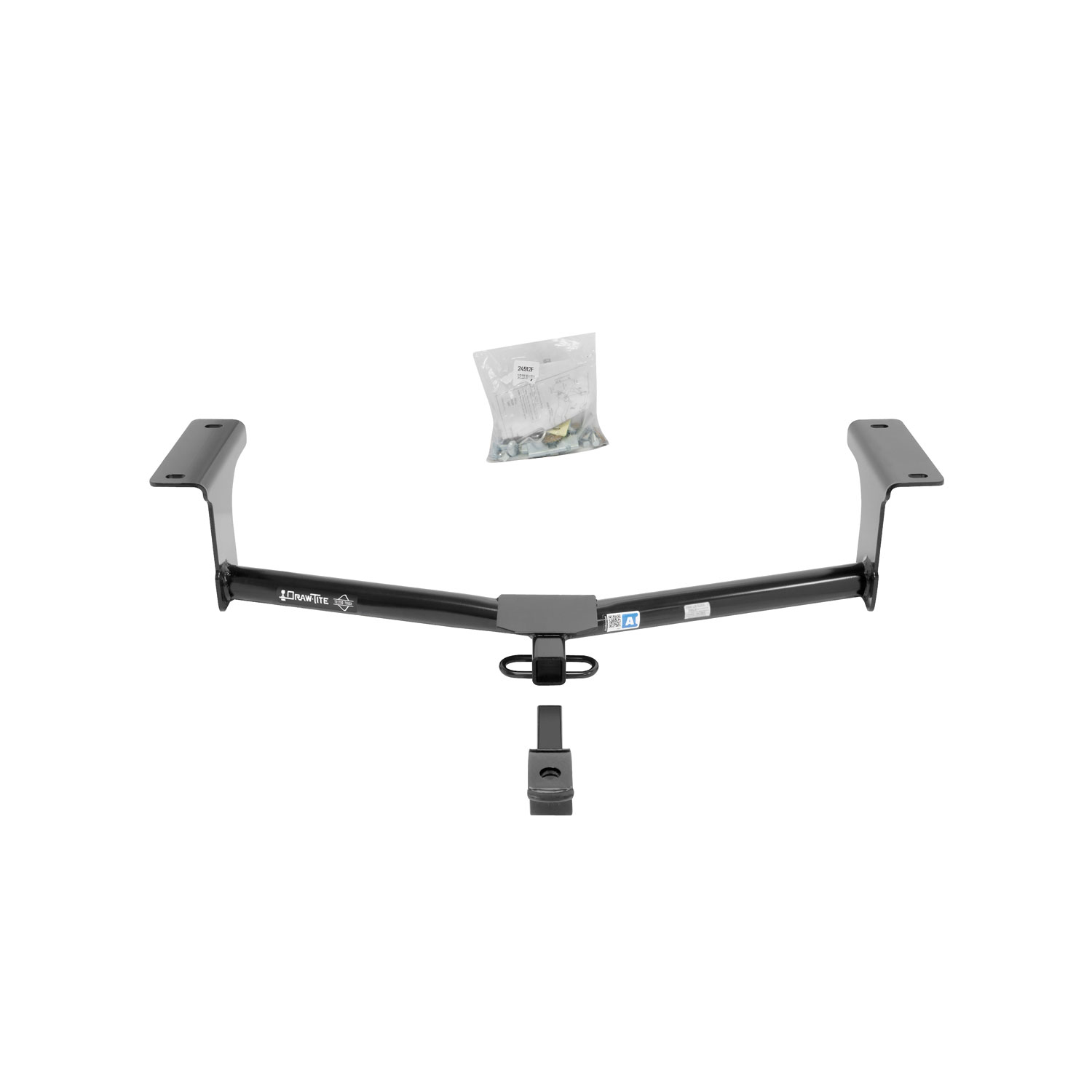

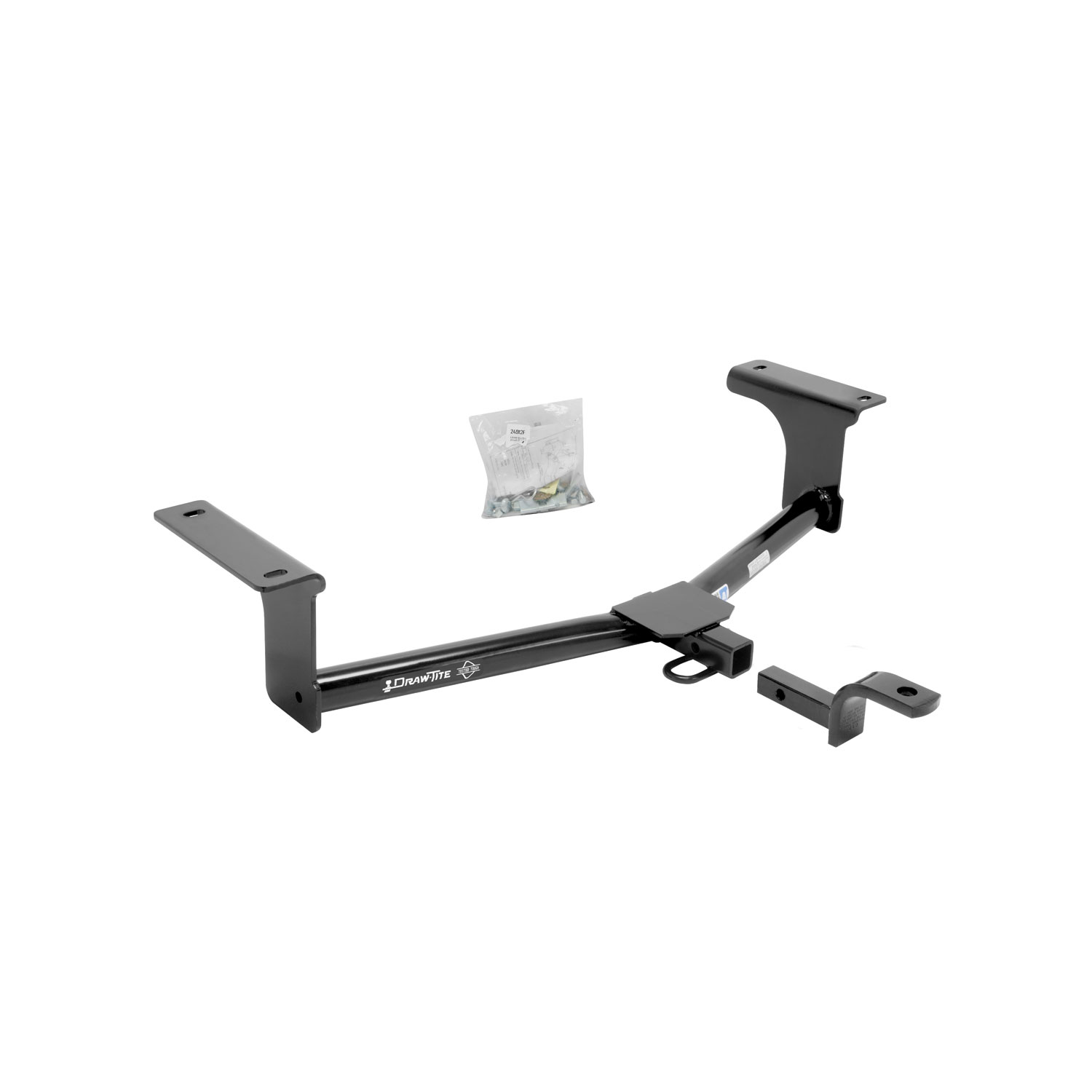

The manual lists drawbar kit 3593 separately and indicates it is sold separately. You will need to purchase it if you require a drawbar.
Yes, the 24912 is designed for Mazda 3 sedan. Confirm your specific model year with the manufacturer.
No, no drilling is required. The manual specifies zero drill bits needed.
Tighten all 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N·M) with a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg); maximum tongue weight is 200 LB (90.8 kg). Do not exceed your vehicle manufacturer's rating.
An 11/16" wrench and a torque wrench. No drill bits are needed.
Only if additional clearance is needed. If required, lower the exhaust system at the rubber isolators using lubricant to ease removal.
No, the drawbar must be used in the RISE position only.
