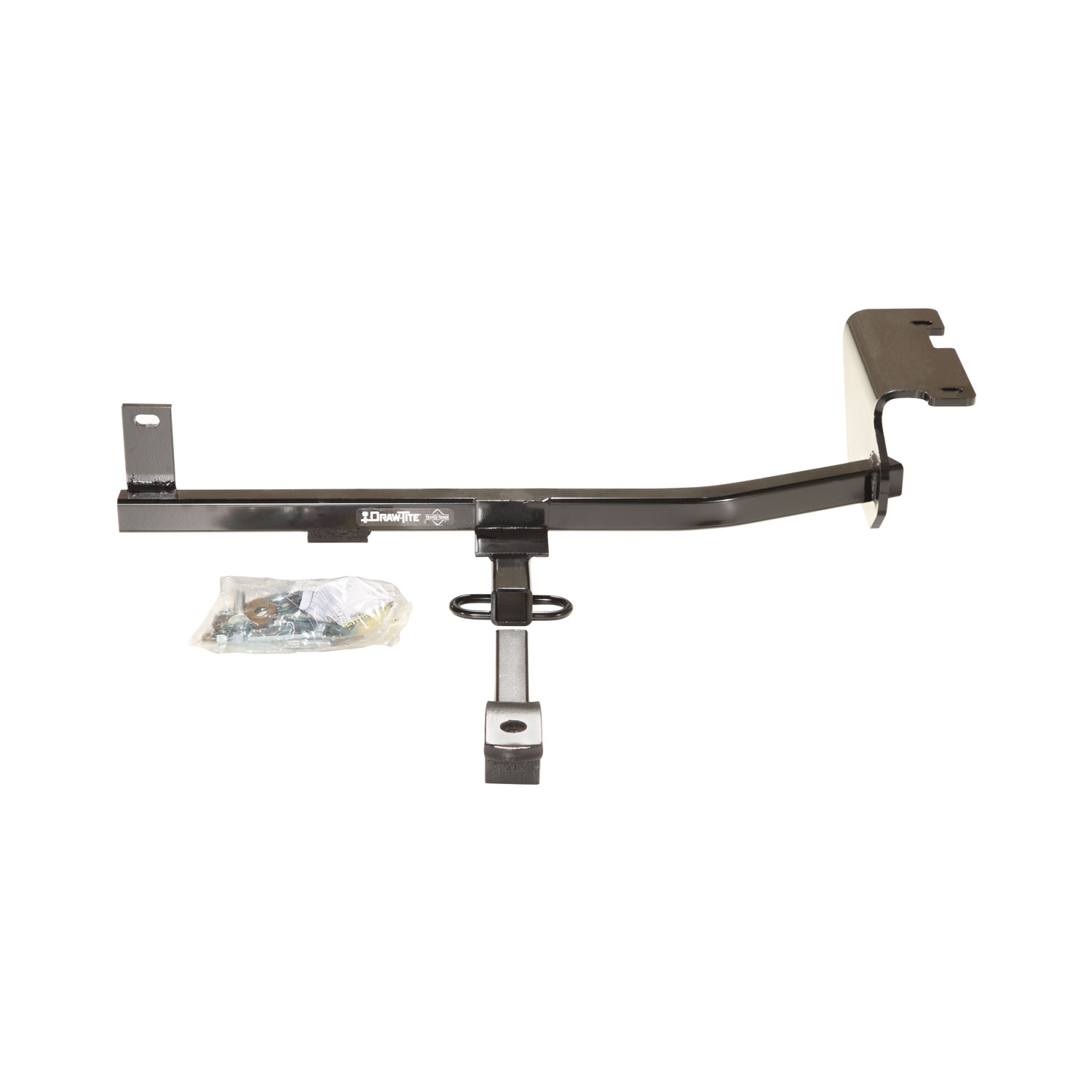

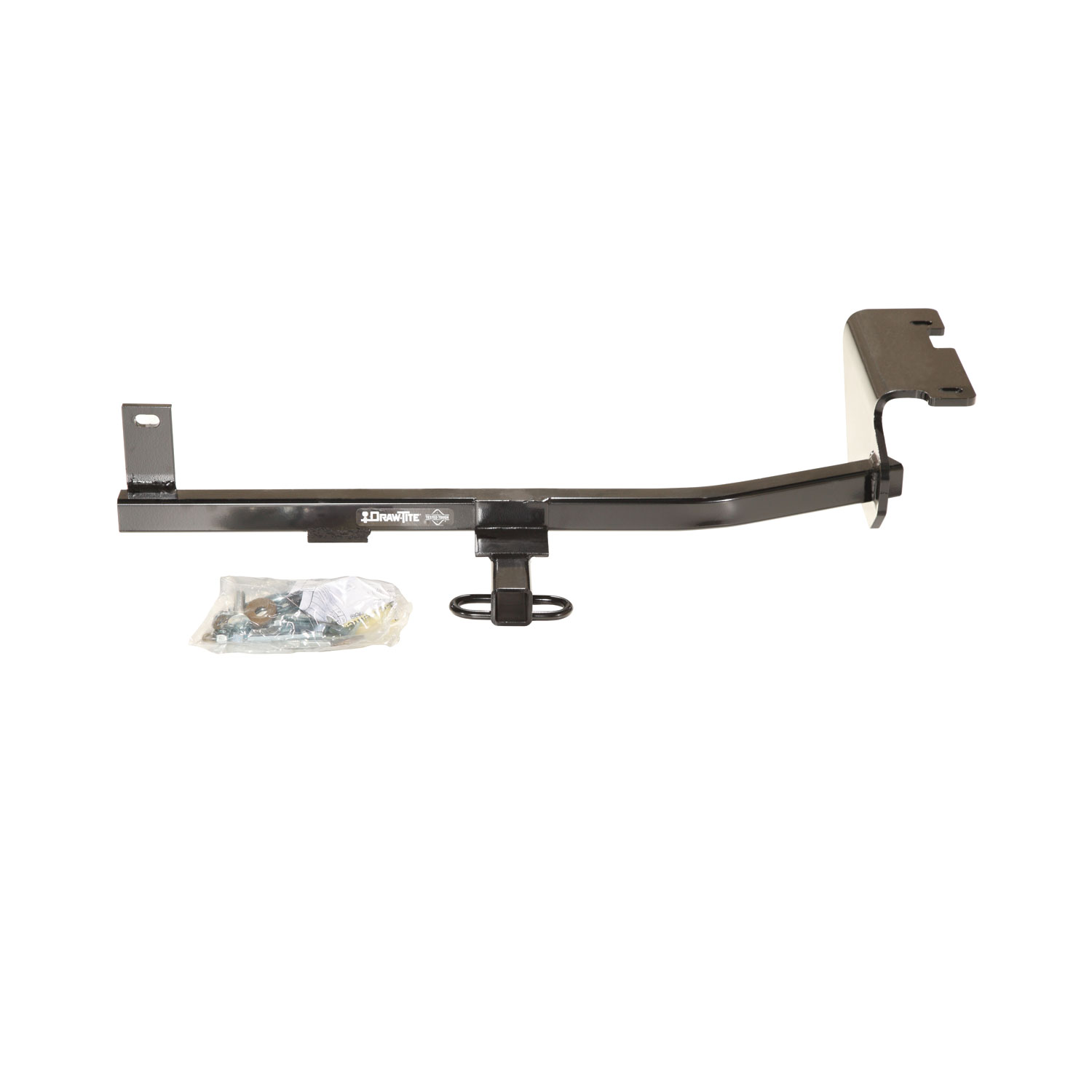

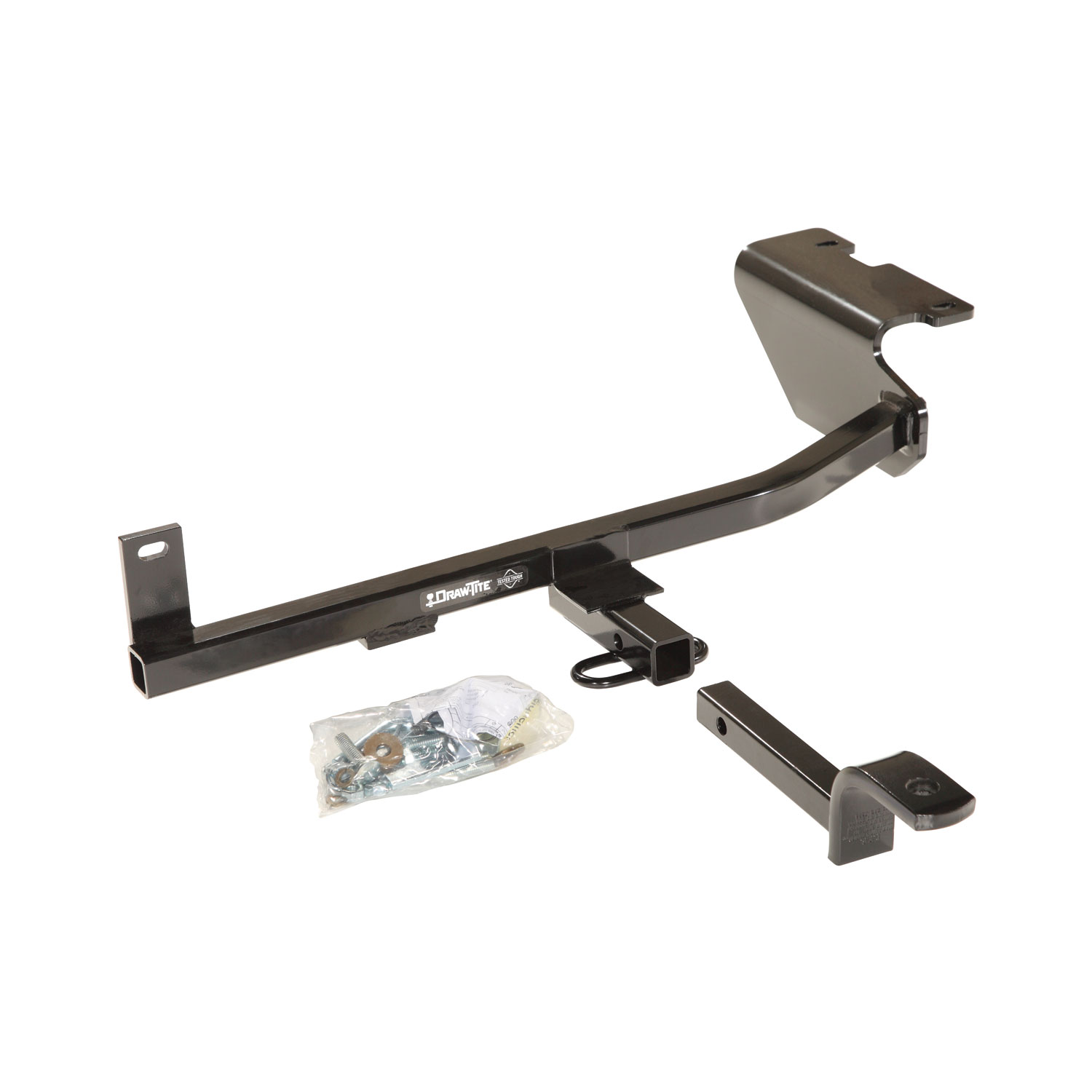

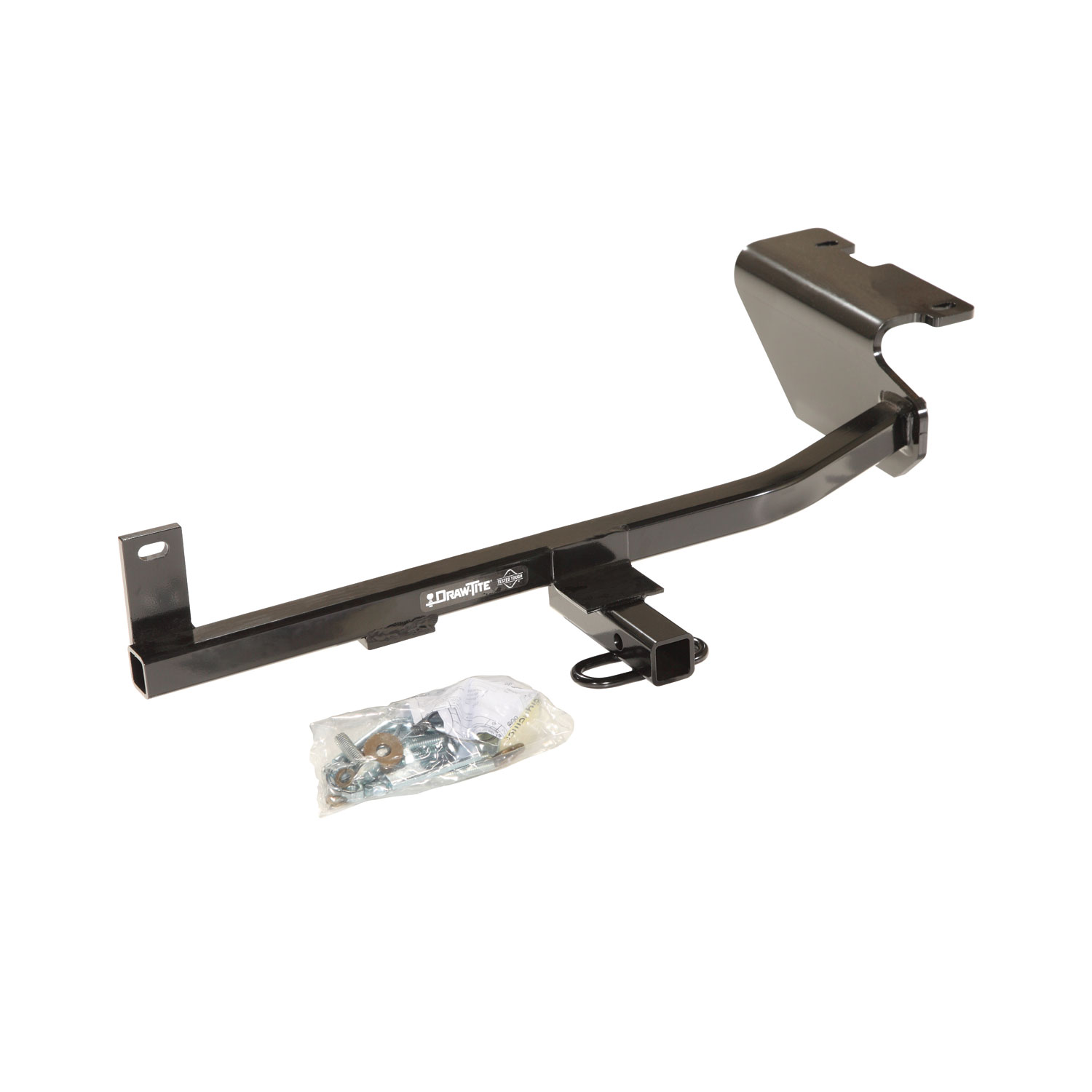

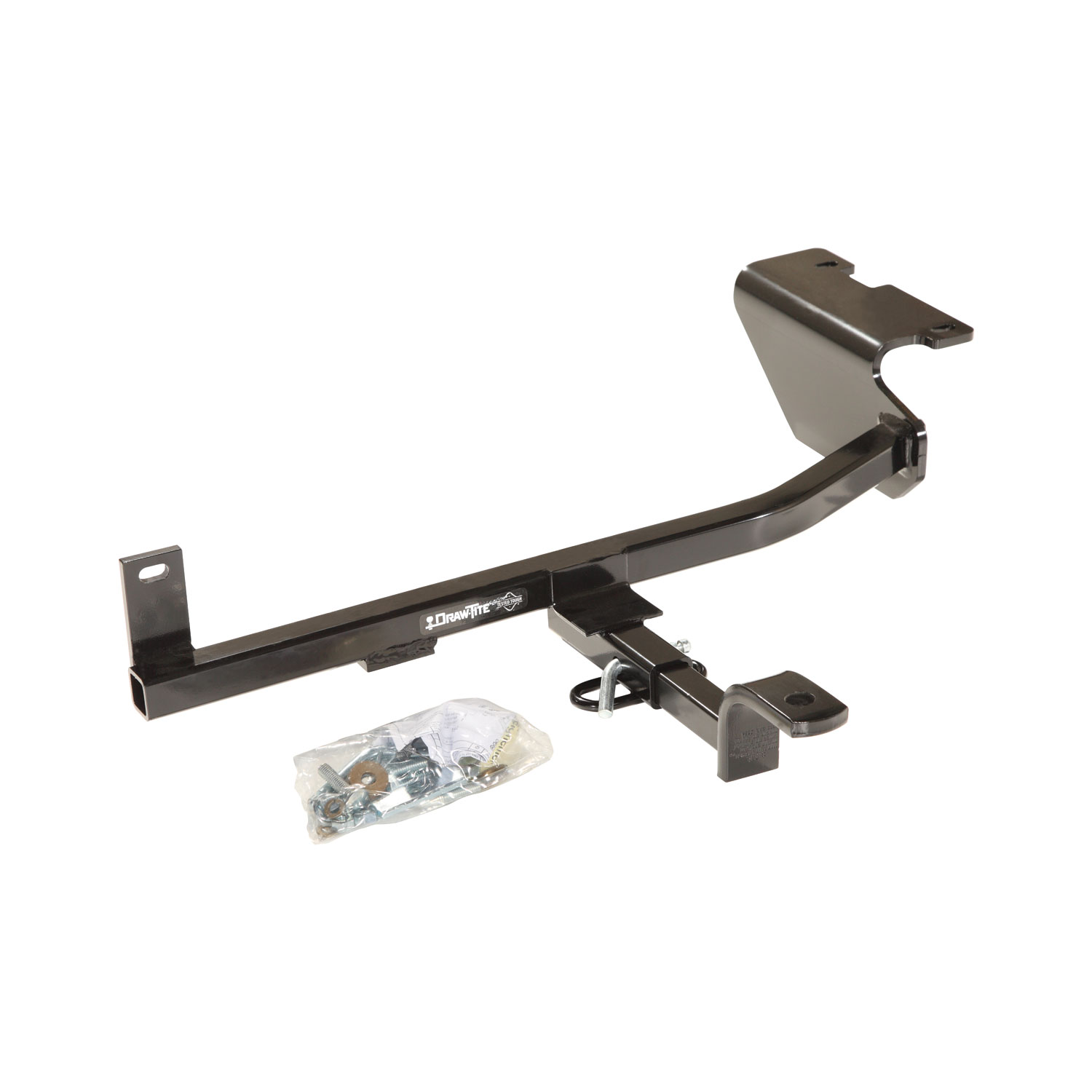

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24874 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25.8 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Mazda Sidekick | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 25 minutes |
Yes, this hitch (part numbers 24874, 60291, 77262) is designed for the Mazda 5. It is rated for a maximum gross trailer weight of 2000 LB (908 kg) and maximum tongue weight of 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
The hitch is rated for a maximum gross trailer weight of 2000 LB (908 kg) and a maximum tongue weight of 200 LB (90.8 kg). However, you must not exceed the lower of these limits or your vehicle manufacturer's towing rating.
You will need: wrenches (11/16" and two 3/4"), a drill with a 3/8" or 1" hole saw or cutting tool, a small screwdriver, masking tape, and paint. Pullwires are provided with the hitch. A torque wrench is required to tighten fasteners to specification.

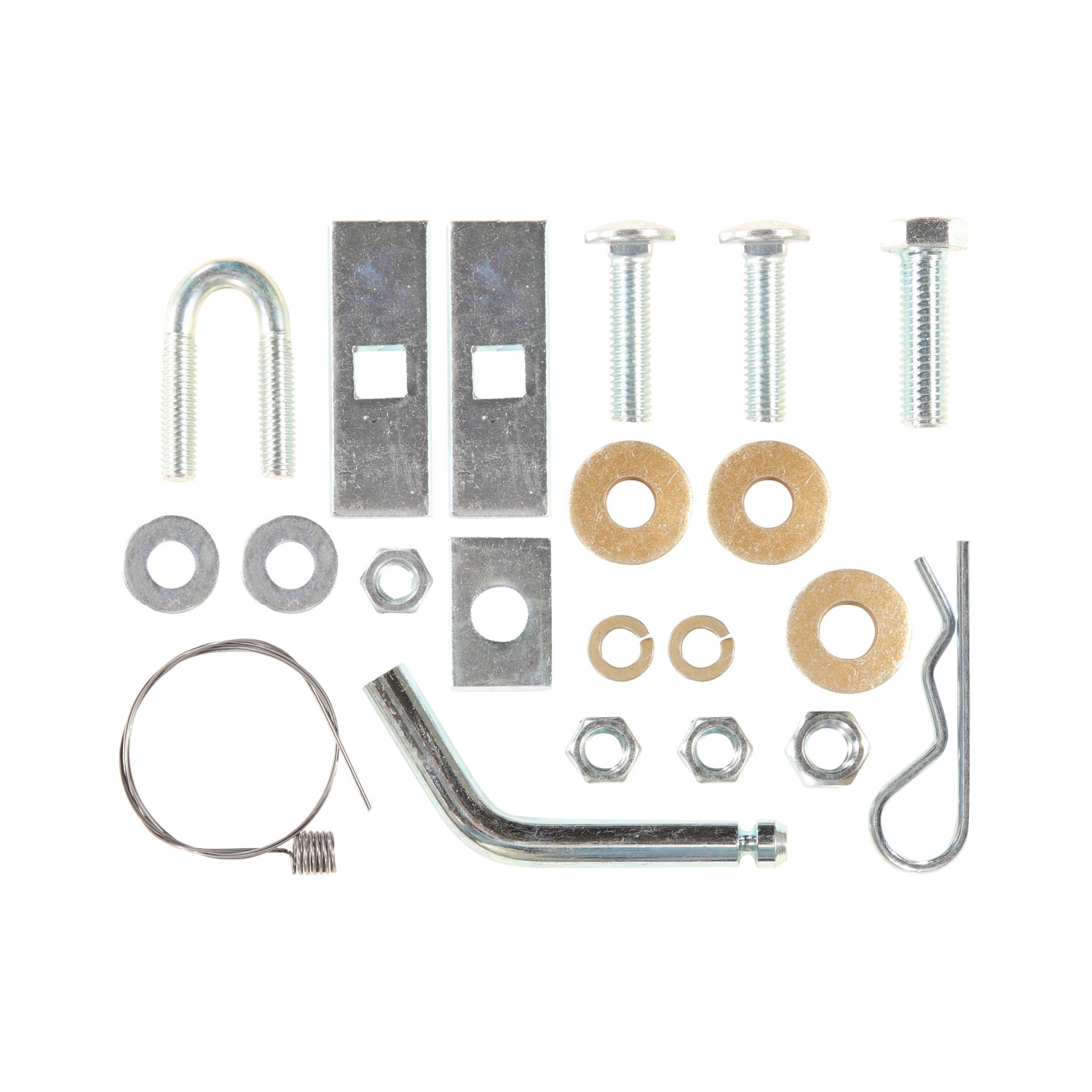

The hitch includes: 1 U-bolt (3/8-16"), 2 flat washers (3/8"), 2 lock washers (3/8"), 2 hex nuts (3/8-16), 1 bolt (½-13 × 1.75 GR5), 1 conical washer (½"), 1 hex nut (½-13), 2 carriage bolts (7/16-14 × 1-3/4" GR5), 2 conical washers (7/16"), 2 hex nuts (7/16-14), 2 spacers (¼" × 1" × 3"), 1 spacer (¼" × 1" × 1-1/2"), and pullwires. A fastener kit (24874F) is available separately. The drawbar kit (3592) and fascia are sold separately.
Yes. You must enlarge the forward access hole or drill a 1" access hole in the bottom of the passenger side frame rail between the attachment holes for bolts and spacers. You will also need to remove two plastic rivets from the fascia tabs and reattach them after installation. Any exposed metal from drilling must be painted.
Drill a 1" access hole in the bottom of the passenger side frame rail between the attachment holes for bolts and spacers. You may also enlarge an existing forward access hole instead. See Figure 2 in the manual for the enlargement method. Paint any exposed metal after drilling.
No. Do not cut access or attachment holes with a torch. Use a drill with a 3/8" or 1" hole saw or other cutting tool instead.
1. Remove the two plastic rivets from the fascia tabs and push the fascia toward the impact bar. 2. Enlarge or drill the 1" access hole in the passenger side frame rail and paint exposed metal. 3. Feed spacers and carriage bolts into position using the provided pullwires; leave the pullwire attached. 4. Pull the heat shield away from the end panel and tape sharp edges. 5. Hang the U-bolt on the tow hook. 6. Raise the hitch into position and maneuver the upright bar between the end panel and heat shield; attach with flat washer, lock washer, and hex nut (leave snug). 7. Feed pullwires through the passenger side bracket slots, shift the bracket into place, pull fasteners through, remove one pullwire at a time, and attach conical washer and hex nut. 8. Insert the ½-13 bolt through the spacer and end panel into the upright bar slot; attach conical washer and hex nut. 9. Tighten all fasteners to torque specification. 10. Reattach the fascia. 11. Push the heat shield back into position.
Use the provided pullwires to feed the spacers and carriage bolts into position. It is much easier if the bolt and spacer are not engaged (not threaded together) while inserting them into the frame. Leave the pullwire attached to the fasteners during insertion. See Figures 3 and 4 for the insertion method.
It is much easier to insert the bolt and spacer into the frame if they are not engaged (not threaded together). Once they are in position, you will then attach the conical washer and hex nut to secure them.
The heat shield has sharp edges. Use masking tape on the heat shield edges before pulling it away from the end panel to allow access for the hitch upright bar. After installation, push the heat shield back into its original position.
Remove the two plastic rivets that fasten the fascia tabs to the trunk pan by removing the center of each rivet with a screwdriver and removing the remaining piece. The rivets are to be reinstalled. After hitch installation is complete, reattach the fascia back into position.
When you first attach the U-bolt to the tow hook with the flat washer, lock washer, and hex nut, leave the fasteners snug (hand-tight). Tighten all fasteners to their required torque specifications only after all other components are in place (Step 9).
Feed the pullwires through the slots of the passenger side bracket. Shift the bracket into the location shown in the manual. Pull the fasteners through the bracket. Remove one pullwire at a time (being careful not to push the fasteners into the frame rail) and attach the conical washer and hex nut as shown. Repeat with the remaining fastener.
Orient the spacer as shown in the manual illustration. Insert the ½-13 bolt into the spacer, reach behind the end panel, insert the bolt through the hole in the end panel and slot in the upright bar, and attach the conical washer and hex nut.
Tighten all 3/8-16 fasteners to 30 Lb.-Ft. (41 N·M). Tighten all 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N·M). Tighten all ½-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M). Use a torque wrench for all fasteners.
Tighten all 3/8-16 fasteners to 30 Lb.-Ft. (41 N·M) using a torque wrench.
Tighten all 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Tighten all ½-13 GR5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
The hitch includes two carriage bolts, each 7/16-14 × 1-3/4" GR5.
The main attachment bolt is ½-13 × 1.75 GR5. It is inserted through the spacer, end panel, and upright bar slot, and secured with a conical washer and hex nut.
The U-bolt is 3/8-16" and is hung on the tow hook with a flat washer, lock washer, and hex nut.
Observe safety precautions when working beneath a vehicle and wear eye protection. Use masking tape on the heat shield due to sharp edges. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the rise position only. The drawbar kit (3592) is sold separately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that all fasteners have been tightened to the required torque specifications before using the hitch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced.
Yes, this hitch (part numbers 24874, 60291, 77262) is designed for the Mazda 5 with a maximum gross trailer weight of 2000 LB and tongue weight of 200 LB.
You need wrenches (11/16" and two 3/4"), a drill with 3/8" or 1" hole saw, small screwdriver, masking tape, paint, and a torque wrench. Pullwires are provided.
Yes. You must drill or enlarge a 1" access hole in the passenger side frame rail. You will also remove and reinstall two plastic fascia rivets. Paint any exposed metal.
3/8-16 fasteners: 30 Lb.-Ft. (41 N·M). 7/16-14 GR5 fasteners: 50 Lb.-Ft. (68 N·M). ½-13 GR5 fasteners: 75 Lb.-Ft. (102 N·M). Use a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of these limits or your vehicle manufacturer's rating.
Wear eye protection. Use masking tape on the heat shield (sharp edges). Do not use a torch to cut holes. Plug all holes if the hitch is removed. Check fasteners frequently.
