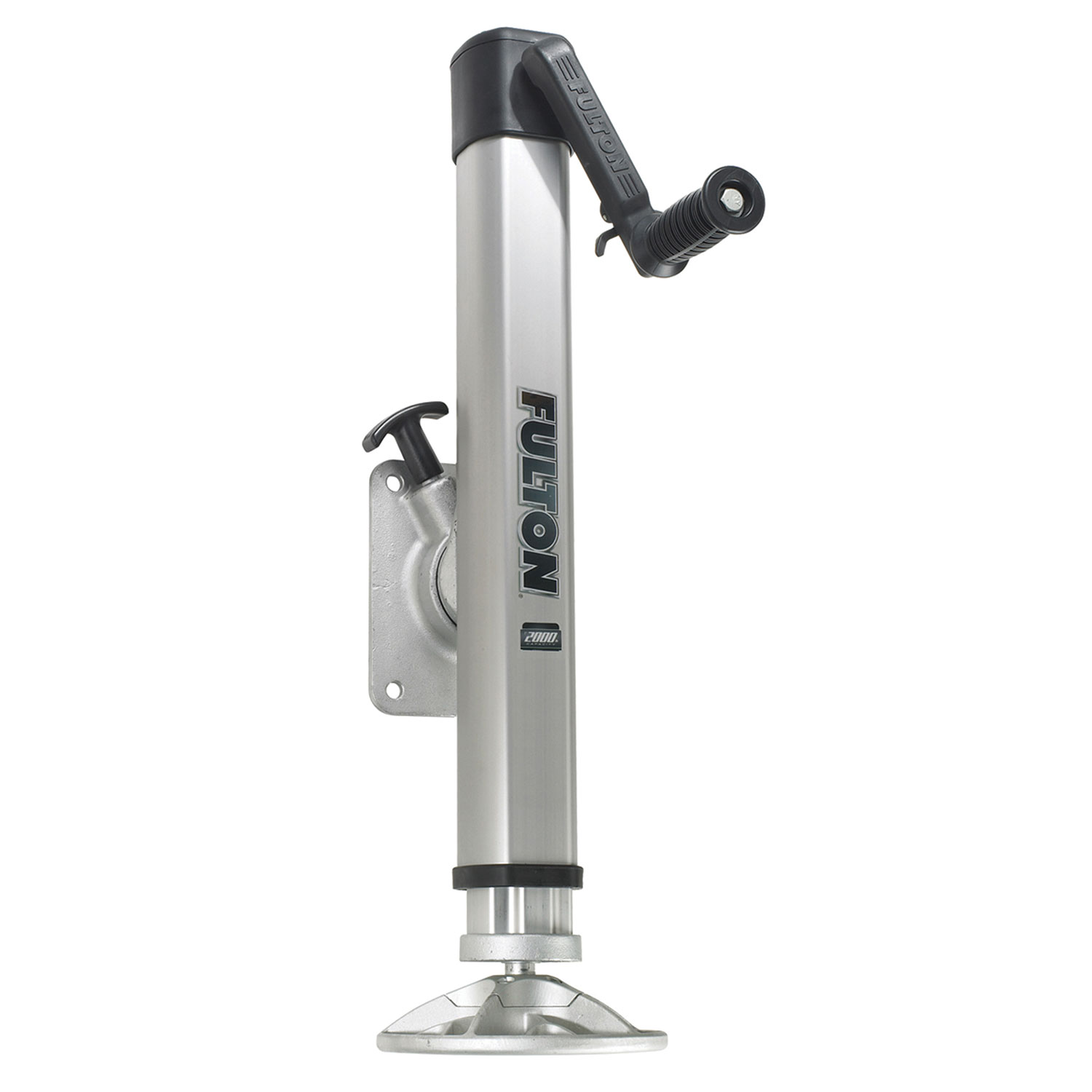

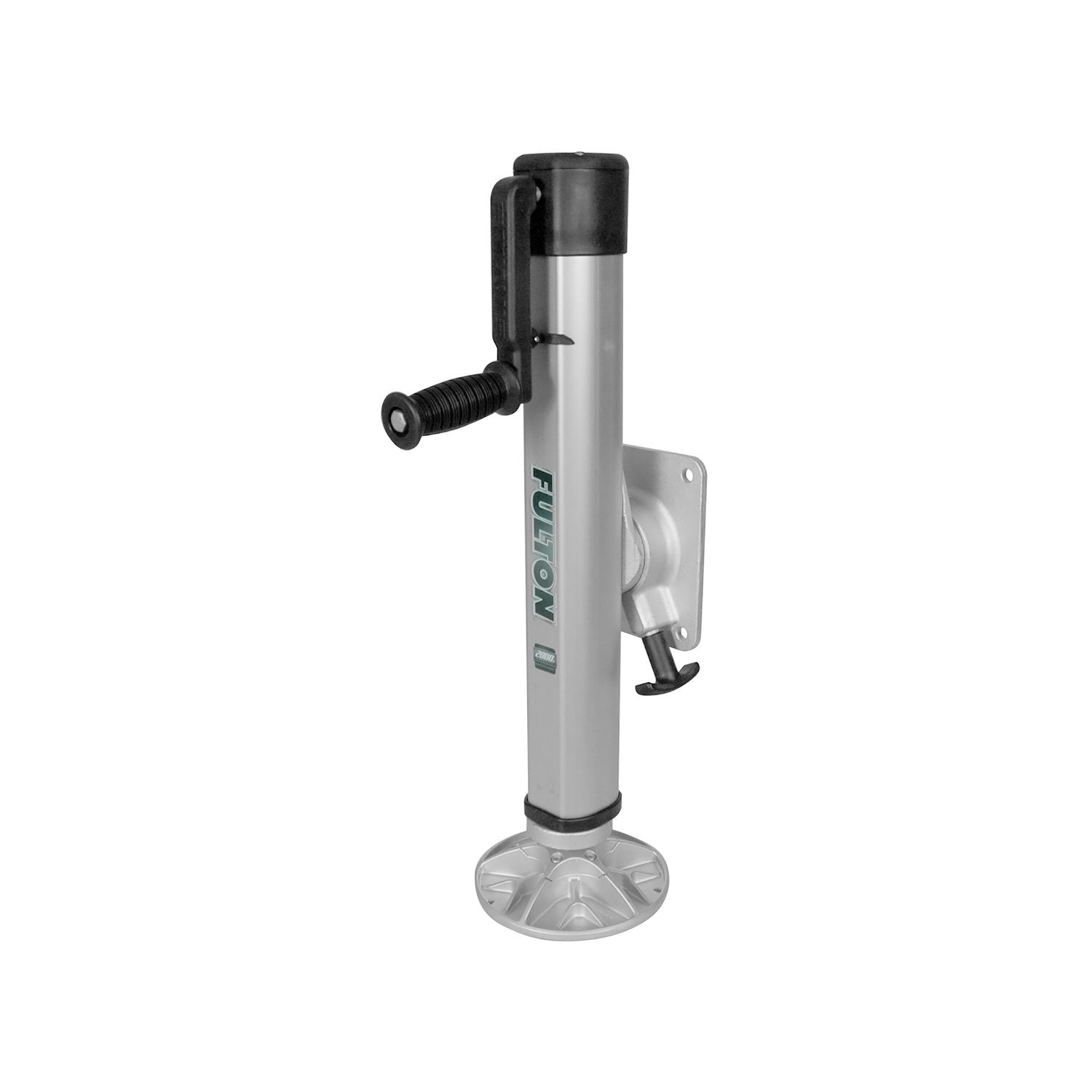

Fulton, the industry leady for high performance jacks, is proud to introduce another addition to the F2 family of trailer jacks. Our 2,000 lbs. lift capacity adjustable swivel with footplate jacks pack all of the features of the award winning Twin Track & Wide Track models, along with the unprecedented LIMITED LIFETIME WARRANTY. The 2,000 lbs. capacity jacks possess the following unique features.
| BRAND: | FULTON |
| PART NUMBER: | 1413230134 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21.267 LBS |
| CAPACITY: | 2,000 LBS. |
| FOOT PLATE SIZE: | 7 in. x 7 in. |
| COLOR: | SILVER |
| TRAVEL: | 10 IN. |
| MATERIAL: | ALUMINUM |
| ATTACHED WHEELS: | NO |
| CLEARANCE: | 10 IN. |
| CYLINDER DIAMETER: | 2.75 IN. |
| EXTENDED: | 35 IN. |
| FINISH: | ANODIZED |
| FOOT LENGTH: | 7 IN. |
| HANDLE STYLE: | SIDEWIND |
| FOOT WIDTH: | 7 IN. |
| PULL PIN DIAMETER: | 0.5 IN. |
| SPEEDY LIFT: | NO |
| WHEEL DIAMETER: | 7 IN. |
| RETRACTED: | 12.25 IN. |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-9494Lifetime
Fulton® F2® Marine and Recreational Jacks
The F3576 bolt-on model is available in 3"×3", 3"×4", or 3"×5" trailer tubes only. The weld-on model includes a mounting plate for custom installation.
No. The F3576 is not designed for mounting to round tongues. It is designed for square trailer tubes only.
Yes. Before mounting, confirm there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check all positions including handle swing and swivel positions before installation, and check again after installation is complete.
Tighten the U-bolt nuts to 20–25 ft-lbs.
Torque the two swivel fasteners to 60–70 ft-lbs after adjusting the swivel mount height.
Torque the handle assembly locknut to 20–25 in-lbs.
Thread the footplate into the bottom of the jack tube and torque to 60–70 ft-lbs.
Fully retract and rotate the jack into its stowed position before towing.
Yes. Lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue.
The F3576 is a trailer jack manufactured by Cequent Trailer Products. It is designed to support and raise the tongue of a trailer for coupling and uncoupling. The jack features a swivel mount that can be adjusted in height, a crank handle for manual operation, and optional accessories including a wheel wedge and handle hold-up.
The maximum rated capacity is stamped on the product or shown on decals. If you are uncertain of the capacity, contact Cequent Trailer Products at 800-604-9466 or www.cequentgroup.com.
Yes. The F3576 is available in two main configurations: bolt-on and weld-on. The bolt-on model fits 3"×3", 3"×4", or 3"×5" trailer tubes and uses U-bolts for attachment. The weld-on model includes a mounting plate that must be welded to the trailer tube by an AWS certified welder.
The manual does not specify required tools. However, for bolt-on installation you will need a wrench or socket to tighten the U-bolt nuts to 20–25 ft-lbs and the swivel fasteners to 60–70 ft-lbs. For weld-on installation, you must hire an AWS certified welder to attach the mounting plate.
The manual does not explicitly require professional installation for bolt-on models, but weld-on models must be installed by an AWS certified welder. For bolt-on installation, you must be able to position the jack correctly, check for interference, and torque fasteners to specification.
The height of the swivel mount is pre-set and torqued by the factory at a common height for most applications. If adjustment is necessary, you can loosen the two swivel fasteners, move the swivel mount to the desired location, and re-torque to 60–70 ft-lbs.
1. Remove the jack from the trailer. 2. Loosen the two swivel fasteners until the slide block moves freely along the outer tube. 3. To access the upper bolt, rotate the swivel bracket to the horizontal (3" mounting) position. 4. Adjust the swivel mount to the desired location. 5. Re-torque both fasteners to 60–70 ft-lbs. 6. After adjustment, check for proper swivel and pin engagement.
1. Position the swivel bracket and U-bolts to allow proper mounting to the trailer. 2. Tighten the nuts and torque to 20–25 ft-lbs. The bolt-on model is available for 3"×3", 3"×4", or 3"×5" trailer tubes only.
1. All welding must be performed by an AWS certified welder. 2. Position the mounting plate with the flat surface toward the trailer. 3. Align the top of the mounting plate flush with the top of the trailer tube. 4. Weld completely around using a 3/16" fillet weld. 5. The threaded holes in the mounting plate may need to be masked for painting or re-tapped, depending on trailer finish requirements. 6. Recheck the position of the mounting plate according to the precautions listed in the manual before and after installation.
Assemble the handle assembly as shown in the diagram and torque the locknut to 20–25 in-lbs.
Thread the footplate into the bottom of the jack tube and torque to 60–70 ft-lbs.
Assemble the optional wheel wedge as shown in the diagram and torque to 6–9 in-lbs. To activate, press downward until the wedge locks into place. To release, lift up until pressure is released from the wheels. The wheel wedge is not intended to be a wheel brake or stop.
1. Place the handle hold-up with its stop block pointing toward the top of the jack. 2. Center the hold-up on the handle. 3. Drive the pin flush through the hold-up and both tabs. Proper assembly allows the handle hold-up to rotate down in the event of crank handle bypass.
Never position any part of your body under or in the path of the jack or the load being supported or moved. Do not allow children to play on or around the product or load. Secure the load, vehicle and trailer from rolling by blocking wheels when operating the jack. Never exceed the maximum rated capacity. The F3576 is designed for vertical loading only; excessive side forces may cause jack failure and must be avoided. Do not use the jack as a transport device for the implement it is attached to. Before manually moving the trailer, crank the jack to its lowest position. Always replace bent, broken or worn parts before using the product.
Before manually moving the trailer, crank the jack to its lowest position.
No. The F3576 is designed for vertical loading only. Excessive side forces may cause jack failure and must be avoided.
No. You must not alter or modify the product. Do not cut, drill, weld or modify the jack in any manner not described in these instructions. The purchaser/owner must not alter or modify the product. Any modifications not performed by the manufacturer or not described in the instructions will void the warranty.
The F3576 is designed with precision fit components and corrosion resistant materials to minimize the frequency of maintenance. Occasional cleaning with mild soap and water along with light oil lubrication of pivot points will prolong peak performance and appearance.
After installation is complete, check for interference again from the tow vehicle, tongue, ground and any other mounted accessories in all positions including handle swing and swivel positions. After adjusting the swivel mount height, check for proper swivel and pin engagement.
The F3576 comes with a Limited Lifetime Warranty. Cequent Trailer Products warrants to the original consumer purchaser only that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted, provided that installation and use of the product is in accordance with product instructions. The warranty does not cover normal wear and tear, damage through abuse, neglect, misuse, accident, misapplication, overloading, improper installation, improper maintenance and repair, or product alteration by anyone other than the manufacturer. To make a warranty claim, contact Cequent Trailer Products at 1050 Indianhead Drive, Mosinee, WI 54455, 1-800-604-9466, identify the product by model number, and follow the claim instructions provided.
