Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-9494Lifetime
Fulton® F2® Winches

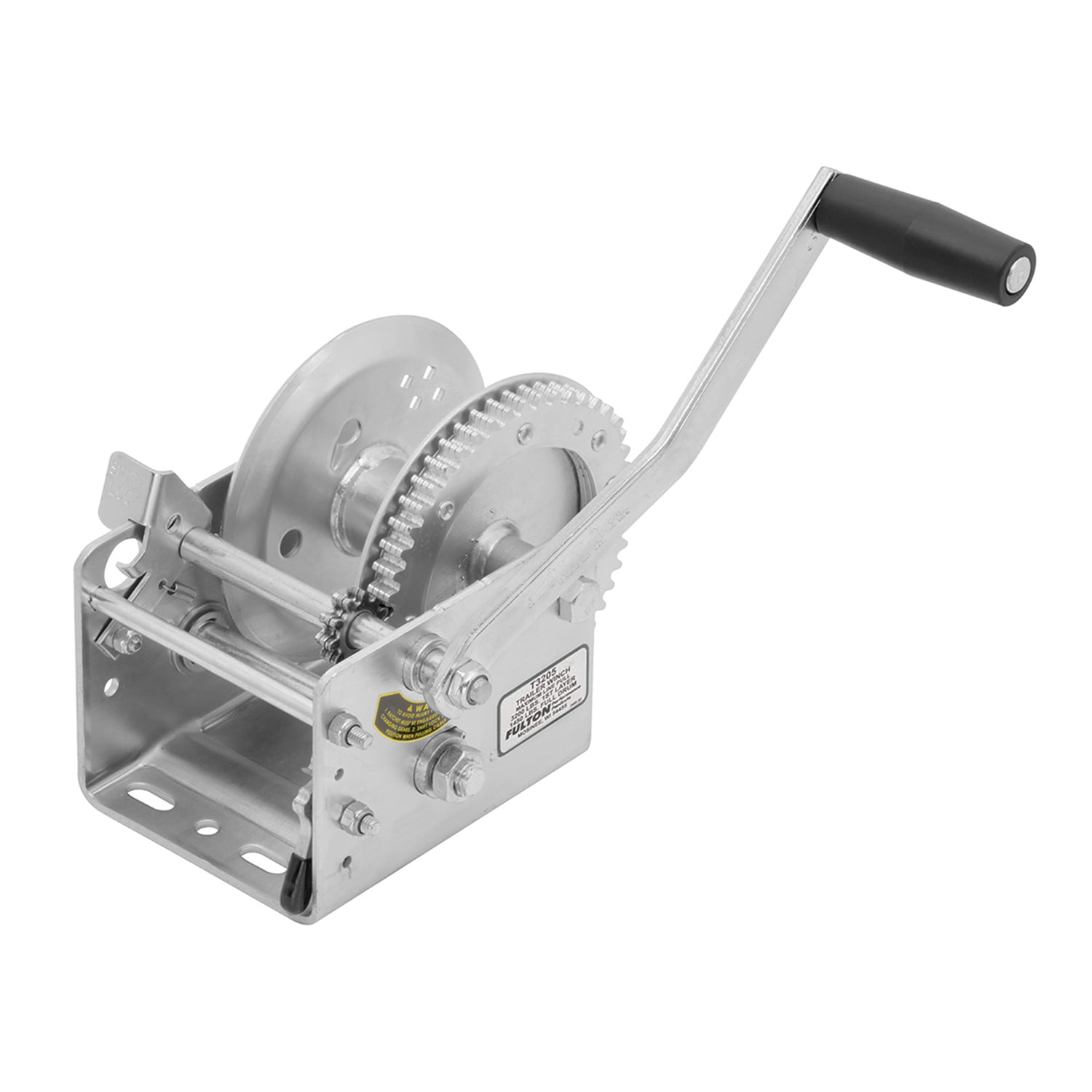

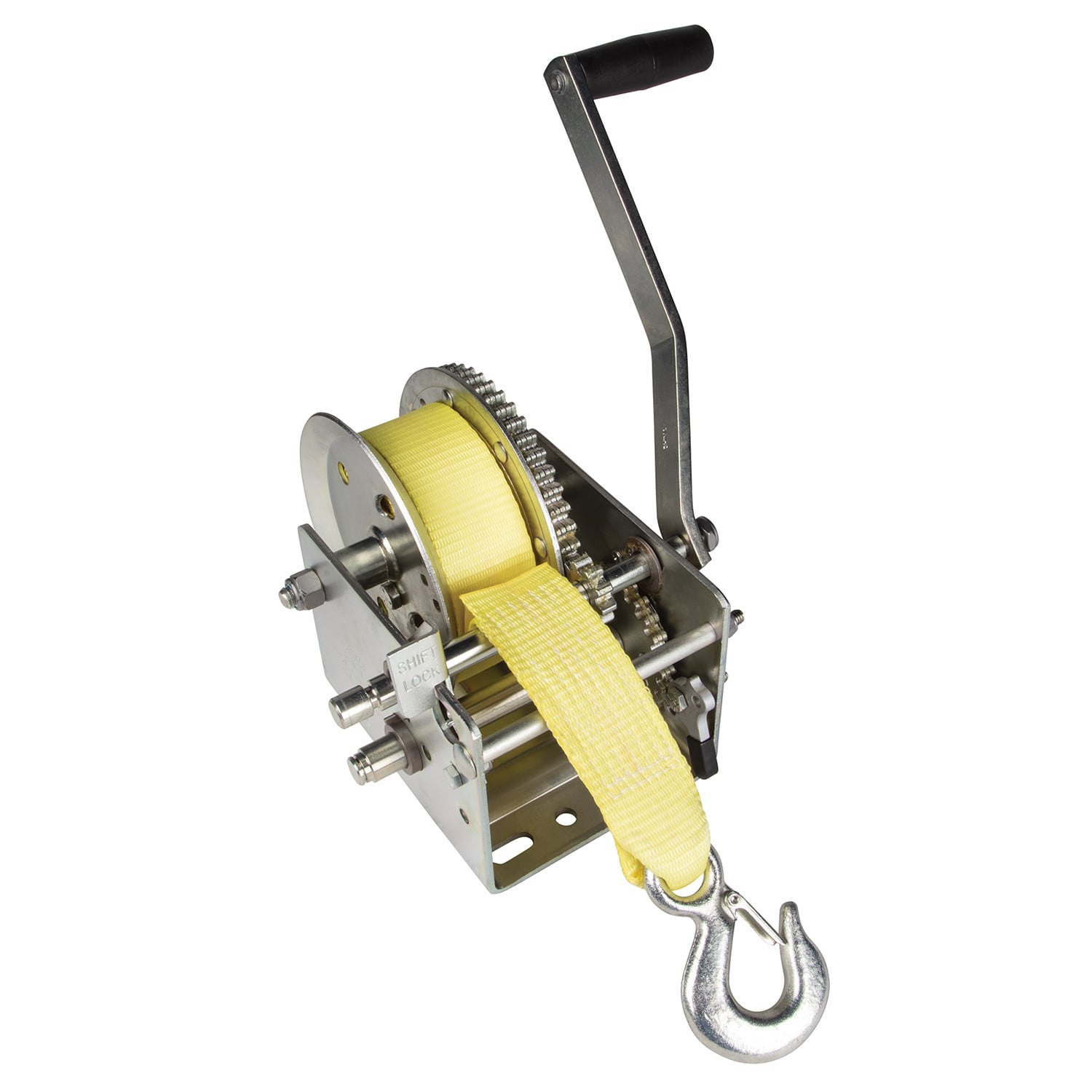

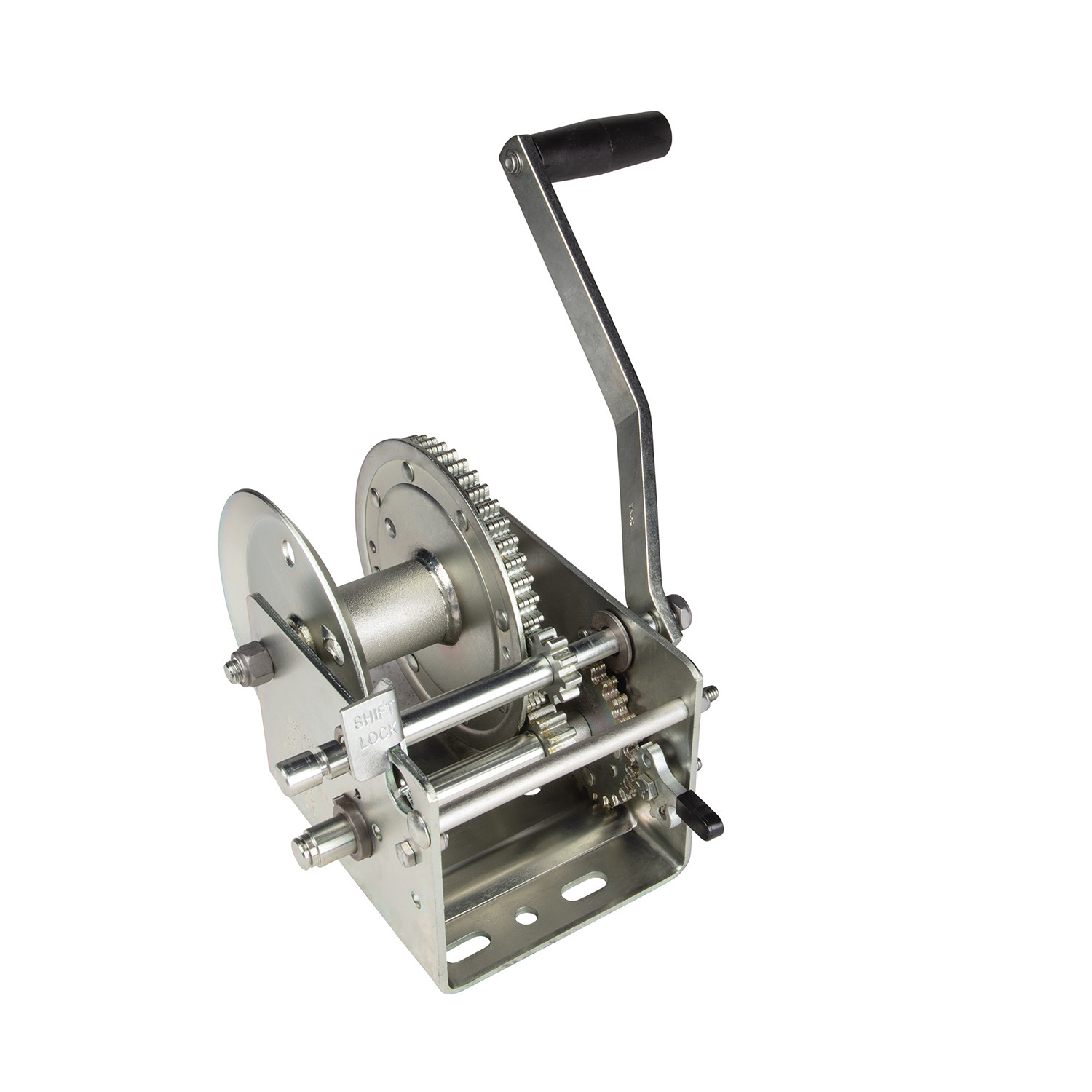

The F3647 is a manual trailer winch designed for pulling and securing loads on trailers. It is designed for manual operation only and operates on an intermittent duty cycle. The winch uses a ratchet plunger mechanism to hold loads and features an adjustable handle that can be configured for right or left-hand operation and adjusted from 6" to 9" in length.
The mounting surface must be equal to or greater than the footprint of the winch frame. The manual does not specify the exact footprint dimensions, so you should verify the winch footprint against your trailer's available mounting area before purchase.
Three 3/8" diameter grade-5 carriage bolts with lock nuts are supplied. These are torqued to 28-30 ft-lbs during installation. No other mounting fasteners are mentioned as included.
A 9/16" socket is required for assembling the handle roller assembly and torquing the locknut to 20-25 ft-lbs. A torque wrench capable of 28-30 ft-lbs is needed for the mounting bolts. The manual does not specify tools needed for mounting the winch to the trailer structure itself.
Yes. The adjustable handle can be mounted in right or left-hand orientation. To switch, remove the bolt and washers from each side of the drive shaft, push the hex shaft 1/2"-3/4" through to the other side (do not remove completely to keep internal gears and bushings aligned), place the handle bolt and washers on the handle side, and torque to 22-25 ft-lbs. Repeat for the opposite side. Do not over-torque.
The adjustable handle can be configured from 6" to 9" in length. The manual does not provide instructions for adjusting the length, only for switching between right and left-hand orientation.
Use the strap anchor provided with the winch. Pass the strap loop under the cross bolt, insert the strap anchor into the strap loop, then pull tight. Always maintain a minimum of three complete wraps of strap on the drum.
Torque the locknut to 20-25 ft-lbs using a 9/16" socket.
Torque the handle bolts to 22-25 ft-lbs on each side of the drive shaft. Do not over-torque.
Torque the three 3/8" diameter grade-5 carriage bolts/lock nuts to 28-30 ft-lbs.
Fulton brand winches (including the F3647) require a maximum of 45 lbs of handle force to pull the rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Always maintain a minimum of three complete wraps (layers) of strap on the drum. Capacity is based on direct line pull on the third layer of strap on the drum and is reduced as strap builds up on the drum.
A loud clicking sound from the ratchet must be heard when pulling the load. If the winch is properly engaged but you do not hear a loud clicking sound, do not use the winch and replace the ratchet components immediately.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs must be used for this purpose.
No. Do not use the winch to move humans.
Never operate the winch with slippery, wet, or oily hands. Always maintain a firm grip on the winch handle.
No. Do not attempt to stop the winch by grabbing the handle while in motion.
No. The winch will not hold the load when the load is being let out. You must actively control the handle to lower the load.
Never release the crank handle unless the ratchet plunger is fully engaged and the load is supported.
Before use, inspect the strap and replace it if damaged. Check mounting hardware for proper tightness and re-torque if necessary. Gears, ratchet contact points, and shaft bushings must be kept lubricated with thin oil or grease.
Check the final installation and make sure the winch is secure to the mounting structure. Verify that all three mounting bolts are torqued to 28-30 ft-lbs.
The F2 winch is designed with precision fit components and corrosion-resistant materials to minimize maintenance frequency. Occasional cleaning with mild soap and water, along with light oil lubrication of contact points, will prolong peak performance and appearance. Periodically check mounting hardware for proper torque and tighten if necessary.
Gears, ratchet contact points, and shaft bushings must be kept lubricated with thin oil or grease.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval.
If the winch is properly engaged but you do not hear a loud clicking sound from the ratchet, the ratchet is not functioning correctly. Do not use the winch and replace the ratchet components immediately.
The mounting surface must be equal to or greater than the winch frame footprint. Verify your trailer's available mounting area against the winch footprint before purchase.
Three 3/8" grade-5 carriage bolts with lock nuts are supplied. You will need a 9/16" socket and a torque wrench (0-30 ft-lbs minimum).
The manual does not mention drilling. Installation uses three supplied 3/8" carriage bolts, but the manual does not specify whether the mounting holes are pre-drilled or require drilling.
Handle roller assembly locknut: 20-25 ft-lbs (9/16" socket). Handle bolts (right/left orientation): 22-25 ft-lbs each side. Mounting bolts: 28-30 ft-lbs.
Maximum 45 lbs of handle force. If you cannot crank with one hand, the winch is overloaded.
Always maintain a minimum of three complete wraps of strap on the drum. Capacity is reduced as strap builds up.
Occasional cleaning with mild soap and water, light oil lubrication of contact points, and periodic checking of mounting hardware torque. Gears, ratchet contact points, and shaft bushings must be kept lubricated.
If you do not hear a loud clicking sound from the ratchet when pulling the load, the ratchet mechanism is not functioning properly. Stop using the winch immediately and replace the ratchet components. Do not attempt to operate the winch until repairs are made.
If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle indicates overload. Reduce the load being pulled or check that the load does not exceed the maximum rated capacity stamped on the winch.
Ensure the ratchet plunger is fully engaged before releasing the handle. The winch will not hold the load if the ratchet plunger is not properly engaged. If the plunger is engaged but the load still slips, the ratchet components may be worn or damaged and should be replaced.
