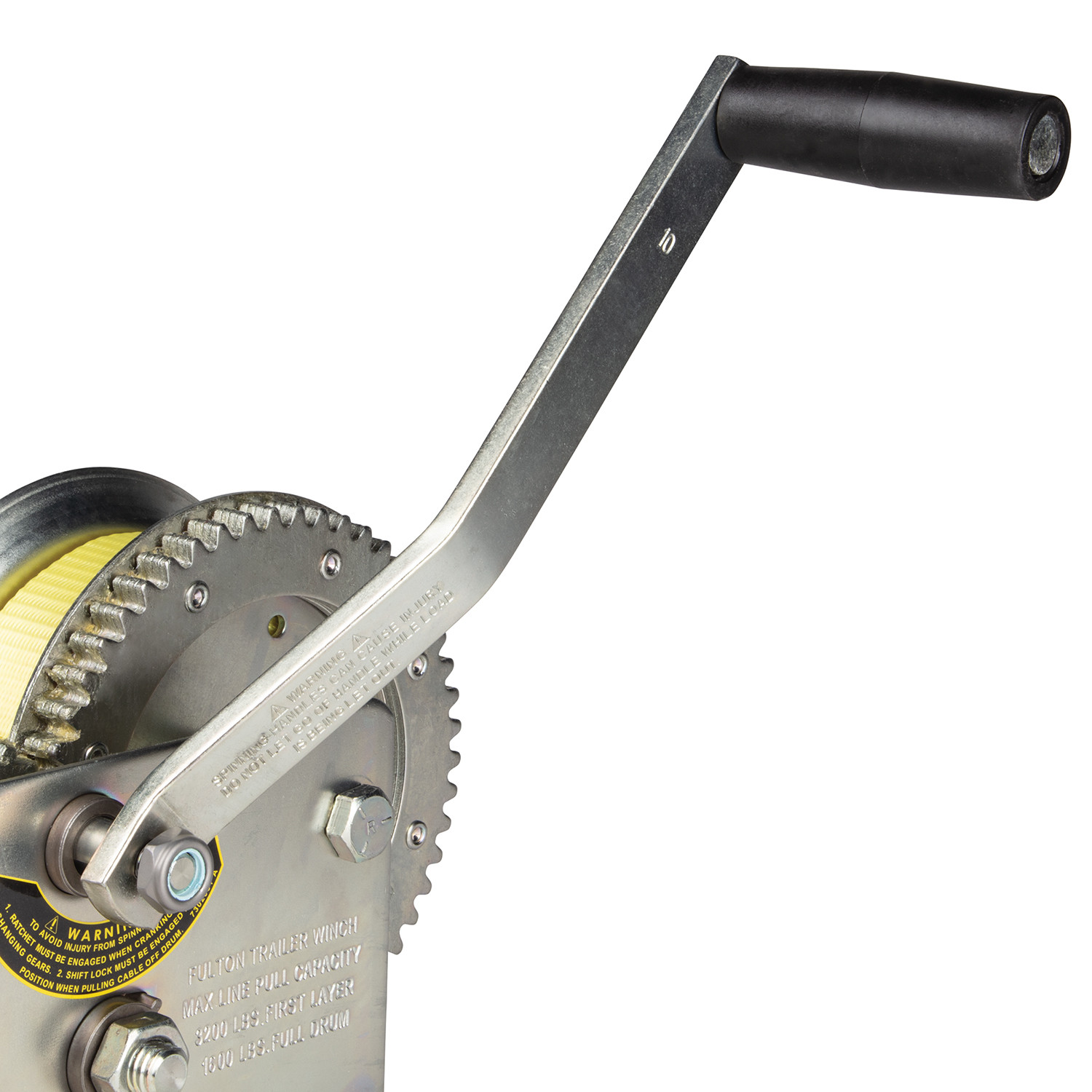

Fulton two speed trailer winches are designed to make light work of heavy loads. Featuring one fast speed for quick pull-in, and a second low speed for increased mechanical advantage, these winches also include a shift lock design which allows changing gears without moving the crank handle from shaft to shaft. Simply lift the shift lock and slide the shaft into the desired position to hold the shaft in gear.
| BRAND: | FULTON |
| PART NUMBER: | 142424 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 17 LBS |
| CAPACITY: | 3,200 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | TWO SPEED |
| CABLE LENGTH: | 20 FT. |
| BRAKE ACTIVATION: | MANUAL |
| RATED LINE PULL: | 3,200 LBS. |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| HARDWARE INCLUDED: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | SILVER |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in single-speed and two-speed models with capacities ranging from 900 lbs to 3700 lbs. Refer to the Winch Information Chart in the manual for your specific model's rated capacity. The exact capacity is stamped or marked on the product itself. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Yes. These winches are designed for manual operation only, and the load rating is based on an intermittent duty cycle. They are not designed for continuous or powered operation.
No. Only winches with a drum hub diameter of 1¾" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check the Winch Information Chart to confirm your model supports steel cable; models showing 'N/A' in the steel cable column cannot use steel cable. Neat wrapping of the cable is necessary to reduce the chance of kinking or fraying.
Cequent trailer winches accept rope, strap, or steel cable (depending on the model). Rope requires no bolts or clamps and is woven through the drum outer wall and secured beneath itself. Strap requires a grade-5 cross bolt of the largest possible diameter (size varies by model; see Winch Information Chart). Steel cable can only be used on models with a 1¾" drum hub diameter and is looped around the drum bearing and clamped. Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum.
Three 3/8" diameter grade-5 bolts are required, torqued to 28–30 ft-lbs. Mounting bolts vary in length for each application, so verify the correct length for your installation. The winch stand must be capable of supporting at least five times the rated capacity of the winch. The mounting surface must be equal to or greater than the footprint of the winch frame. Mounting hardware is not supplied with the winch.
Handle length varies by winch capacity and model. Refer to the Winch Information Chart for your specific model. Handle lengths range from 7" to 10" depending on the gear ratio and capacity.
The manual does not address battery disconnection. These are manual winches with no electrical components, so battery disconnection is not applicable.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum.
Winches designed for strap have holes in the drums to accommodate a strap cross bolt. Use a grade-5 bolt of the largest possible diameter (see Winch Information Chart for your model). Tighten the locknut just to where end play in the bolt is taken up; over-tightening can deform the drum. For winches with a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. If attaching strap without a strap anchor to a plastic-covered winch, remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap and re-install the drum as it was before.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Steel cable can only be used on winches with a 1¾" drum hub diameter.
Assemble the handle onto the flatted input shaft end. Tighten the 1/2"-13 locknut against the handle and torque to 22–25 ft-lbs. Do not over-torque.
The 1/2"-13 handle locknut should be torqued to 22–25 ft-lbs. Do not over-torque.
On single-speed winches, torque the drum locknut to 9–10 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
Tighten the clamp nuts to approximately 2 ft-lbs.
Use three 3/8" diameter grade-5 bolts and torque to 28–30 ft-lbs. Mounting bolts vary in length for each application.
Drum hub diameter varies by model. Single-speed winches range from 0.64" to 1.00" depending on capacity. Two-speed winches range from 1.00" to 1.75". Refer to the Winch Information Chart for your specific model. Only winches with a 1¾" (1.75") drum hub diameter can accommodate steel cable.
Gear ratios vary by model and speed configuration. Single-speed winches range from 3.25:1 to 4.1:1. Two-speed winches offer dual ratios such as 4.1:1 & 9.8:1, 5.1:1 & 12.2:1, or others. Refer to the Winch Information Chart for your specific model.
Rope storage capacity varies by model. Examples include 36' × 1/4" for 900 lbs, 30' × 5/16" for 1100–1300 lbs, and 20' × 7/16" for 1800–2000 lbs. Refer to the Winch Information Chart for your specific model. Capacity is based on direct line pull on the first layer of line on the drum and is reduced as line builds up on the drum.
Strap storage capacity is 15' × 2" for 900 lbs, 20' × 2" for 1100–1800 lbs, and N/A for 2000 lbs and higher two-speed models. Refer to the Winch Information Chart for your specific model.
Steel cable storage capacity varies by model. Examples include 100' × 7/32" for 2600 lbs and 185' × 7/32" for 3700 lbs. Only winches with a 1¾" drum hub diameter can accommodate steel cable. Refer to the Winch Information Chart for your specific model. Models showing 'N/A' in the steel cable column cannot use steel cable.
Strap bolt size varies by model. Standard (Grade 5) sizes include 1/4" × 2-3/4" for 900 lbs, 5/16" × 2-3/4" for 1100–1800 lbs, and 3/8" × 2-3/4" for 2000 lbs and higher. Metric (GR 8.8) sizes include M6 × 65mm for 900 lbs and M8 × 66mm for 1100–1800 lbs. Refer to the Winch Information Chart for your specific model.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Before use, perform the following: (1) Inspect rope, strap, or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. (4) Maintain a thin layer of chassis grease on the gear teeth.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. This is a critical safety requirement.
A loud clicking sound from the ratchet must be heard when lifting the load. This indicates the ratchet pawl is properly engaged and holding the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
No. Do not use the winch to move humans. The winch is designed for lifting and lowering loads only.
Never use the cable or strap if it is worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death. Always inspect the cable, strap, or rope and its attachment before each use to make sure they are not damaged. Replace damaged line immediately.
Before turning the handle, firmly grip the winch handle and disengage the ratchet pawl or engage it in the reverse direction. You may have to take in a small amount of line to allow the ratchet pawl to unload. With a firm grip on the winch handle, slowly let out line. If you must stop before the load is fully out, be sure the ratchet pawl is engaged in the forward or loading position and gradually release the winch handle to be sure the ratchet pawl is holding the load.
Be sure the ratchet pawl is engaged in the forward or loading position. As you turn the handle, make sure the cable, strap, or rope is winding onto the drum properly. If you must stop before the load is fully in, be sure the ratchet pawl is engaged and gradually release the winch handle to be sure the ratchet pawl is holding the load.
Apply the brake to help control the load by pressing down on the hand brake lever. Do not let go of the winch handle while letting line out, and do not attempt to stop a spinning winch handle.
Make sure that the ratchet pawl is properly engaged and holding the load before attempting to change gears. On 3700 lb. winches, change gears by relocating the winch handle onto a different input shaft. On other two-speed winches, shift by disengaging the shift lock lever, sliding the input shaft, and reengaging the shift lock lever. The shift lock lever must be firmly in place in an inner or outer groove on the input shaft during winch operation. Inner and outer grooves engage the drive gear; the center groove is neutral.
Perform the following maintenance: (1) Periodically check mounting hardware for proper torque and tighten if necessary. (2) Always replace bent, broken, or worn parts before using the product. (3) Before each use, inspect rope, strap, or cable and replace if damaged. (4) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. (5) Maintain a thin layer of chassis grease on the gear teeth.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Cequent Performance Products warrants the winch to be free from material defects in both material and workmanship for a period of five years, ordinary wear and tear excepted, provided that installation and use of the product is in accordance with product instructions. This warranty is not transferable. The warranty does not cover normal wear and tear, damage from abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance, or product alteration by anyone other than Cequent. To make a warranty claim, contact Cequent at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290 or www.cequentgroup.com. Please specify the product model number.
Only winches with a 1¾" drum hub diameter can use steel cable. Check the Winch Information Chart for your model; if steel cable capacity is listed, your winch is compatible.
Three 3/8" diameter grade-5 bolts, torqued to 28–30 ft-lbs. Bolt lengths vary by application. Mounting hardware is not supplied.
The manual does not address drilling. Installation requires mounting to an existing structure using three 3/8" grade-5 bolts. Whether drilling is needed depends on your mounting surface.
Use three 3/8" diameter grade-5 bolts and torque to 28–30 ft-lbs.
Maximum 45 lbs of handle force is required to pull the rated load. If you cannot crank with one hand, the winch is overloaded.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately. This indicates a failure of the ratchet pawl engagement mechanism.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load or verify that the load does not exceed the winch's rated capacity.
Ensure the ratchet pawl is properly engaged in the forward or loading position. If the pawl is engaged but still not holding the load, do not use the winch and replace the ratchet components immediately. Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Cable (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Hub Size (in.) | Hand Brake** | Strap Included | Cable Included |
|---|---|---|---|---|---|---|---|---|---|---|
| 142400 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142401 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142403 | 2,000 | 6.25 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142414 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142412 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142410 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142411 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142415 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142416 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142418 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142420 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142421 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142424 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142425 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142430 | 3,700 | 10.00 | 102:1 | 140 x 7/32 | - | Cable Only | 1.75 | 501210 | No | No |
