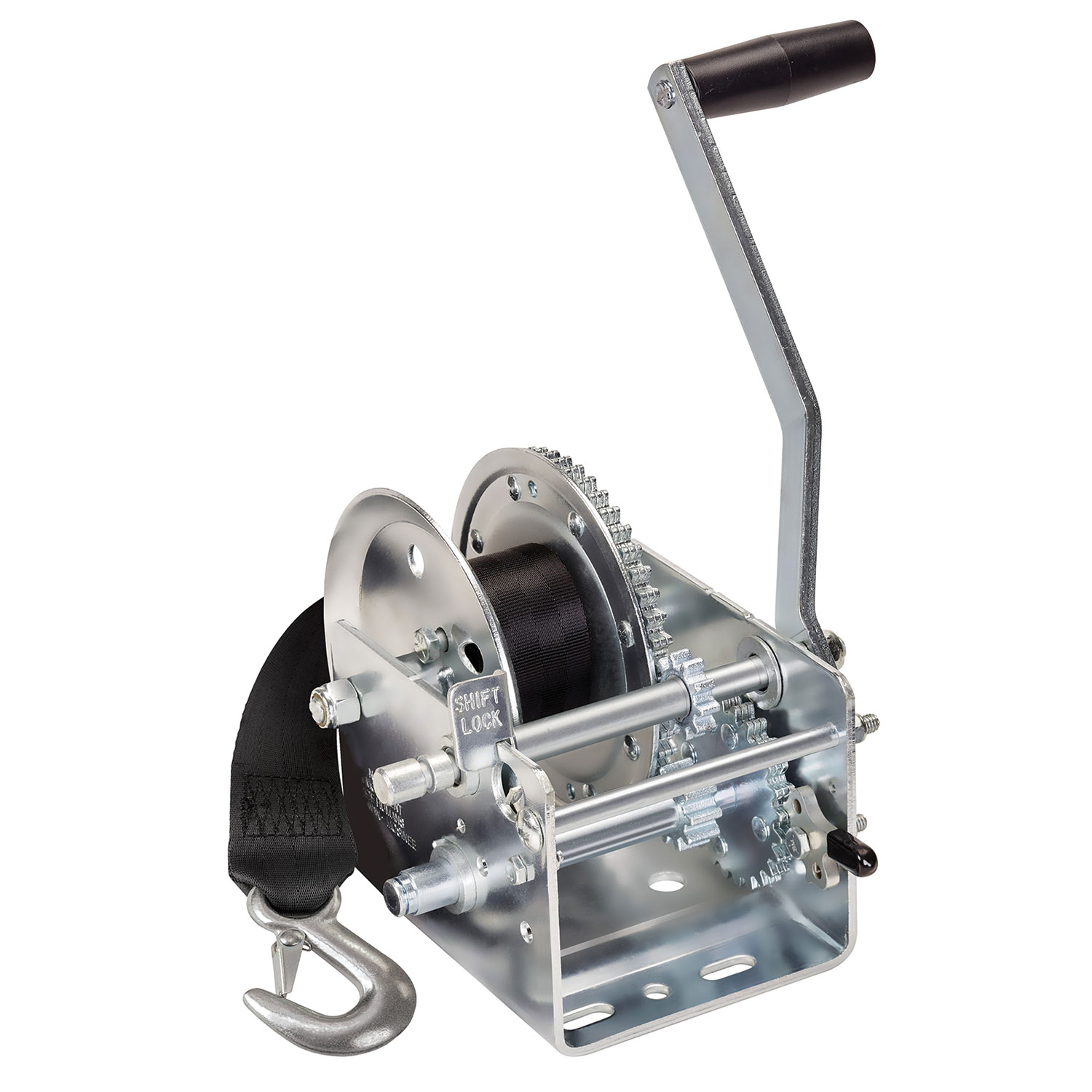

Fulton two speed trailer winches are designed to make light work of heavy loads. Featuring one fast speed for quick pull-in, and a second low speed for increased mechanical advantage, these winches also include a shift lock design which allows changing gears without moving the crank handle from shaft to shaft. Simply lift the shift lock and slide the shaft into the desired position to hold the shaft in gear.
| BRAND: | FULTON |
| PART NUMBER: | 142415 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 17.2 LBS |
| CAPACITY: | 2,600 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | TWO SPEED |
| CABLE LENGTH: | 20 FT. |
| BRAKE ACTIVATION: | MANUAL |
| HANDLE TYPE: | 10 IN. OFFSET |
| RATED LINE PULL: | 2,600 LBS. |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| HARDWARE INCLUDED: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | SILVER |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent Performance Products warrants the winch to be free from material defects in both material and workmanship for five years from the date of purchase, provided installation and use comply with the product instructions. The warranty covers the original consumer purchaser only and is not transferable. Normal wear and tear, damage from abuse, misuse, accidents, overloading, improper installation, improper maintenance, or any product alteration by anyone other than Cequent (except alterations made per instructions in a workmanlike manner) are not covered. If the product fails to comply with the warranty, Cequent will replace it at no charge within a reasonable time or refund the purchase price, at their option. You are responsible for return shipping costs.
No. Only winches with a hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce the bending fatigue of the cable and extend cable life. Refer to the Winch Information Chart in the manual to confirm your model's hub diameter. If your winch hub diameter is listed as 1 3/4", you can use steel cable; otherwise, you must use rope or strap.
Your winch can use rope, strap, or steel cable, depending on the model. The Winch Information Chart shows which line types are available for each capacity and speed rating. Rope requires no bolts or clamps and weaves through the drum outer wall. Strap requires a grade-5 cross bolt through holes in the drum. Steel cable can only be used on winches with a 1 3/4" hub diameter and must be neatly wrapped to reduce kinking or fraying. Always maintain a minimum of three complete wraps of line on the drum.
The winch includes the drum, handle, ratchet pawl, and input shaft. Mounting hardware is not supplied; you must provide three 3/8" diameter grade-5 bolts to mount the winch to your stand or structure. The length of mounting bolts varies by application. If attaching a strap, you will need a grade-5 bolt of the largest possible diameter to fit the holes in the drum (see the Winch Information Chart for the correct bolt size for your model). A 1/2" - 13 locknut is required to secure the handle to the input shaft.
The winch stand must be capable of supporting at least five times the rated capacity of the winch. For example, a 1000 lb winch requires a stand rated for at least 5000 lbs. The mounting surface must be equal to or greater than the footprint of the winch frame. Verify that your mounting structure meets these requirements before installing the winch.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Ensure the rope is properly seated and cannot slip. Always maintain a minimum of three complete wraps of rope on the drum.
Winches designed for strap have holes in the drums to accommodate a strap cross bolt. Use a grade-5 bolt of the largest possible diameter (see the Winch Information Chart for your model's bolt size). Tighten the locknut just to where end play in the bolt is taken up; over-tightening can deform the drum. If your winch has a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. If attaching strap without a strap anchor to a plastic-covered winch, remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap and re-install the drum as it was before.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Neatly wrap the cable to reduce the chance of kinking or fraying. Remember that only winches with a 1 3/4" hub diameter can accommodate steel cable.
Assemble the handle onto the flatted input shaft end. Tighten the 1/2" - 13 locknut against the handle and torque to 22-25 ft-lbs. Do not over-torque the locknut.
Torque the 1/2" - 13 locknut to 22-25 ft-lbs. Do not over-torque.
On single-speed winches, torque the drum locknut to 9-10 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
Tighten the clamp nuts to approximately 2 ft-lbs.
When attaching the winch to the mounting stand, use three 3/8" diameter grade-5 bolts and torque to 28-30 ft-lbs. Mounting bolt lengths vary by application, so verify the correct length for your installation.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload. Never exceed the maximum rated capacity of your winch.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately. This clicking indicates that the ratchet pawl is properly engaged and holding the load.
No. Do not use the winch to move humans. This winch is designed for manual operation only and the load rating is based on an intermittent duty cycle for lifting and lowering cargo.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported. Before releasing the handle, ensure the ratchet pawl is in the forward or loading position and gradually release the handle to verify the ratchet pawl is holding the load.
No. Never leave a weight supported from the winch while the winch is unattended, as another person may attempt to operate the winch, thereby creating an unsafe condition.
Before use, perform the following: (1) Inspect rope, strap, or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth. Verify that the winch is secure to the mounting structure.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth. Perform this lubrication before first use and periodically during operation.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection before each use is recommended.
Always replace bent, broken, or worn parts before using this product. This includes the rope, strap, cable, ratchet components, and any structural parts that show damage or wear.
If a loud clicking sound is not heard when lifting the load, the ratchet pawl is not properly engaged. Do not use the winch. Replace the ratchet components immediately before attempting to use the winch again.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load or verify that you are not exceeding the maximum rated capacity. Check the stamped markings or decals on the product for the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Never use the winch if the cable, strap, or rope is worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death. Always inspect the cable or strap and its attachment before each use to make sure they are not damaged. Replace the damaged line immediately before using the winch.
Only if your winch has a 1 3/4" hub diameter. Check the Winch Information Chart for your model. Winches with larger hubs reduce cable bending fatigue and extend cable life.
You must supply three 3/8" diameter grade-5 bolts (lengths vary by application). Mounting hardware is not included. Torque bolts to 28-30 ft-lbs.
The manual does not specify whether drilling is required. This depends on your mounting structure. Consult the manufacturer or your installer for your specific application.
Torque the three 3/8" diameter grade-5 mounting bolts to 28-30 ft-lbs.
Maximum 45 lbs of handle force is required to pull the rated load. If you cannot crank with one hand, you are overloading the winch.
Apply #30 weight engine oil (1-2 drops) to each bushing I.D. and ratchet pawl pivot points. Maintain a thin layer of chassis grease on gear teeth.
A loud clicking sound from the ratchet must be heard. If you don't hear it, do not use the winch and replace ratchet components immediately.
On Sale Today
Original price was $206.25. Current price is $148.01.You save $58.24 (28%)
Free Shipping
Ships free on all orders
Authorized Dealer| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Cable (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Hub Size (in.) | Hand Brake** | Strap Included | Cable Included |
|---|---|---|---|---|---|---|---|---|---|---|
| 142400 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142401 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142403 | 2,000 | 6.25 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142414 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142412 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142410 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |

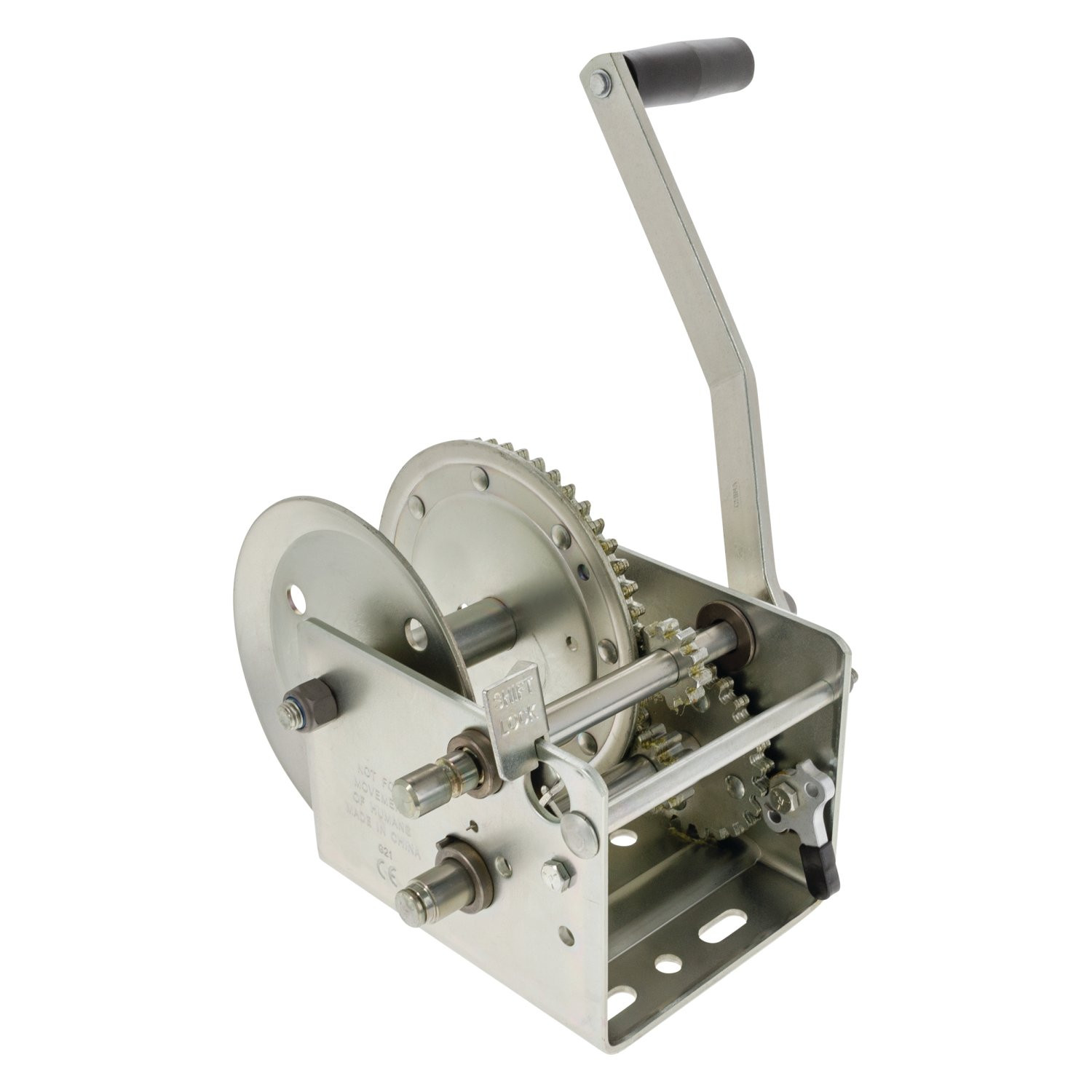

| 142411 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142415 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142416 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142418 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142420 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142421 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142424 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142425 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142430 | 3,700 | 10.00 | 102:1 | 140 x 7/32 | - | Cable Only | 1.75 | 501210 | No | No |
