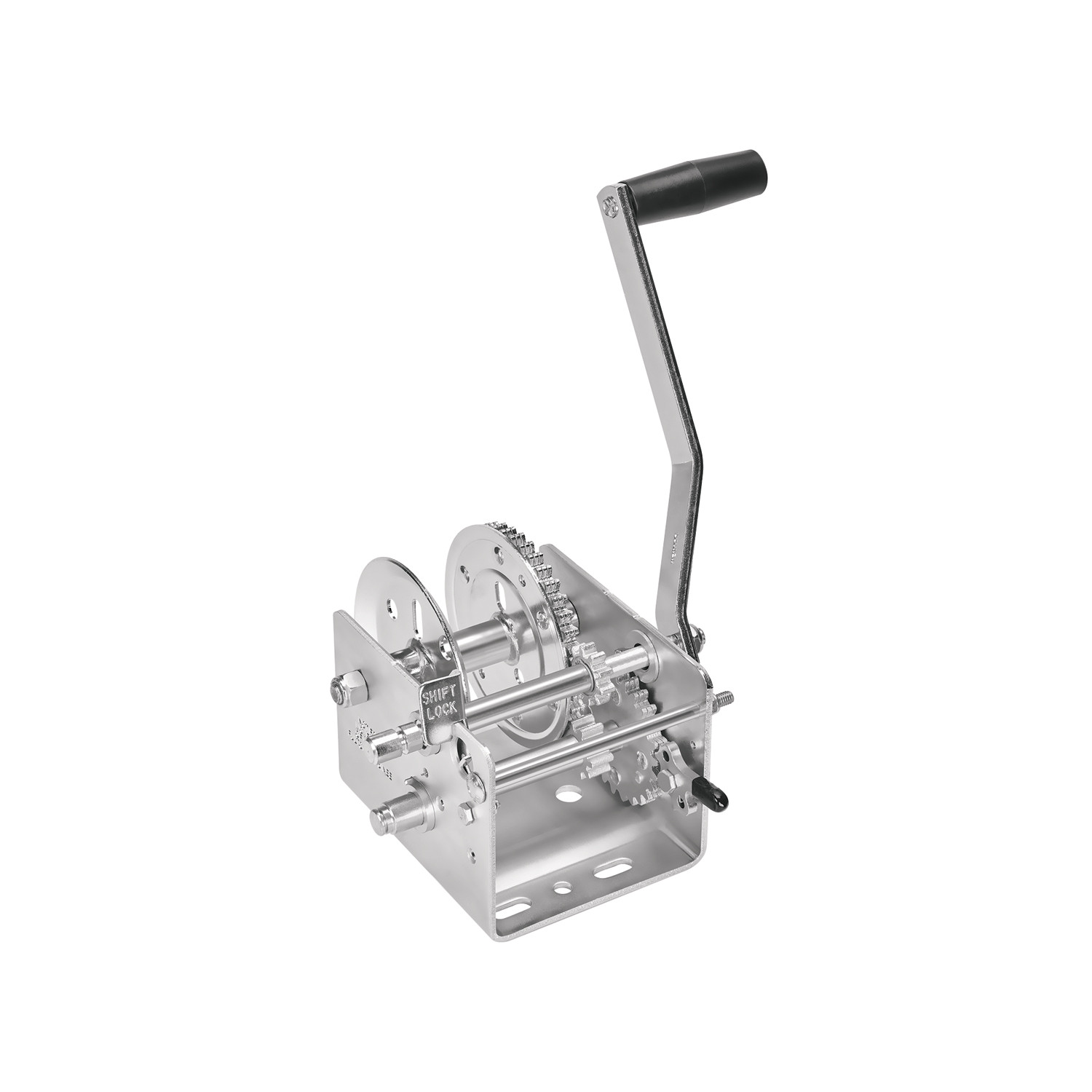

Fulton two speed trailer winches are designed to make light work of heavy loads. Featuring one fast speed for quick pull-in, and a second low speed for increased mechanical advantage, these winches also include a shift lock design which allows changing gears without moving the crank handle from shaft to shaft. Simply lift the shift lock and slide the shaft into the desired position to hold the shaft in gear.
| BRAND: | FULTON |
| PART NUMBER: | 142400 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 14.45 LBS |
| CAPACITY: | 2,000 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | TWO SPEED |
| WATERPROOF: | NO |
| HOOK INCLUDED: | NO |
| HOOK TYPE: | CLEVIS SAFETY HOOK |
| CABLE LENGTH: | 20 FT. |
| REMOTE INCLUDED: | NO |
| BRAKE ACTIVATION: | MANUAL |
| BRAKE TYPE: | DRUM |
| HANDLE TYPE: | 10 IN. OFFSET |
| RATED LINE PULL: | 2,000 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| D SHACKLE INCLUDED: | NO |
| POWER OUT: | NO |
| HARDWARE INCLUDED: | NO |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | ZINC |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in single-speed and two-speed models with rated capacities ranging from 900 lbs to 3700 lbs. The specific capacity depends on the model. Always refer to the stamped markings or decals on your winch to confirm its rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Yes. The winch is designed for manual operation only, and the load rating is based on an intermittent duty cycle. The winch requires a maximum of 45 lbs of handle force to pull its rated load. If you cannot crank the winch with one hand, you are potentially overloading it.
No. Only winches with a hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check the Winch Information Chart to confirm your model supports steel cable, or contact Cequent at 1-800-632-3290.
Three options are available: rope (textile), strap, or steel cable. Not all models support all three options. Rope requires no bolts or clamps and is secured by weaving through the drum outer wall and securing beneath itself. Strap uses a cross bolt through drum holes. Steel cable is only available on models with a 1 3/4" hub diameter and is secured with a clamp. Consult the Winch Information Chart for your specific model's compatible options.
Three 3/8" diameter grade-5 bolts are required. These bolts must be torqued to 28-30 ft-lbs. Mounting bolts vary in length for each application, so check your specific installation. The winch stand must be capable of supporting at least five times the rated capacity of the winch. The mounting surface must be equal to or greater than the footprint of the winch frame. Mounting hardware is not supplied with the winch.
The mounting surface must be equal to or greater than the footprint of the winch frame. Additionally, the winch stand must be capable of supporting at least five times the rated capacity of the winch.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum.
Winches designed for strap have holes in the drums to accommodate a strap cross bolt. A grade 5 bolt of the largest possible diameter is required (see the Winch Information Chart for your model's bolt size). Tighten the locknut just to where end play in the bolt is taken up; over-tightening can deform the drum. For winches with a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. Always maintain a minimum of three complete wraps of strap on the drum.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Always maintain a minimum of three complete wraps of cable on the drum. Neatly wrapping the cable is necessary to reduce the chance of kinking or fraying.
Assemble the handle onto the flatted input shaft end. Tighten the 1/2" - 13 locknut against the handle and torque to 22-25 ft-lbs. Do not over-torque.
The 1/2" - 13 locknut should be torqued to 22-25 ft-lbs. Do not over-torque.
The three 3/8" diameter grade-5 mounting bolts must be torqued to 28-30 ft-lbs.
On single-speed winches, torque the drum locknut to 9-10 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
Tighten the clamp nuts to approximately 2 ft-lbs.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Before use, perform these checks: (1) Inspect rope, strap, or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. This applies whether you are using rope, strap, or steel cable.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace ratchet components immediately.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
Assure there is adequate safety factor of at least 3 times the maximum load for all components used.
Check final installation and make sure the winch is secure to the mounting structure. Verify that all three 3/8" diameter grade-5 mounting bolts are torqued to 28-30 ft-lbs and that the winch is properly secured before use.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection is required.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Always replace bent, broken, or worn parts before using this product.
Cequent trailer winches are available in 900 lbs to 3700 lbs capacities. Compatibility depends on your trailer's mounting surface and frame strength. The mounting surface must be equal to or greater than the winch frame footprint, and the stand must support at least 5 times the winch's rated capacity. Contact Cequent at 1-800-632-3290 for fitment confirmation.
Three 3/8" diameter grade-5 bolts are required, torqued to 28-30 ft-lbs. Bolt lengths vary by application. Mounting hardware is not supplied with the winch.
The manual does not specify whether drilling is required. This depends on your trailer's existing mounting holes and frame design. Consult your trailer manufacturer or a professional installer.
Never exceed the maximum rated capacity stamped on your winch. Capacities range from 900 lbs to 3700 lbs depending on model. Refer to the stamped markings or decals on your winch, or contact Cequent at 1-800-632-3290.
Before each use, inspect the line and attachment for damage, check mounting hardware tightness, and apply #30 weight engine oil to bushings and ratchet pawl pivot points. Maintain a thin layer of chassis grease on gear teeth. Periodically retorque mounting bolts to 28-30 ft-lbs.
A loud clicking sound from the ratchet must be heard when lifting. If you do not hear this sound, do not use the winch and replace ratchet components immediately.
Do not use the winch. The loud clicking sound indicates the ratchet pawl is properly engaged. If this sound is absent, the ratchet components are not functioning correctly and must be replaced immediately before the winch is used again.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load immediately.
The drum may be locked if the drum locknut was over-tightened during strap installation. Over-tightening can crush the spacer between the frame and prevent the drum from turning. Loosen the drum locknut slightly. For single-speed winches, the correct torque is 9-10 ft-lbs; for two-speed winches, it is 24 ft-lbs. Ensure the locknut is tight enough to take up end play in the bolt but not so tight that it crushes the spacer.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Cable (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Hub Size (in.) | Hand Brake** | Strap Included | Cable Included |
|---|---|---|---|---|---|---|---|---|---|---|
| 142400 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142401 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142403 | 2,000 | 6.25 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142414 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142412 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142410 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142411 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142415 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142416 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142418 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142420 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142421 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142424 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142425 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142430 | 3,700 | 10.00 | 102:1 | 140 x 7/32 | - | Cable Only | 1.75 | 501210 | No | No |
