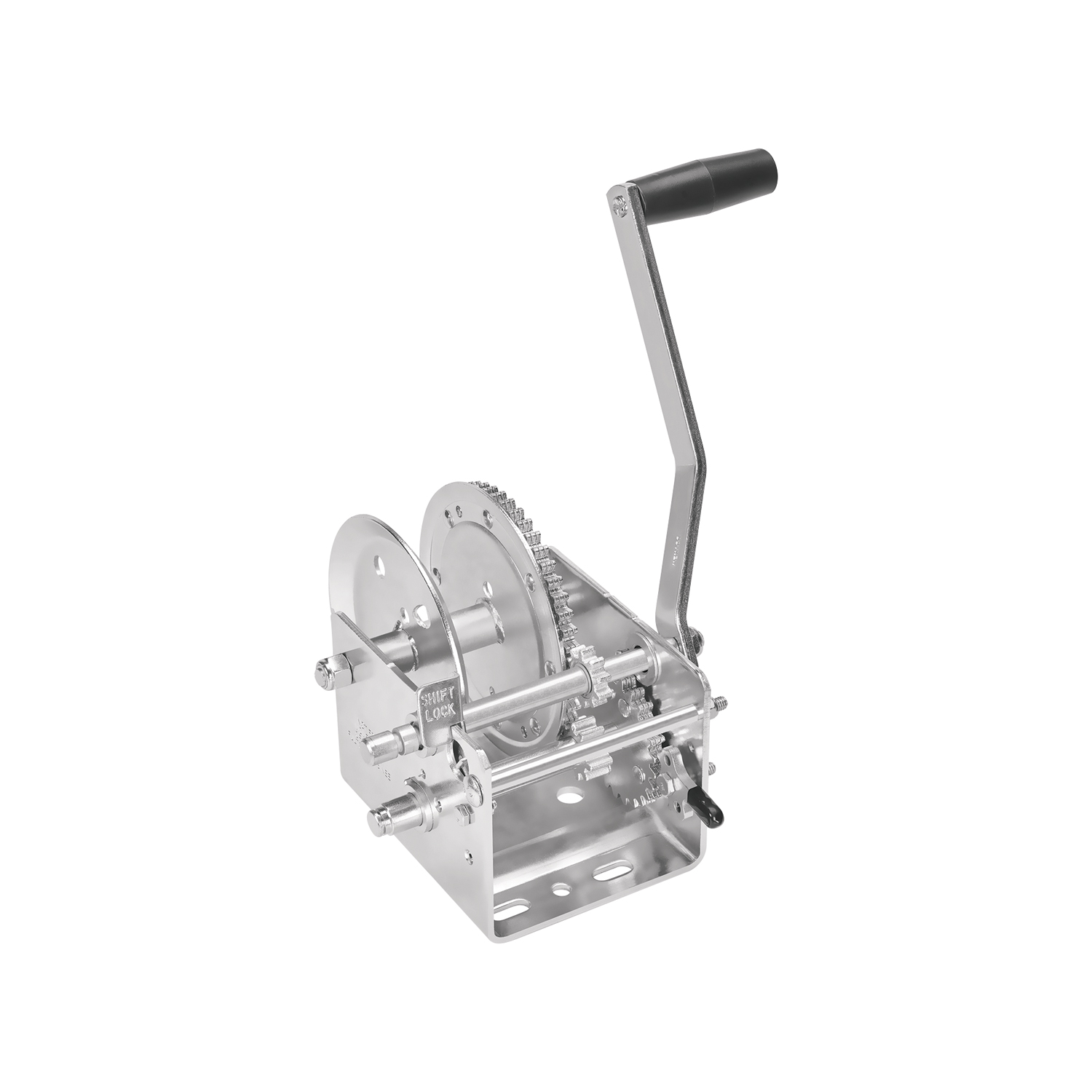

Fulton two speed trailer winches are designed to make light work of heavy loads. Featuring one fast speed for quick pull-in, and a second low speed for increased mechanical advantage, these winches also include a shift lock design which allows changing gears without moving the crank handle from shaft to shaft. Simply lift the shift lock and slide the shaft into the desired position to hold the shaft in gear.
| BRAND: | FULTON |
| PART NUMBER: | 142410 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 14.72 LBS |
| CAPACITY: | 2,600 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | TWO SPEED |
| WATERPROOF: | NO |
| HOOK INCLUDED: | NO |
| HOOK TYPE: | CLEVIS SAFETY HOOK |
| CABLE LENGTH: | 20 FT. |
| REMOTE INCLUDED: | NO |
| BRAKE ACTIVATION: | MANUAL |
| BRAKE TYPE: | DRUM |
| HANDLE TYPE: | 10 IN. OFFSET |
| RATED LINE PULL: | 2,600 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| D SHACKLE INCLUDED: | NO |
| POWER OUT: | NO |
| HARDWARE INCLUDED: | NO |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | ZINC |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in capacities from 900 lbs to 3700 lbs. Refer to the Winch Information Chart in the manual or the stamped markings or decals on your specific winch to determine its rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Cequent trailer winches are designed for manual operation only. The load rating is based on an intermittent duty cycle. The winch requires a maximum of 45 lbs of handle force to pull its rated load. If you cannot crank the winch with one hand, you are potentially overloading it.
No. Only winches with a hub diameter of 1¾" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check the Winch Information Chart in the manual to confirm your winch model supports steel cable before purchasing or using steel cable.
Cequent trailer winches accommodate rope, strap, or steel cable, depending on the model. Consult the Winch Information Chart to determine which line types your specific winch supports. Rope and strap are available on all models; steel cable is only available on winches with a 1¾" drum hub diameter. Always maintain a minimum of three complete wraps of line on the drum.
Three 3/8" diameter grade-5 bolts are required. Mounting bolt lengths vary by application. The winch stand must be capable of supporting at least 5× the rated capacity of the winch. Mounting hardware is not supplied with the winch; you must source it separately.
Yes. The manual states that mounting hardware is not supplied. You must provide a winch stand capable of supporting at least 5× the rated capacity of the winch. The mounting surface must be equal to or greater than the footprint of the winch frame.
No bolts, nuts, or clamps are required to attach a rope. The rope must weave through the drum outer wall and be secured beneath itself as shown in the manual illustration. No special tools are needed for this attachment method.
A grade-5 bolt of the largest possible diameter is required for strap mounting. The specific bolt size depends on your winch model. Refer to the Winch Information Chart in the manual for the strap bolt size for your capacity rating. For example, 900–1500 lbs winches use M8 x 66mm (metric) or 5/16" x 2-3/4" (standard); 2000 lbs and higher use 3/8" x 2-3/4".
Assemble the handle onto the flatted input shaft end. Tighten the 1/2"–13 locknut against the handle and torque to 22–25 ft-lbs. Do not over-torque.
Torque the 1/2"–13 locknut to 22–25 ft-lbs. Do not over-torque.
Use three 3/8" diameter grade-5 bolts and torque to 28–30 ft-lbs.
On single-speed winches, torque the drum locknut to 9–10 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs.
Pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. The cross bolt must be a grade-5 bolt of the largest possible diameter for your winch model (see Winch Information Chart). Tighten the locknut just to where end play in the bolt is taken up. Do not over-tighten, as this can deform the drum.
Remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap according to the instructions (pass it through the drum holes and secure with a grade-5 cross bolt of the largest possible diameter for your model). Re-install the winch drum as it was before. Then torque the drum locknut: 9–10 ft-lbs for single-speed winches, or 24 ft-lbs for two-speed winches. Do not over-tighten.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. This is a critical safety requirement.
Before use, perform the following: (1) Inspect rope, strap, or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection is required as part of routine maintenance.
Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported. Always verify that the ratchet pawl is holding the load before letting go of the handle.
A loud clicking sound from the ratchet must be heard when lifting the load. This indicates the ratchet pawl is properly engaged and functioning. If a loud clicking sound is not heard, do not use the winch and replace ratchet components immediately.
If a loud clicking sound is not heard when lifting the load, do not use the winch. The ratchet pawl is not properly engaged. Replace ratchet components immediately before attempting to use the winch again.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load immediately.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
No. Do not use the winch to move humans.
If you must stop before the load is fully in or out, be sure the ratchet pawl is engaged and gradually release the winch handle to verify that the ratchet pawl is holding the load. Never release the handle unless the ratchet pawl is fully engaged and the load is supported.
Before turning the handle, firmly grip the winch handle and disengage the ratchet pawl or engage it in the reverse direction. You may have to take in a small amount of line to allow the ratchet pawl to unload. With a firm grip on the winch handle, slowly let out line. If you must stop before the load is fully out, be sure the ratchet pawl is engaged in the forward or loading position and gradually release the winch handle to verify the ratchet pawl is holding the load.
Be sure the ratchet pawl is engaged in the forward or loading position. As you turn the handle, make sure the cable, strap, or rope is winding onto the drum properly. If you must stop before the load is fully in, be sure the ratchet pawl is engaged and gradually release the winch handle to verify the ratchet pawl is holding the load.
Apply the brake to help control the load by pressing down on the hand brake lever. Do not let go of the winch handle while letting line out, and do not attempt to stop a spinning winch handle.
Make sure that the ratchet pawl is properly engaged and holding the load before attempting to change gears. For 3700 lb. winches, change gears by relocating the winch handle onto a different input shaft. For other two-speed winches, shift by disengaging the shift lock lever, sliding the input shaft, and reengaging the shift lock lever. The shift lock lever must be firmly in place in an inner or outer groove on the input shaft during winch operation. Inner and outer grooves engage the drive gear; the center groove is neutral.
Never operate the winch with slippery, wet, or oily hands. Always maintain a firm grip on the winch handle. Do not attempt to stop a winch by grabbing the handle while in motion. Never stand alongside the winch cable, strap, or rope or guide the cable, strap, or rope with your hands.
Always inspect the cable or strap and its attachment before each use to make sure they are not damaged. Never use them if they are worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death.
Assure there is adequate safety factor of at least 3 times the maximum load for all components used.
No. Never leave a weight supported from the winch while the winch is unattended, as another person may attempt to operate the winch, thereby creating an unsafe condition.
Operator and bystanders should never position any part of body under any portion of the winch or the load being supported. Never stand alongside the winch cable, strap, or rope or guide the cable, strap, or rope with your hands.
No. Do not allow children to play on or around the winch or the load being supported.
Cequent Performance Products warrants the winch to be free from material defects in both material and workmanship for a period of five years, ordinary wear and tear excepted, provided that installation and use of the product is in accordance with product instructions. This warranty is not transferable.
The limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation, including welds; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than Cequent, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.
To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, identify the product by model number, and follow the claim instructions that will be provided. You must provide the product and the purchase receipt to process your warranty claim. You will be responsible for return shipping costs.
Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290 or www.cequentgroup.com. Please specify the product model number. Use only Cequent Performance Products' parts or parts of equal quality for repair.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Cable (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Hub Size (in.) | Hand Brake** | Strap Included | Cable Included |
|---|---|---|---|---|---|---|---|---|---|---|
| 142400 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142401 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142403 | 2,000 | 6.25 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142414 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142412 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142410 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142411 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142415 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142416 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142418 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142420 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142421 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142424 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142425 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142430 | 3,700 | 10.00 | 102:1 | 140 x 7/32 | - | Cable Only | 1.75 | 501210 | No | No |
