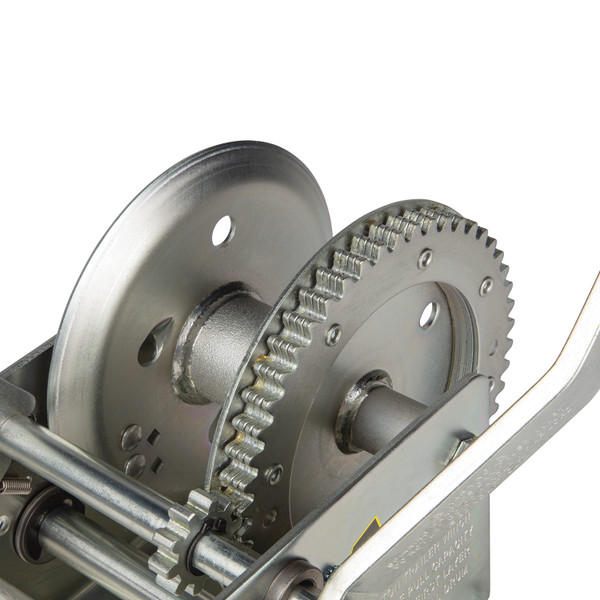

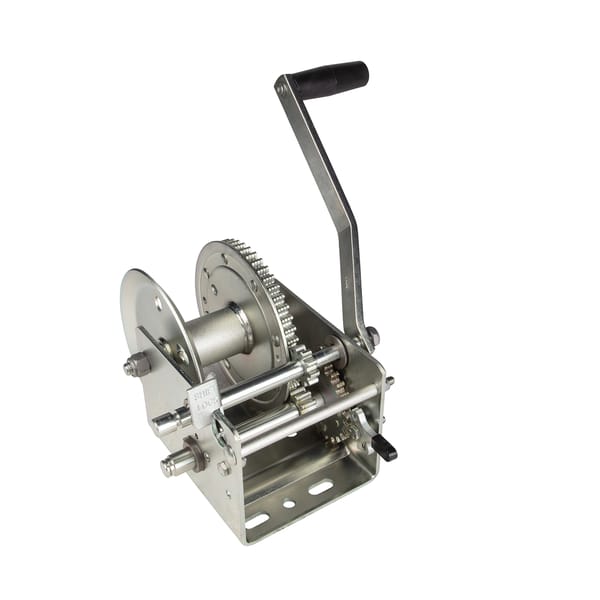

Fulton two speed trailer winches are designed to make light work of heavy loads. Featuring one fast speed for quick pull-in, and a second low speed for increased mechanical advantage, these winches also include a shift lock design which allows changing gears without moving the crank handle from shaft to shaft. Simply lift the shift lock and slide the shaft into the desired position to hold the shaft in gear.
| BRAND: | FULTON |
| PART NUMBER: | 142421 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 17.08 LBS |
| CAPACITY: | 3,200 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | BRAKE |
| WATERPROOF: | YES |
| HOOK INCLUDED: | YES |
| HOOK TYPE: | CLEVIS SAFETY HOOK |
| REMOTE INCLUDED: | NO |
| BRAKE ACTIVATION: | MANUAL |

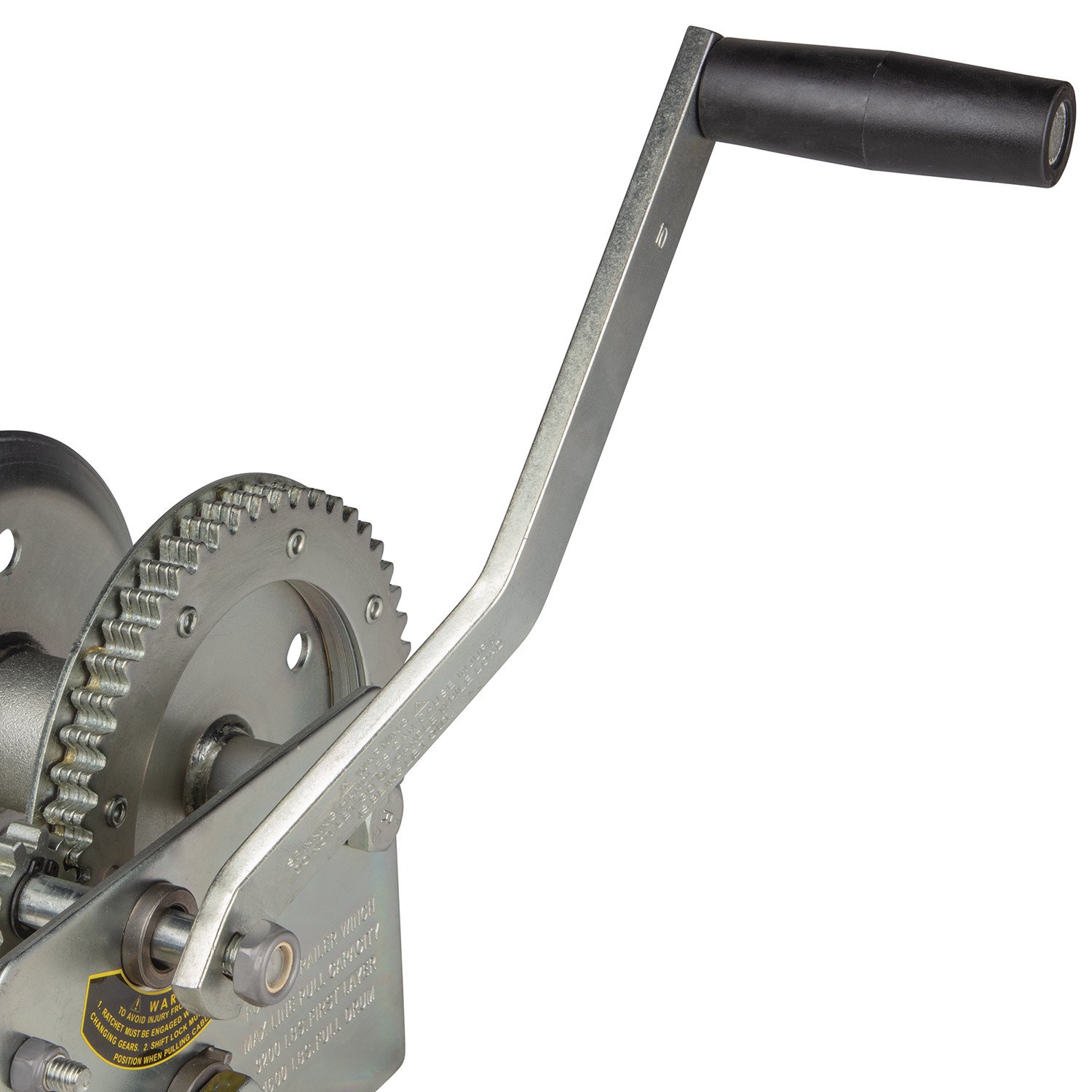

| HANDLE TYPE: | 10 IN. OFFSET |
| RATED LINE PULL: | 3,200 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| D SHACKLE INCLUDED: | NO |
| POWER OUT: | NO |
| WIRE GAUGE: | 0.188 IN. GALVANIZED |
| HARDWARE INCLUDED: | NO |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | ZINC |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
The product is model F3295, revision J, dated 12/16 (December 2016). This is a manual trailer winch system manufactured by Cequent Performance Products.
Cequent Performance Products offers a limited 5-year warranty covering material and workmanship defects, provided installation and use comply with the product instructions. The warranty does not cover normal wear and tear, abuse, neglect, misuse, accidents, misapplication, overloading, improper installation, improper maintenance, or unauthorised alterations. To claim warranty, contact Cequent at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, with your model number and purchase receipt.
Cequent trailer winches are available in the following capacities: 900 lbs, 1100 lbs, 1300 lbs, 1500 lbs, 1800 lbs, 2000 lbs, 2600 lbs, 3200 lbs, and 3700 lbs. Single-speed models are available up to 1800 lbs; two-speed models are available from 2000 lbs to 3700 lbs. Refer to the Winch Information Chart in the manual to confirm the specific model and capacity.
No. Only winches with a drum hub diameter of 1¾" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Refer to the Winch Information Chart to verify whether your specific model supports steel cable. Models that show steel cable capacity in the chart can use it; those marked 'N/A' cannot.
Winches can be configured for rope, strap, or steel cable, depending on the model. Refer to the Winch Information Chart to determine which line types your specific capacity supports. For example, the 900 lb model supports rope (36' × 1/4") and strap (15' × 2"), but not steel cable. The 2000 lb two-speed model supports rope (20' × 7/16") and strap (20' × 2"), but not steel cable. Higher-capacity models may support cable only. Always verify your model's specifications before purchasing line.
Three 3/8" diameter, grade-5 bolts are required to mount the winch to the stand. These bolts are not supplied with the winch. Mounting bolt length varies by application, so verify the correct length for your specific installation. The mounting stand must be capable of supporting at least 5 times the rated capacity of the winch, and the mounting surface must equal or exceed the footprint of the winch frame.
A 1/2" – 13 locknut is used to secure the handle to the flatted input shaft end. This locknut is tightened to 22–25 ft-lbs. Do not over-torque, as this can damage the handle assembly.
The manual does not specify whether professional installation is required. However, the installation instructions state that the mounting stand must support at least 5 times the rated capacity, the mounting surface must equal or exceed the winch frame footprint, and three 3/8" grade-5 bolts must be torqued to 28–30 ft-lbs. Proper installation is critical for safety. If you are uncertain about your ability to meet these requirements, consult a professional installer or contact Cequent Performance Products at 1-800-632-3290.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum.
Winches designed for strap have holes in the drums to accommodate a strap cross bolt. Use a grade-5 bolt of the largest possible diameter (refer to the Winch Information Chart for your model's bolt size). Tighten the locknut just to where end play in the bolt is taken up. Over-tightening can deform the drum. For winches with a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. For single-speed winches, torque the drum locknut to 9–10 ft-lbs. For two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Neatly wrapping the cable is necessary to reduce the chance of kinking or fraying. Always maintain a minimum of three complete wraps of cable on the drum.
If attaching a strap without a strap anchor to a plastic-covered winch, yes, you must remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap according to the instructions, then re-install the winch drum as it was before. For winches with a strap anchor included, this step is not necessary.
The three 3/8" diameter, grade-5 mounting bolts must be torqued to 28–30 ft-lbs. After installation, periodically check the mounting hardware for proper torque and tighten if necessary.
The 1/2" – 13 handle locknut must be torqued to 22–25 ft-lbs. Do not over-torque.
For single-speed winches, torque the drum locknut to 9–10 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
For two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
The clamp nuts for steel cable attachment must be tightened to approximately 2 ft-lbs.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. This is a critical safety requirement to prevent the line from slipping or unwinding unexpectedly.
Before use, perform the following: 1) Inspect rope, strap, or cable and replace if damaged. 2) Check mounting hardware for proper tightness and tighten if necessary. 3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
A loud clicking sound from the ratchet must be heard when lifting the load. This indicates the ratchet pawl is functioning correctly and holding the load. If a loud clicking sound is not heard, do not use the winch and replace ratchet components immediately.
No. Do not use the winch to move humans. This winch is designed for manual operation only and is rated for lifting loads, not people.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
Assure there is an adequate safety factor of at least 3 times the maximum load for all components used. This applies to the winch, mounting stand, bolts, line, and any other component in the load path.
Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported. Never attempt to stop a winch by grabbing the handle while in motion. Never operate with slippery, wet, or oily hands. Always maintain a firm grip on the winch handle.
No. Never leave a weight supported from the winch while the winch is unattended, as another person may attempt to operate the winch, thereby creating an unsafe condition.
Operator and bystanders should never position any part of body under any portion of the winch or the load being supported. Never stand alongside the winch cable, strap, or rope, and never guide the cable, strap, or rope with your hands. Do not allow children to play on or around the winch or the load being supported.
Always inspect the cable, strap, or rope and its attachment before each use to make sure they are not damaged. Never use them if they are worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death.
After installation, check the final installation and make sure the winch is secure to the mounting structure. Verify that the three 3/8" grade-5 mounting bolts are torqued to 28–30 ft-lbs. Periodically check mounting hardware for proper torque and tighten if necessary.
Perform the following maintenance: 1) Periodically check mounting hardware for proper torque and tighten if necessary. 2) Inspect rope, strap, or cable and replace if damaged. 3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. 4) Maintain a thin layer of chassis grease on the gear teeth. 5) Always replace bent, broken, or worn parts before using the product.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
If a loud clicking sound is not heard when lifting the load, the ratchet pawl is not functioning correctly. Do not use the winch. Replace the ratchet components immediately before attempting to use the winch again.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Stop immediately and reduce the load.
Only winches with a 1¾" drum hub diameter support steel cable. Check the Winch Information Chart for your model's specifications.
Three 3/8" diameter, grade-5 bolts are required (not supplied). Bolt length varies by application. Torque to 28–30 ft-lbs.
Torque the 1/2" – 13 handle locknut to 22–25 ft-lbs. Do not over-torque.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank with one hand, the winch is overloaded.
#30 weight engine oil on bushings and ratchet pawl pivot points; chassis grease on gear teeth.
If no loud clicking sound is heard when lifting, do not use the winch. Replace ratchet components immediately.
The ratchet pawl is not functioning correctly. This is a critical safety issue. Do not use the winch. Replace the ratchet components immediately before attempting to use the winch again.
Excessive force in turning the winch handle indicates overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. Stop immediately and reduce the load. If you cannot crank the winch with one hand, you are overloading the winch.
No. Never use a cable, strap, or rope if it is worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death. Inspect the cable before each use and replace it immediately if damaged.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance** | Cable (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Hub Size (in.) | Hand Brake** | Strap Included | Cable Included |
|---|---|---|---|---|---|---|---|---|---|---|
| 142400 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142401 | 2,000 | 10.00 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142403 | 2,000 | 6.25 | 87:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142414 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142412 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142410 | 2,600 | 10.00 | 108:1 | - | 20 x 2 | 3/8 x 2-3/4 Grade 5 | 1.00 | 501210 | No | No |
| 142411 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142415 | 3,200 | 10.00 | 79:1 | 100 x 7/32 | - | Cable Only | 1.75 | 501210 | No | Included |
| 142416 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142418 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | No | No |
| 142420 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142421 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | Included | Yes | No |
| 142424 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142425 | 3,200 | 10.00 | 79:1 | - | 20 x 2 | 3/8 x 3-1/2 Grade 5 | 1.00 | 501210 | Yes | No |
| 142430 | 3,700 | 10.00 | 102:1 | 140 x 7/32 | - | Cable Only | 1.75 | 501210 | No | No |
