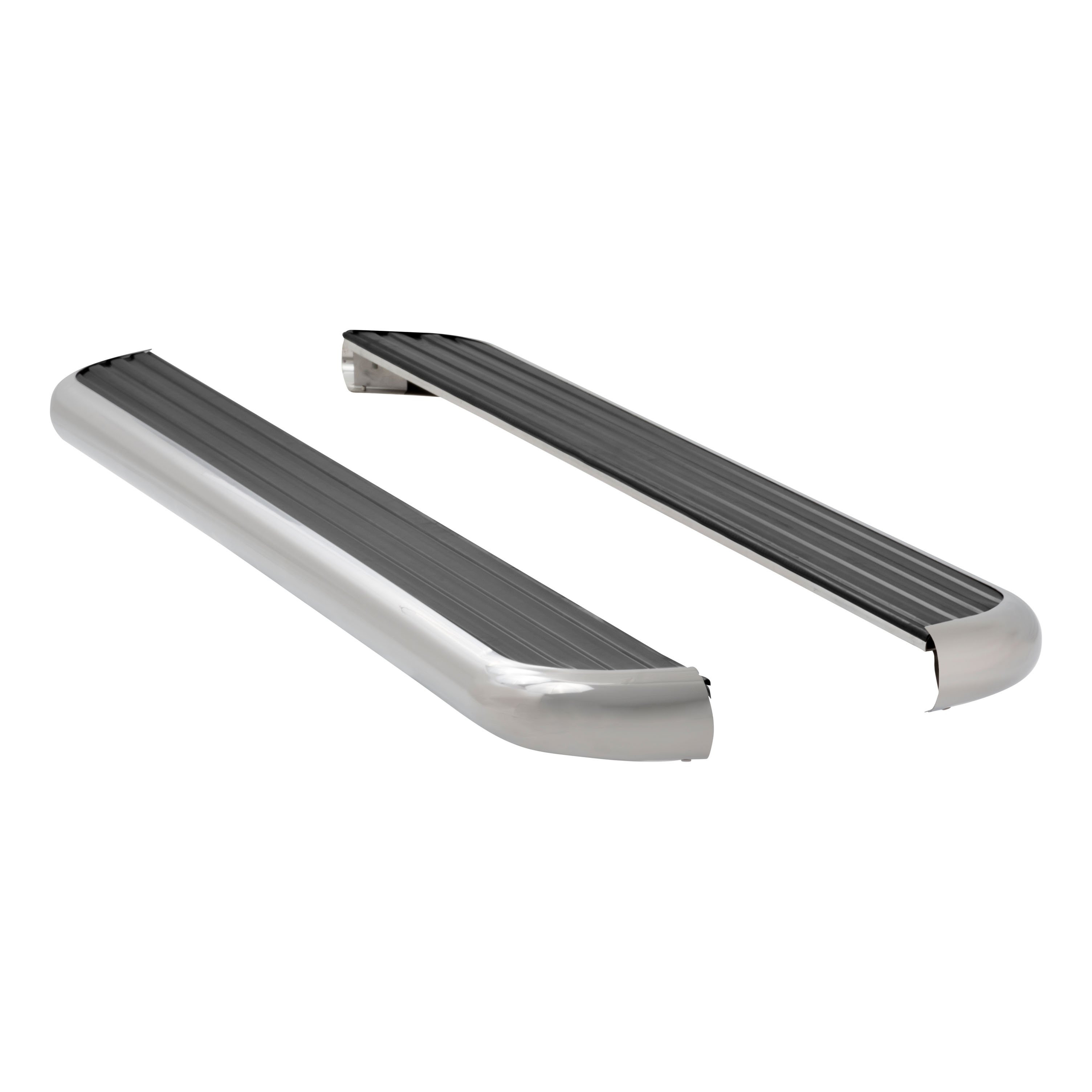

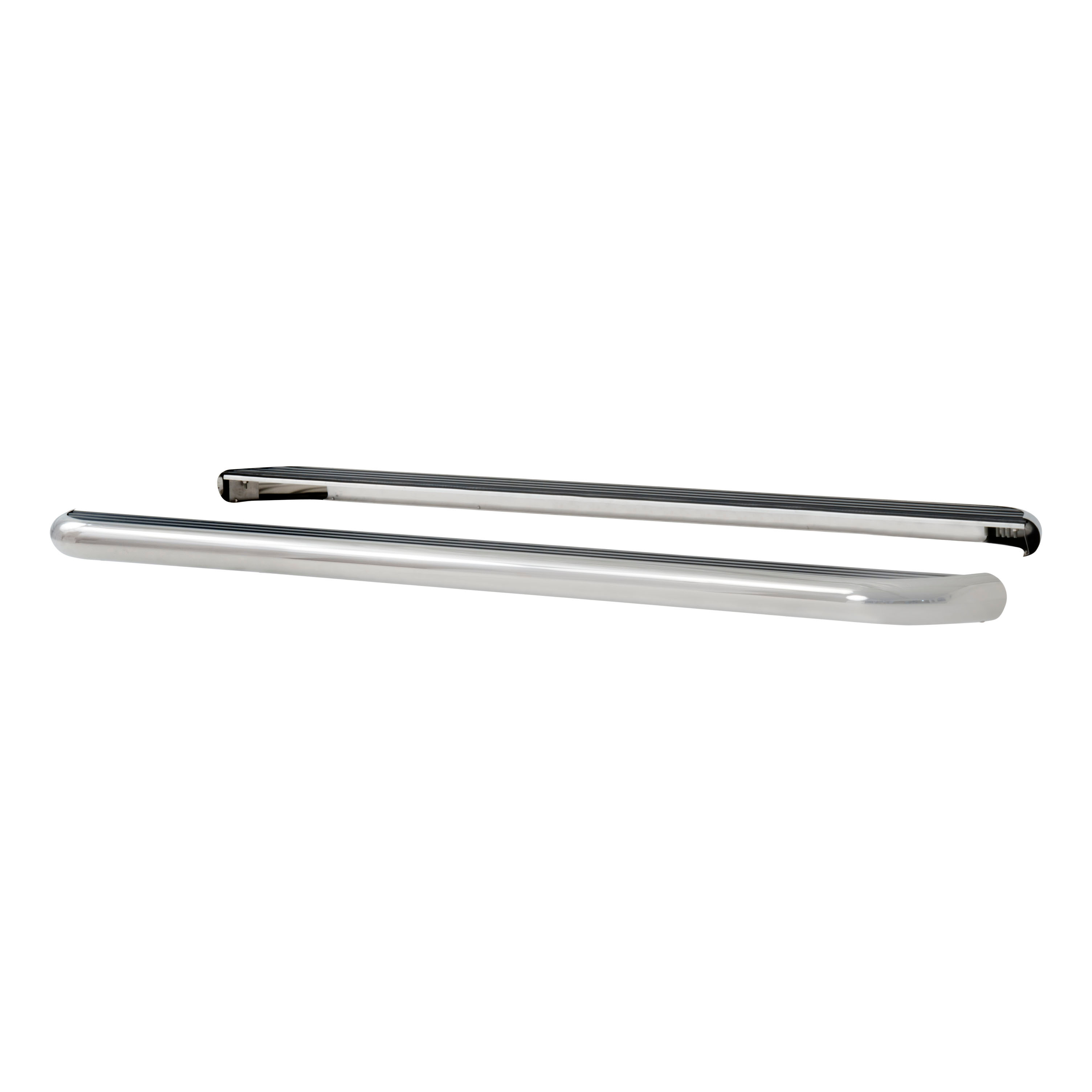

LUVERNE MegaStep 6-1/2" running boards are the ultimate combination of style and functionality. They have 5" wide treads that extend the full length of the side steps, and they feature a strong, lightweight aluminum core with a stainless steel trim for a bright, clean accent. MegaStep running boards mount easily with vehicle-specific brackets, pre-installed fasteners and an adjustable design to perfectly fit your unique vehicle. LUVERNE MegaSteps are designed to offer the best features from a variety of side accessory options. Their non-skid rubber treads cover the entire topside of the boards, giving them the functionality and convenience of a running board. However, unlike most running boards, MegaSteps are styled after the popular look of many nerf bars. This makes them a unique and useful extension of your vehicle. To give MegaStep running boards an even greater advantage over other side steps, they are built to outlast the elements. We construct them with a strong, lightweight aluminum base that naturally resists rust, and we finish them with a high-polish stainless steel trim. The trim is a heavy-duty, 18-gauge stainless steel to make it more than just a fancy accent, and its highly polished finish gives the running boards a bright, long-lasting shine. Installation of LUVERNE MegaStep running boards is easy and customizable. The boards come with pre-installed fasteners and attach using high-strength, vehicle-specific mounting brackets. They are also uniquely designed to be adjustable inward, outward, forward or backward, giving you complete freedom to position the steps wherever you want them. This particular set of running boards is designed to fit specific years of the Ram 1500, 2500, 3500 and Dodge Ram 1500 (see application info to verify fitment). Brackets for these running boards are included but ship separately.
LUVERNE MegaStep 6-1/2" running boards are the ultimate combination of style and functionality, featuring 5" wide rubber treads that extend the full length of the side steps for dependable, non-skid traction wherever the road takes you.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
5 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2009 - 2010 | Dodge Ram 1500 | Crew Cab Pickup | — |
| 2011 - 2018 | Ram 1500 | Crew Cab Pickup | — |
| 2019 - 2024 | Ram 1500 Classic | Crew Cab Pickup | — |
| 2011 - 2019 | Ram 2500 | Crew Cab Pickup | — |
| 2011 - 2019 | Ram 3500 | Crew Cab Pickup | — |
Yes, the 571032/401032 fits 2009–2016 RAM Crew Cab, Quad Cab, and Mega Cab pickups. The installation procedure differs slightly between Quad/Crew Cab and Mega Cab models, particularly for the rear bracket orientation (refer to Figures 2 and 3 in the manual). Heavy duty diesel pickups have a different configuration and do not use the center load reaction stud.
Yes, the bracket is compatible with 1500 pickups. If your 1500 has a cast iron dampener on the rear body mount, it must be removed before installation and will not be reused.

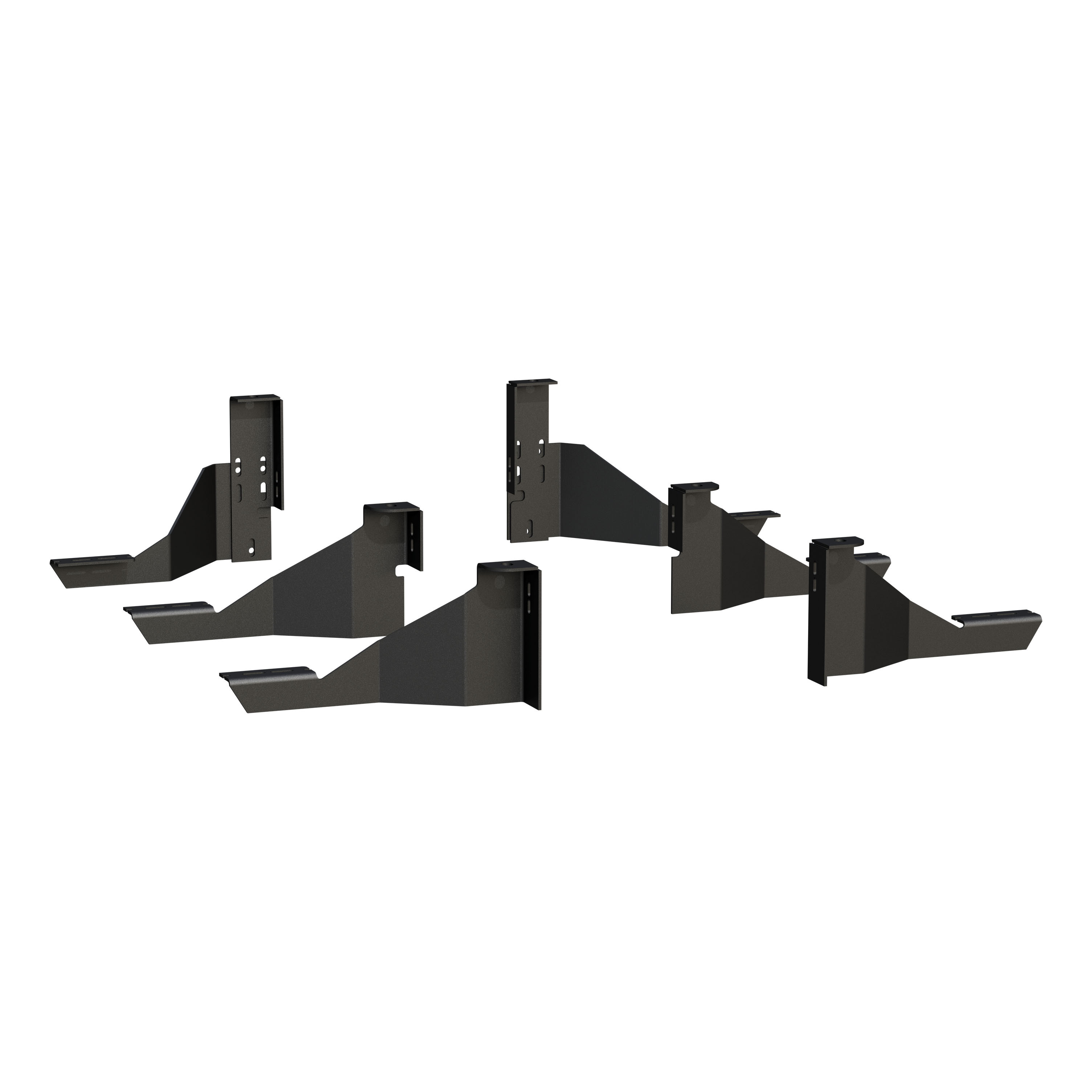

The same bracket kit works for both, but the rear bracket orientation is different. For Quad/Crew Cab pickups, refer to Figure 2; for Mega Cab pickups, refer to Figure 3. The manual notes this difference in Section 4.4.
The kit includes: 6 M12–110mm hex head bolts (item 9), 2 M12–160mm bolts for heavy duty pickups (item 10), 4 2.0" washers (item 11), 6 rubber cushion washers (item 12), 12 3/8" flat washers (item 13), 24 3/8-16 serrated flange nuts (item 14), 4 3" studs (item 15), 2 4" studs (item 16), 6 3/8-16 × 1.0" screws (item 17), and 2 ½" flat washers (item 18). The manual also references a step plate assembly with separate instructions.
Yes. You must remove the factory front, center, and rear body mount bolts on the right side of the vehicle. These factory bolts will not be reused. Install the mounting brackets using the new M12–110mm bolts (or M12–160mm for heavy duty pickups) and washers provided in the kit.
1. On the short threaded end of the stud, install a 3/8" serrated flange nut backwards to the bottom of the thread. 2. Install a 3/8" flat washer and rubber cushion washer tight against the serrated flange nut. The stud end must be recessed in the rubber washer approximately 3/16". 3. On the long threaded end, install a 3/8" serrated flange nut backwards near the bottom of the threads. Use a 4" stud (item 16) for the front bracket and a 3" stud (item 15) for the rear brackets.
Insert the stud from the inboard (frame) side through the lowest hole in the bent flange of the bracket that allows the rubber washer to seat firmly against the frame side wall. Install a 3/8" flange nut on the outboard end of the stud, leaving it finger tight only at this stage.
No. Leave all fasteners finger tight during initial installation. Only after positioning the load reaction stud assembly so the rubber cushion is snug against the frame side should you tighten the 3/8" flange nuts on either side of the bracket to 19 lb-ft.
Use three 3/8-16 × 1.0" screws, 3/8" flat washers, and 3/8" flange nuts (items 17, 13, 14). For light duty pickups, install in the lower hole locations; for heavy duty pickups, install in the upper hole locations. Refer to Figure 1 for hole location details.
No. Heavy duty pickups with the diesel engine will not use the center load reaction stud. Install only the front and rear load reaction studs on these vehicles.
Tighten the 3/8" flange nuts on either side of the bracket to 19 lb-ft. This is done after positioning the load reaction stud assembly so the rubber cushion is snug against the frame side.
Yes, if your 1500 pickup has a cast iron dampener on the rear body mount, remove it before installation. This dampener will not be reused.
Use M12–160mm bolts (item 10) for heavy duty pickups. For standard 1500 pickups, use M12–110mm bolts (item 9). Both are used with a ½" flat washer (item 18).
Use 2.0" washers (item 11) with the M12–110mm bolts (item 9) for both the front and center mounting brackets.
The end of the stud must be recessed in the rubber washer approximately 3/16".
Yes, it fits Crew Cab, Quad Cab, and Mega Cab models. Rear bracket orientation differs between Quad/Crew Cab and Mega Cab. Heavy duty diesel pickups do not use the center load reaction stud.
Yes, remove the factory front, center, and rear body mount bolts on the right side. They will not be reused. Replace them with the new M12–110mm bolts (or M12–160mm for heavy duty) provided in the kit.
Tighten the 3/8" flange nuts to 19 lb-ft after positioning the rubber cushion snug against the frame.
Yes, leave all body mount bolts and bracket fasteners finger tight during assembly. Tighten the load reaction stud flange nuts to 19 lb-ft only after the rubber cushion is positioned snug against the frame.
The kit includes mounting brackets, load reaction studs, M12 bolts, washers (flat and rubber), serrated flange nuts, and 3/8-16 screws. A separate step plate assembly with its own instructions is also required.
Yes, if present on the rear body mount, remove it before installation. It will not be reused.
