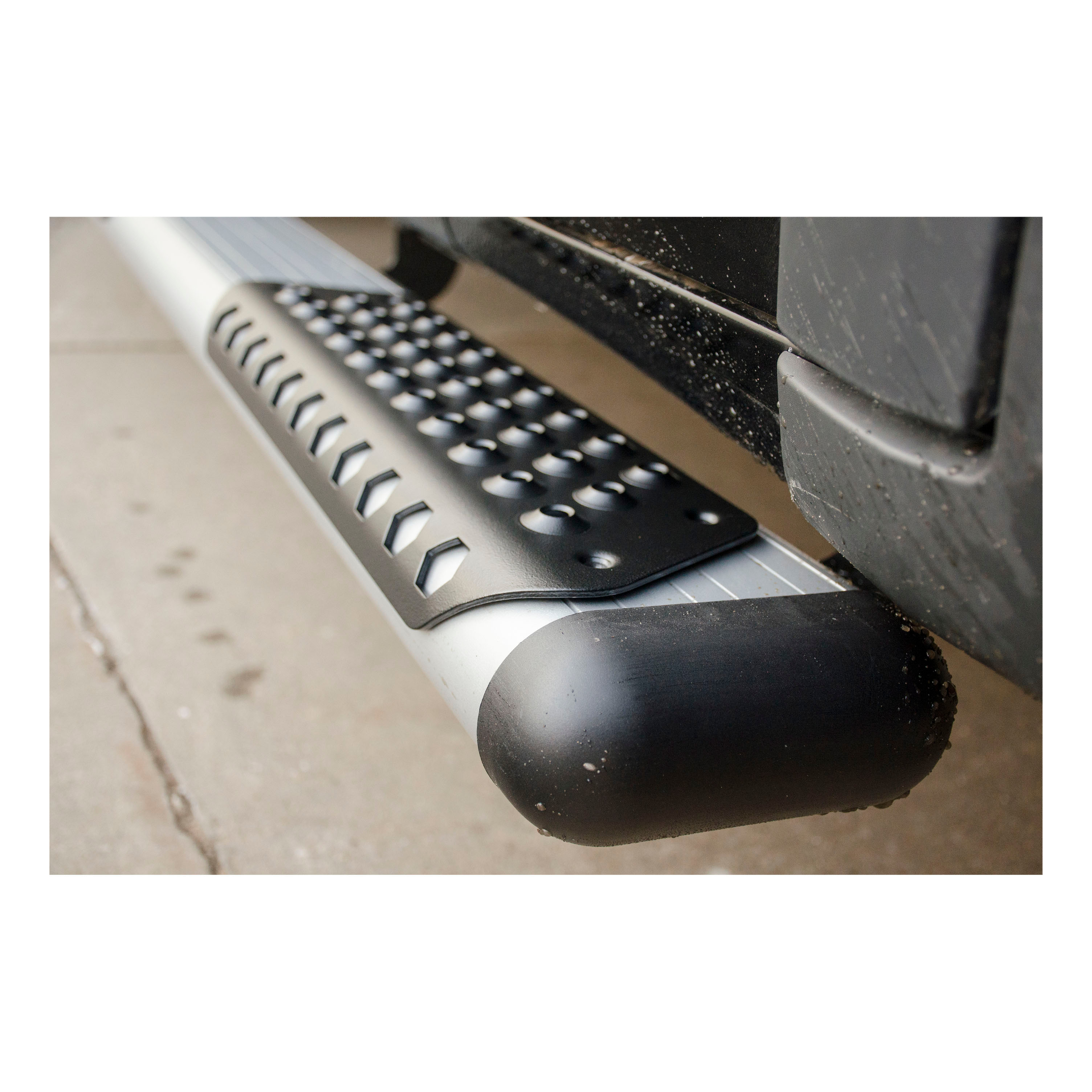

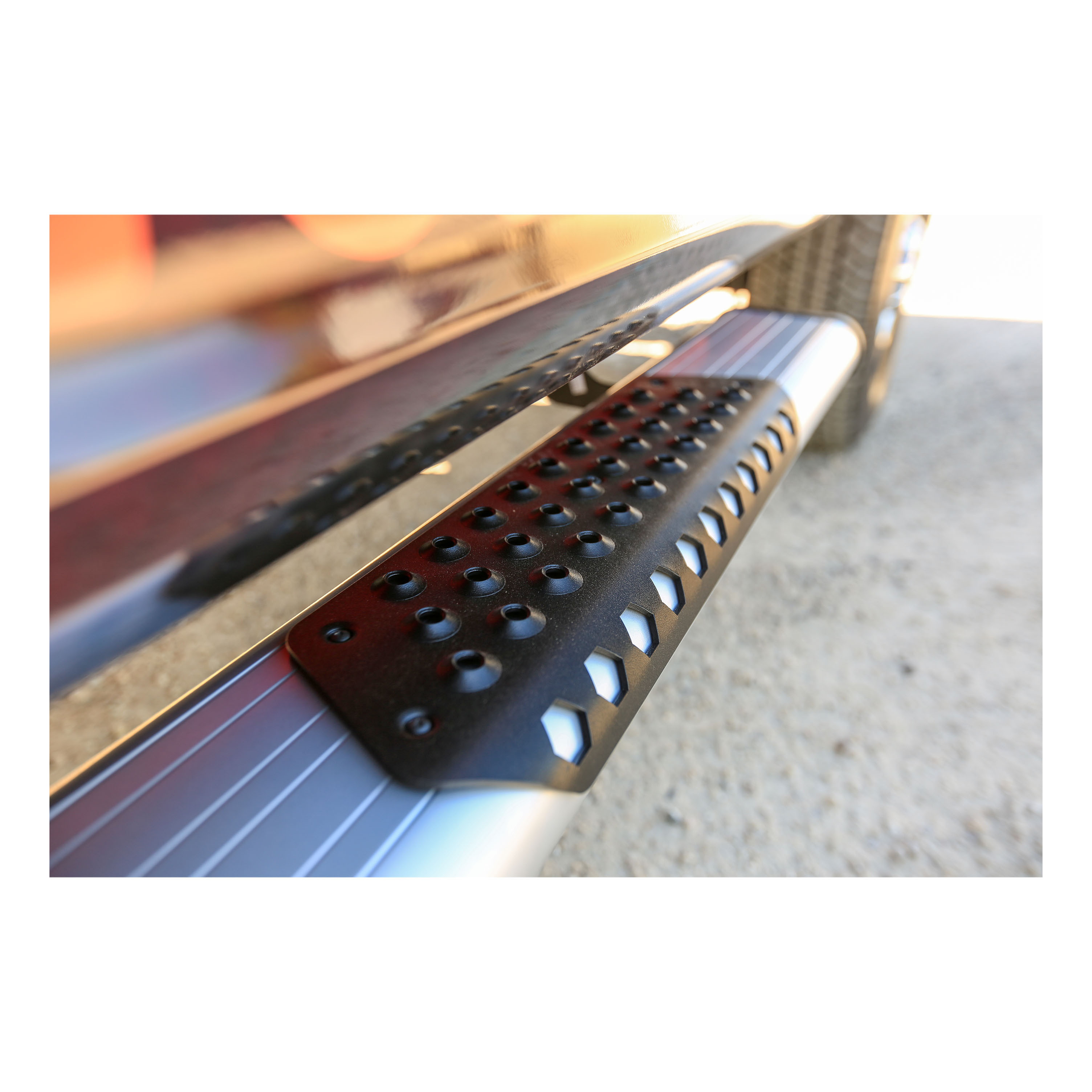

LUVERNE O-Mega II 6" oval wheel-to-wheel steps are the perfect side steps for offroad trucks and work trucks alike. They feature an aggressive look, highly functional step pads, a non-corrosive construction and a vehicle-specific fit. O-Mega II wheel-to-wheel steps are truly modern side steps for modern trucks. With their oval-shaped board profile, rounded end caps and angular step pads, they provide an aggressive look. The step pads also feature a unique cutout pattern and raised circular treads for an unmistakable accent. O-Mega II side steps are not only built for style, but they offer superior safety every time you climb into the cab. The step pads are made from aluminum to outlast the harsh elements and ensure maximum traction and wear resistance for the raised treads. These wheel-to-wheel steps are extra-long and are equipped with additional step pads toward the rear, giving you a solid and convenient step for reach into the truck bed. They?re perfect for accessing a truck tool box, headache rack, 5th wheel hitch or cargo in the truck bed. To ensure that LUVERNE O-Mega II oval wheel-to-wheel side steps are able to withstand anything the road or trail throws your way, they are constructed from aluminum alloy. Aluminum supplies dependable strength and rigidity, while maintaining unparalleled corrosion resistance and a lightweight design. These side steps and the step pads are also protected in a durable powder coat finish. The boards are available in your choice of carbide black or chrome powder coat. O-Mega II wheel-to-wheel steps are engineered for a fast, easy, secure installation, featuring vehicle-specific brackets for a custom fit. This particular set is designed to fit specific years of the Chevy Silverado 1500, 2500 HD or 3500 HD and GMC Sierra 1500, 2500 HD or 3500 HD (see application information to verify fitment; brackets included but shipped separately).
LUVERNE O-Mega II 6" oval wheel-to-wheel side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum and shielded in a highly durable powder coat finish of textured black or smooth silver.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Style | Bed | Notes |
|---|---|---|---|---|
| 2014 - 2018 | Chevrolet Silverado 1500 | Crew Cab Pickup | 6'7" Bed | — |
| 2014 - 2018 | GMC Sierra 1500 | Crew Cab Pickup | 6'7" Bed | — |
The O-MEGA II 6" Oval Steps are available in the following models: 583098, 583102, 583108, 583114, 583125, 584098, 584102, 584114, and 584125. The MEGA STEP Brackets are model 571447.

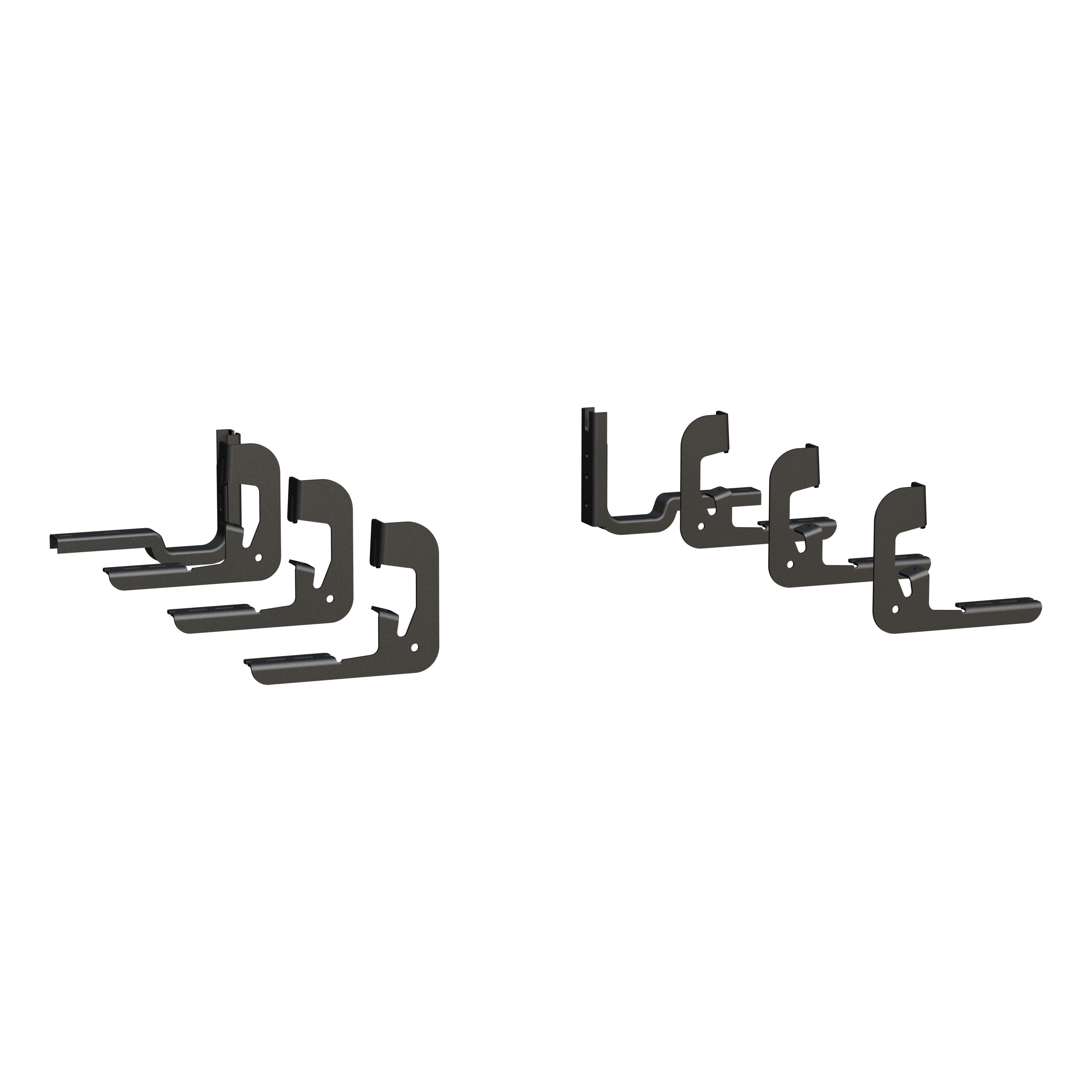

Model 571447 MEGA STEP Brackets are designed for 2014 and newer GM 1500 pickups (gas engines) and 2015 GM 2500/3500HD pickups (gas engines). The brackets mount to the rocker panel using a no-drill application.
The O-MEGA II 6" Oval Steps are designed for universal application. However, they must be mounted using a specific bracket package appropriate for your vehicle. The step pad positioning varies by vehicle model and cab style, as detailed in the Step Pad Location Guide.
The O-MEGA II kit includes: two aluminum extrusions (available in silver or black, in various lengths), six step pads (Item #2, part 107957), four end caps (Item #3, part 107956), 28 square head screws (Item #4, part 106880), 28 serrated flange nuts (Item #5, part 102680), and 30 TEK screws (Item #6, part 107958). Verify all parts are present before starting installation.
The 571447 kit includes: three left-side mounting brackets (Item #2, part 552628), three right-side mounting brackets (Item #3, part 552627), 5/16" flat washers (Item #4, part 106998), 5/16"-18 X 1.0" hex bolts (Item #5, part 100647), M8-1.25 serrated flange nuts (Item #6, part 105859), 5/16"-18 U-nuts (Item #7, part 105541), pinch weld support brackets (Item #8, part 551666), M8-1.25 X 30 mm hex bolts (Item #9, part 100180), inboard spring hanger mounting brackets (Item #10, part 551806), outboard spring hanger mounting brackets (Item #11, part 552717), 3/8"-16 X 2" hex bolts (Item #12, part 101326), 3/8" flat washers (Item #13, part 100062), 1/2" flat washers (Item #14, part 100118), and 3/8"-16 self-locking nuts (Item #15, part 102381).
Before starting installation, read all instructions completely and verify that all required parts listed in the Service Parts List are on hand. You will also need to follow the instructions included with the specific bracket package for your vehicle, as the O-MEGA II steps are universal but require vehicle-specific brackets.
Before starting installation, read all instructions completely and verify that all required parts listed in the Service Parts List are on hand. Note that depending on your vehicle, the hole configuration may change, but fasteners are provided for all applications. You will also need to install the step board following the instructions included with your specific step board.
Yes, drilling is required. You must drill five 1/8" holes in each step pad using the step pad as a guide. These holes are used to attach the step pads to the step plates with 8-18 X 1/2" TEK screws (Item #6).
No, the MEGA STEP Brackets model 571447 are a no-drill application. The brackets mount to existing holes on the rocker panel and spring hanger using provided fasteners.
Use the Step Pad Location Guide on Sheet 2 to determine the correct position for your vehicle model and cab style. The guide provides measurements for Pad A and Pad B positions. Note that due to the shortness of some boxes, mount the box step pad first, approximately 1/2" from the end cap, then mount the middle step pad accordingly. Pad positions are suggestions and may be placed at the purchaser's discretion.
1. Mount the step pads to the step plates by drilling five 1/8" holes and attaching with 8-18 X 1/2" TEK screws. 2. Install square head bolts into the designated slots in the bottom of the step plates. 3. Install end caps and tighten nuts to 5 lb-ft. 4. Position the O-MEGA step on the mounting brackets so the square head screws are in the bracket slots and the step is centered front to rear. 5. Install 5/16" serrated flange nuts on the square head screws and tighten to 19 lb-ft.
1. Remove plastic body plugs from the rocker panel vertical wall on the left side and insert 5/16"-18 U-nuts (or use threaded inserts if present). 2. Position mounting brackets so holes align with rocker panel holes and install 5/16"-18 X 1.0" hex bolts and flat washers finger tight. 3. Install M8-1.25 X 30 mm hex bolts, flat washers, and pinch weld support through the hole and install M8-1.25 nuts finger tight. 4. Repeat for remaining brackets. 5. Attach spring hanger mounting brackets by loosening the spring hanger bolt, sliding the inboard bracket behind the flange, and installing the outboard bracket with 3/8"-16 bolts, washers, and lock nuts finger tight. 6. Install the step board per included instructions. 7. Press step down and back, then tighten all mounting bolts to 19 lb-ft, starting with bottom bolts followed by top bolts. 8. Repeat for the right side.
The end cap nuts (Item #3) should be tightened to 5 lb-ft.
The 5/16" serrated flange nuts (Item #5) on the square head screws (Item #4) should be tightened to 19 lb-ft.
After pressing the step down and back, tighten all mounting bolts to 19 lb-ft, starting with the bottom bolts followed by the top bolts.
Step pads are attached using five 8-18 X 1/2" TEK screws (Item #6, part 107958) per pad. The holes are drilled at 1/8" diameter using the step pad as a guide.
Rocker panel mounting uses 5/16"-18 X 1.0" hex bolts (Item #5, part 100647) with 5/16" flat washers (Item #4, part 106998) and either 5/16"-18 U-nuts (Item #7, part 105541) or existing threaded inserts. Upper locations use M8-1.25 X 30 mm hex bolts (Item #9, part 100180) with M8-1.25 serrated flange nuts (Item #6, part 105859) and pinch weld support brackets (Item #8, part 551666).
Spring hanger mounting uses 3/8"-16 X 2" hex bolts (Item #12, part 101326), 3/8" flat washers (Item #13, part 100062), 1/2" flat washers (Item #14, part 100118), and 3/8"-16 self-locking nuts (Item #15, part 102381). These fasteners should be left finger tight during installation and tightened to 19 lb-ft after the step board is installed and pressed down and back.
CURT Group recommends regular inspection and maintenance of the leaf spring attachment point per GM Technical Service Bulletin 09-03-09-001E: Clunking Noise from Rear of Vehicle (Re-torque Leaf Spring Bolts) for 2007-2017 Chevrolet and GMC trucks. Failure to regularly inspect and maintain factory-recommended torque values may result in damage to the vehicle.
Position the O-MEGA step on the mounting brackets so that the square head screws (Item #4) are located in the slots of the mounting brackets and the step is centered front to rear on the vehicle. Then install 5/16" serrated flange nuts (Item #5) on the square head screws and tighten to 19 lb-ft.
The pinch weld support bracket (Item #8, part 551666) is installed with the M8-1.25 X 30 mm hex bolts through the upper hole location on the rocker panel to provide structural support at the pinch weld area.
1. Loosen the spring hanger bolt just enough to slide the inboard spring hanger mounting bracket (Item #10) up behind the flange of the bolt, with the channel open to the outboard side. 2. Using a 3/8"-16 bolt, 3/8" washer, 1/2" washer, and 3/8" lock nut (Items #12-15), install the outboard spring hanger mounting bracket (Item #11) so the inboard vertical portion fits inside the channel of the inboard bracket. Leave these fasteners finger tight. 3. After installing the step board and pressing the step down and back, tighten to 19 lb-ft.
Model 571447 fits 2014+ GM 1500 pickups (gas) and 2015 GM 2500/3500HD pickups (gas) only. It is a no-drill rocker panel mount application.
Yes, you must drill five 1/8" holes in each step pad to attach them to the step plates with TEK screws.
No, model 571447 is a no-drill application. It mounts to existing holes on the rocker panel and spring hanger.
Both products use 19 lb-ft for the main mounting bolts. The O-MEGA II uses this torque for the 5/16" serrated flange nuts on the square head screws. Model 571447 uses 19 lb-ft for all mounting bolts after pressing the step down and back.
You will need a drill with a 1/8" bit to drill the step pad holes, and standard wrenches or sockets to tighten the fasteners to the specified torque values (5 lb-ft for end caps, 19 lb-ft for mounting bolts).
You will need standard wrenches or sockets to tighten fasteners, a torque wrench to achieve 19 lb-ft, and possibly a jack or lift to access the spring hanger bolt area.
After pressing the step down and back, tighten all mounting bolts to 19 lb-ft, starting with the bottom bolts followed by the top bolts.
Reposition the O-MEGA step on the mounting brackets so that the square head screws (Item #4) are located in the slots of the mounting brackets and the step is centered front to rear on the vehicle. The slots in the mounting brackets allow for adjustment. Once properly centered, install the 5/16" serrated flange nuts (Item #5) and tighten to 19 lb-ft.
Verify that you are using the correct Step Pad Location Guide measurements for your specific vehicle model and cab style. The guide provides Pad A and Pad B positions. Note that due to the shortness of some boxes, the box step pad should be mounted first, approximately 1/2" from the end cap, then the middle step pad mounted accordingly. If positions still do not align, pad positions may be placed at the purchaser's discretion.
