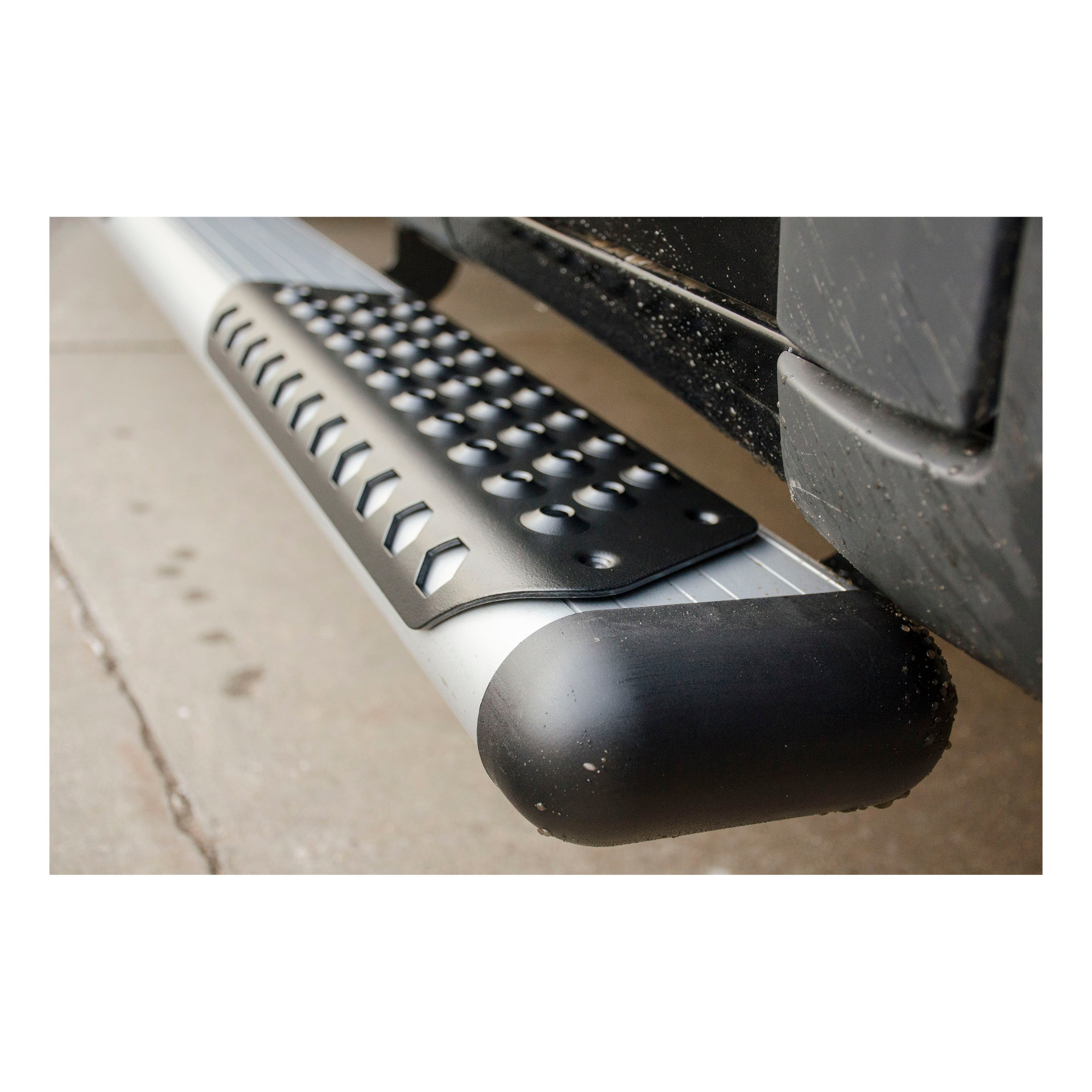

Like many LUVERNE side steps and running boards, O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum, and to truly make them a step up from the rest, we shield them in a highly durable powder coat finish. This ensures maximum corrosion resistance and excellent protection against scuffs and scratches. The side steps are available in two powder coat finish options, including textured black and silver powder coat. O-Mega II side steps are also made to provide saf e, comfortable entry and exit from your vehicle. They feature tough aluminum step pads with protruded circular treads that will never wear or crack. The step pads offer a non-skid surface, and they are finished with a textured black powder coat for lasting corrosion resistance. Also unique to our O-Mega II step pads is their customizable positioning. The pads are packaged unattached from the tubes and mount with self-tapping screws. This allows you to precisely match the layout of your vehicle to suit your preferences. You can mount them to the provided factory specifications or adjust them to a custom placement. The 6" x 2-3/4" tubes are fitted with black TPO plastic end caps, adding a modern, professional look. The end caps are also paintable to allow for even further customization. Each set of O-Mega II side steps is designed for vehicle-specific installation and fitment, using a unique set of mounting brackets. This particular set of side steps fits specific years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (see application info to verify fitment). NOTE: Mounting brackets are included but ship separately.
LUVERNE O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum and shielded in a highly durable powder coat finish of textured black or smooth silver.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2015 - 2019 | Chevrolet Silverado 2500 HD | Extended Cab Pickup | — |
| 2015 - 2018 | Chevrolet Silverado 3500 HD | Extended Cab Pickup | — |
| 2015 - 2019 | GMC Sierra 2500 HD | Extended Cab Pickup | — |
| 2015 - 2018 | GMC Sierra 3500 HD | Extended Cab Pickup | — |
Yes, model 571743 MEGA STEP Brackets are designed for 2015+ GM 2500/3500HD Crew Cab and Double Cab Pickups with both gas and diesel engines. The brackets use a body mount application and are a no-drill installation. Confirm your truck is a 2500 or 3500HD model and either Crew Cab or Double Cab configuration.
The O-MEGA II 6" Oval Steps (models 583072, 583078, 583088, 584072, 584078, 584088) are listed as a universal application. However, they must be paired with a vehicle-specific bracket package. The step pad positioning varies by vehicle model and cab style—consult the Step Pad Location Guide table on page 2 for your specific vehicle to determine correct pad placement.
For a Silverado Crew Cab, position Pad A at 14-3/4 inches and Pad B at 54-1/4 inches from the reference point. Note that the manual states these locations are suggestions only and may be placed at the purchaser's discretion.
Yes. The MEGA STEP Bracket model 571743 is designed specifically for 2015+ GM 2500/3500HD Crew Cab and Double Cab Pickups. For a 1500 model, you will need a different bracket package. Additionally, if installing 571743 brackets on a 1500 pickup, you must attach the small 90° bracket (item #16) to the front brackets.
The O-MEGA II steps include: 2 extrusions (available in silver or black, in three lengths: 69.0", 75.0", or 85.0"), 4 step pads (item #552970), 4 end caps (item #107956), 24 square head screws 5/16-18 × 1" (item #106880), 24 serrated flange nuts 5/16-18 (item #102680), and 20 tek screws #8-18 × 1/2" (item #107958) for attaching step pads.

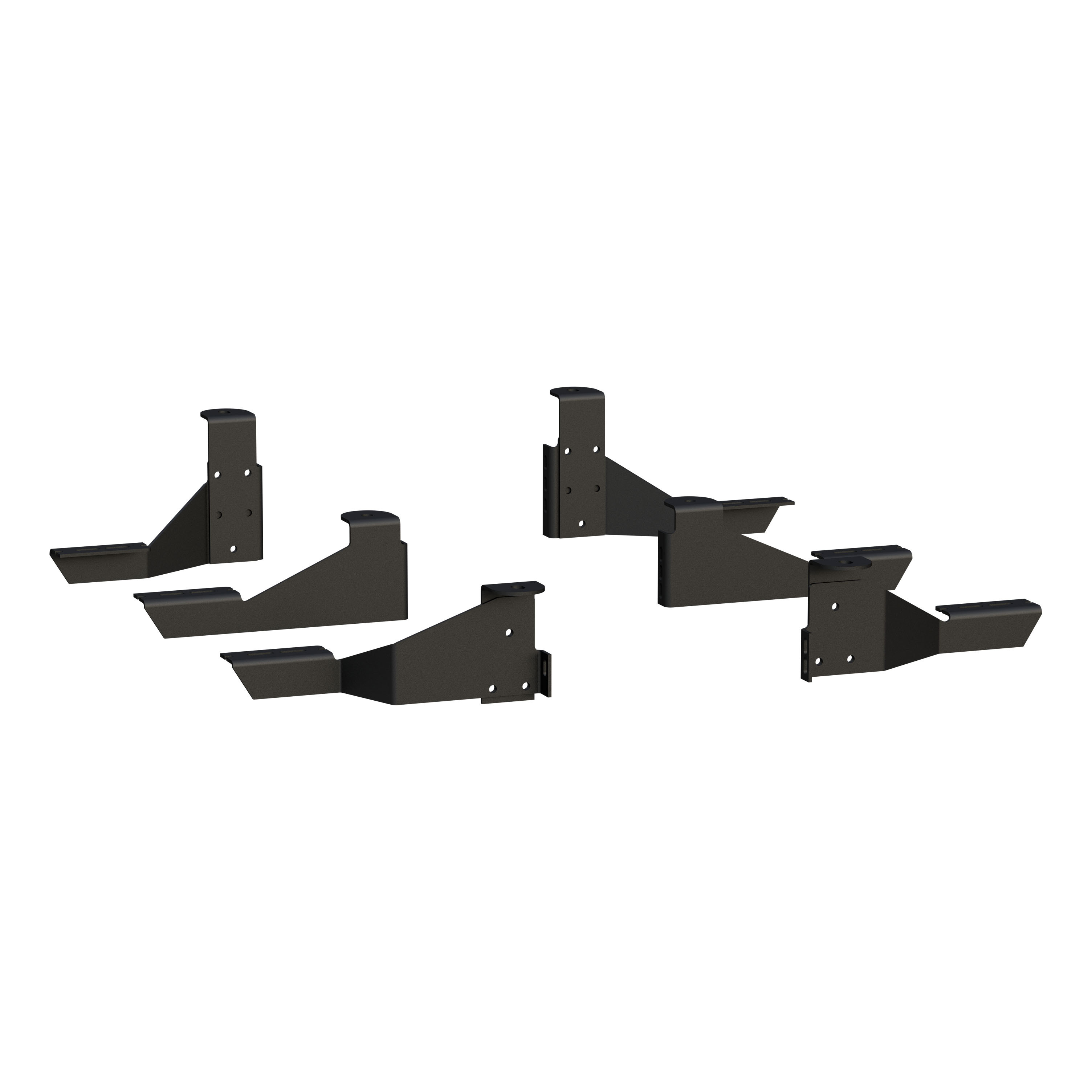

The 571743 bracket kit includes: front, center, and rear mounting brackets (left and right), load reaction studs (6 double-ended studs, 3/8-16 × 4.0"), rubber cushion washers, flat washers, serrated flange nuts, hex head screws, and optional 90° brackets for 1500 applications. Refer to the Service Parts List on page 4 for complete part numbers and quantities.
The manual requires a drill with a 1/8" bit to drill five holes in the step plates for step pad attachment. A wrench or socket set is needed to tighten nuts and bolts to the specified torque values (5 lb-ft for end caps, 19 lb-ft for serrated flange nuts on square head screws). The manual does not specify other tools required for bracket installation—refer to the instructions included with your specific bracket package.
Required tools include a wrench or socket set to tighten fasteners to 19 lb-ft torque. The installation is described as a no-drill application, so no drilling is required. You will need a tool to remove the factory body mount bolts, which may require extra caution due to excessive thread locker on 2010+ GM Silverado/Sierra models.
Before starting installation, read the instructions completely and verify that all required parts listed on the Service Parts List are on hand. You will also need to follow the instructions included with the specific bracket package for your vehicle, as bracket mounting is a separate process from step installation.
Read the instructions completely and verify that all required parts listed on the Service Parts List are on hand. Note that the 2010+ GM Silverado/Sierra has excessive thread locker in the body mount bolt area, so use caution when removing the factory body mount bolts. Ensure you have the correct bracket package for your specific vehicle model and cab style.
1. Position the step pads (item #2) on top of the step plates using the Step Pad Location Guide table on page 2 for your vehicle. 2. Using the step pad as a guide, drill five 1/8" holes through the step plate. 3. Attach the pads with five 8-18 × 1/2" tek screws (item #6). 4. Repeat for all step pads. The step pad locations are suggestions and may be placed at the purchaser's discretion.
Install the end caps (item #3) as shown in Figure 1, then tighten the nuts to 5 lb-ft. The manual references Figure 1 for the correct positioning and orientation of the end caps.
1. Position the O-MEGA step on the mounting brackets so that the square head screws (item #4) are located in the slots of the mounting brackets. 2. Center the step front to rear on the vehicle. 3. Install 5/16" serrated flange nuts (item #5) on the square head screws (item #4). 4. Tighten the nuts to 19 lb-ft.
1. On the short threaded end of the load reaction stud (item #14), install a 3/8" serrated flange nut (item #13) backwards to the bottom of the thread. 2. Install a 3/8" flat washer (item #12) and rubber cushion washer (item #11) tight against the serrated flange nut. The end of the stud must be recessed in the rubber washer approximately 3/16". 3. On the long threaded end, install a 3/8" serrated flange nut (item #13) backwards near the bottom of the threads.
1. Insert the stud from the inboard (frame) side through the lowest hole in the bent flange of the bracket that will allow the rubber washer to seat firmly against the side wall of the frame. 2. Install a 3/8" serrated flange nut (item #13) on the outboard end of the stud, finger tight only. Do not fully tighten at this stage.
1. Remove the factory front, center, and rear body mount bolts. 2. Install the front mounting bracket (items #2, #4) to the front body mount, leaving fasteners finger tight. 3. Install the center mounting bracket (item #5) to the center body mount, leaving fasteners finger tight. 4. Install the rear mounting bracket (item #9) and washer (item #17) to the rear body mount, leaving fasteners finger tight. 5. Attach the rear outboard mounting bracket (item #7) to the rear inboard mounting bracket (item #9) using three 3/8"-16 × 1.0" screws, flat washers, and flange nuts, torqued to 19 lb-ft. Ensure the rear outboard bracket is mounted to the back side (toward the rear of the vehicle) as shown in Figures 2 and 3.
On the left side of the vehicle, preassemble the front bracket (items #2, #4) using three 3/8"-16 × 1.0" screws, 3/8" flat washers, and 3/8" flange nuts (items #15, #12, #13), torqued to 19 lb-ft. If installing on a 1500 pickup, you must attach the small 90° bracket (item #16) to the front brackets as shown in Figure 1.
Leave the load reaction stud fasteners finger tight during initial bracket installation. After the step boards are installed and positioned, position the load reaction bolt assembly so that the rubber cushion is snug against the side of the frame, then tighten the 3/8" flange nuts on either side of the bracket to 19 lb-ft.
During initial installation, leave the following fasteners finger tight: the front mounting bracket fasteners (step 5.1), the center mounting bracket fasteners (step 5.2), the rear mounting bracket fasteners (step 5.3), and the load reaction stud outboard fasteners (step 4). These are tightened to final torque after the step boards are installed and positioned.
Yes, drilling is required. You must drill five 1/8" holes through the step plates using the step pad as a guide. These holes are used to attach the step pads with tek screws. No other drilling or vehicle modifications are mentioned.
No, the MEGA STEP Bracket model 571743 is described as a no-drill application. Installation uses existing factory body mount bolt holes.
Tighten the end cap nuts to 5 lb-ft.
Tighten the 5/16" serrated flange nuts (item #5) on the square head screws (item #4) to 19 lb-ft.
All fasteners on the MEGA STEP Brackets are torqued to 19 lb-ft. This includes: the front bracket preassembly screws (step 2), the rear outboard bracket attachment screws (step 5.4), and the load reaction stud flange nuts (step 7). After installation, ensure the body mount fasteners are torqued to the manufacturer's specifications.
The manual states that after installing the mounting brackets, you must torque the body mount fasteners to the manufacturer's specifications. The manual does not provide the specific torque value—consult your vehicle's service manual or the bracket package instructions for the correct torque specification.
Five 1/8" holes are drilled through the step plates for each step pad attachment.
The end of the load reaction stud must be recessed in the rubber cushion washer (item #11) approximately 3/16".
Due to excessive thread locker in the body mount bolt area on 2010+ GM Silverado/Sierra, use caution when removing the body mount bolts. This may require extra effort or specialized tools to remove without damaging the bolts or threads.
The mounting brackets must not touch the inside wall of the body mount housing. Ensure proper positioning during installation to maintain this clearance.
The rubber cushion washer (item #11) must be positioned tight against the serrated flange nut, with the end of the stud recessed approximately 3/16" into the rubber washer. After installation, position the load reaction bolt assembly so that the rubber cushion is snug against the side of the frame.
After installation, verify that: 1) the mounting brackets do not touch the inside wall of the body mount housing, 2) the rubber cushion is snug against the side of the frame, 3) all fasteners are torqued to 19 lb-ft (or manufacturer's specifications for body mount bolts), and 4) the step is centered front to rear on the vehicle. The manual does not specify other post-installation checks.
After installation, verify that: 1) all step pads are securely attached with tek screws, 2) the end caps are tightened to 5 lb-ft, 3) the serrated flange nuts on the square head screws are tightened to 19 lb-ft, and 4) the step is centered front to rear on the vehicle. The manual does not specify other post-installation checks.
Model 571743 MEGA STEP Brackets fit 2015+ GM 2500/3500HD Crew Cab and Double Cab Pickups (gas or diesel). For other vehicles, you need a different bracket package. O-MEGA II steps are universal but require a vehicle-specific bracket.
For O-MEGA II steps: yes, five 1/8" holes per step pad. For MEGA STEP Brackets (571743): no, it is a no-drill application using factory body mount holes.
For O-MEGA II: drill with 1/8" bit, wrench or socket set. For MEGA STEP Brackets: wrench or socket set only (no drilling). Both require torque wrench for proper fastener tightening.
O-MEGA II end caps: 5 lb-ft. O-MEGA II serrated flange nuts: 19 lb-ft. MEGA STEP Brackets: all fasteners 19 lb-ft, plus factory body mount bolts to manufacturer's specs.
For MEGA STEP Brackets: yes, remove factory front, center, and rear body mount bolts. For O-MEGA II: no factory parts removal is mentioned; installation depends on your bracket package.
2010+ GM Silverado/Sierra: use caution removing body mount bolts due to excessive thread locker. MEGA STEP Brackets must not touch the inside of the body mount housing. Rubber cushion must be snug against the frame.
