Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 20137 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 1.3 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | NO |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 7 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 7 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
| AMPERAGE: | 30 A |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2006 | Toyota Tundra | Tow Harness Wiring Package Drilling Required Install Time is 10 minutes With Factory 7: Way |
The Tekonsha Tow Harness, 7-Way & 4-Way Flat TK20137 (Part #TK20137) fits 2003-2006 Toyota Tundra models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Tekonsha Tow Harness, 7-Way & 4-Way Flat TK20137 (Part #TK20137) is designed to fit the 2003-2006 Toyota Tundra.
The Tekonsha Tow Harness, 7-Way & 4-Way Flat TK20137 (Part #TK20137) fits the following vehicles: 2003-2006 Toyota Tundra. Always verify your specific year, make, and model before ordering.
The Tekonsha Tow Harness, 7-Way & 4-Way Flat TK20137 (Part #TK20137) Drilling is required for installation. Basic hand tools are typically all you need.

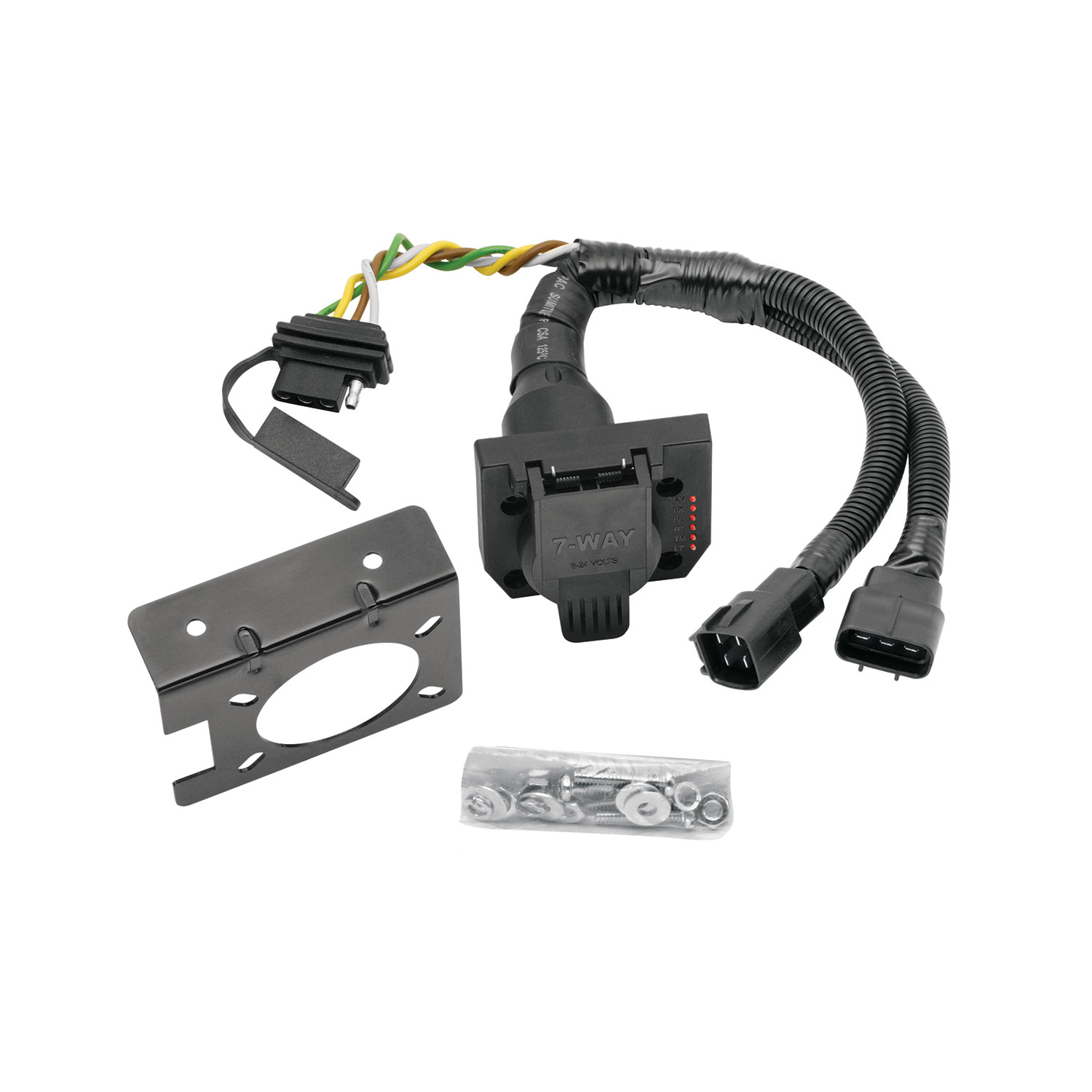

Part number 20137 is a 7-Way Flat Pin Connector / 4-Flat Combo Adapter Harness manufactured by Cequent Towing Products. It allows you to connect a 7-way connector and a 4-flat connector to your tow vehicle using a single mounting bracket.
The 20137 is designed for tow vehicles equipped with a factory car end socket harness. You must have a factory-equipped socket harness on your vehicle for this adapter to work. If your vehicle does not have a factory towing harness, this adapter will not be compatible. Contact the manufacturer or your installer to confirm your vehicle has the required factory harness.
The 20137 includes a mounting bracket, screws, flat washers, and hex nuts. These fasteners are used to attach the 7/4-way socket into the bracket. No other hardware is listed as included.
Follow these steps: 1) Determine a suitable mounting location on the tow vehicle and attach the mounting bracket. 2) Install the 7/4-way socket into the bracket and attach using the provided screws, flat washers, and hex nuts. 3) Plug the 7/4-way connector into the factory-equipped car end socket harness on the vehicle. 4) Install the 4-flat connector into the slot in the bracket. 5) Tighten all screws.
You must determine a suitable mounting location on the tow vehicle. The manual does not specify exact location requirements, clearances, or vehicle-specific mounting points. Consult with your installer or contact Cequent Towing Products technical service at (888) 521-0510 to identify the best mounting location for your specific vehicle.
The manual states you plug the 7/4-way connector into the factory-equipped car end socket harness on the vehicle, but does not specify whether the factory harness requires disconnection, modification, or splicing. Contact Cequent Towing Products technical service at (888) 521-0510 for detailed guidance on integrating with your factory harness.
Yes. The 20137 is designed to plug into a factory-equipped car end socket harness on your vehicle. Your vehicle must have this factory harness for the adapter to work.
The kit includes screws, flat washers, and hex nuts to attach the 7/4-way socket to the mounting bracket.
