CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2020 Honda Fit
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
| Battery-Powered | Yes |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P1,P2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Honda Fit | — |
The 15-20 HONDA Fit CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1364) fits 2015-2020 Honda Fit models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 15-20 HONDA Fit CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1364) is designed to fit the 2015-2020 Honda Fit.
The 15-20 HONDA Fit CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1364) fits the following vehicles: 2015-2020 Honda Fit. Always verify your specific year, make, and model before ordering.
The 15-20 HONDA Fit CURT 4-flat Plug and Play Trailer Wiring (Part #CTW1364) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 56395 is designed for Honda Fit passenger cars. The wiring harness connects to the taillight circuits on both the driver and passenger sides of the vehicle.
The CURT 56395 is a custom wiring harness that integrates with your Honda Fit's taillight circuits. It includes a converter box and a 4-flat connector for trailer lighting. The harness carries signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total).
You will need: ratchet, ratchet extension, 8mm socket, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool. A drill may be needed if a suitable grounding point with an existing screw is not available.

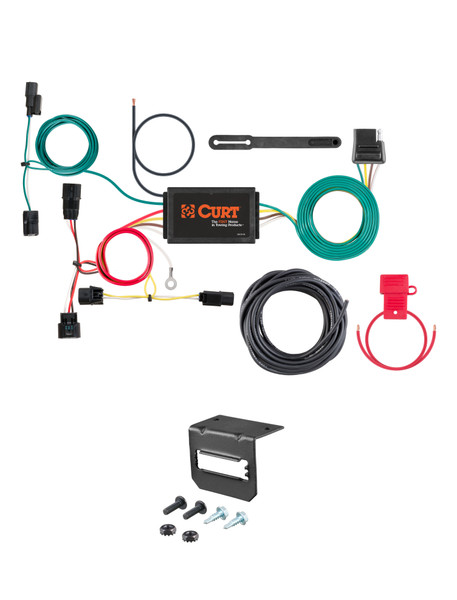

The kit includes: a custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal, a provided screw for grounding, cable ties, sealant, double-sided tape, and a 4-flat dust cover.
The manual does not explicitly require battery disconnection. However, the manual does specify that the battery connection must be fuse-protected with a 10-amp max fuse. Refer to the included CME-PCL-INS sheet for battery power wire routing details.
Open the trunk and remove all floor coverings and storage trays. Remove the scuff panel by pulling straight up. Locate the driver side taillight and remove the two 8mm fasteners securing it. Gently pull the taillight rearward to access the wiring harness connectors on the back. Separate the connectors carefully without damaging the locking tabs. Repeat on the passenger side after routing the harness.
Drilling may be required for the ground wire connection. Step 9 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you must drill a 3/32" pilot hole for the provided screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground wire screw. The grounding point should be located near the connector on the vehicle frame, in an area free of rust, dirt and paint.
Yes. You must locate the grommet behind the taillight where the vehicle taillight wiring passes from inside the cabin to the taillight. Remove the grommet and cut a slit large enough to route the CURT wiring harness through. After routing the harness, reseat the grommet and use the provided sealant to seal the cut and around all wires.
Route the custom wiring harness end with the yellow wire out through the slit in the grommet opening. Insert the yellow wire end between the separated taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat the process on the passenger side using the harness end with the green wire.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation, including trunk floor coverings, storage trays, scuff panel, side felt liner, and taillights. Install the provided 4-flat dust cover to help prevent corrosion.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing screw is available, drill a 3/32" pilot hole. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Yes, the CURT 56395 is designed specifically for Honda Fit passenger cars.
You need: ratchet, ratchet extension, 8mm socket, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool. A drill may be needed for the ground wire screw.
Drilling may be required if no existing screw is available for the ground wire connection. If needed, drill a 3/32" pilot hole. You must also cut a slit in the grommet to route the harness.
The battery connection must use a 10-amp maximum fuse. Exceeding this can cause overheating and fire.
Test for proper function using a test light or by connecting a properly wired trailer.
