Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

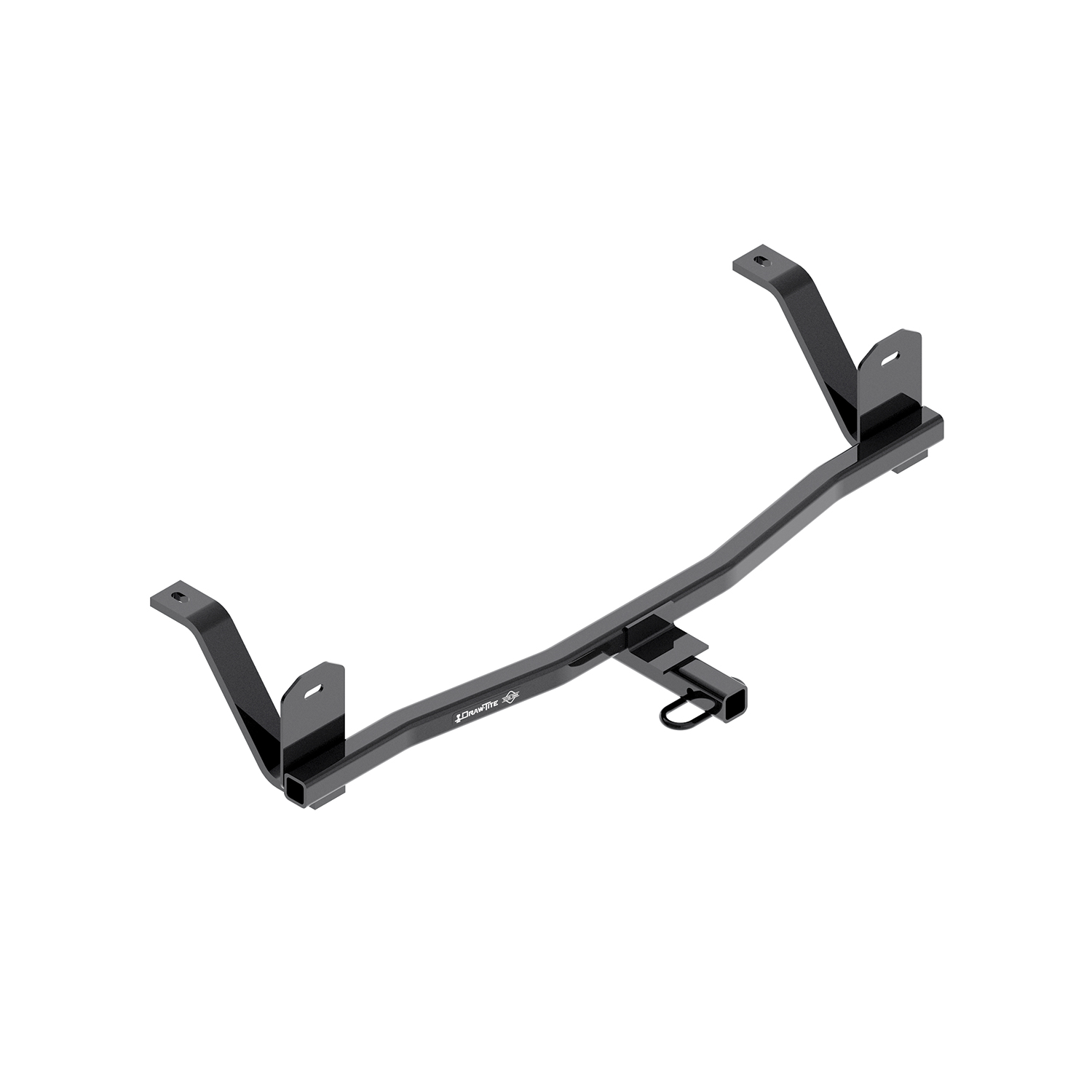

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24956 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24.75 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
How to Install a Receiver (Trailer) Hitch - Draw•Tite®
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2021 | Chevrolet Bolt EV | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 24956 (Part #DT24956) is designed to fit the 2017-2021 Chevrolet Bolt EV.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 24956 (Part #DT24956) fits the following vehicles: 2017-2021 Chevrolet Bolt EV. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 24956 (Part #DT24956) fits 2017-2021 Chevrolet Bolt EV models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 24956 (Part #DT24956) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 24956, 77956, and CQT24956 are designed for 2017-current Chevrolet Bolt models. Visit the Cequent website for the most up-to-date information regarding application years and trim levels.
The hitch is rated for a maximum gross trailer weight of 2000 lb (907 kg) and a maximum tongue weight of 200 lb (91 kg) in weight-carrying mode. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No. The 24956 is a weight-carrying hitch only. Weight-distributing mode is listed as N/A.
Yes, part numbers 24956, 77956, and CQT24956 fit 2017-current Chevrolet Bolt models. Check the Cequent website for the most current trim-level compatibility.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (91 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Required tools are: ratchet, torque wrench, 15 mm socket, 11/16 socket, safety glasses, utility knife, marker, and tape measure. A flat-head screwdriver is also needed to remove plastic push pin fasteners.
You will need a ratchet, torque wrench, 15 mm and 11/16 sockets, safety glasses, utility knife, marker, tape measure, and flat-head screwdriver.
The average installation time for professional installers is 20 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
Yes. You must trim the fascia in the center at the bottom edge, measuring 3.25 inches wide and 5 inches tall. You must obtain the vehicle owner's permission before trimming the fascia.
Yes. You must trim the fascia 3.25 inches wide by 5 inches tall at the center bottom edge. Obtain owner permission before trimming.
Measure and trim the fascia 3.25 inches wide and 5 inches tall in the center at the bottom edge. Obtain the vehicle owner's permission before trimming.
The fish wire method is a reverse installation technique shown in Figure 1, steps a, b, and c. It involves inserting the carriage bolt and block into the 1-inch frame hole, aligning the block on the access hole, and pulling the bolt through the block. This allows fasteners to be installed through the frame without direct access.
The hitch includes: (2) carriage bolts 7/16"-14 × 1.75" Gr5, (2) blocks 1/4" × 7/8" × 3", (2) nuts 7/16"-14 Gr2, (2) conical tooth washers 7/16", and (2) fish wires 7/16". Additional fasteners are available in kit 24956F.
All 7/16"-14 GR5 fasteners must be tightened to 50 lb-ft (68 N·m) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Tighten all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m) and 10 mm nut assemblies to 38 lb-ft (52 N·m) using a torque wrench.
The 10 mm nut assemblies must be tightened to 38 lb-ft (52 N·m) using a torque wrench.
The conical tooth washer must be installed with the teeth side against the hitch. This ensures proper fastening and load distribution.
Follow these steps in order: (1) Remove plastic push pin fasteners from the fascia bottom. (2) Remove the 10 mm nut assemblies from the lower bumper studs using a 15 mm socket. (3) Use the fish wire method to install the carriage bolts and blocks into the 1-inch frame hole. (4) Trim the fascia 3.25" wide × 5" tall at the center bottom edge. (5) Pull the fascia gently, raise the hitch into position, reinstall the 10 mm nuts, and feed the fish wire through the hitch attachment hole, then install the nuts and washers. (6) Torque all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m) and 10 mm nut assemblies to 38 lb-ft (52 N·m). (7) Reinstall the plastic push pin fasteners.
Using a flat-head screwdriver, remove the center of each plastic push pin fastener (2 total) on the bottom of the fascia. Then remove the remainder of each push pin fastener.
A 15 mm socket is required to remove the bottom 10 mm nut assembly from each lower bumper stud (one on each side).
The frame hole is 1 inch in diameter. The carriage bolts and blocks are installed into this hole using the fish wire method.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to the vehicle. Recheck fasteners periodically during use.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted to the vehicle periodically.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not cut, weld, or modify the receiver.
Always wear safety glasses when installing the hitch. Wear eye protection when working beneath the vehicle.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately.
Load the trailer heavier in front. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating (2000 lb GVWR, 200 lb tongue weight). Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.

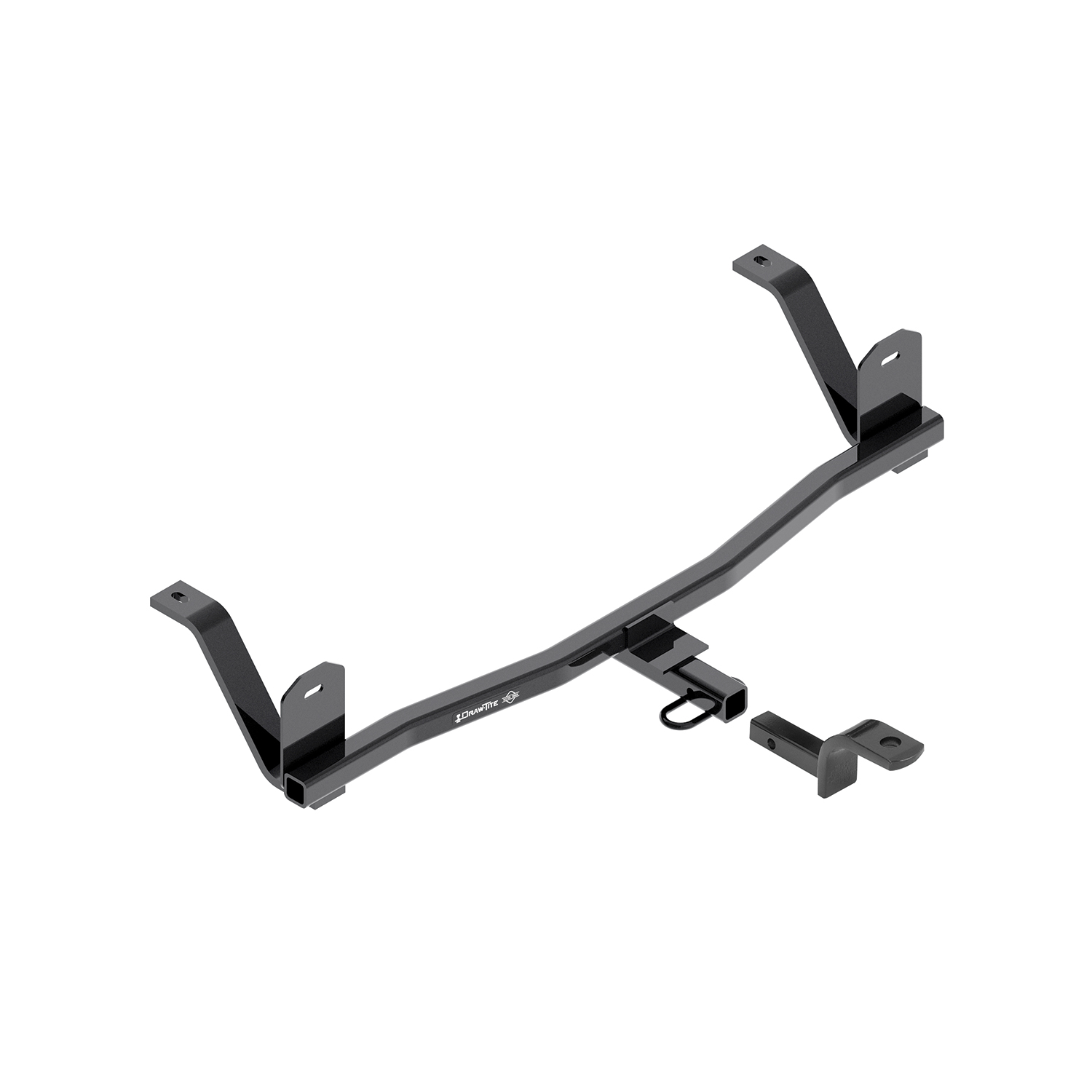

The authorized drawbar kit is part number 3593, sold separately. The drawbar must be used in the RISE position only.
No. The authorized drawbar kit (part number 3593) is sold separately. The drawbar must be used in the RISE position only.
The 24956 hitch is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers the original consumer purchaser only and warrants that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are returned for inspection and testing, the inspection discloses that any nonconformance is material and has not been caused by misuse, neglect, wear and tear, improper installation, unsuitable storage, improper repair, alteration, or accident, and the products were installed, maintained, and used in accordance with the instructions. Product replacement is the sole and exclusive remedy. For warranty claims, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290.
Contact Cequent Performance Products, Inc. at 800-632-3290 or TechnicalSupport@horizonglobal.com. For warranty claims, contact the company at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
The installation can be completed in approximately 20 minutes by professional installers. If you do not feel comfortable performing the installation yourself or are in need of assistance, please contact a professional installer.
The manual does not specify whether the battery must be disconnected for installation of the 24956 hitch.
The blocks (1/4" × 7/8" × 3") are used with the carriage bolts in the fish wire installation method. They are inserted into the 1-inch frame hole and aligned on the access hole to allow the bolt to be pulled through, enabling fastening without direct frame access.
