Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

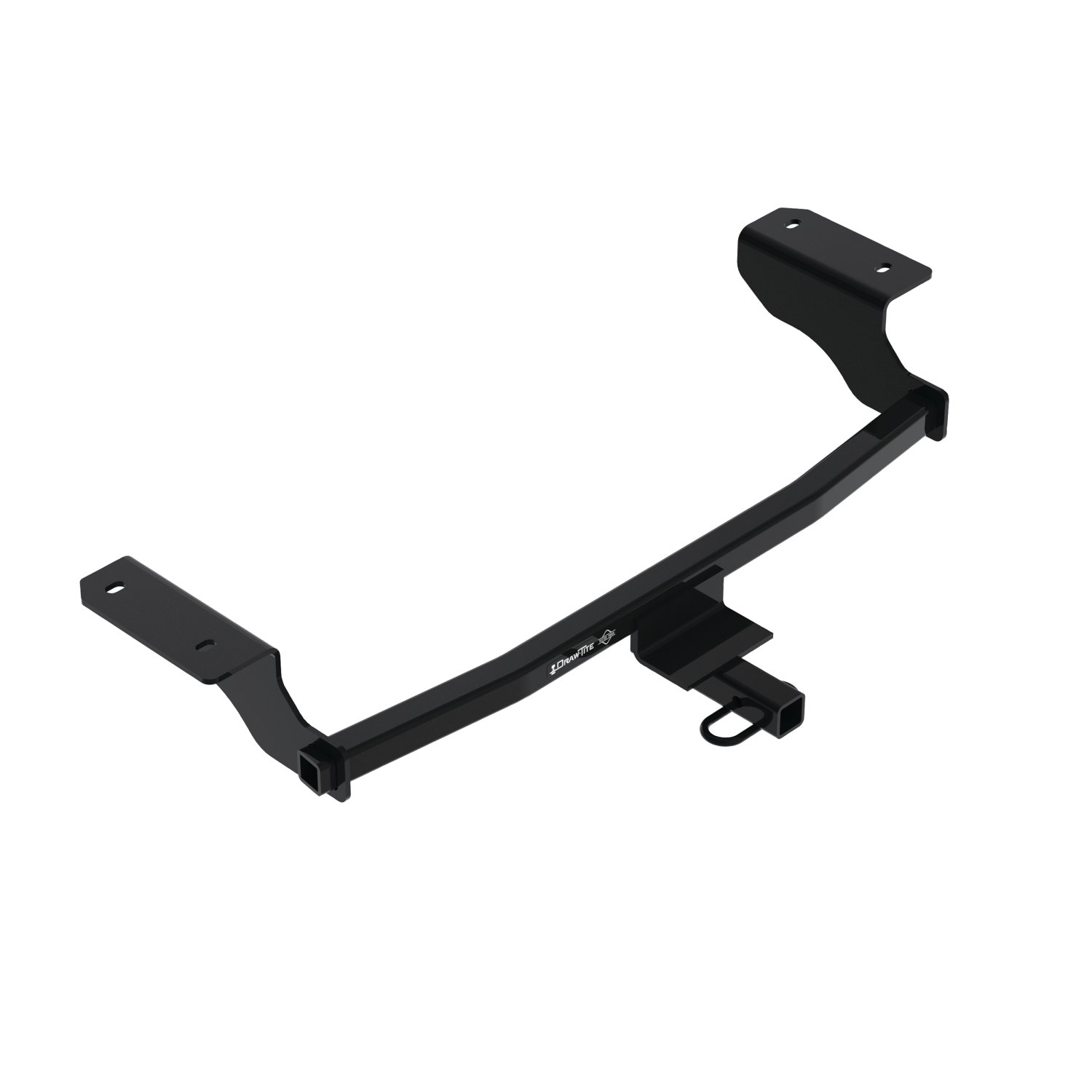

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 25002 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 25 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chevrolet Bolt EV | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 25002 (Part #DT25002) fits the following vehicles: 2022-2023 Chevrolet Bolt EV. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 25002 (Part #DT25002) is designed to fit the 2022-2023 Chevrolet Bolt EV.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 25002 (Part #DT25002) fits 2022-2023 Chevrolet Bolt EV models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chevrolet Bolt EV 25002 (Part #DT25002) Drilling is required for installation. Basic hand tools are typically all you need.
Yes. The 25002 is designed for 2022-current Chevrolet Bolt EV. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and model years.
Maximum gross trailer weight is 2000 lb (907 kg) and maximum tongue weight is 200 lb (90.7 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, 11/16" socket, 6" socket extension, torque wrench, T15 Torx bit, flat head screwdriver, hand drill, 1/2" drill bit, marker, and safety glasses.
Yes. You must drill one new 1/2" hole on the driver side rear attachment and enlarge the passenger side rear attachment hole to 1/2" using a hand drill.
All 7/16"-14x1.50 Gr5 fasteners must be tightened to 50 ft.lb. (68 N·m) using a torque wrench.
Professional installation is recommended if you are not comfortable performing the installation yourself or need assistance. Average installation time for professional installers is 45 minutes.
Never exceed any posted speed limit. Always slow down when towing.
Check all fasteners frequently to ensure they are tight and the hitch is securely mounted to your vehicle. Proper torque is needed to keep the hitch secure when towing.
Fastener kit 25002F includes: (4) carriage bolts 7/16"-14x1.50", (4) spacers 1/4 x 7/8 x 3, (4) conical washers 7/16", (4) hex nuts 7/16"-14, and (4) wire pulls 7/16"-14.
The manual lists weight distributing as N/A for this hitch model, indicating it is not compatible with weight distributing systems. This is a weight carrying hitch only.
The wire pulls (qty. 4) are used to feed the carriage bolts and spacers through the access holes to the attachment holes. They remain attached during initial positioning and are removed after the hitch is raised into final position and the bolts are fed through the bracket holes.
The conical washers must be installed with the teeth side against the hitch. Install them loosely with the hex nuts before final torquing.
You must remove the bottom panel door (2 screws with T15 Torx bit), 2 rivets from the bottom center fascia, and 1 screw from each side of the fascia using a flat head screwdriver and T15 Torx bit. Keep all removed rivets and screws for reinstallation.
No. During step 3, install the conical washers and hex nuts loosely. Only in step 4 should all 7/16"-14x1.50 Gr5 fasteners be tightened to 50 ft.lb. (68 N·m) using a torque wrench.
Raise the hitch into position and align it with the forward attachment holes. Use a marker to mark the drill point at the center of the driver side rearward hole of the hitch bracket. Make sure the hitch sits straight with the location marked before lowering and drilling.
Drill one new 1/2" hole for the driver side rear attachment hole. Enlarge the existing passenger side rear attachment hole to 1/2". Use a hand drill for both operations.
Remove the bottom panel door and return it along with the 2 screws to the vehicle owner. Keep the 2 rivets and 1 screw from each side of the fascia for reinstallation after the hitch is mounted.
Reinstall the rivets and screws removed in step 1 after all fasteners have been tightened to the proper torque specification in step 4.
Load the trailer heavier in front. This helps with stability and proper weight distribution.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
No. The 25002 is a weight carrying hitch only. Weight distributing is listed as N/A for this model.
The spacers (1/4 x 7/8 x 3, qty. 4) are used with the carriage bolts during installation. They are fed through the access holes along with the bolts using the wire pulls to properly position the fasteners before final assembly.
Kink the wire pull to keep the spacer independent of the bolt. This ensures proper spacing and alignment during installation. Remove the wire pulls after the hitch is raised into position and the bolts are fed through the bracket holes.
The authorized drawbar kit is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
Horizon Global provides a Limited Lifetime Warranty to the original consumer purchaser. The product is warranted to be free from material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used in accordance with the instructions. Product replacement is the sole and exclusive remedy. Contact Horizon Global at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170 to make a warranty claim.
The manual does not specify whether battery disconnection is required. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for clarification on this step.
Verify that all 7/16"-14x1.50 Gr5 fasteners have been tightened to exactly 50 ft.lb. (68 N·m) using a torque wrench. Use the torque wrench to recheck each fastener. Loose fasteners are the most common cause of hitch movement. Check fasteners frequently during the first uses and periodically thereafter.
The manual does not provide guidance for broken wire pulls. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com for assistance. You may need replacement wire pulls (part of fastener kit 25002F) to complete the installation.
Lower the hitch and reposition it to align with the forward attachment holes. Use a marker to mark the drill point at the center of the driver side rearward hole of the hitch bracket. Make sure the hitch sits straight with the location marked before drilling. If alignment is difficult, contact a professional installer or Horizon Global technical support at 800-632-3290.
| Part # | Capacity | Gear Ratio | Hub Diameter | Drum Width | Handle Length | Strap Included | Bow Loop Included |
|---|---|---|---|---|---|---|---|
| 25002 | 900 lbs. | 3.25:1 | 3/4" | 2" | 8" | Yes, 20' | Yes |
| 29423 | 900 lbs. | 3.25:1 | 3/4" | 2" | 6-1/2" | No | No |
| 29433 | 900 lbs. | 3.25:1 | 3/4" | 2" | 6-1/2" | Yes, 15' (29450) | No |
| 29424 | 1,200 lbs. | 4.2:1 | 3/4" | 2" | 7-1/2" | No | No |
| 29435 | 1,400 lbs. | 4.2:1 | 3/4" | 2" | 7-1/2" | Yes, 20' (29451) | No |
| 29427 | 1,700 lbs. | 5.1:1 | 1" | 2" | 8" | No | No |
