Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CLEAR ZINC
Installation Time Exact (Minutes): 0

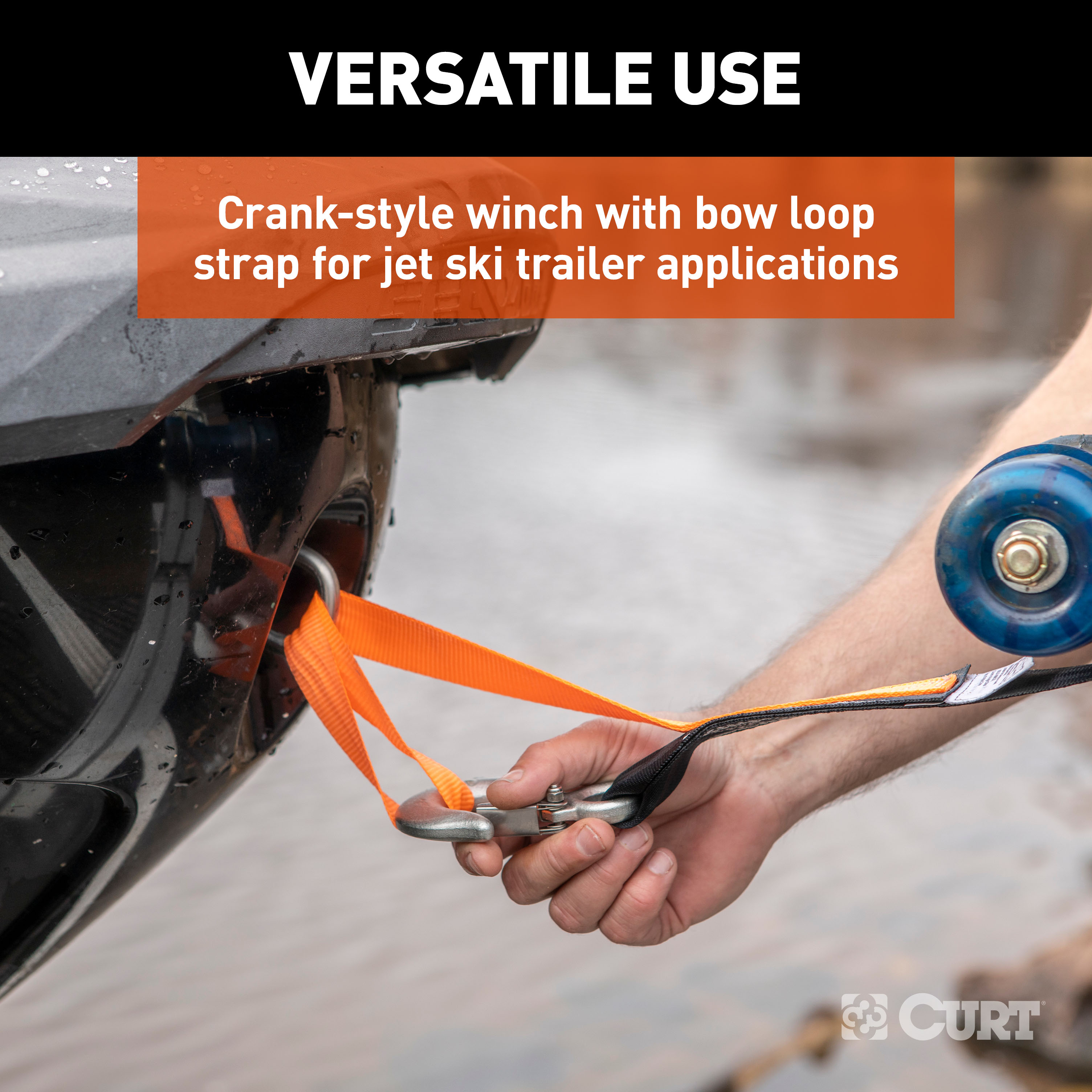

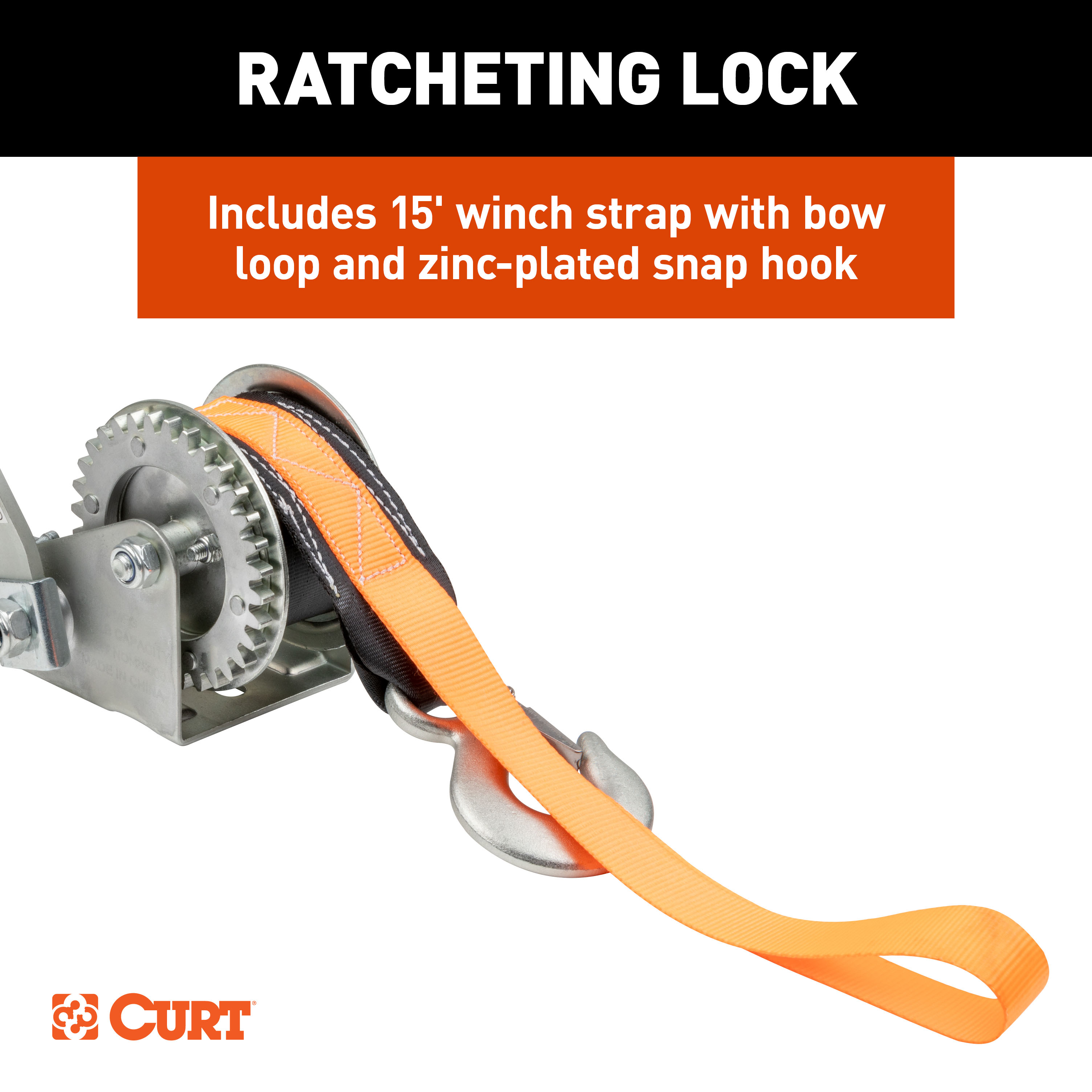

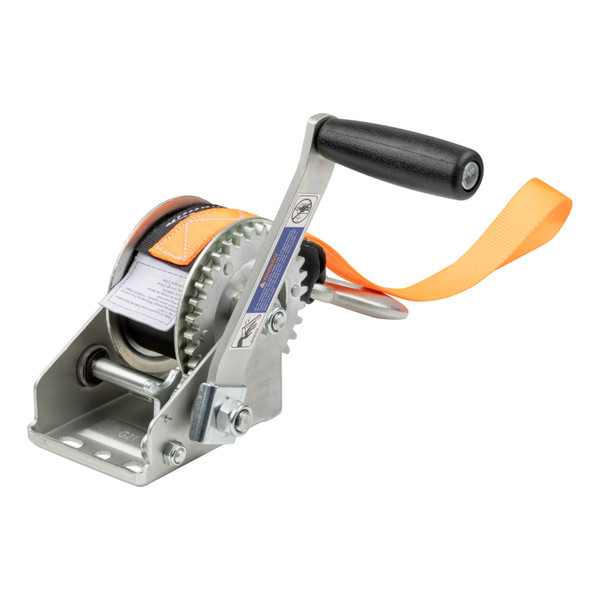

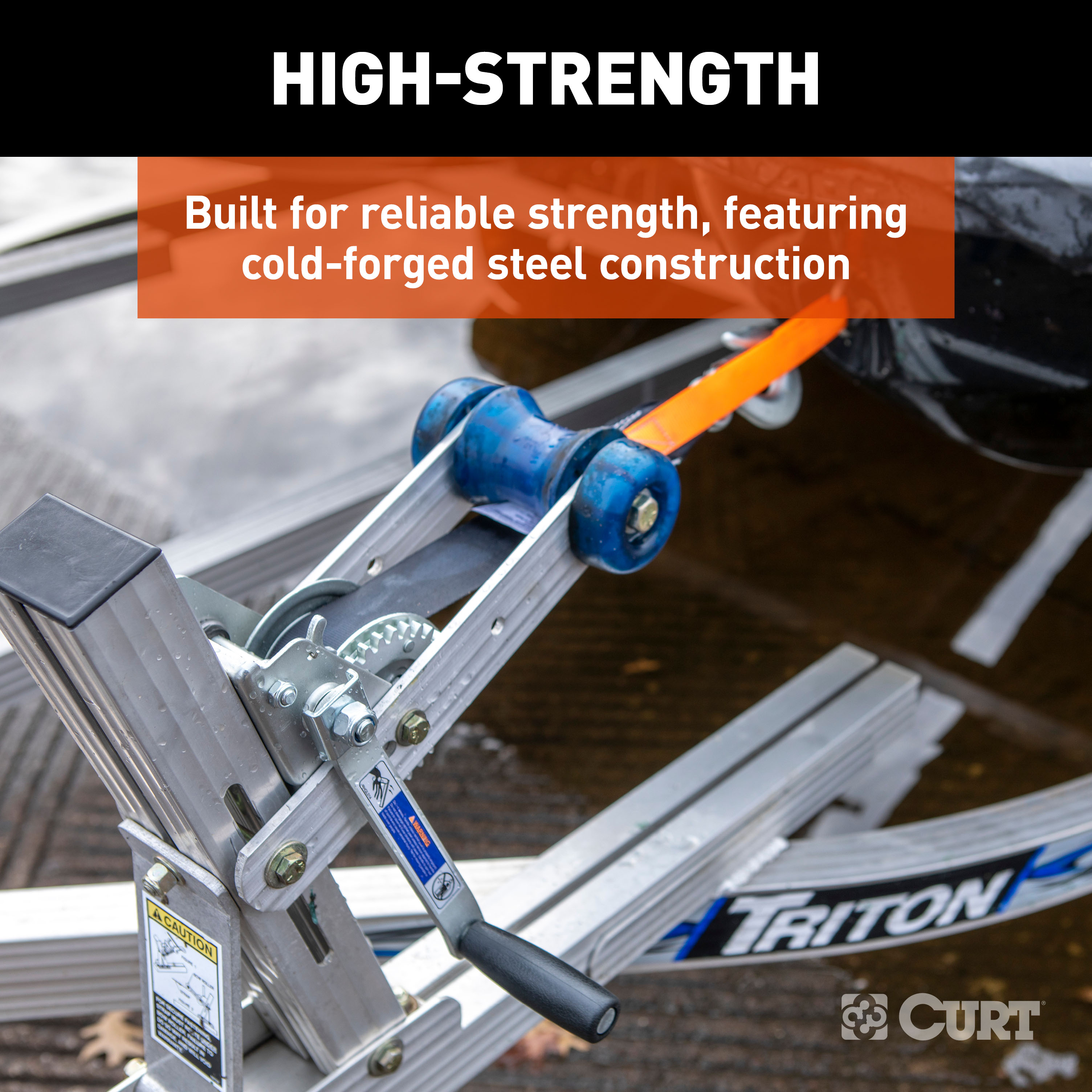

After a full day on the water, you and your crew are tired. It doesn't matter if you were swimming off the back of the pontoon boat, racing around the lake in your speed boat or just casting a line off the side of your fishing boat -- when you get to shore, the last thing you want to deal with is a faulty hand crank on your boat trailer. You want a winch that makes your job easy and that lets you get out of the marina and back home sooner. CURT hand winches are constructed from cold-forged steel to provide structurally superior pinions and eliminate gear-to-shaft bonding failures. They are designed to be mounted on a variety of trailers and are especially useful for boat trailers. CURT boat winches can also serve a number other winch applications, though they are not designed for vehicle towing. This CURT hand winch comes with a 15' winch strap with an integrated bow loop and zinc-plated snap hook. The bow loop makes this an ideal jet ski trailer winch, providing a versatile attachment point to lash onto your PWC. The winch features a capacity of 900 lbs. with a gear ratio of 3.25:1. It has a hub diameter of 3/4" and a handle length of 6.5".
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 25002 hand winch has a load capacity of 900 lbs (402.8 kg).
No. The manual explicitly states: "Never use a hand winch for lifting equipment or humans." The 25002 is designed only for winching loads such as boats onto trailers.
You will need three grade 5, 3/8" diameter bolts, three lock washers, six flat washers, and three nuts. These are not included with the winch and must be purchased separately. The bolts are placed through the winch mounting holes with washers on both sides of the mounting surface and secured with nuts.
The installed winch strap should be rated at 1.5 times the winch's rated capacity. For the 25002 with a 900 lb capacity, the strap should be rated for at least 1,350 lbs. Additionally, the hook on the strap should be rated at 1.5 times the strap's rated capacity.
Secure the handle to the input shaft with the provided lock nut. This must be done prior to operating the winch.
Place the provided strap bolt through the sewn loop in the winch strap and secure it with the strap bolt nut.

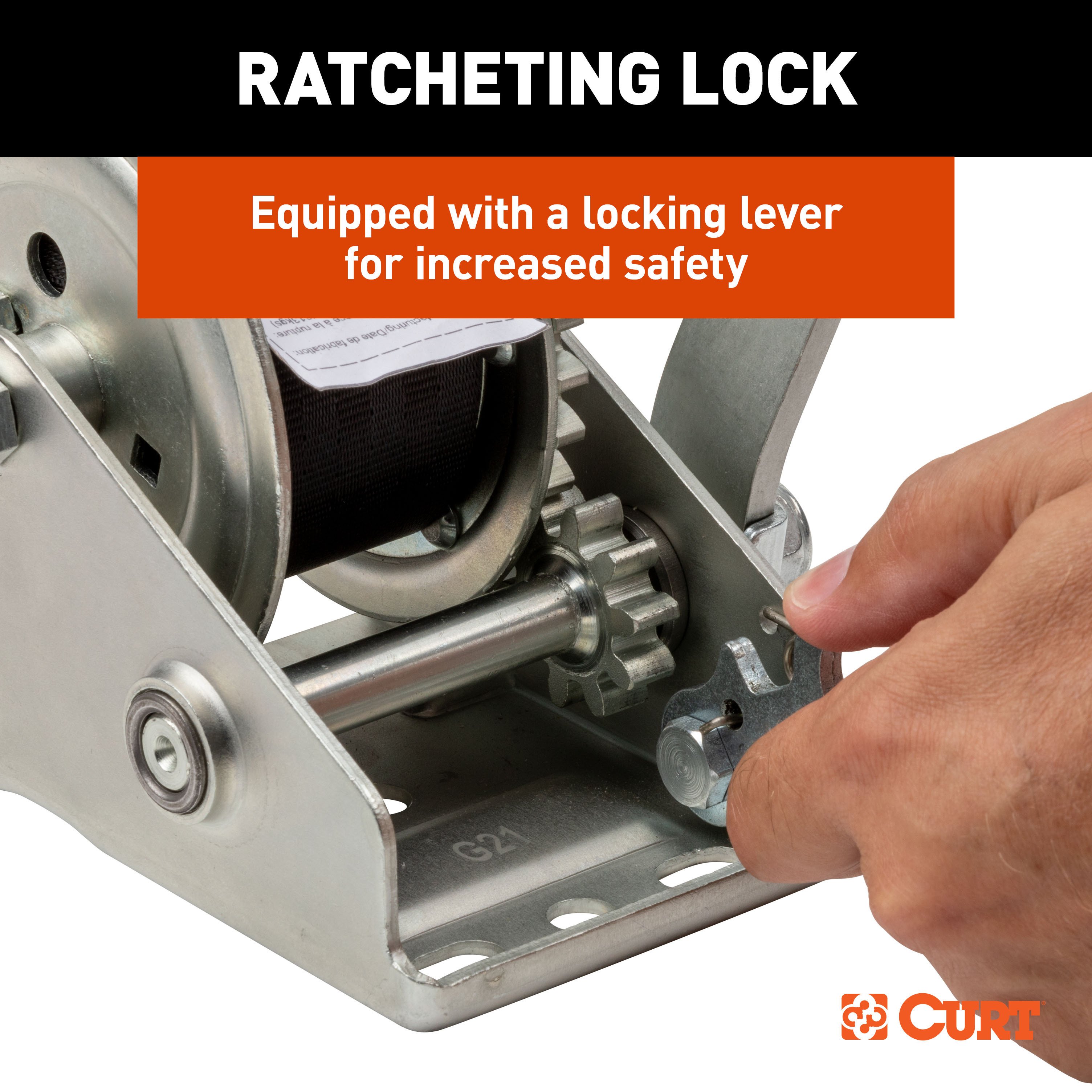

First, verify the winch is properly secured to the winch mount and the handle is properly secured to the input shaft. Engage the ratchet lever in the pinion gear and begin turning the handle. You should hear a loud clicking noise as the line winds onto the drum. If you do not hear this clicking, the ratchet is not securing the load—do not let go of the handle until the load is secured.
Firmly hold the winch handle and release the ratchet lever (you may need to rotate the handle slightly to move the lever). Carefully rotate the handle to let line out. Do not let go of the handle until the ratchet lever has been properly engaged and is supporting the load. Let go of the handle slowly to ensure the ratchet lever is supporting the load. Never let go of the handle before engaging the ratchet lever, as this may cause the handle to spin dangerously.
The strap can be attached to watercraft in two ways: using the hook alone, or by looping the strap through the boweye and hooking onto the strap itself.
Wear impact safety glasses and heavy duty work gloves. Do not wear loose clothing or jewelry that can be caught in moving parts. Wear protective hair covering to prevent long hair from becoming caught. If wearing a long sleeve shirt, roll the sleeves up to the elbows. Do not overreach the winch. Keep proper footing and balance at all times. Stand back and stay out of the direct line the winch strap is pulling—if the strap slips or breaks, it will whip-lash along this line. Keep the work area clean and dry. Keep children away from the work area.
Check the strap before each use for signs of wear. If the strap shows signs of wear, replace it immediately. Also check for damaged parts and any other conditions that may affect operation of the winch. Carefully check that it will operate properly and perform its intended function. Replace or repair damaged or worn parts immediately.
Failure to leave at least five wraps of strap on the drum may break the strap connection to the drum and could result in serious injury. This is a critical safety requirement.
No. The manual explicitly states: "Do not use any attachments to extend the length of the winch strap." Doing so could compromise safety and the integrity of the winch system.
After moving an object with the winch, secure the object. Do not rely on the winch to hold an object for an extended period of time. The winch is designed for the loading operation, not for long-term load holding.
No. Do not apply a load to the winch when the winch strap is fully extended. The strap anchor on the winch is not capable of holding the maximum rated load capacity when the strap is fully extended.
When loading a boat onto a trailer without keel or side hull rollers, make sure the trailer is submerged in the water when the boat is loaded by the winch. Attempting to drag the boat onto the trailer while on land can cause winch failure and possibly personal injury and property damage.
Always maintain a firm grip on the winch handle and do not release the handle until the ratchet pawl is properly engaged. Release the handle slowly to be sure that the ratchet lever is fully supporting the load. Never let go of the handle prior to engaging the ratchet lever, as this may cause the handle to spin dangerously.
Periodic inspection of your product should be performed to ensure all hardware and/or components remain secure. The manual does not specify a particular interval, but inspection should be regular and before each use.
Check for damaged parts and any other conditions that may affect operation of the winch. Carefully check that it will operate properly and perform its intended function. Check the strap before each use for signs of wear. Replace or repair damaged or worn parts immediately.
Three grade 5, 3/8" diameter bolts, three lock washers, six flat washers, and three nuts (not included). The winch strap should be rated at 1.5 times the winch's 900 lb capacity.
Yes. Secure the handle to the input shaft with the provided lock nut prior to operating the winch.
Wear impact safety glasses and heavy duty work gloves. Do not wear loose clothing, jewelry, or long sleeves that could be caught in moving parts. Wear protective hair covering.
Always leave at least five wraps of strap on the drum. Failure to do so may break the strap connection to the drum and could result in serious injury.
You should hear a loud clicking noise when the line is being wound on the drum. If you do not hear this clicking, the ratchet is not securing the load—do not let go of the handle.
No. After moving an object with the winch, secure the object. Do not rely on the winch to hold an object for an extended period of time.
| Part # | Capacity | Gear Ratio | Hub Diameter | Drum Width | Handle Length | Strap Included | Bow Loop Included |
|---|---|---|---|---|---|---|---|
| 25002 | 900 lbs. | 3.25:1 | 3/4" | 2" | 8" | Yes, 20' | Yes |
| 29423 | 900 lbs. | 3.25:1 | 3/4" | 2" | 6-1/2" | No | No |
| 29433 | 900 lbs. | 3.25:1 | 3/4" | 2" | 6-1/2" | Yes, 15' (29450) | No |
| 29424 | 1,200 lbs. | 4.2:1 | 3/4" | 2" | 7-1/2" | No | No |
| 29435 | 1,400 lbs. | 4.2:1 | 3/4" | 2" | 7-1/2" | Yes, 20' (29451) | No |
| 29427 | 1,700 lbs. | 5.1:1 | 1" | 2" | 8" | No | No |
