These dependable custom hitches are manufactured for 1997-2001 Honda CR-V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2006 | Honda CR-V | — |
The 1997-2001 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24790-118336) fits the following vehicles: 1998-2006 Honda CR-V. Always verify your specific year, make, and model before ordering.
The 1997-2001 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24790-118336) fits 1998-2006 Honda CR-V models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1997-2001 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24790-118336) is designed to fit the 1998-2006 Honda CR-V.
The 1997-2001 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24790-118336) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 24790 is designed for Honda CR-V models. The manual copyright indicates compatibility with 2006–2015 model years, but the exact range is not explicitly stated in the instructions. Contact the manufacturer or your retailer to confirm your specific model year is supported.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of these ratings or your vehicle manufacturer's towing capacity rating.
You will need a 3/4" wrench and a torque wrench. No drill bits are required. If the access hole in the frame is too small to fit the reinforcement plate and bolt head, you may also need a file or a pry tool (such as a wrench) to enlarge the hole slightly.
No drilling is required. The hitch uses existing frame attachment holes and tie-down hook holes on the vehicle. However, you may need to file or enlarge the frame access hole slightly to allow the reinforcement plate and bolt head to pass through.
The kit includes: 2× carriage bolts 1/2"-13 × 1 3/4" (Grade 5), 2× reinforcement plates 1" × 3" × 1/4", 2× bolt leaders, 3× conical toothed washers, 3× 1/2"-13 nuts, 1× carriage bolt 1/2"-13 × 2" (Grade 5), 1× square hole spacer 1" × 2" × 1/4", and 1× round hole spacer 1" × 2" × 1/4". The drawbar kit (part 3591) and fastener kit (part 24790F) are sold separately.
For the two frame attachment bolts: thread the bolt leader onto the 1 3/4" carriage bolt, insert through the reinforcement plate hole, then through the frame access and attachment holes. Pull into position, remove the bolt leader, then install the conical washer and nut. For the tie-down hook bolt: insert the 2" carriage bolt through the vehicle's tie-down hook and hitch mounting tab in this order: square hole spacer, round hole spacer, conical washer, and nut.
All 1/2" fasteners must be tightened to 75 lb.-ft. (102 N·m) using a torque wrench.
The CR-V has an enclosed frame with an access hole. Check whether the reinforcement plate and bolt head will fit through the access hole. If not, enlarge the hole slightly using a file or by inserting a wrench and prying, as shown in the manual illustration. Enlarge only enough to allow the hardware to pass through. Do not use a torch to cut the hole.
The bolt leader is a threaded rod that screws onto the carriage bolt. It allows you to fish the bolt and reinforcement plate through the frame's access hole and attachment hole without the bolt head becoming stuck. Once the hardware is in position, you remove the bolt leader and install the conical washer and nut.
No. The manual notes that it is much easier if the bolt and reinforcement plate are not engaged (not screwed together) while inserting them into the frame. Keep them separate during insertion, then pull them into position.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. After installation, check the hitch frequently to ensure all fasteners and the ball are properly tightened.
Check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently during use to ensure fasteners remain tight.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged component.
The drawbar must be used in the RISE position only.
The 24790 is designed for Honda CR-V models (2006–2015 based on manual copyright). Confirm your exact model year with the manufacturer or retailer.
You need a 3/4" wrench, a torque wrench, and possibly a file or pry tool if the frame access hole needs enlargement. No drilling is required.
Tighten all 1/2" fasteners to 75 lb.-ft. (102 N·m) using a torque wrench.
Maximum gross trailer weight is 2000 lb (908 kg); maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of these or your vehicle manufacturer's rating.
No drilling is required. The hitch uses existing frame and tie-down hook holes. You may need to file or enlarge the frame access hole slightly.
Wear eye protection and observe safety precautions when working beneath the vehicle. Do not use a torch to cut holes. Check all fasteners frequently after installation.
Yes, part number 18336-037 is compatible with 1999-Current Honda Odyssey models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the driver's side cargo bracket screw, and carefully pull back the trim panel to access the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2002-Current Honda CR-V models. Installation requires a Wrench, Trim Panel Tool, and Phillips Screwdriver. The installation process involves removing the cargo door, storage container, rear threshold, and cargo bracket before accessing the wiring harness.
Yes, part number 18336-037 is compatible with 1997-2001 Honda CR-V models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to remove the rear driver's side speaker and cover, which are held in place with three screws. The vehicle connector will be secured to the speaker wires.
Yes, part number 18336-037 is compatible with 2003-Current Honda Element models. Installation requires a Trim Panel Tool and Phillips Screwdriver. You will need to open the rear tailgate, remove the cargo door, hinge cover, three plastic clips, five screws, and the cargo net bracket before pulling back the passenger side trim panel.
Yes, part number 18336-037 is compatible with 2001-Current Acura MDX models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate, remove the cargo door, locate and remove two clips inside the storage area on the threshold, and carefully pry the threshold to remove it. The connector is located inside the cargo area on the driver's side, attached to the threshold plate.
Yes, part number 18336-037 is compatible with 1994-2002 Honda Accord models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 1996-2001 Acura RL models. Installation requires a Trim Panel Tool. You will need to unscrew the knob securing the access panel on the driver's side of the vehicle's trunk and remove the access panel to expose the vehicle's wiring harness and connector.
Yes, part number 18336-037 is compatible with 2003-Current Honda Pilot models. Installation requires only a Trim Panel Tool. You will need to open the rear tailgate and carefully pry the threshold to remove it. The connector will be located on the driver's side under the threshold plate.
Yes, part number 18336-037 is compatible with 1995-98 Honda Odyssey models. Installation requires a Trim Panel Tool. You will need to remove the rear access panel located inside the van directly behind the driver's side taillight to expose the vehicle's wiring harness and connector.
For a 1997-2001 Honda CR-V, you will need a Trim Panel Tool and a Phillips Screwdriver. These tools are required to remove the rear driver's side speaker and cover, which are held in place with three screws.
For a 2002-Current Honda CR-V, you will need a Wrench, Trim Panel Tool, and Phillips Screwdriver. The wrench is needed to unscrew the bolt on the vehicle floor that secures the cargo bracket.

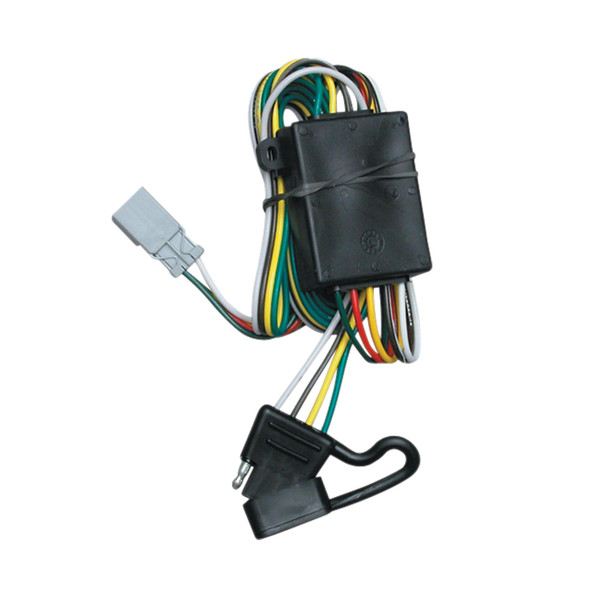

Part number 18336-037 includes a T-Connector adapter, a black box, a screw or cable tie for securing the black box, and a 4-Flat connector for routing (used on Honda CR-V models). The manual does not specify additional hardware or components included in the package.
The manual does not specify whether the battery must be disconnected before installation. Contact the manufacturer or a qualified installer for guidance on this safety requirement.
Remove the tape securing the wiring harness connector from the wiring loom. Attach the T-Connector adapter to the vehicle's wiring connector. Be sure that the T-Connector adapter is fully inserted with locking tabs in place. This step applies to all vehicles.
Secure the black box with either a screw or cable tie, both of which are provided with the product. Tuck any excess wiring behind the access panel before securing the black box into place.
On Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting. This routing prevents the connector from being pinched or damaged when the trim panel is reinstalled.
After securing the black box and routing the wiring, reinstall any plastic trim panels, screws, or brackets that were removed for installation. Then test the installation with a test light or trailer to verify proper operation.
Part number 18336-037 is rated for 4 amps per circuit. Do not exceed this rating when connecting electrical loads.
Test the installation with a test light or trailer. This verifies that the T-Connector adapter is properly connected and that the electrical circuit is functioning correctly.
When removing trim panels, be careful not to break any tabs or clips. This is especially important for the 2003-Current Honda Element, where you must carefully remove three plastic clips and five screws holding the passenger side trim panel, and for the 2002-Current Honda CR-V, where you must carefully pry the trim panel away from the vehicle body.
Part number 18336-037 fits 1997-Current Acura CL, 1996-2001 Acura RL, 1996-Current Acura TL, 1994-2001 Acura Integra, 1994-2002 Honda Accord, 2001-2002 Honda Prelude, 1996-99 Isuzu Oasis, 1995-98 Honda Odyssey, 1999-Current Honda Odyssey, 1997-2001 Honda CR-V, 2002-Current Honda CR-V, 2001-Current Acura MDX, 2003-Current Honda Pilot, and 2003-Current Honda Element.
All vehicles require a Trim Panel Tool. Some vehicles also require a Phillips Screwdriver (Odyssey 1999+, CR-V 1997-2001, CR-V 2002+, Element 2003+) and a Wrench (CR-V 2002+ only).
Remove the tape from the wiring harness connector, then attach the T-Connector adapter to the vehicle's wiring connector, ensuring it is fully inserted with locking tabs in place. Secure the black box with the provided screw or cable tie, tuck excess wiring behind the access panel, and test with a test light or trailer.
Part number 18336-037 is rated for 4 amps per circuit.
Yes, on Honda CR-V models only, route the adapter's 4-Flat connector under the trim panel along the carpeting.
