Draw-tite
On Sale Today
Original price was $250.00. Current price is $210.25.You save $39.75 (16%)
Free Shipping
Ships free on all orders
Authorized Dealer2004 - 2007 Honda CR-V
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Aug 12 - Sat, Aug 15
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 4 items:
$148.57

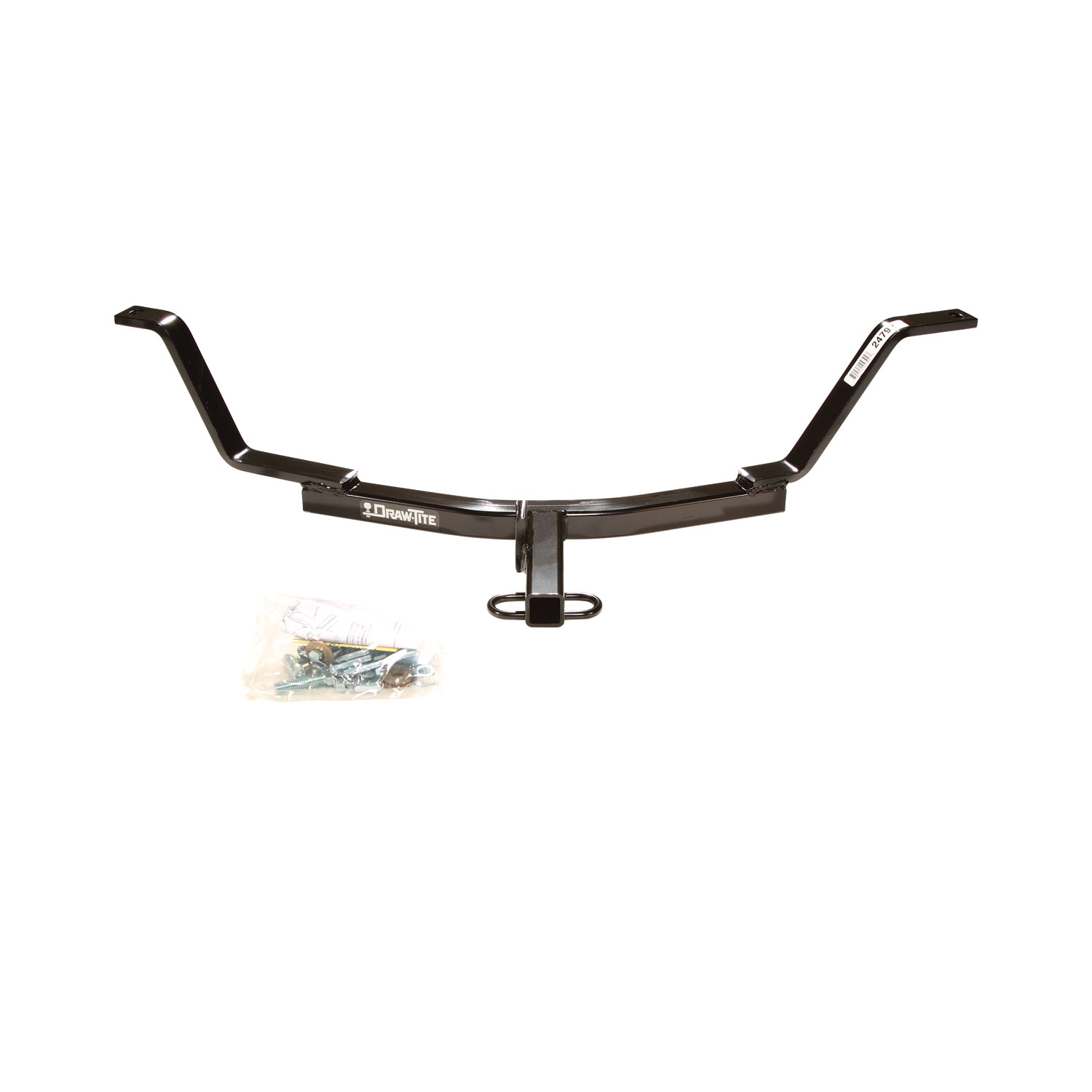

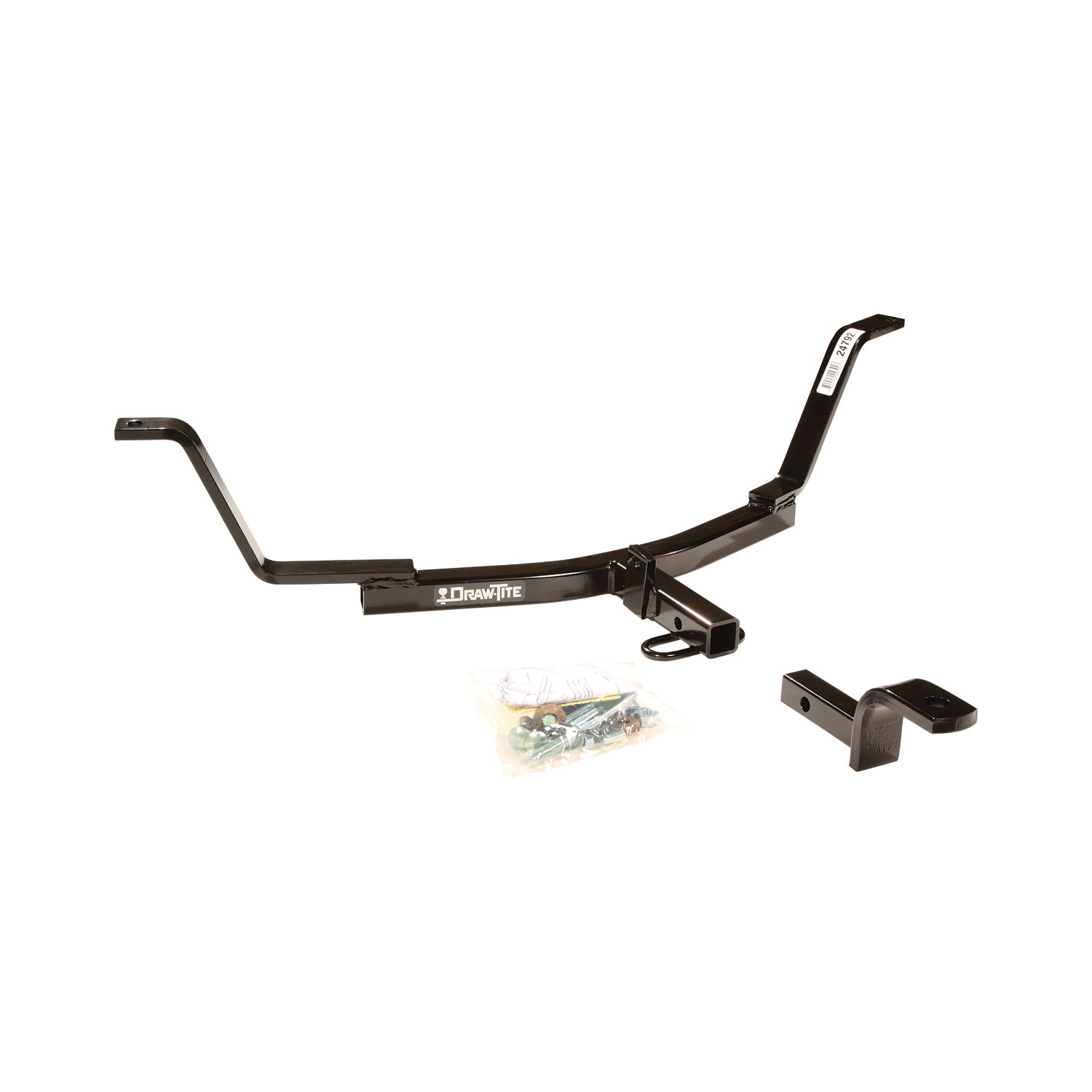

These dependable custom hitches are manufactured for 2007-2011 Honda CR-V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

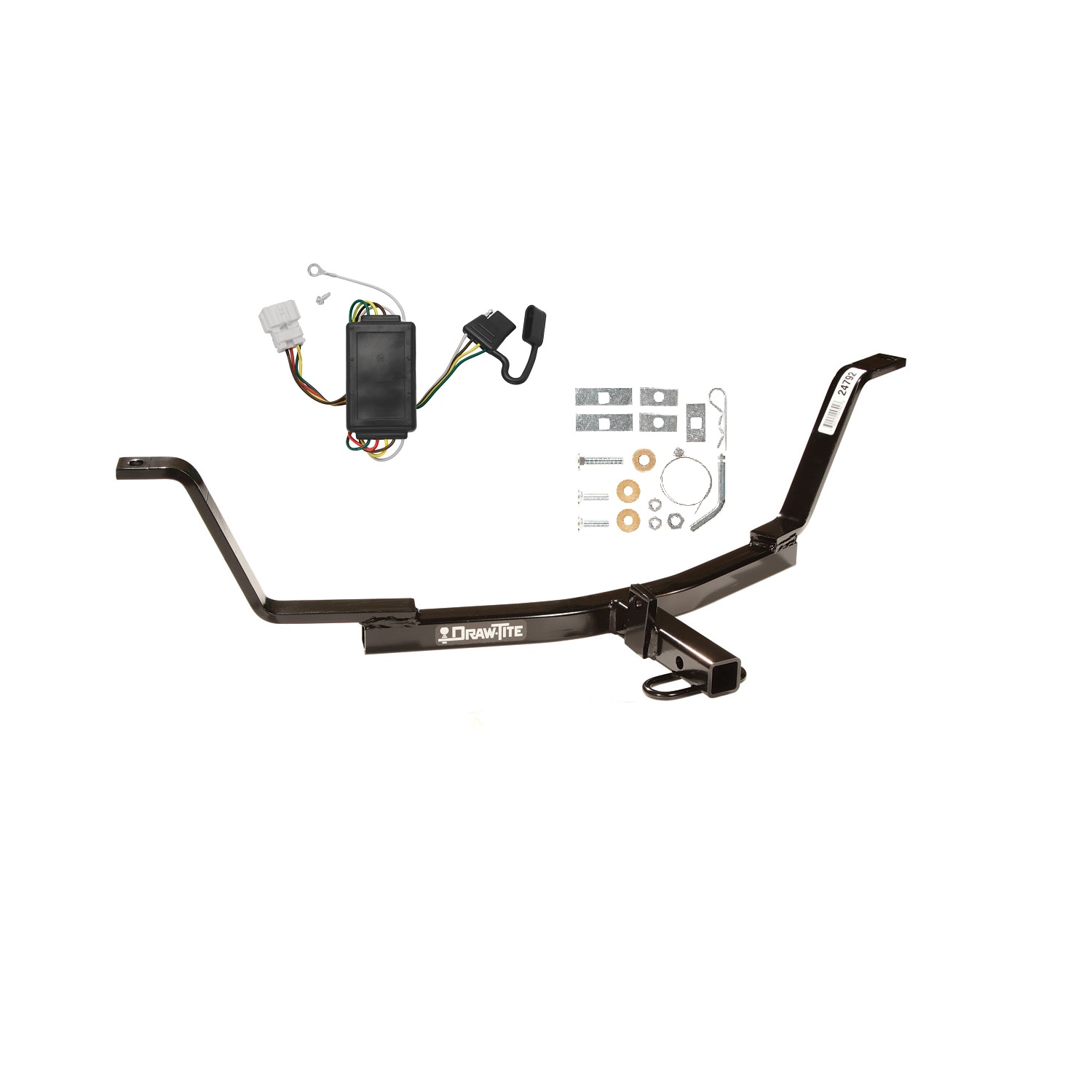

Call 888-634-9494The 2007-2011 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24792-118427) fits 2004-2007 Honda CR-V models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2007-2011 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24792-118427) is designed to fit the 2004-2007 Honda CR-V.
The 2007-2011 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24792-118427) fits the following vehicles: 2004-2007 Honda CR-V. Always verify your specific year, make, and model before ordering.
The 2007-2011 Honda CR-V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24792-118427) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 24792 is designed for Honda CR-V models from 2006, 2007, 2009, and 2015. If your CR-V is one of these model years, this hitch is compatible. If your vehicle is a different model year, you should verify compatibility with the manufacturer or a fitment specialist before purchasing.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). However, you must not exceed the lower of these ratings or your vehicle manufacturer's towing specification, whichever is less.
You will need two wrenches: one 3/4 inch and one 11/16 inch. A torque wrench is also required to tighten fasteners to the specified torque values (50 Lb.-Ft. for 7/16-14 GR5 fasteners and 75 Lb.-Ft. for 1/2-13 GR5 fasteners). No drill bits are needed.

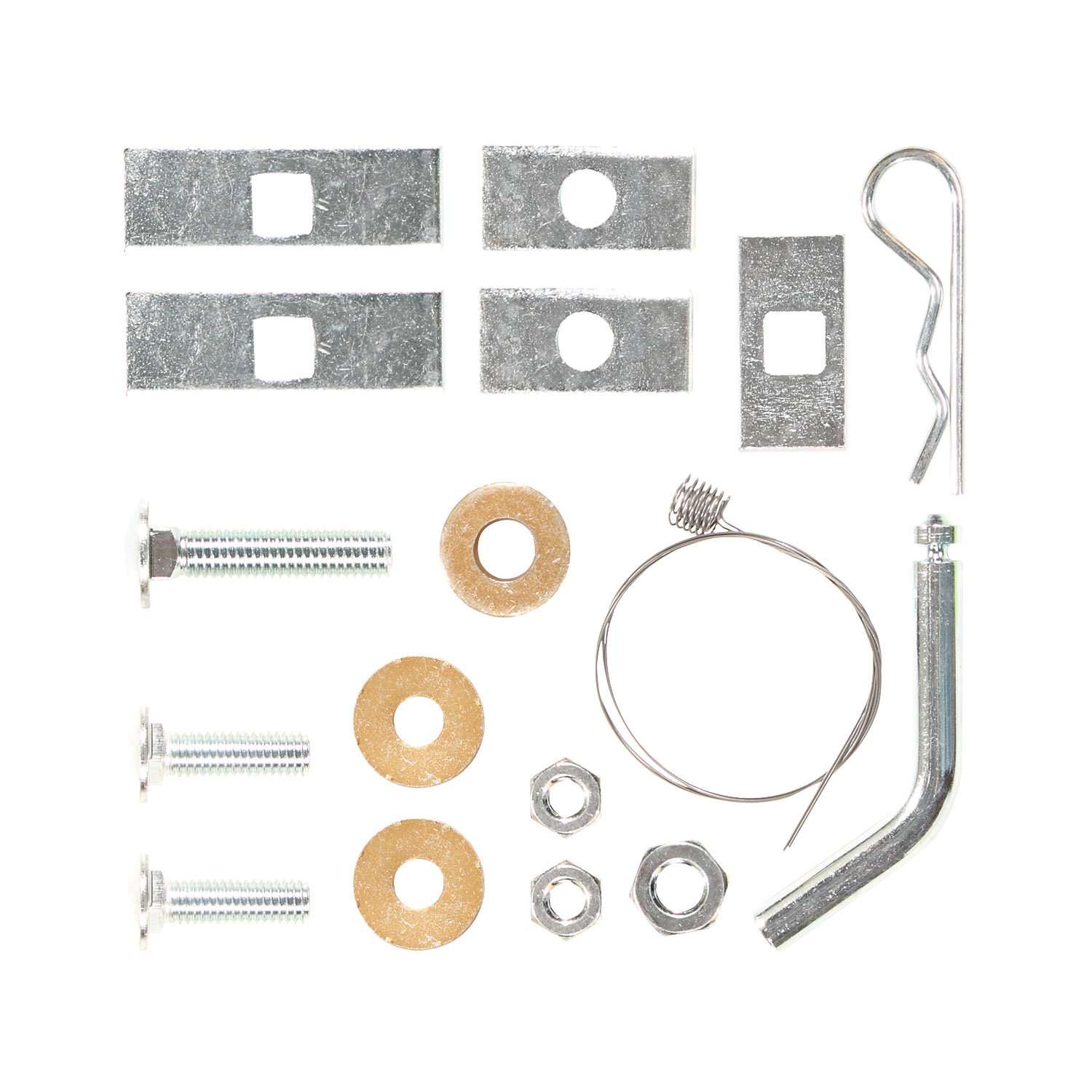

The fastener kit 24792F is included and contains: 2 qty. 7/16-14 X 1.50 carriage bolts GR5, 2 qty. 1/4 X 1.00 X 3.00 spacers, 2 qty. 7/16 conical toothed washers, 2 qty. 7/16 hex nuts, 1 qty. 1/2-13 X 2.50 carriage bolt GR5, 1 qty. 1/4 X 1.00 X 2.00 spacer, 1 qty. 1/2 conical toothed washer, 1 qty. 1/2 hex nut, 2 qty. 1/4 X 1.00 X 2.00 spacers (round hole), and 2 qty. pull wires 7/16 inch.
Yes. The hitch requires a ½ inch pin and clip, which are not included in the fastener kit and must be purchased separately.
No. The drawbar kit 3592 is sold separately and must be purchased if you need a drawbar for your hitch.
You do not need to fully remove the exhaust, but you must lower it. Step 1 requires you to lower the exhaust by removing the rubber isolators from the muffler hangers. After installation is complete, you raise the exhaust back into position and reinstall the rubber isolators in step 7.
No new drilling is required. However, you must enlarge existing holes in both frame rails to allow access for the 1.00 X 3.00 spacers to be inserted. The access hole area must be enlarged by approximately 1 inch as shown in Figure 2. This enlargement is done by expanding the existing hole, not by drilling a new one.
All 7/16-14 GR5 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N*M).
All 1/2-13 GR5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).
Follow these steps in order: (1) Lower the exhaust by removing rubber isolators from muffler hangers. (2) Enlarge existing holes in both frame rails to allow access for 1.00 X 3.00 spacers as shown in Figure 2. (3) Insert carriage bolts and block into frame rails and raise hitch into position. (4) Loosely install conical toothed washers and hex nuts. (5) Position hitch and loosely install tow hook attachment fasteners. (6) Tighten all fasteners to the required torque specification. (7) Raise exhaust back into position and reinstall rubber isolators.
You must install fasteners loosely first. Steps 4 and 5 require you to loosely install the conical toothed washers, hex nuts, and tow hook attachment fasteners. Only after the hitch is positioned correctly should you tighten all fasteners to the required torque specification in step 6.
The drawbar must be used in the raised position only. Do not operate the hitch with the drawbar in any other position.
After installation, check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes that regular inspection is important for safe operation.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair or continue using a damaged hitch or ball.
If the hitch is removed, you must plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut access or attachment holes with a torch. Use other cutting methods such as a drill, hole saw, or grinding tool.
Observe safety precautions when working beneath a vehicle and wear eye protection. The manual emphasizes the importance of safe work practices during installation.
This hitch fits Honda CR-V models from 2006, 2007, 2009, and 2015 only. Verify your model year before purchasing.
You need a 3/4 inch wrench and an 11/16 inch wrench, plus a torque wrench to tighten fasteners to 50 Lb.-Ft. and 75 Lb.-Ft.
Tighten 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M) and 1/2-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M) using a torque wrench.
Yes, the hitch requires a ½ inch pin and clip, which are sold separately and not included.

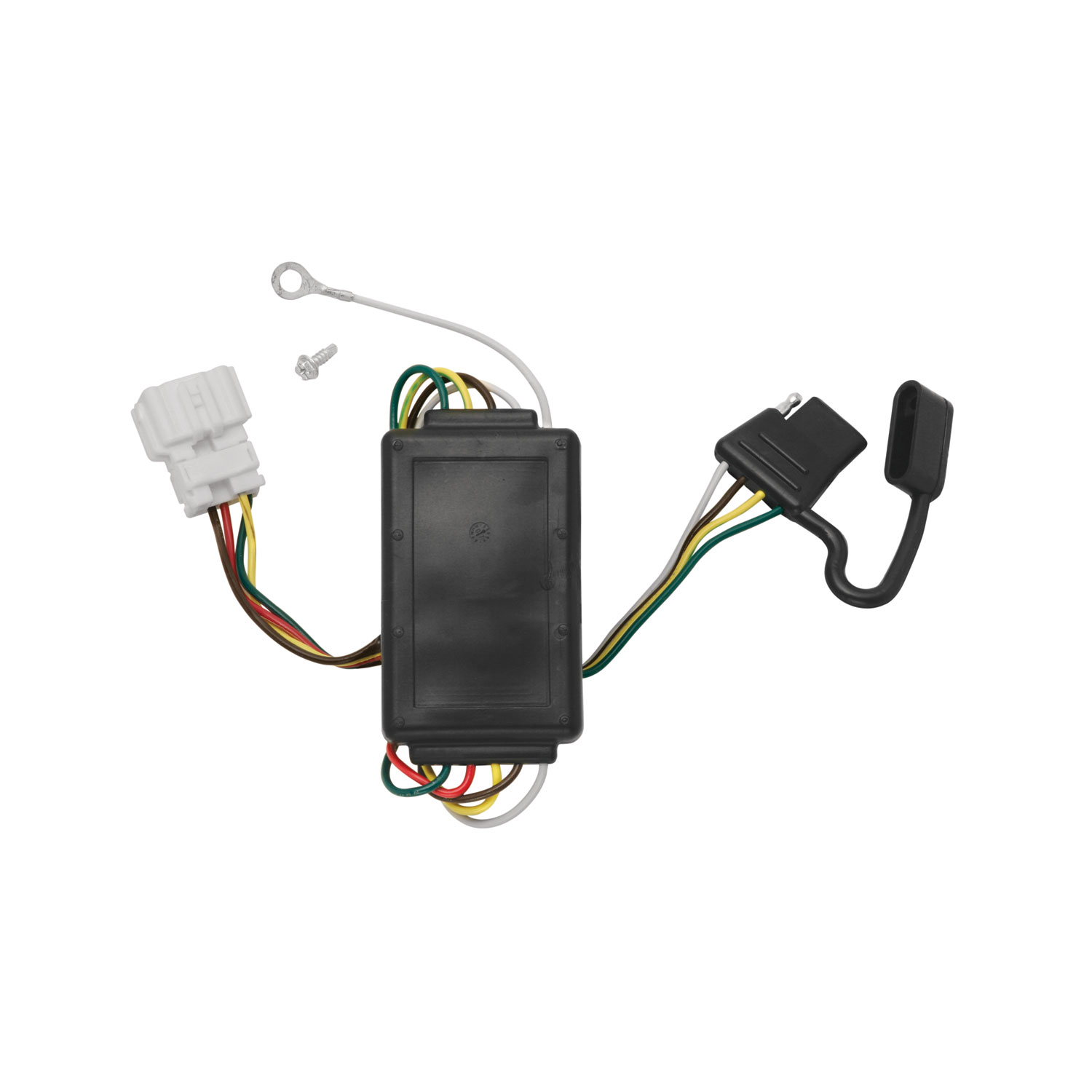

Yes, this T-Connector is designed for Honda CRV. The installation requires access to the vehicle's white trailer tow plug, which is located behind the driver's side interior trim panel. Verify your vehicle has this factory tow plug before purchasing.
The 4-Flat connector is the trailer connector end of the T-Connector harness. When not in use, store it in the rear cargo area of your vehicle to protect it from damage and weather.
You will need: a trim panel remover tool, a 10mm socket and ratchet (or 10mm wrench), a drill with a 3/32" drill bit, and a 1/4" socket. Safety glasses are also required.
The T-Connector includes an eyelet and screw for securing the white ground wire. These are used to attach the white wire to a grounding point on the driver's side near the connector.
Yes. Open the rear door and temporarily remove the rear threshold, cargo net, and cargo cover. Then carefully pull back the interior trim panel on the driver's side using a trim panel remover tool. It may be helpful to fold the rear seat forward for better access.
First, verify that the mating surfaces of both the vehicle's wiring connectors and the T-Connector ends are clean and free of dirt. Then insert the T-Connector harness into the vehicle's tow-plug harness and lock it into place. The connectors should mate securely.
Drilling may be required for the ground wire. If a suitable existing ground stud is not available on the driver's side near the connector, you will need to drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed, and verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
Drill a 3/32" hole for the ground wire. This hole is used to secure the white wire using the eyelet and screw provided with the T-Connector.
Locate a suitable grounding point on the driver's side near the connector, such as an existing ground stud. If no existing stud is available, drill the 3/32" hole in that area. Do not drill into the vehicle floor or bed. Clean dirt and rustproofing from the area before securing the wire.
The maximum stop/turn light rating is 1 per side at 2.1 amps. Do not exceed this limit or the lower of your vehicle's towing manufacturer rating, whichever is lower. Overloading the circuit can cause fires.
The maximum tail light rating is 5 amps. Do not exceed this limit or the lower of your vehicle's towing manufacturer rating, whichever is lower. Overloading the circuit can cause fires.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting an actual trailer once installed. This ensures all wiring is correct and the connector is functioning as intended.
After inserting and locking the T-Connector harness into the vehicle's tow-plug harness, locate a suitable grounding point on the driver's side near the connector. Either use an existing ground stud or drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Clean dirt and rustproofing from the area. Then reinstall the threshold, trim panel, cargo net, and cover.
Yes. Check that the mating surfaces of the vehicle's wiring connectors and the T-Connector ends are clean and free of dirt before connecting them. This ensures a proper electrical connection.
Yes, the T-Connector (118427-037) is designed for Honda CRV. Your vehicle must have a factory white trailer tow plug located behind the driver's side interior trim panel.
You need a trim panel remover, 10mm socket/ratchet or wrench, a drill with 3/32" bit, a 1/4" socket, and safety glasses.
Drilling may be required for the ground wire. If no existing ground stud is available, drill a 3/32" hole on the driver's side near the connector. Do not drill into the vehicle floor or bed.
Maximum stop/turn light: 1 per side (2.1 amps). Maximum tail lights: 5 amps. Do not exceed these limits or your vehicle's towing manufacturer rating, whichever is lower.
Test the installation with a test light or by connecting an actual trailer. All connections must be complete for proper function.
Store the 4-Flat connector in the rear cargo area of your vehicle when not in use.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Honda CR-V | — |
