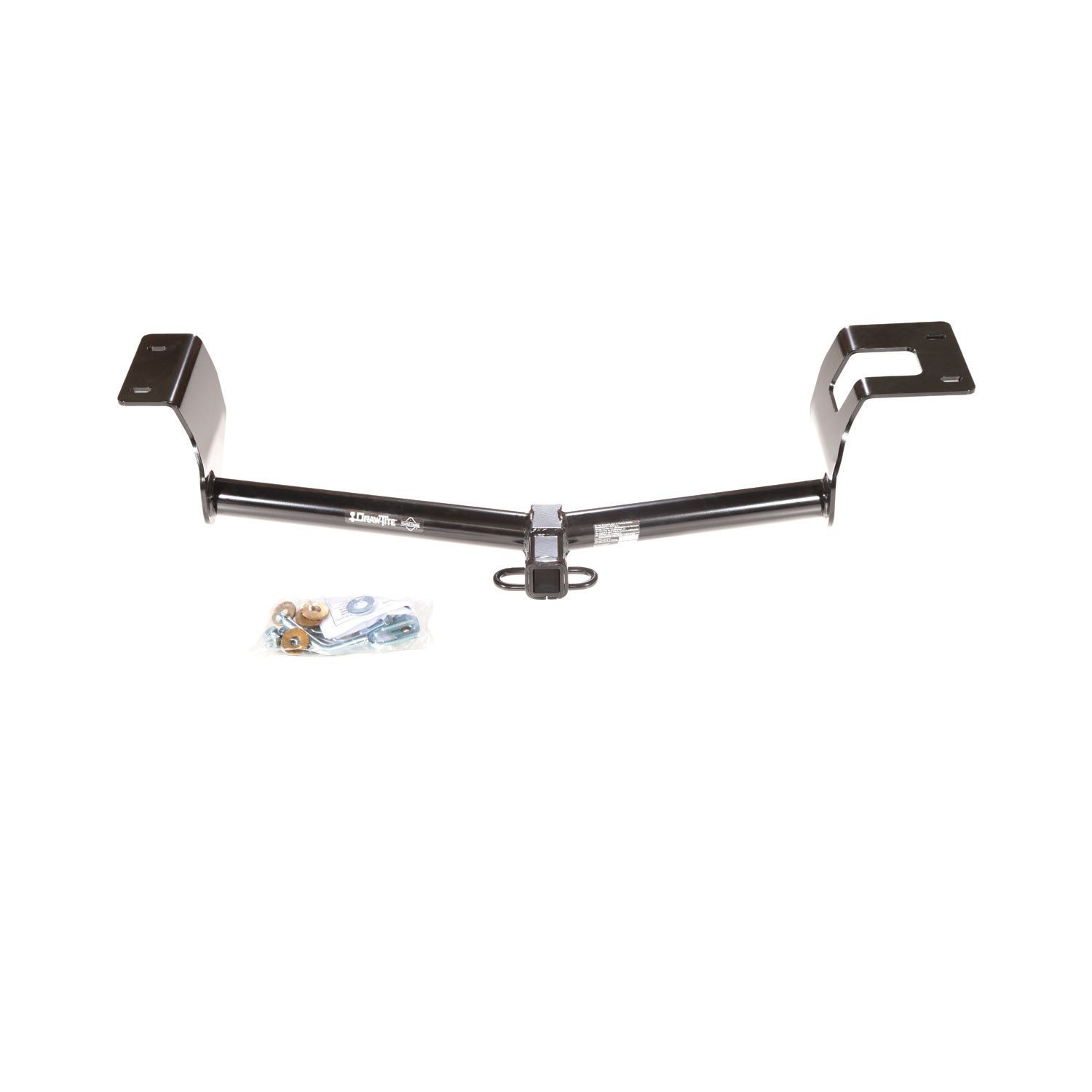

These dependable custom hitches are manufactured for 2012-2016 Honda CR-V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | Honda CR-V | — |

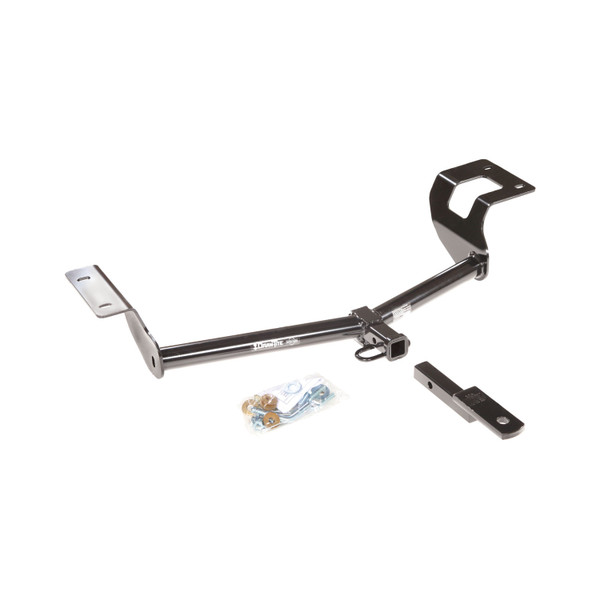

Yes, the 2012-2016 Honda CR-V Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36520-118561) is designed to fit the 1996-1999 Honda CR-V.
The 2012-2016 Honda CR-V Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36520-118561) fits 1996-1999 Honda CR-V models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2012-2016 Honda CR-V Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36520-118561) fits the following vehicles: 1996-1999 Honda CR-V. Always verify your specific year, make, and model before ordering.
The 2012-2016 Honda CR-V Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36520-118561) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual confirms that part number 36520 is designed for Honda CR-V but does not specify which model years, generations, trim levels, or drivetrain configurations are compatible. Contact the manufacturer or a fitment database to confirm compatibility with your specific CR-V.
The maximum gross trailer weight is 3500 LB (1589 kg) and the maximum tongue weight is 300 LB (136 kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
Required tools are: 10mm wrench, 17mm wrench, 11/16 wrench, small Phillips head screwdriver, torque wrench, tape, utility knife, tape measure, and marking pencil. A lubricant or soapy water is also recommended to help remove the exhaust isolators.
The fastener kit 36520F includes: 4× M10×1.25×30 CL8.8 hex bolts, 4× 7/16" conical washers, 1× 3/8-16 U-bolt, 2× 3/8" flat washers, 2× 3/8" lock washers, and 2× 1/2" flat washers.
Yes. You must remove the driver-side appearance panel by removing 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the driver-side rear tire. The panel must be trimmed and then reinstalled on the vehicle.
Yes. The exhaust must be lowered by removing the rubber isolators from the muffler hangers. Remove the outside isolator first, then the inside isolator. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position and isolators reinstalled after the hitch is secured.
No drilling is required. The hitch uses existing weld nuts on the frame rails and existing vehicle tie-down hooks. The only modification is trimming of the driver-side appearance panel to clear the hitch.
The driver-side appearance panel must be trimmed in the area shown in the diagram. The trim area is approximately 16.25 inches wide, 4.25 inches tall at the left edge, 8.50 inches tall at the center, and 3.00 inches tall at the right edge, to accommodate the hitch and tie-down hook cutout.
All M10 CL8.8 fasteners must be tightened with a torque wrench to 38 Lb.-Ft. (52 N·M).
All 3/8-16 GR5 fasteners, including the U-bolt, must be tightened with a torque wrench to 30 Lb.-Ft. (41 N·M).
1. Remove driver-side appearance panel (5 plastic rivets, 3 hex nuts, 2 Phillips screws from wheel well). 2. Run the hitch into existing weld nuts to clear threads. 3. Reinstall appearance panel if trimmed. 4. Lower exhaust by removing rubber isolators from muffler hangers (outside first, then inside). 5. Tape flat washer to rearward weld nut location on both frame rails. 6. Raise hitch into position. 7. Install M10 fasteners. 8. Install 3/8 U-bolt through vehicle tie-down hook and receiver tie-down hook attachment with flat washer, lock washers, and hex nuts. 9. Tighten all fasteners to required torque. 10. Raise exhaust and reinstall rubber isolators.
The flat washer (item 7, 1/2" size) is taped to the rearward weld nut location on both frame rails before the hitch is raised. This positions the washer so it will be in place when the M10 fasteners are installed through the hitch into the existing weld nuts.
The 3/8-16 U-bolt is installed through the vehicle's tie-down hook and through the tie-down hook attachment of the receiver. A 3/8" flat washer, 3/8" lock washers, and 3/8" hex nuts are installed as shown in the diagram. The U-bolt fasteners are then tightened to 30 Lb.-Ft. (41 N·M).
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. When working with the exhaust system, spray lubricant or soapy water on the metal hanger rod and rubber isolators to aid removal.
The drawbar must be used in the Rise position only. The drawbar kit is sold separately under part number 36051.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the exhaust is properly raised and the rubber isolators are reinstalled. Confirm that the appearance panel is properly reinstalled and trimmed.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
The 36520 is designed for Honda CR-V. Confirm your specific model year and configuration with the manufacturer or a fitment database, as the manual does not specify which generations or trim levels are compatible.
Maximum gross trailer weight is 3500 LB (1589 kg) and maximum tongue weight is 300 LB (136 kg). Do not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
You need: 10mm, 17mm, and 11/16 wrenches; small Phillips head screwdriver; torque wrench; tape; utility knife; tape measure; marking pencil; and lubricant or soapy water.
M10 CL8.8 fasteners: 38 Lb.-Ft. (52 N·M). 3/8-16 GR5 fasteners (including U-bolt): 30 Lb.-Ft. (41 N·M). Use a torque wrench for all fasteners.
Maximum tongue weight is 300 LB (136 kg). Do not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
The drawbar must be used in the Rise position only. The drawbar kit (part 36051) is sold separately.
Yes, this T-Connector is designed for the CR-V. The manual does not specify model year range, so contact the manufacturer or your retailer to confirm compatibility with your specific CR-V generation.

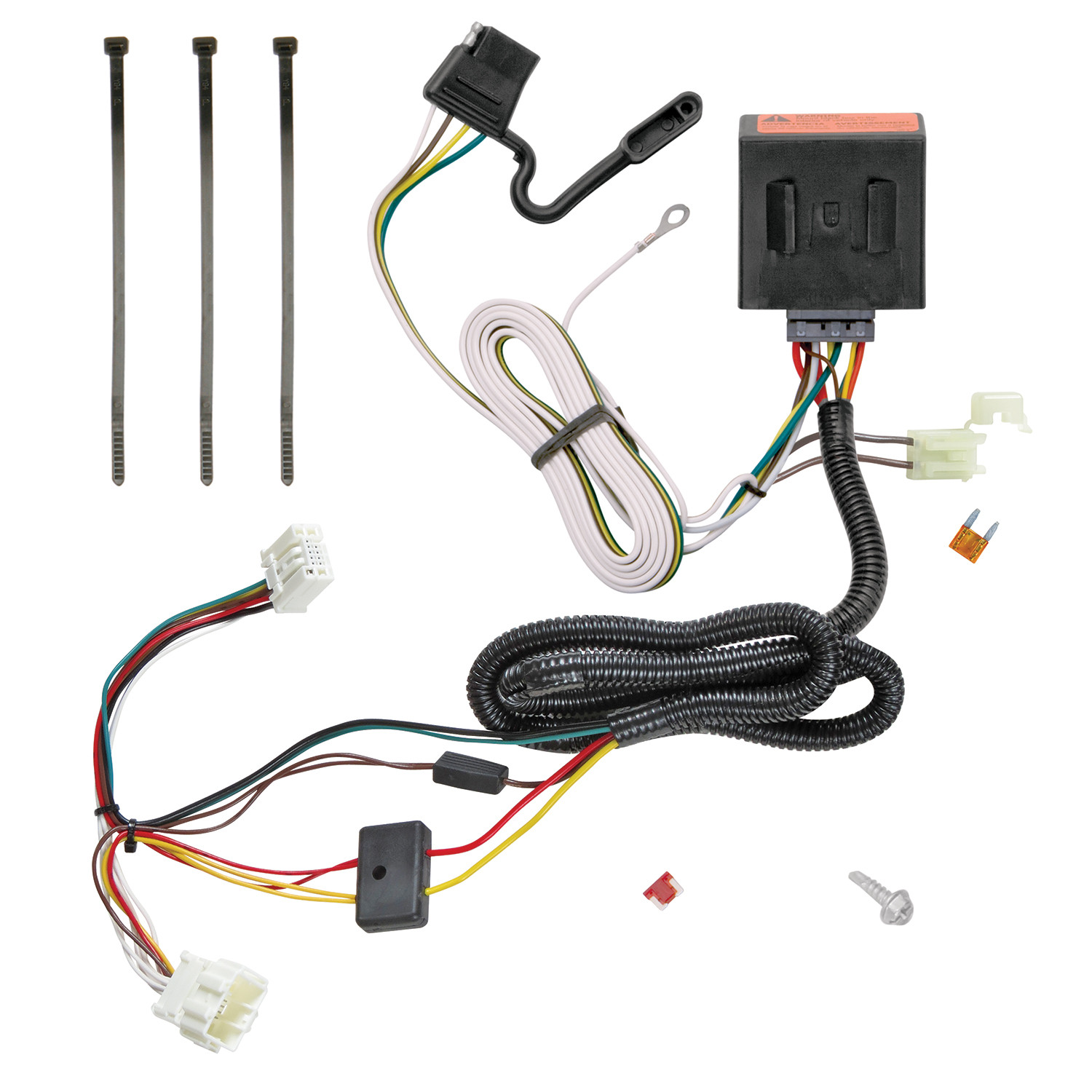

The T-Connector is a wiring harness that integrates with your CR-V's electrical system. It includes a grey 12-pin connector that plugs into the vehicle's black box-module, a 4-flat connector for trailer lights, and a white ground wire. It allows you to connect a trailer or towed vehicle to your CR-V's lighting system.
You will need: trim panel remover tool, 10 mm socket and ratchet or 10 mm wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe. Safety glasses are required.
Open the rear door and temporarily remove the rear threshold, cargo net, and cargo cover. Then use a trim panel remover tool to carefully remove two plastic panels and partially remove the main trim panel by removing the 10 mm bolt, 2 screws behind the seat lever, 1 clip, and 1 cargo hook (push in center). It may be helpful to fold the rear seat forward.
Mount the black box-module below the rear threshold in the spare tire compartment in an out-of-the-way place. The surface must be free of moisture and mounted high enough to prevent direct contact with water or liquid. The module must be mounted ONLY in the vehicle interior, never on the exterior or in areas exposed to elements or moisture, as this could cause serious damage to the vehicle and module.
Locate the T-Connector's grey 12-pin connector and insert it into the mating connector on the black box-module. Ensure mating surfaces are clean and free of dirt. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Mount the 4-flat connector in an accessible location. Route it through the driver-side trim panel into the side storage compartment and store it there when not in use. If routing through a grommet and along the vehicle exterior, carefully avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire.
Drilling may be required for the ground wire. On the driver's side, locate a suitable grounding point near the connector such as an existing ground stud, or drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area.
A 7.5 amp fuse is provided and must be placed in the fuse compartment under the driver-side dash. An additional 5 amp fuse is located on the harness near the black box-module. Do not exceed the manufacturer's circuit rating, as overloading can cause fires.
The white wire is the ground wire. It must be secured to a suitable grounding point near the connector, such as an existing ground stud, or secured using the eyelet and screw provided in a 3/32" drilled hole. Do not drill into the vehicle floor or bed.
Do not exceed the lower of the towing manufacturer's rating or: maximum 1 stop/turn light per side (2.1 amps), or maximum tail lights (5 amps). Overloading the circuit can cause fires. Read your vehicle's owner's manual and instruction sheet for additional information.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition, then re-insert the key and turn it to the proper position. Ensure all wires are properly secured and not pinched or cut during reinstallation of the threshold, trim panel, cargo net, and cover.
Before connecting the T-Connector's grey 12-pin connector to the vehicle's black box-module, verify that the mating surfaces of both the vehicle wiring connectors and the T-Connector ends match. All connector surfaces must be clean and free of dirt. Be careful not to damage the locking tabs.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. When reinstalling trim panels and covers, be careful not to pinch or cut the wires.
Yes, it is designed for the CR-V. Confirm the specific model year with the manufacturer or retailer.
Trim panel remover, 10 mm socket/ratchet or wrench, 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Possibly. You may drill a 3/32" hole for the ground wire if no existing ground stud is available. Do not drill into the vehicle floor or bed, and verify what is behind the surface first.
A 7.5 amp fuse goes in the driver-side dash fuse compartment. An additional 5 amp fuse is on the harness near the black box-module.
Maximum 1 stop/turn light per side (2.1 amps) or maximum tail lights (5 amps). Do not exceed the lower of the towing manufacturer's rating or these limits.
Use a test light or trailer. Reset the vehicle electrical system by temporarily removing and re-inserting the ignition key, then turn it to the proper position.
