These durable custom hitches are manufactured for 2000-2006 Toyota Tundra and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2002 | Toyota Tundra | — |

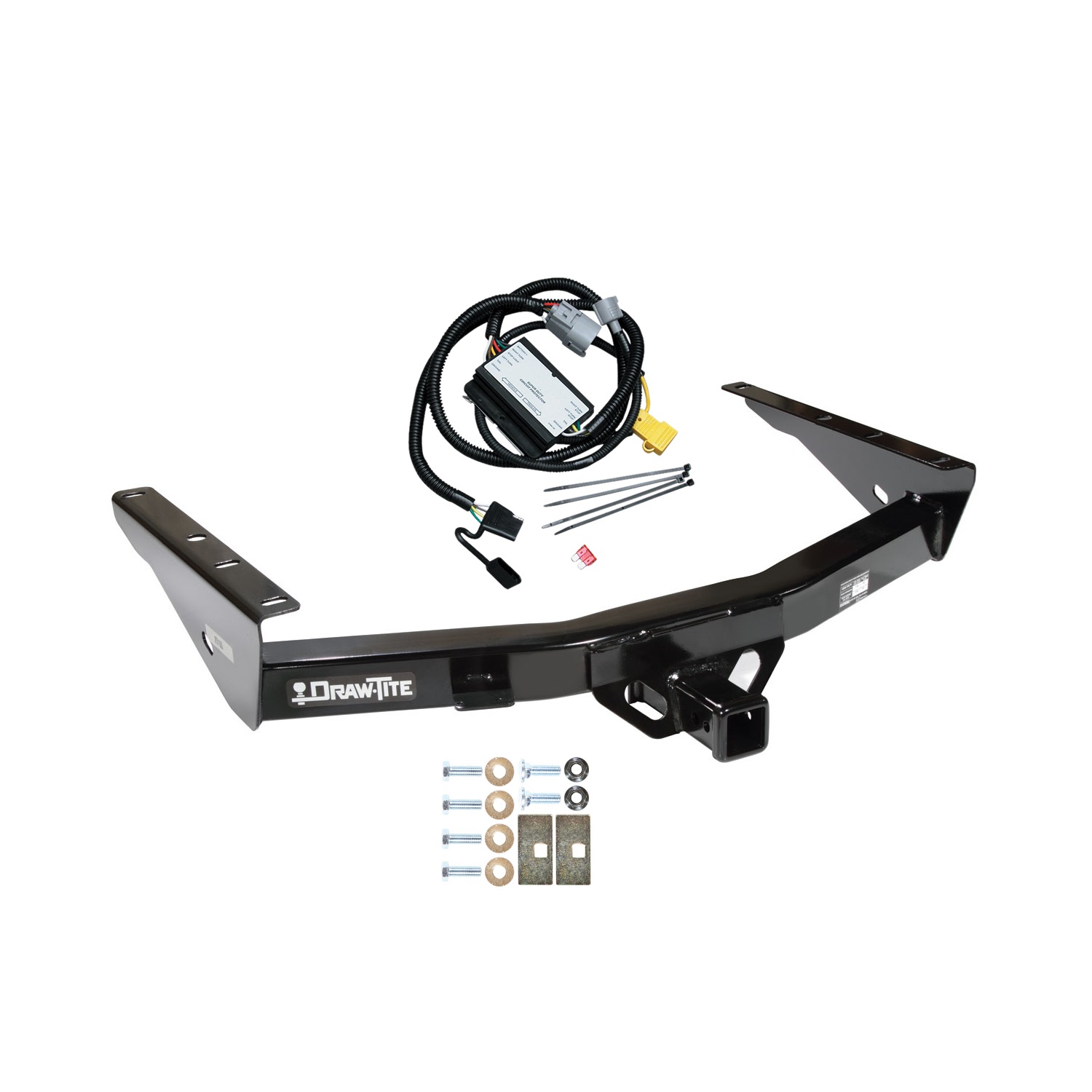

The 2001-2002 Toyota Tundra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75105-118378) fits 2001-2002 Toyota Tundra models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2001-2002 Toyota Tundra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75105-118378) is designed to fit the 2001-2002 Toyota Tundra.
The 2001-2002 Toyota Tundra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75105-118378) fits the following vehicles: 2001-2002 Toyota Tundra. Always verify your specific year, make, and model before ordering.
The 2001-2002 Toyota Tundra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75105-118378) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the N75105 hitch is designed for the Toyota Tundra. However, consult your vehicle owner's manual for towing recommendations and limitations specific to your model year and configuration.
The N75105 has two ratings depending on hitch mode: weight distributing hitch rating is 7500 lb. max gross trailer weight and 750 lb. max tongue weight; weight carrying hitch rating is 5000 lb. max gross trailer weight and 500 lb. max tongue weight. Consult your vehicle owner's manual for your vehicle's specific towing recommendations and limitations.
You will need a 3/4" socket, 18mm socket, and a torque wrench. These are required to properly install and torque the fasteners to specification.

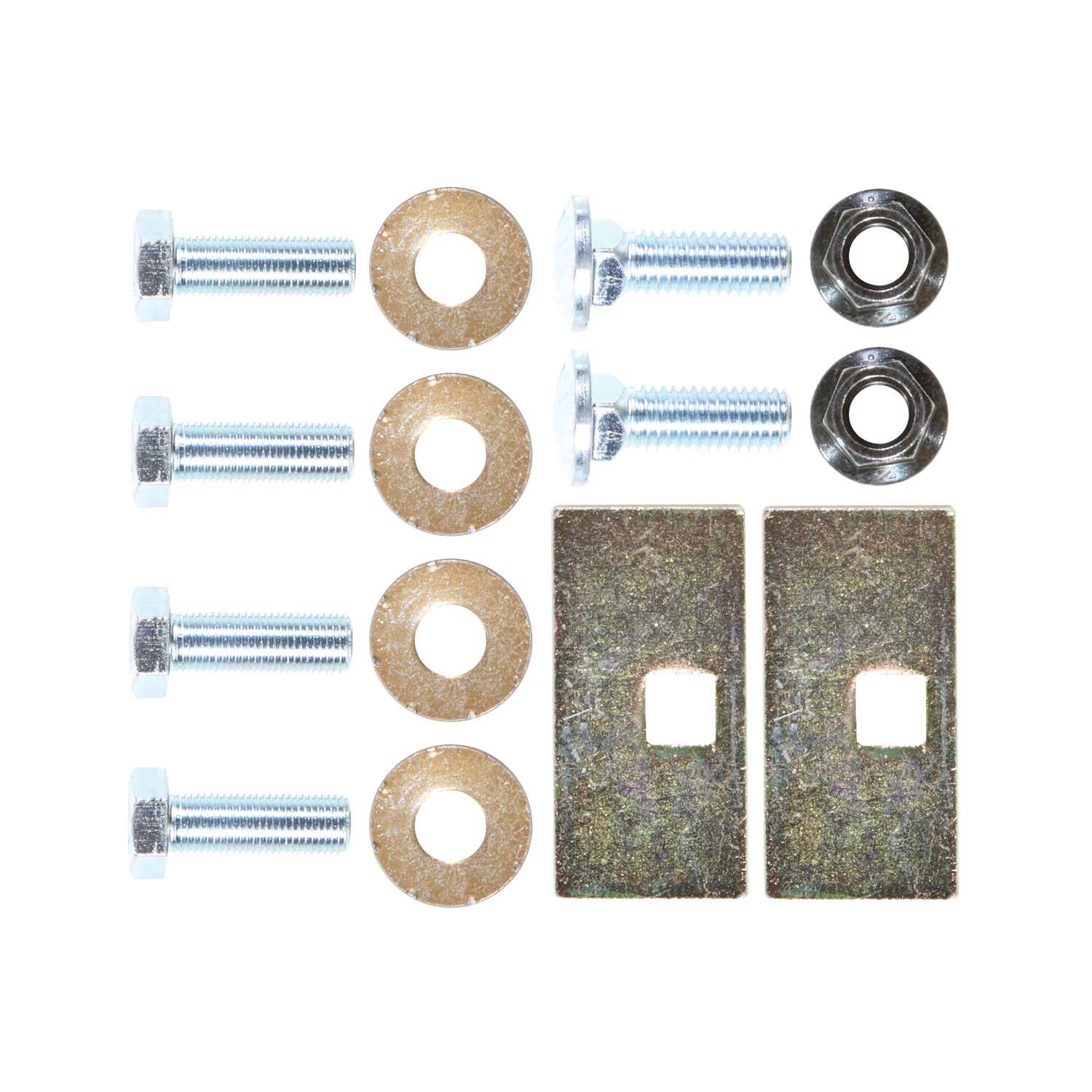

The package includes: four 12mm hex bolts, four 1/2" serrated washers (for the hex bolts), two 1/2" carriage bolts, two bolt plates, two 1/2" serrated washers (for the carriage bolts), and two 1/2" lock nuts. Use only Towing Products supplied or approved bolts, locknuts, and washers for installation.
1. Lift the receiver up to the frame and locate the large holes in the receiver brackets over the rivet heads in the frame. 2. Install four 1/2" serrated washers over four 12mm hex bolts and insert the bolts up through the receiver brackets into the weld nuts in the frame. 3. Install two bolt plates over two 1/2" carriage bolts and insert the bolts down through the frame and receiver brackets. Install 1/2" serrated washers and 1/2" lock nuts on the bolts. 4. Torque the 12mm bolts to 75 LB-FT and the 1/2" nuts to 75 LB-FT.
Torque the 12mm hex bolts to 75 LB-FT. Torque the 1/2" lock nuts to 75 LB-FT. Do not lubricate the threads before installation, as this may cause bolt failure due to over-tightening.
No. Do not lubricate threads. Lubrication may cause bolt failure due to over-tightening. Use only dry fasteners supplied or approved by Towing Products.
No. Do not drill or weld to this hitch. Drilling or welding may compromise the structural integrity and safety of the hitch.
No. Use only Towing Products supplied or approved bolts, locknuts, and washers to install this hitch. Using non-approved fasteners may result in improper installation and void the warranty.
Yes, the N75105 is designed for the Toyota Tundra. Check your vehicle owner's manual for towing recommendations.
You need a 3/4" socket, 18mm socket, and a torque wrench.
Torque 12mm hex bolts to 75 LB-FT and 1/2" lock nuts to 75 LB-FT. Do not lubricate threads before installation.
Weight distributing mode: 7500 lb. max gross trailer weight, 750 lb. max tongue weight. Weight carrying mode: 5000 lb. max gross trailer weight, 500 lb. max tongue weight. Consult your vehicle owner's manual for your vehicle's limits.
Yes. Use only Towing Products supplied or approved bolts, locknuts, and washers.
The T-Connector is designed for vehicles equipped with an eleven-pin trailer tow plug located underneath the vehicle on the driver's side next to the frame rail. Check under your vehicle in that location to confirm you have this connector type before purchasing. The manual does not list specific vehicle makes, models or years, so contact the manufacturer or your dealer to confirm fitment for your vehicle.
The kit includes a T-Connector harness with an eleven-pin connector, a yellow fuse holder with a 10 amp fuse, a black converter box, double-sided tape, and cable ties. A gray connector is also part of the vehicle's existing wiring that you will work with during installation.
The manual specifies using a 50/50 water and alcohol solution to clean the mounting surface before applying double-sided tape. A test light or trailer is needed to test the installation. No other tools are explicitly required in the instructions.
Yes. Step 1 requires you to disconnect the vehicle's negative battery cable before beginning installation. The battery is not reconnected until Step 6, after the fuse holder is installed.
The eleven-pin trailer tow plug is located underneath the vehicle on the driver's side next to the frame rail. It will have a cap that you must remove before plugging in the T-Connector harness.
The gray connector is part of your vehicle's existing wiring, located between the battery and the fender. In Step 3, you remove its cap and install the trailer harness fuse holder connector into it. You then tie wrap both the gray connector and fuse harness to the vehicle's wiring.
Route the trailer harness fuse holder wiring to the positive side of the battery, running it between the battery and the vehicle's fuse box. Attach the ring terminal of the fuse holder to the positive battery post. Secure the wire with 2 cable ties. Install the 10 amp fuse into the yellow fuse holder after the battery hold down bracket is reinstalled.
Do not use the existing 30 amp fuse holder. Remove it and return it to the vehicle owner. Use only the yellow fuse holder and 10 amp fuse supplied with this kit. The maximum fuse rating allowed is 15 amps.
Install a 10 amp fuse in the yellow fuse holder supplied with the kit. The maximum fuse rating allowed is 15 amps. Do not exceed 15 amps.
The unit is rated for 7.5 amps per circuit.
Using the double-sided tape provided, mount the T-Connector black converter box to the truck end sill. Before mounting, clean the truck mounting surface with a 50/50 water and alcohol solution to ensure proper adhesion.
Secure the T-Connector wire harness to the vehicle's harness using the cable ties provided in the kit. The manual also specifies using 2 cable ties to secure the trailer fuse holder wire.
Test the installation with a test light or trailer. This is performed in Step 8, after the T-Connector harness is plugged into the vehicle's eleven-pin connector.
You do not need to fully remove the battery. Temporarily remove the battery hold down bracket and slide the battery towards the motor to access the gray connector between the battery and fender. After installing the fuse holder connector, return the battery to its original position and reinstall the bracket.
The T-Connector fits vehicles with an eleven-pin trailer tow plug located underneath on the driver's side next to the frame rail. Check under your vehicle to confirm this connector type is present.
The kit includes a yellow fuse holder with a 10 amp fuse. Maximum fuse rating is 15 amps.
No drilling is required. The black converter box is mounted using double-sided tape on the truck end sill after cleaning the surface with a 50/50 water and alcohol solution.
Test the installation with a test light or trailer after plugging the T-Connector harness into the vehicle's eleven-pin connector.
