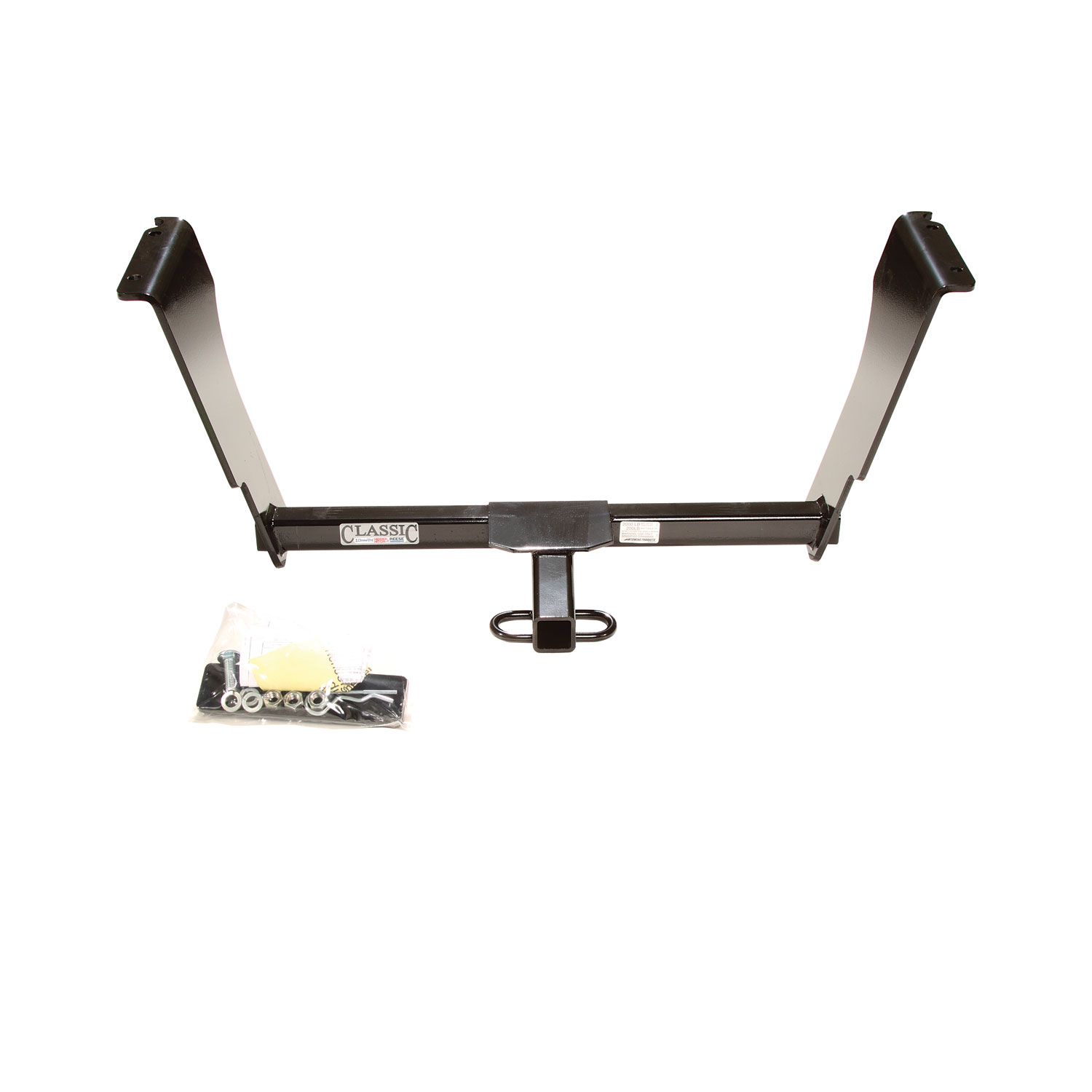

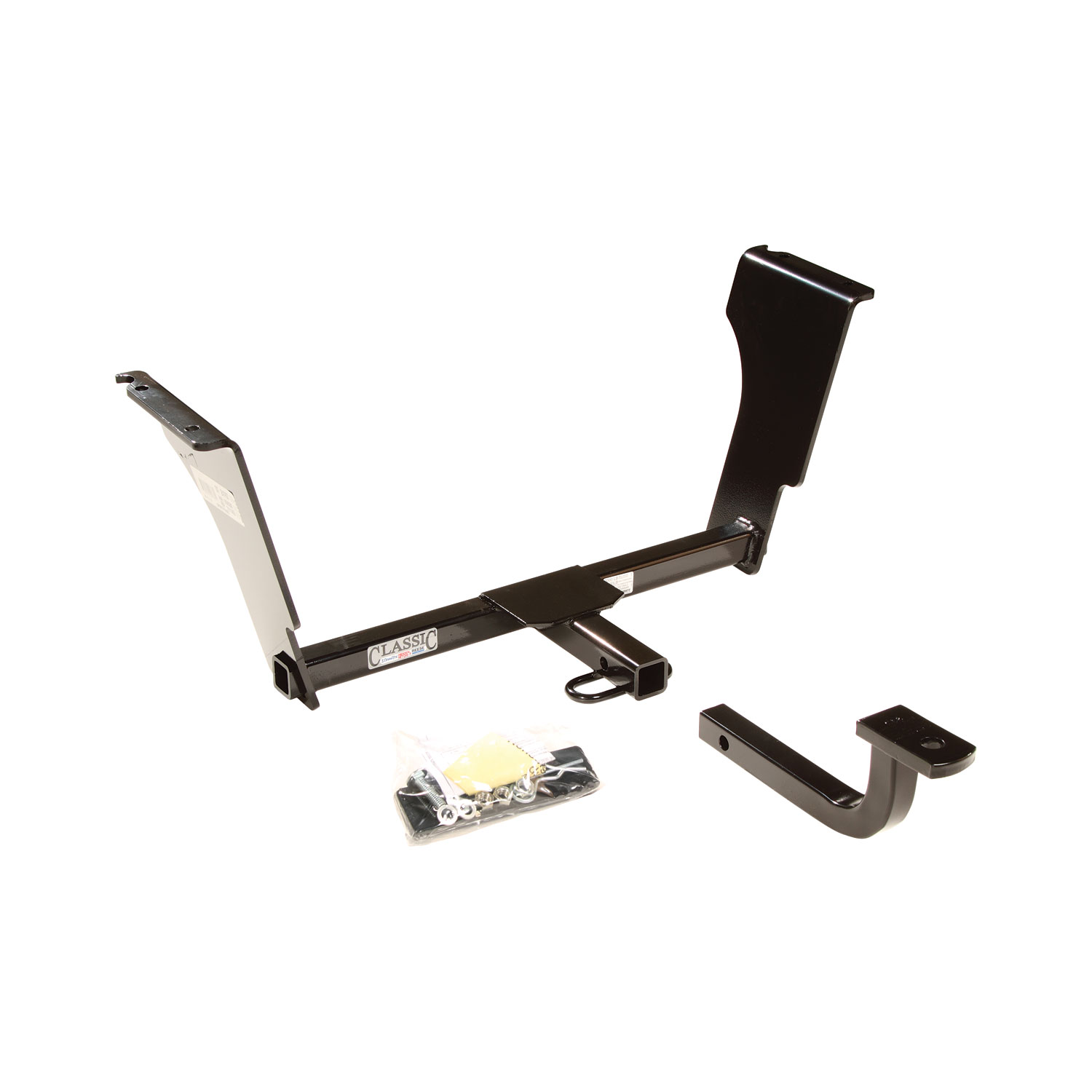

These dependable custom hitches are manufactured for 2003-2013 Cadillac CTS, 2004-2013 Cadillac CTS V, 2005-2011 Cadillac STS and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 1999 | Cadillac CTS V | — |
Part number 24767 fits Cadillac CTS models from 2003 to 2006, including the CTS-V (2005–2006). It also fits the Cadillac STS (2005–2006). Confirm your vehicle year and model against these ranges before purchasing.
Yes, part number 24767 is compatible with the 2005–2006 Cadillac CTS-V.
Yes, the hitch is compatible with dual exhaust systems, but the manual notes that on dual exhaust the fit is tight. During installation, one bracket is raised between the trunk pan and exhaust, and the other bracket is slid over the second exhaust from the front. Careful positioning is required to avoid interference.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the vehicle manufacturer's towing rating or these limits.

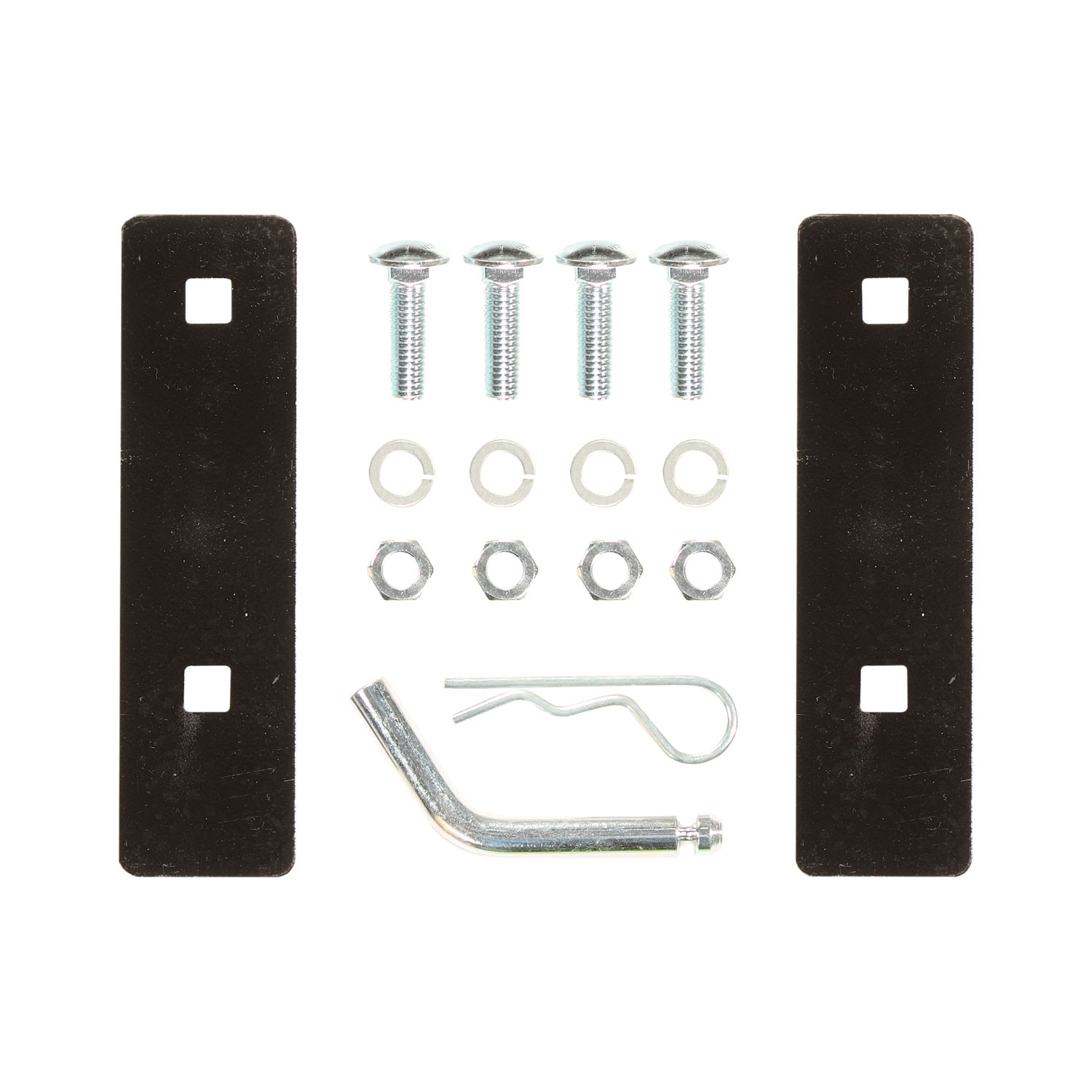

The kit includes 4 carriage bolts (7/16-14 × 1-1/2), 2 mounting plates, 4 lock washers (7/16), and 4 hex nuts (7/16-14). The drawbar kit (part 3594) and fastener kit (part 24767F) are sold separately.
You will need an 11/16 wrench, a torque wrench, a 1/8 drill bit, a 1/2 drill bit, a center punch, and sealant. A long thin blade screwdriver is also needed to remove the storage bin retainer washer.
Yes. You must remove the spare tire or storage bin to gain access to the trunk carpet. The manual states this is necessary to roll back the carpet and padding to expose the bare metal floor of the trunk pan where the hitch mounting holes will be drilled.
Yes. Before positioning the hitch, you must lower the muffler(s) by removing 2 rearmost exhaust hangers and 1 forward exhaust hanger. These hangers are reinstalled after the hitch installation is complete.
Yes. You must drill two holes through the trunk pan on each side (four holes total). First, drill 1/8 pilot holes at center-punched locations, then enlarge them to 1/2. All drilled holes must be sealed with sealant to prevent exhaust fumes and water from entering the trunk.
Drill 1/8 inch pilot holes first, then enlarge them to 1/2 inch. The holes are drilled through the trunk pan from underneath the vehicle.
You may need to trim the padding under the carpet to allow the mounting plate and carpet to lie flat. The manual states: "Trim the padding under the carpet if necessary to allow the plate and carpet to lie flat."
All 7/16-14 GR5 fasteners must be tightened to 50 LB-FT (68 N·M) using a torque wrench.
All holes drilled in the vehicle must be sealed with sealant to prevent the entry of exhaust fumes into the trunk and to prevent water from entering the vehicle. This is a critical safety and protection measure.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. The drawbar must be used in the RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, it fits 2003–2006 CTS, 2005–2006 CTS-V, and 2005–2006 STS. Confirm your model year.
Maximum 2000 LB gross trailer weight and 200 LB tongue weight. Do not exceed your vehicle manufacturer's rating.
11/16 wrench, torque wrench, 1/8 and 1/2 drill bits, center punch, sealant, and a long thin blade screwdriver. Drawbar kit (3594) is sold separately.
Yes. Drill 1/8 pilot holes, then enlarge to 1/2 inch through the trunk pan. All holes must be sealed with sealant.
Yes. Remove the spare tire or storage bin and lower the muffler(s) by removing exhaust hangers before positioning the hitch.
Tighten all 7/16-14 GR5 fasteners to 50 LB-FT (68 N·M) with a torque wrench.
Seal all drilled holes with sealant to prevent exhaust fumes and water from entering the trunk. Wear eye protection and do not cut holes with a torch.
The T-Connector is a taillight wiring integration harness that allows you to connect a trailer to your vehicle's existing taillight system. It includes a black box that mounts in the trunk, a T-shaped connector that plugs into your vehicle's taillight wiring, a fuse holder with a 10 amp fuse, wiring with butt connectors, cable ties, double-sided mounting tape, and a 4-Flat connector for the trailer. The system allows your trailer lights to operate in sync with your vehicle's brake, turn, and tail lights.
The manual does not specify which vehicle makes, models, years, or body styles are compatible with this T-Connector. You must verify compatibility with the manufacturer or a fitment database before purchasing. Contact the manufacturer or your installer to confirm fitment for your specific vehicle.
The manual does not address compatibility with factory towing packages or integrated trailer wiring systems. Consult the manufacturer or your installer to determine whether the T-Connector can be used alongside or instead of factory equipment.
You will need: a trim panel remover, a 10 mm socket and ratchet or 10 mm wrench, wire crimpers, wire cutters, and a test-probe (test light). These tools are required to remove trim panels, loosen and tighten the ground stud bolt, crimp wire connections, cut wires, and test the installation.
The kit includes: a T-Connector harness with yellow wire, a black box (control module), a fuse holder with a 10 amp fuse, black 12 ga. wire and red wire, yellow butt connectors, a ring terminal, cable ties, double-sided mounting tape, and a 4-Flat connector. The 4-Flat connector should be stored in the rear cargo area when not in use.
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the fuse holder to the positive (+) battery cable in step 5. After all wiring connections are complete, you reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
You must access the rear cargo area (trunk). You will need to partially remove the plastic threshold cover and felt trunk liner to locate the vehicle's taillight wiring. You will also need to access the driver's side ground stud and route wiring from the trunk through the engine compartment to the battery.
The T-Connector harness plugs into the taillight wiring inside the rear cargo area. Each taillight housing has a connection point with mating connectors. Beginning on the driver's side, plug the T-Connector harness (which contains the yellow wire) between the vehicle's mating connectors. Ensure the connectors are fully inserted with locking tabs in place.
On the driver's side, locate the existing ground stud. Loosen the bolt on the stud, place the screw eyelet (supplied) on the stud, and re-tighten the bolt. Make sure all other ground connections are secure when removing and reattaching the ground stud.
From inside the trunk, connect the black 12 ga. wire and red wire from the T-Connector black box using the supplied yellow butt connector. You have two routing options: either route the black wire through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. In either case, avoid areas that may pinch or break the wire.
After disconnecting the vehicle's negative (−) battery cable, remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal (supplied), and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector (supplied). Then reconnect the negative battery cable and install the 10 amp fuse into the fuse holder.
Mount the T-Connector black box on the driver's side floor of the rear cargo area. First, clean a flat area using a mixture of rubbing alcohol and water. Then mount the black box using the double-sided tape provided. After mounting, replace the trunk threshold cover and felt trunk liner.
Secure the remainder of the T-Connector harness using the cable ties provided. Be careful to avoid any areas that would cut or pinch the wire. This prevents damage to the wiring and eliminates rattling noise during vehicle operation.
Install a 10 amp fuse into the fuse holder. This fuse protects the circuit from overload. The fuse holder is provided with the kit and comes with a 10 amp fuse.
The T-Connector uses black 12 ga. (12 gauge) wire for power and red wire from the black box. These wires connect to the battery and ground stud using the supplied yellow butt connectors.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 4.2 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the towing manufacturer's instruction sheet for additional information.
Wear safety glasses during installation. Ensure all connections are complete and secure before testing. Make sure all ground connections are secure when removing and reattaching the ground stud. Avoid pinching or breaking wires during routing. Test and verify the installation with a test light or trailer once installed.
After installation is complete, test and verify the installation using a test light or by connecting a trailer. Use the test-probe (test light) to verify that all taillight circuits are functioning correctly. All connections must be complete for the T-Connector to function properly.
Store the 4-Flat connector in the rear cargo area (trunk or cargo space) when not in use.
The manual does not specify compatible vehicle makes, models, or years. Contact the manufacturer or check a fitment database to confirm compatibility before purchasing.
Yes, disconnect the negative battery cable before connecting the fuse holder to the positive battery cable. Reconnect it after all wiring is complete and the 10 amp fuse is installed.
The T-Connector uses a 10 amp fuse, which is provided in the kit.
Test the installation using a test light or by connecting a trailer to verify all taillight circuits function correctly. All connections must be complete for proper operation.
