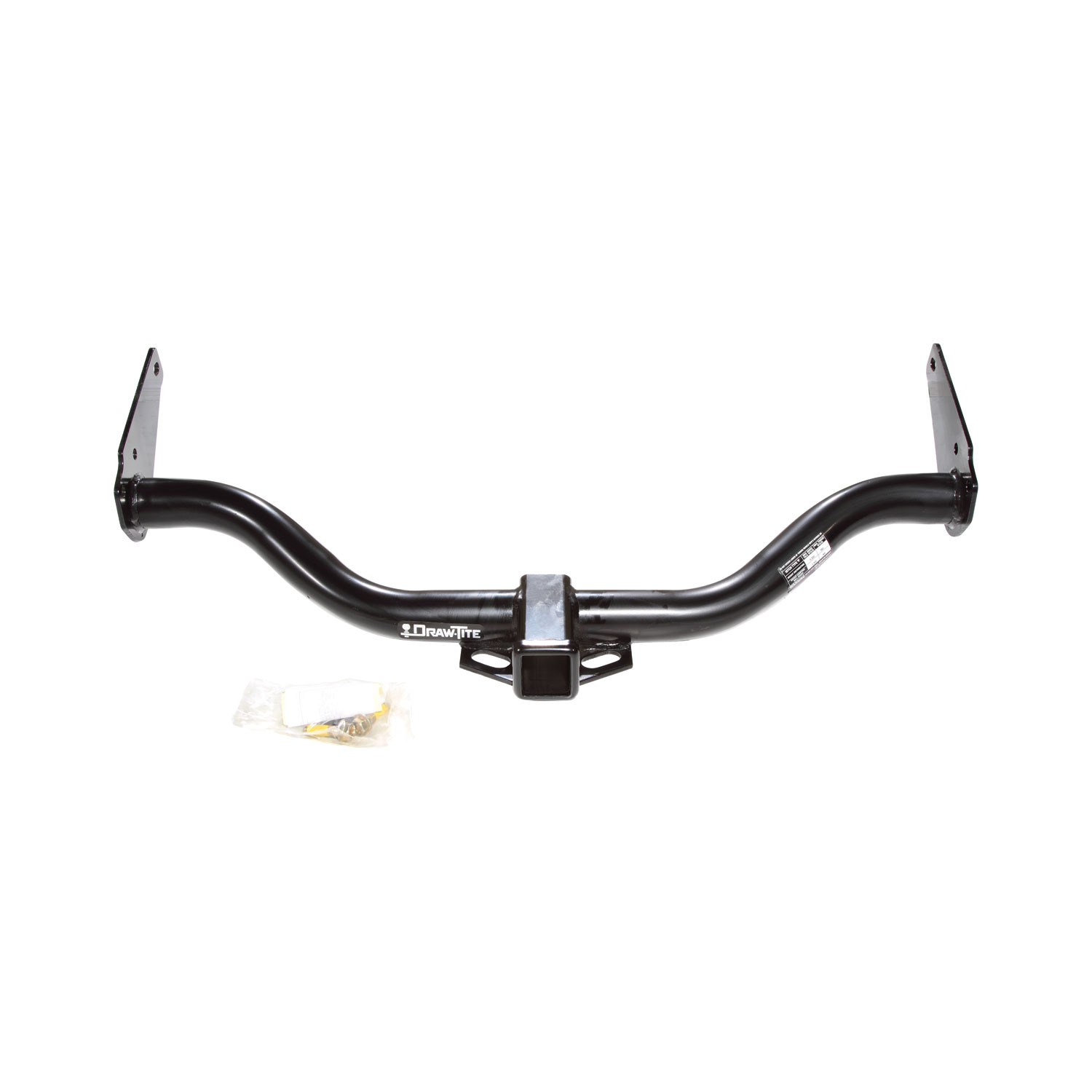

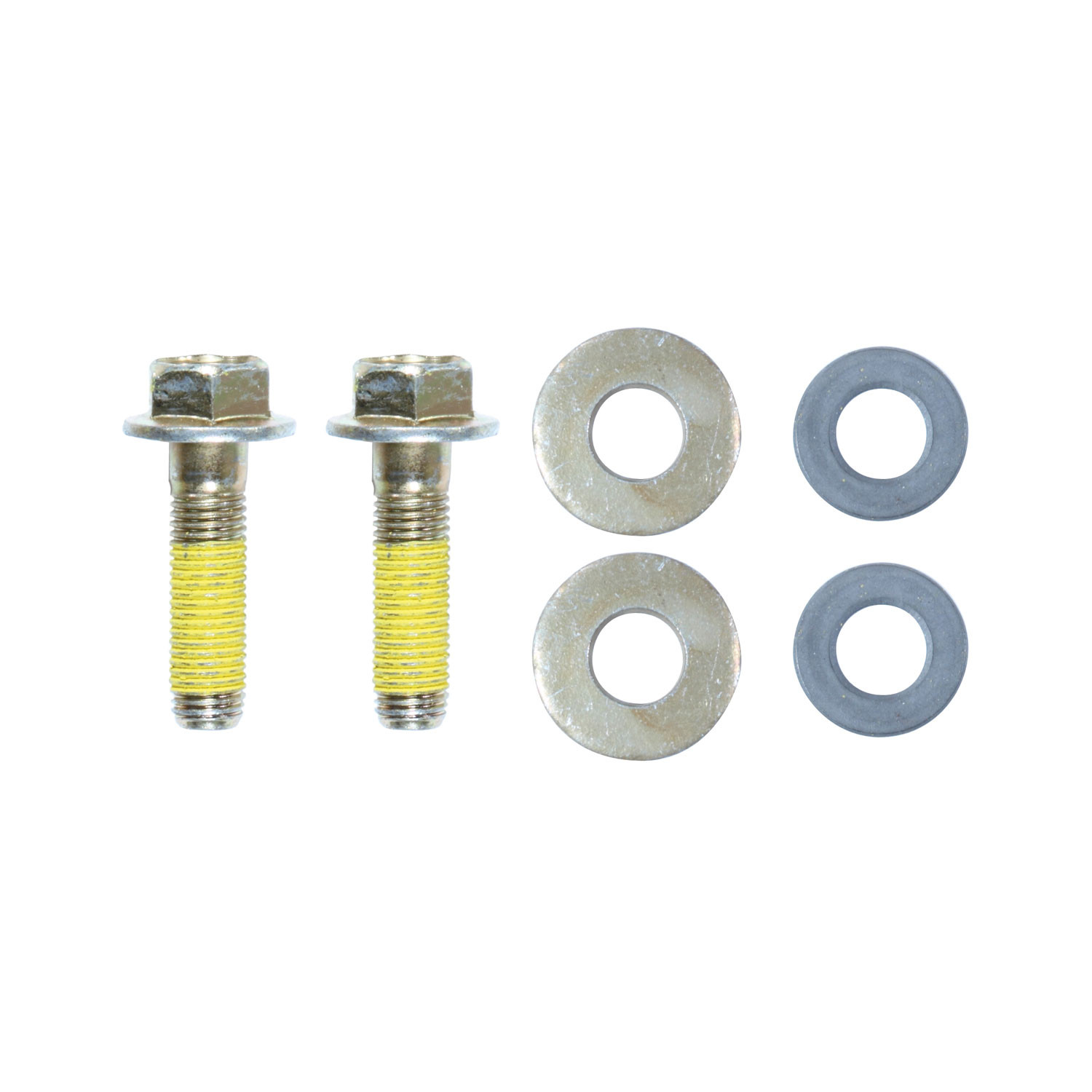

These durable custom hitches are manufactured for 2005-2015 Nissan Xterra and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2015 | Nissan Xterra | — |

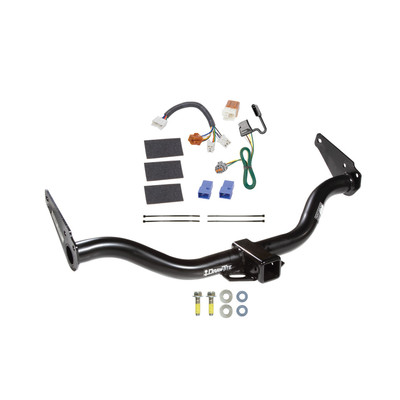

The 2005-2015 Nissan Xterra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75291-118525) fits the following vehicles: 2005-2015 Nissan Xterra. Always verify your specific year, make, and model before ordering.
The 2005-2015 Nissan Xterra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75291-118525) fits 2005-2015 Nissan Xterra models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2005-2015 Nissan Xterra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75291-118525) is designed to fit the 2005-2015 Nissan Xterra.
The 2005-2015 Nissan Xterra Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75291-118525) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 118525-037 T-Connector is designed for Nissan Pathfinder, Xterra, Frontier, and Equator vehicles. The installation instructions include location diagrams specific to each model. However, your vehicle must have a 12-pin jumper plug in the passenger side cab (behind the kick panel) and a 6-pin trailer harness connector under the vehicle behind the rear bumper on the driver's side for this product to be compatible.
You will need a trim panel puller and a test probe. The trim panel puller is used to remove the passenger side floor sill and kick panel without damaging the panel fasteners. The test probe is used to verify the installation after completion. All other required components—relays, cable ties, and foam tape—are included with the product.
Yes, relays are included with the product. You must use only the relays provided. The manual explicitly states that using relays that differ from those included can result in the unit not functioning or may damage the vehicle and/or trailer.
The 12-pin jumper plug is located in the vehicle cab on the passenger's side, behind the kick panel. To access it, you will need to use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards first, then out towards the rear of the vehicle, and then remove the passenger side kick panel.
The gray 6-pin trailer harness connector is located under the vehicle, behind the rear bumper on the driver's side, along the frame rail. You will need to remove the protective cap from the connector before connecting the T-Connector.
Use a trim panel puller to temporarily remove the passenger side floor sill. First pull upwards (1), then pull out towards the rear of the vehicle (2), being careful not to damage the panel fasteners. Once the floor sill is removed, you can access and remove the passenger side kick panel behind it.
Insert the jumper harness with relays into the vehicle's 12-pin harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. Then secure the remainder of the jumper harness with the cable ties and foam tape provided to prevent damage, rattling, and to avoid any areas that would cut or pinch the wire.
Connect the T-Connector end to the vehicle's mating 6-pin connector. Be careful not to damage the locking tabs and ensure that the connectors are fully inserted with locking tabs in place. All connector surfaces should be clean and free of dirt before connecting.
Test and verify the installation with a test light or trailer once installed. All connections must be complete for the T-Connector to function properly. The manual recommends using a test probe (included in tools needed) to verify proper operation.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum 7.5 amps per stop/turn light (1 per side) and maximum 7.5 amps for tail lights. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
Wear safety glasses during installation and follow all vehicle warnings and installation instructions before beginning. Be careful not to damage panel fasteners when removing the kick panel, do not damage the locking tabs on connectors, and avoid cutting or pinching wires when securing the harness with cable ties and foam tape.
After connecting the T-Connector, replace the passenger side kick panel and floor sill into their original positions. Then test and verify the installation with a test light or trailer to confirm all connections are complete and the T-Connector is functioning properly.
Yes, cable ties and foam tape are included with the product. These are used to secure the remainder of the jumper harness to prevent damage, rattling, and to avoid any areas that would cut or pinch the wire.
Yes, the 118525-037 T-Connector is designed for these Nissan models. Your vehicle must have a 12-pin jumper plug behind the passenger side kick panel and a 6-pin trailer connector under the rear bumper on the driver's side.
You need a trim panel puller and a test probe. All other components—relays, cable ties, and foam tape—are included.
Yes, you must remove the passenger side kick panel to access the 12-pin jumper plug. Use a trim panel puller to avoid damaging the panel fasteners.
Do not exceed 7.5 amps per stop/turn light (1 per side) or 7.5 amps for tail lights, whichever is lower than your vehicle's towing manufacturer rating. Overloading can cause fires.
No. You must use only the relays included with the product. Using different relays can result in the unit not functioning or may damage the vehicle and/or trailer.
Test the installation with a test light or trailer once connected. All connections must be complete for the T-Connector to function properly.
