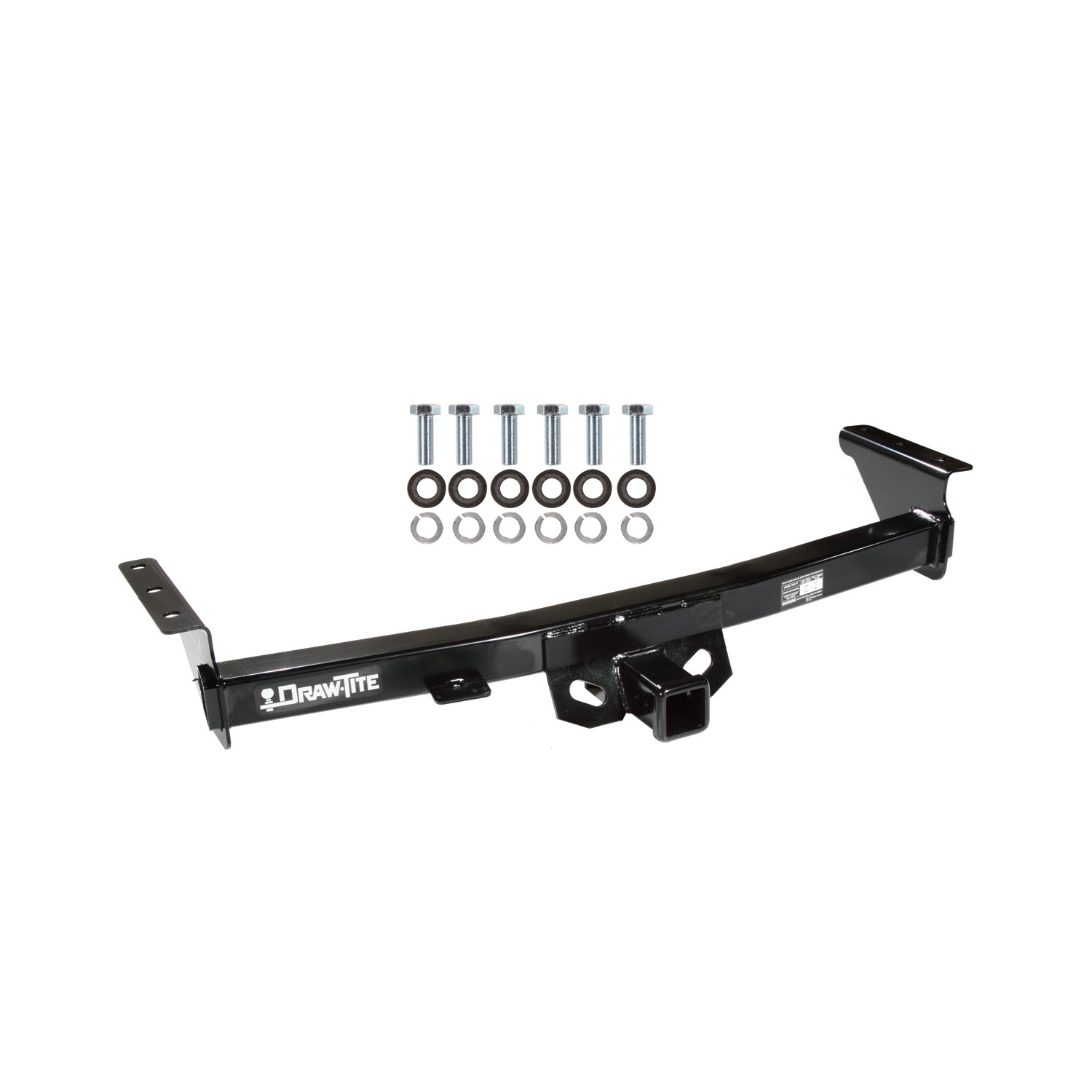

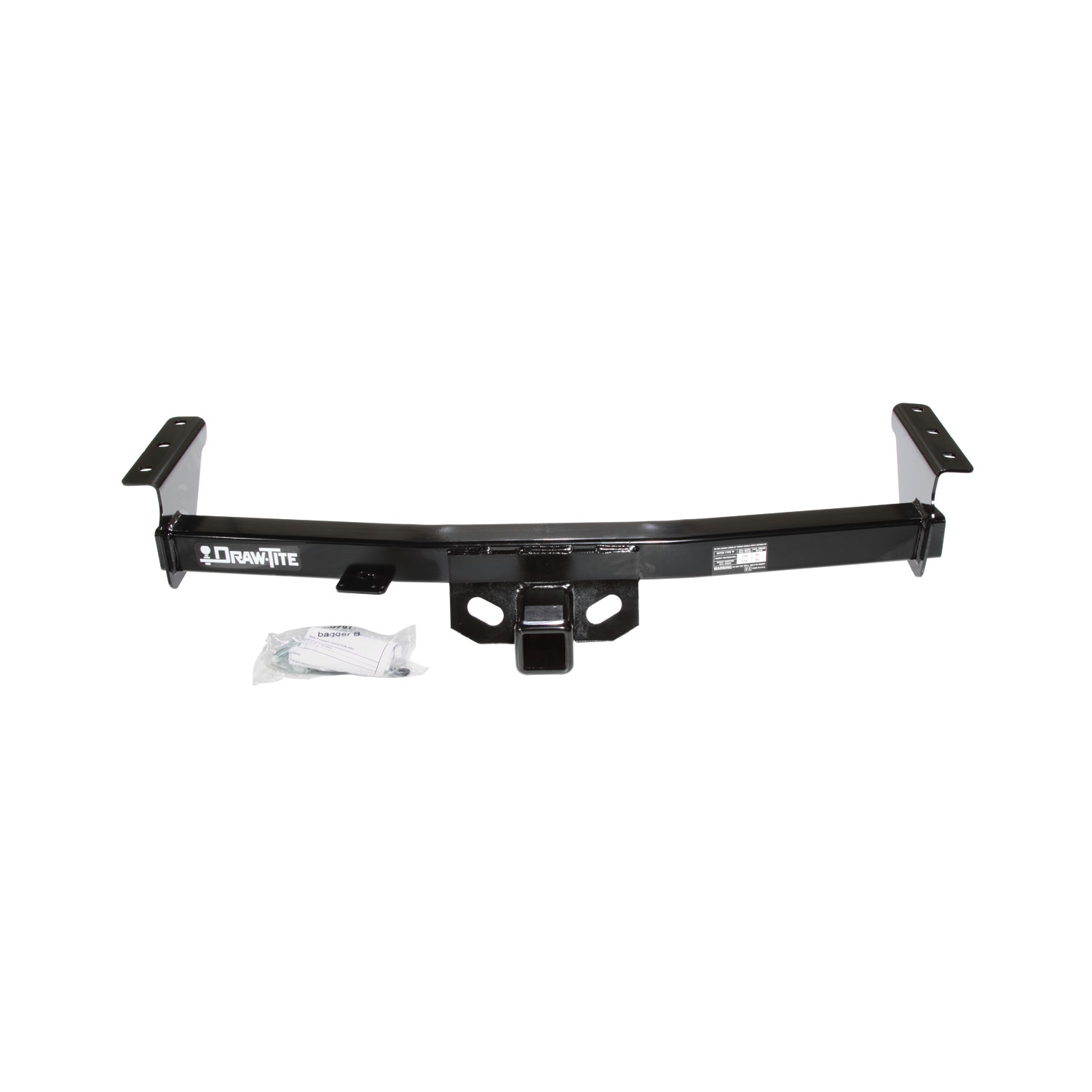

These durable custom hitches are manufactured for 2005-2023 Nissan Frontier, 2009-2012 Suzuki Equator and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2024 | Nissan Frontier | — |
Yes, the 2005-2024 Nissan Frontier Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75282-118525) is designed to fit the 2005-2024 Nissan Frontier.
The 2005-2024 Nissan Frontier Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75282-118525) fits the following vehicles: 2005-2024 Nissan Frontier. Always verify your specific year, make, and model before ordering.
The 2005-2024 Nissan Frontier Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75282-118525) fits 2005-2024 Nissan Frontier models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2005-2024 Nissan Frontier Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75282-118525) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 75282 is designed for Nissan Frontier and Suzuki Equator. The manual lists model years 2005, 2007, 2008, 2009, and 2011. Confirm your vehicle year matches one of these before purchasing. The hitch requires existing frame rail weldnuts and a vertical plate (present on some models) for attachment.
Part 75282 is designed for Suzuki Equator. The manual lists model years 2005, 2007, 2008, 2009, and 2011. Confirm your vehicle year matches one of these before purchasing. The hitch requires existing frame rail weldnuts and a vertical plate (present on some models) for attachment.
Part 75282 fits Nissan Frontier and Suzuki Equator model years 2005, 2007, 2008, 2009, and 2011. Verify your vehicle year before purchasing.
The hitch supports two configurations: Weight Distributing with 8,000 lb (3,632 kg) maximum gross trailer weight and 800 lb (363 kg) maximum tongue weight; Weight Carrying with 5,000 lb (2,270 kg) maximum gross trailer weight and 750 lb (341 kg) maximum tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch type rating.
Maximum tongue weight is 800 lb (363 kg) for Weight Distributing configuration or 750 lb (341 kg) for Weight Carrying configuration. Do not exceed the lower of your vehicle manufacturer's rating or the hitch rating.

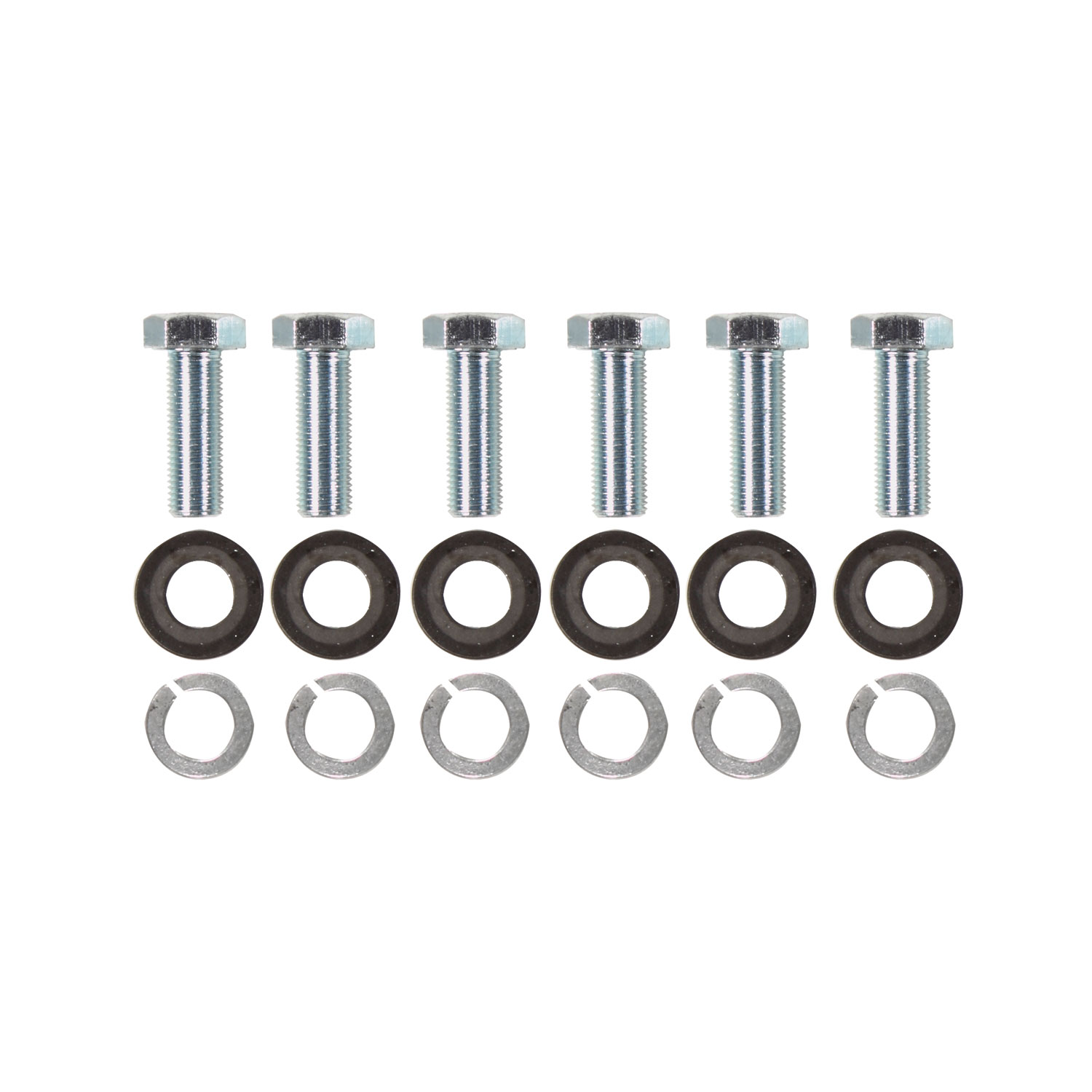

Fastener kit 75282F includes 6 hex bolts M12 × 1.25 × 35mm, 6 flat washers, and 6 lock washers. These fasteners are used on both sides of the hitch (3 bolts per side with corresponding washers).
You need a 19mm wrench and a torque wrench. No drilling is required. All fasteners are included in kit 75282F.
No drilling is required. The hitch attaches to existing frame rail weldnuts on your vehicle.
The vehicle must have existing frame rail weldnuts and a vertical plate (present on some models). The hitch is positioned at wiring access location PU3. Observe safety precautions when working beneath the vehicle and wear eye protection.
1. Raise the hitch into position. 2. Install the 6 hex bolts M12 × 1.25 × 35mm with flat washers and lock washers as shown in the diagram (3 bolts per side). 3. Tighten all M12 CL8.8 fasteners with a torque wrench to 68 lb-ft (92 N·m). The fasteners attach to existing frame rail weldnuts.
Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m) using a torque wrench.
The hitch uses 6 hex bolts M12 × 1.25 × 35mm (metric 12mm diameter, 1.25mm pitch, 35mm length). All bolts are grade CL8.8 and must be tightened to 68 lb-ft (92 N·m).
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that all 6 bolts remain at 68 lb-ft (92 N·m) torque. Inspect the hitch for any damage before use.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safety and prevent loosening.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and contamination of the vehicle interior.

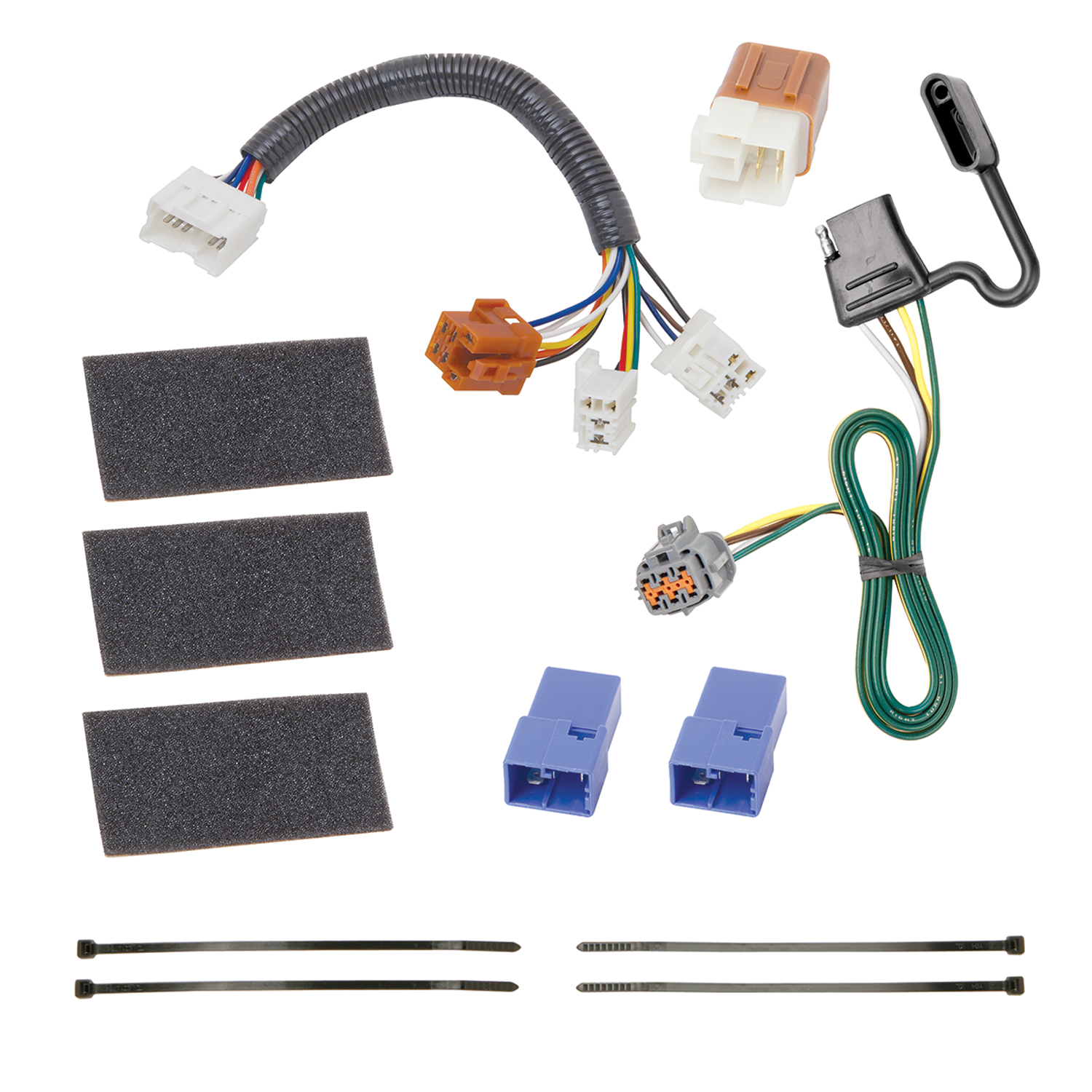

Yes, the 118525-037 T-Connector is designed for Nissan Pathfinder, Xterra, Frontier, and Equator vehicles. The installation instructions include location diagrams specific to each model. However, your vehicle must have a 12-pin jumper plug in the passenger side cab (behind the kick panel) and a 6-pin trailer harness connector under the vehicle behind the rear bumper on the driver's side for this product to be compatible.
You will need a trim panel puller and a test probe. The trim panel puller is used to remove the passenger side floor sill and kick panel without damaging the panel fasteners. The test probe is used to verify the installation after completion. All other required components—relays, cable ties, and foam tape—are included with the product.
Yes, relays are included with the product. You must use only the relays provided. The manual explicitly states that using relays that differ from those included can result in the unit not functioning or may damage the vehicle and/or trailer.
The 12-pin jumper plug is located in the vehicle cab on the passenger's side, behind the kick panel. To access it, you will need to use a trim panel puller to temporarily remove the passenger side floor sill by pulling upwards first, then out towards the rear of the vehicle, and then remove the passenger side kick panel.
The gray 6-pin trailer harness connector is located under the vehicle, behind the rear bumper on the driver's side, along the frame rail. You will need to remove the protective cap from the connector before connecting the T-Connector.
Use a trim panel puller to temporarily remove the passenger side floor sill. First pull upwards (1), then pull out towards the rear of the vehicle (2), being careful not to damage the panel fasteners. Once the floor sill is removed, you can access and remove the passenger side kick panel behind it.
Insert the jumper harness with relays into the vehicle's 12-pin harness and lock into place. Ensure that the connectors are fully inserted with locking tabs in place. Then secure the remainder of the jumper harness with the cable ties and foam tape provided to prevent damage, rattling, and to avoid any areas that would cut or pinch the wire.
Connect the T-Connector end to the vehicle's mating 6-pin connector. Be careful not to damage the locking tabs and ensure that the connectors are fully inserted with locking tabs in place. All connector surfaces should be clean and free of dirt before connecting.
Test and verify the installation with a test light or trailer once installed. All connections must be complete for the T-Connector to function properly. The manual recommends using a test probe (included in tools needed) to verify proper operation.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum 7.5 amps per stop/turn light (1 per side) and maximum 7.5 amps for tail lights. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
Wear safety glasses during installation and follow all vehicle warnings and installation instructions before beginning. Be careful not to damage panel fasteners when removing the kick panel, do not damage the locking tabs on connectors, and avoid cutting or pinching wires when securing the harness with cable ties and foam tape.
After connecting the T-Connector, replace the passenger side kick panel and floor sill into their original positions. Then test and verify the installation with a test light or trailer to confirm all connections are complete and the T-Connector is functioning properly.
Yes, cable ties and foam tape are included with the product. These are used to secure the remainder of the jumper harness to prevent damage, rattling, and to avoid any areas that would cut or pinch the wire.
Yes, the 118525-037 T-Connector is designed for these Nissan models. Your vehicle must have a 12-pin jumper plug behind the passenger side kick panel and a 6-pin trailer connector under the rear bumper on the driver's side.
You need a trim panel puller and a test probe. All other components—relays, cable ties, and foam tape—are included.
Yes, you must remove the passenger side kick panel to access the 12-pin jumper plug. Use a trim panel puller to avoid damaging the panel fasteners.
Do not exceed 7.5 amps per stop/turn light (1 per side) or 7.5 amps for tail lights, whichever is lower than your vehicle's towing manufacturer rating. Overloading can cause fires.
No. You must use only the relays included with the product. Using different relays can result in the unit not functioning or may damage the vehicle and/or trailer.
Test the installation with a test light or trailer once connected. All connections must be complete for the T-Connector to function properly.
