These durable custom hitches are manufactured for 2018-2023 Nissan Kicks and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Nissan Kicks | — |

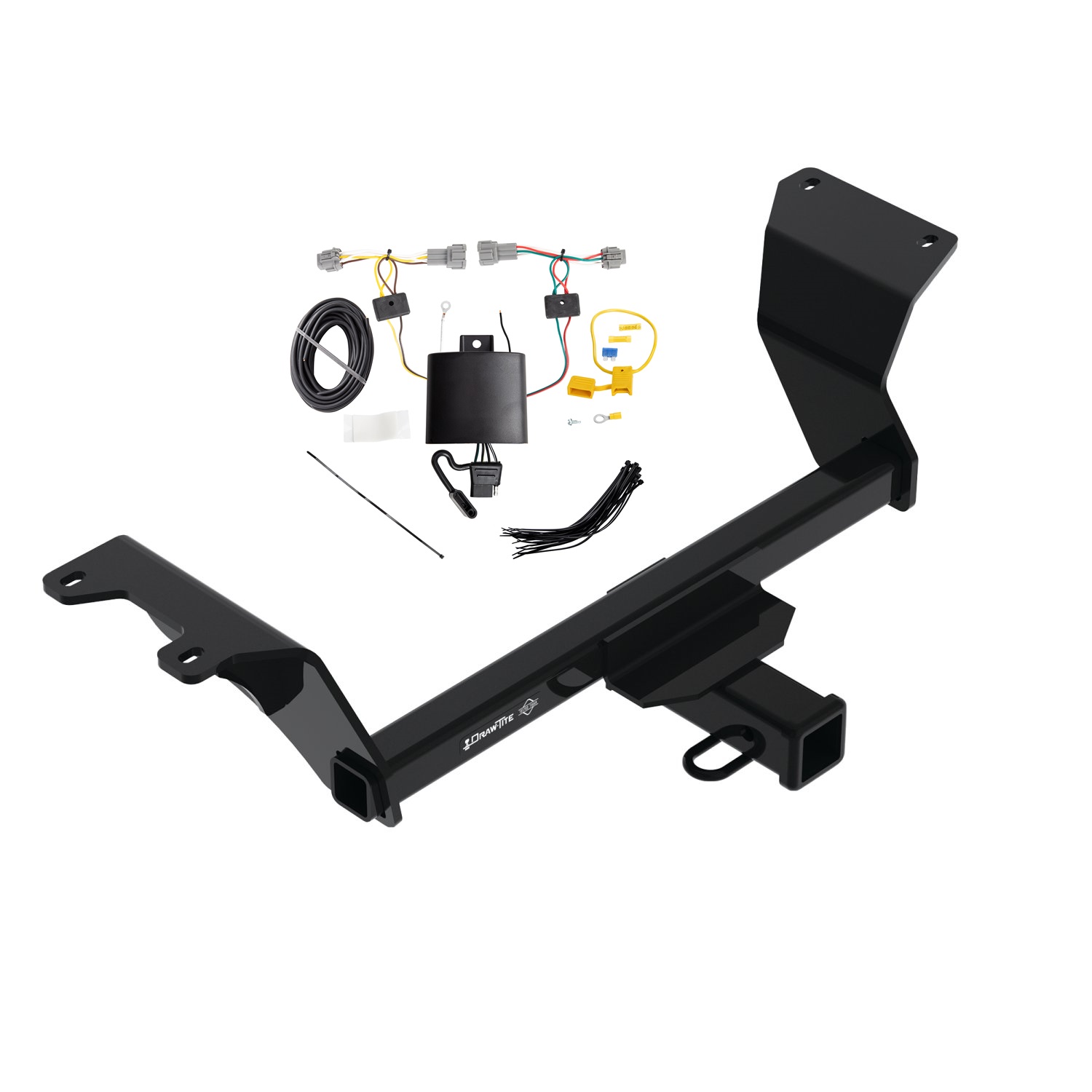

The 2018-2024 Nissan Kicks Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76518-118794) fits 2018-2024 Nissan Kicks models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2024 Nissan Kicks Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76518-118794) fits the following vehicles: 2018-2024 Nissan Kicks. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2024 Nissan Kicks Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76518-118794) is designed to fit the 2018-2024 Nissan Kicks.
The 2018-2024 Nissan Kicks Draw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76518-118794) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 76518 is a weight-carrying hitch with a maximum gross trailer weight of 2000 Lb. (907 kg) and maximum tongue weight of 300 Lb. (136 kg). Do not exceed the lower of your Nissan Kicks manufacturer's towing rating or these limits.
Yes, the 76518 is designed for 2018-Current Nissan Kicks. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com.
The installation requires lowering the muffler by removing the two rearmost rubber exhaust hangers, and the heat shield must be trimmed. The exhaust is then reinstalled to its original position. The hitch is designed to fit with the exhaust system in place, but the muffler must be supported during removal to prevent damage.
The carbon canister must be lowered during installation by removing the rearmost M8 bolt on the driver side frame, allowing the canister to hang. It is then reinstalled using the original M8 bolt after the hitch is mounted. The hitch is designed to accommodate this component.
Required tools include: ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 11/16", 15/16"), 6" socket extension, exhaust removal pliers, tape measure, marker, die grinder, and tin snips. A professional installer is recommended if you are not comfortable performing the installation yourself.
The fastener kit 76518F includes: (4) carriage bolts 7/16"-14 x 1.50 GR5, (4) spacers .250 x .875 x 3.00, (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, and (4) fish wires 7/16". These are used to attach the hitch to the frame rails.
The manual does not specify battery disconnection as a requirement for this installation.
The average installation time for professional installers is 45 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes. The forward attachment holes on both driver and passenger side frame rails must be enlarged using a die grinder to insert the carriage block and bolt. The heat shield must also be trimmed in the area marked in Figure 2 (approximately 5" x 8.5"). All dimensions are approximate; confirm fit prior to trimming.
No. Installation requires enlarging the forward attachment holes on the frame rails using a die grinder and trimming the heat shield. These are permanent modifications. The manual also requires lowering the muffler and carbon canister, though these are temporary removals reinstalled after hitch mounting.
The heat shield trim area is approximately 5" x 8.5" as marked in Figure 2. All dimensions are approximate; you must confirm fit prior to trimming.
All 7/16"-14 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M). Proper torque is needed to keep the hitch secure to the vehicle when towing.
The manual does not specify a torque value for the carbon canister M8 bolt. It is reinstalled using the original bolt that was removed in step 3.
1. Lower muffler by removing rubber exhaust hangers. 2. Remove heat shield and trim marked area. 3. Lower carbon canister. 4. Enlarge forward attachment holes on frame rails. 5. Install carriage bolts and spacers in rear and forward attachment holes using fish wire. 6. Reinstall heat shield. 7. Raise hitch into position and hand-tighten nuts and conical washers. 8. Center hitch on vehicle. 9. Tighten all fasteners to 50 Lb.-Ft. 10. Reinstall carbon canister. 11. Reinstall exhaust.
Insert the spacer block and carriage bolt into the attachment holes in the frame through the enlarged holes on both sides using fish wire. Leave the fish wires attached. This is done for both the rearward attachment holes (Figure 4) and forward attachment holes (Figure 5). The fish wire helps route the bolts through the frame before final tightening.
The conical washer must be installed with the teeth side facing toward the hitch. This is shown in Figure 1 and is critical for proper fastening.
Yes. On the passenger side, the heat shield must be sandwiched between the frame rail and the hitch during installation.
Fasteners are hand-tightened in step 7 after the hitch is raised into position and the nuts and conical washers are installed. They are then fully tightened to 50 Lb.-Ft. in step 9 using a torque wrench after the hitch is centered on the vehicle.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Be sure the exhaust is supported before removing from rubber hangers to prevent damage. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or 2000 Lb. GVWR / 300 Lb. tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Verify that the hitch is securely mounted to your vehicle periodically. If the hitch is damaged, it should be removed and replaced.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify a particular interval but emphasizes periodic checking to ensure the hitch remains securely mounted to your vehicle.
Yes, the 76518 is designed for 2018-Current Nissan Kicks. Visit www.horizonglobal.com for the most up-to-date information on specific trim levels.
Maximum gross trailer weight is 2000 Lb. (907 kg) and maximum tongue weight is 300 Lb. (136 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Yes. The forward attachment holes on frame rails must be enlarged using a die grinder, and the heat shield must be trimmed approximately 5" x 8.5". Confirm fit prior to trimming.
Required tools: ratchet, torque wrench, safety glasses, sockets (10mm, 13mm, 11/16", 15/16"), 6" socket extension, exhaust removal pliers, tape measure, marker, die grinder, and tin snips.
All 7/16"-14 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Average installation time for professional installers is 45 minutes. Professional installation is recommended if you are not comfortable performing it yourself.
Maximum tongue weight is 300 Lb. (136 kg). Do not exceed the lower of your vehicle manufacturer's rating or this limit.
Yes, the T-One T-Connector (118794-037) is designed for the Nissan Kicks. The installation instructions are specific to this vehicle model.

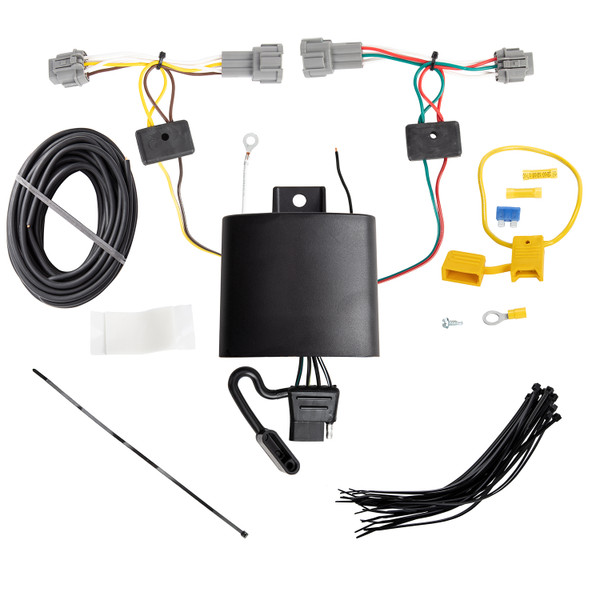

The T-One T-Connector is a trailer wiring harness that integrates with your vehicle's taillight system to provide electrical connections for towing a trailer. It uses a 4-flat connector to supply power and ground signals to the trailer.
You will need: 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. Safety glasses are also required.
The kit includes: double-sided tape for mounting the black box, a white wire with eyelet and screw for grounding, a black 12 ga. power wire, a yellow fuse holder with 15 amp fuse, a yellow butt connector, and cable ties for securing the harness. The 4-flat connector end is included but requires a separate mounting bracket or electrical box (not included).
Yes. You must disconnect the vehicle's negative (−) battery cable before connecting the power wire to the positive battery terminal. This is done in Step 10. After all connections are complete, you reconnect the negative battery cable and install the 15 amp fuse in Step 11.
Yes. You must open the rear tailgate and remove two 10mm screws on both the driver and passenger sides to remove the taillights. This gives you access to the taillight wiring harness connectors where the T-Connector plugs in. After removing the screws, carefully pull the taillights away from the vehicle without damaging the alignment pins.
Mount the black box underneath the vehicle behind the rear bumper fascia on the driver's side using the double-sided tape provided. The unit must be in a protected area where it cannot be damaged by road debris or objects driven over. The epoxy side of the module must point toward the ground to prevent water buildup. Ensure the trailer's wire harness has adequate length to reach this mounting point.
On the driver's side, route the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket, then plug it between the mating plugs on the driver's side taillight socket and vehicle wiring harness (Step 5). On the passenger's side, route the T-Connector end with green wire up through the opening on the passenger side, avoiding hot pipes, heat shields, and the fuel tank, then plug it between the mating plugs on the passenger's side taillight socket and vehicle wiring harness (Steps 6–7). Before plugging in, ensure all connector surfaces are clean and free of dirt.
Route the 4-flat connector underneath and to the center of the vehicle, underneath the bumper. Mount the 4-flat end in an accessible location using a bracket or electrical box (not included). The manual does not specify the exact mounting location beyond 'accessible.'
Yes. You must drill one 3/32" hole to secure the white ground wire using the eyelet and screw provided. Locate a suitable grounding point near the connector on the vehicle's frame or crossmember. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
The T-One T-Connector uses a 15 amp fuse. The fuse is installed in the yellow fuse holder provided in the kit and is connected between the black 12 ga. power wire and the vehicle's positive battery terminal.
The power wire is black 12 ga. (12 gauge). The ground wire is white. The T-Connector harness ends are color-coded: yellow wires on the driver's side taillight connection and green wires on the passenger's side taillight connection.
Route the black 12 ga. power wire from the T-Connector box along the exterior frame or follow existing wiring along the thresholds into the engine compartment up to the battery, avoiding areas that may pinch or break the wire. Disconnect the vehicle's negative (−) battery cable. Attach the ring terminal to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder (which contains the 15 amp fuse) to the black 12 ga. wire using the yellow butt connector provided. Reconnect the negative battery cable and install the 15 amp fuse into the fuse holder.
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Clean dirt and rustproofing from the area. Drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed.
Always wear safety glasses during installation. Read and follow all warnings and cautions printed on the tow vehicle's battery. Do not exceed the lower of the towing manufacturer's rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. When routing wires, avoid hot pipes, heat shields, the fuel tank, and any areas that may pinch or break the wire. Do not drill into the vehicle floor, bed, or exposed surfaces. Overloading circuits can cause fires.
All connections must be complete for the T-One T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. When routing the black power wire, follow the exterior frame or existing wiring along the thresholds, avoiding hot pipes, heat shields, the fuel tank, and any points that may pinch or break the wire.
Yes. Before separating and connecting the taillight wiring harness, ensure all connector surfaces are clean and free of dirt. This ensures proper electrical contact.
Yes, the T-One T-Connector (118794-037) is designed specifically for the Nissan Kicks.
You need: 10mm socket/ratchet or wrench, drill with 3/32" bit, 1/4" socket, wire crimpers, wire cutters, Phillips screwdriver, test probe, and safety glasses.
Yes, disconnect the negative battery cable before connecting the power wire to the positive terminal in Step 10. Reconnect it after all connections are complete.
The T-One T-Connector uses a 15 amp fuse, installed in the yellow fuse holder provided.
Do not exceed the lower of the towing manufacturer's rating (in your vehicle owner's manual) or the specific amperage ratings stated on the product. Refer to your vehicle's owner's manual for the towing capacity.
Verify that all connections are complete. Check that: (1) the yellow-wire end is properly plugged between the mating plugs on the driver's side taillight socket and vehicle harness, (2) the green-wire end is properly plugged between the mating plugs on the passenger's side taillight socket and vehicle harness, (3) the white ground wire is securely fastened to the frame or crossmember with the eyelet and screw, (4) the black power wire is connected to the vehicle's positive battery terminal via the fuse holder with the ring terminal, (5) the negative battery cable is reconnected, and (6) the 15 amp fuse is installed in the fuse holder. Reset the vehicle's electrical system by temporarily removing the key from the ignition and test again with a test light or trailer.
