These durable custom hitches are manufactured for 2007-2014 Toyota FJ Cruiser and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2014 | Toyota FJ Cruiser | — |

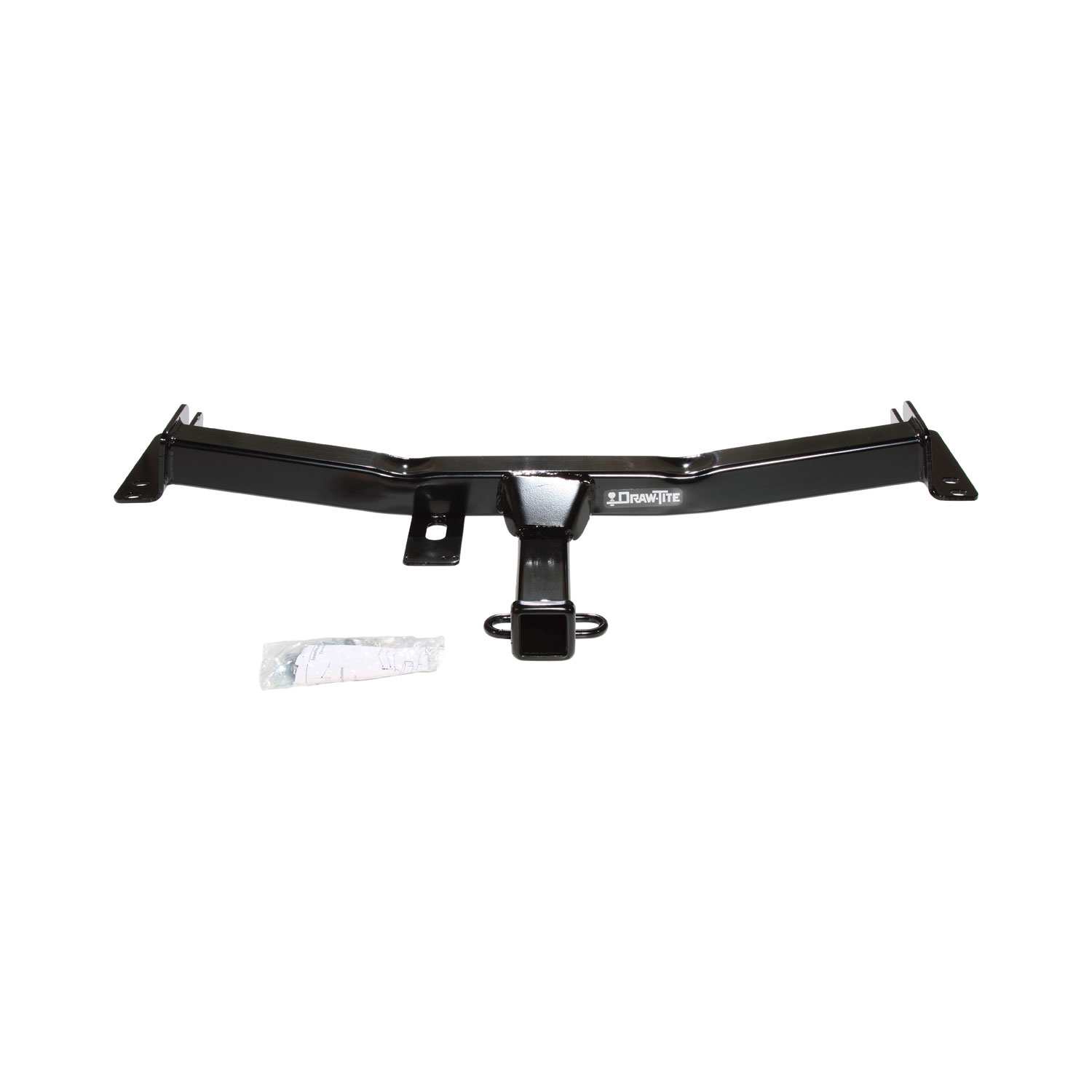

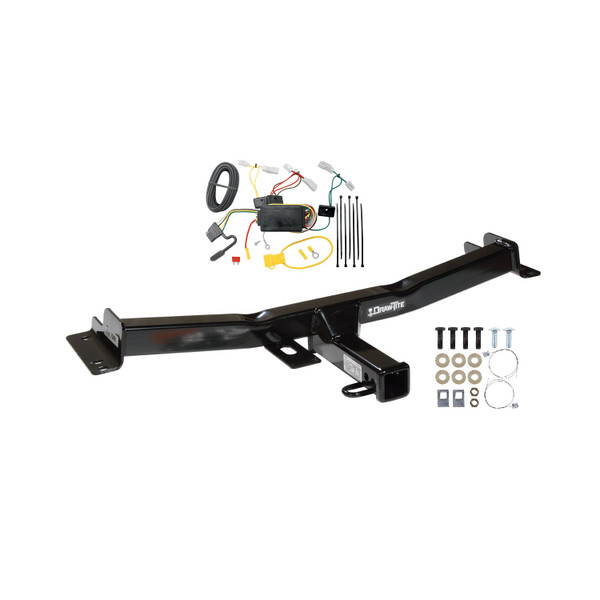

The 2007-2014 Toyota FJ Cruiser Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75461-118405) fits 2007-2014 Toyota FJ Cruiser models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2007-2014 Toyota FJ Cruiser Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75461-118405) fits the following vehicles: 2007-2014 Toyota FJ Cruiser. Always verify your specific year, make, and model before ordering.
Yes, the 2007-2014 Toyota FJ Cruiser Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75461-118405) is designed to fit the 2007-2014 Toyota FJ Cruiser.
The 2007-2014 Toyota FJ Cruiser Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75461-118405) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 44545, 75461, and 87412 are designed for the Toyota FJ Cruiser. These are the hitch components for this vehicle.
The hitch has two capacity ratings depending on the type: Weight Distributing hitch supports a maximum gross trailer weight of 6,000 lb and tongue weight of 600 lb. Weight Carrying Ball Mount supports a maximum gross trailer weight of 5,000 lb and tongue weight of 500 lb. Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.

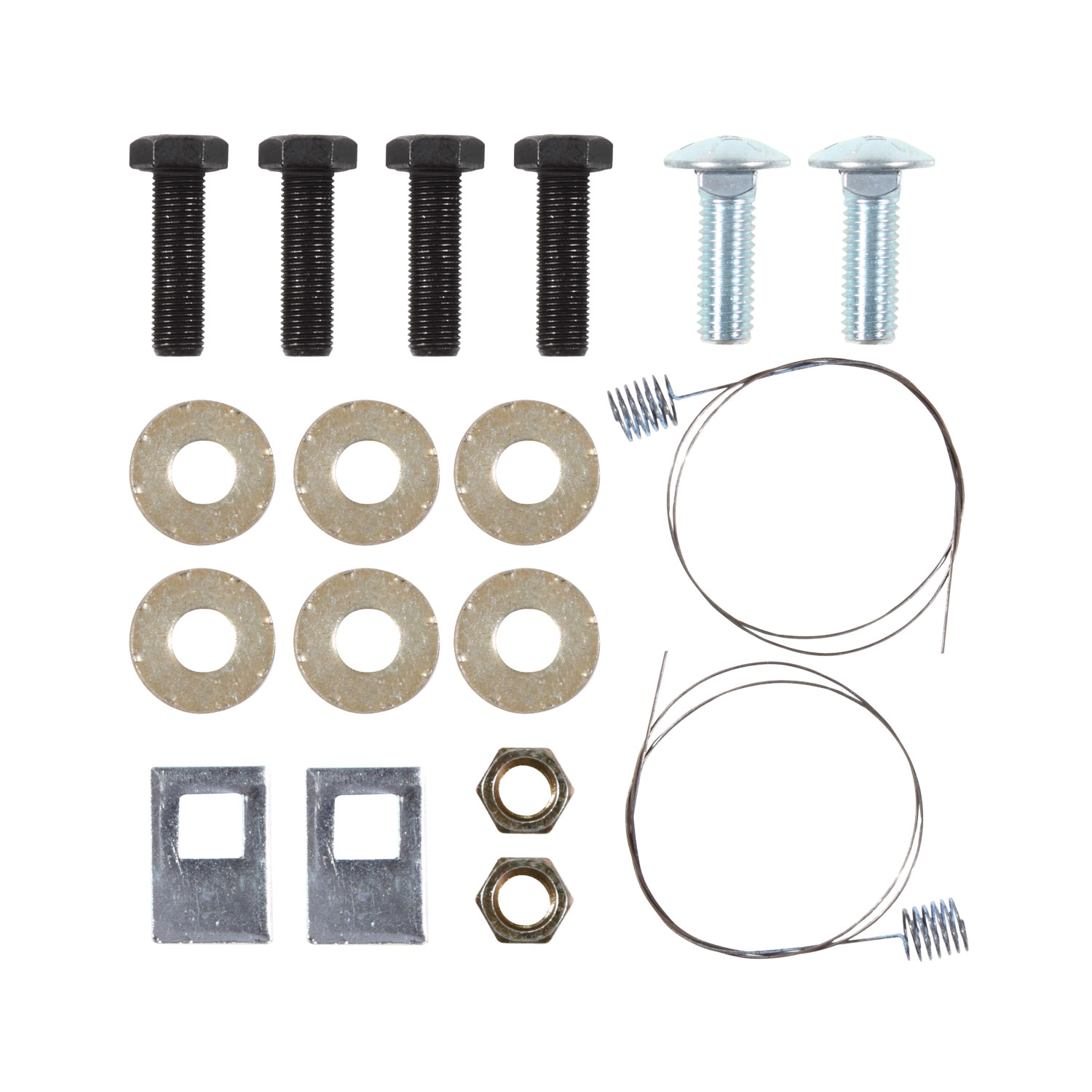

You will need wrenches in 19mm and ¾ inch sizes, and a torque wrench. The fastener kit 38066F is also required and includes all bolts, washers, nuts, and blocks needed for installation.
If a tie-down bracket is present on the vehicle frame rail, you must remove it and discard the bolts. The tie-down bracket will be re-attached using the new hardware included in the fastener kit.
The pull wire is used to feed the carriage bolt and block through the slots in the side of the frame rails. This allows you to position these components without having to access them from underneath the vehicle.
Yes, when raising the hitch into position, you must lift the bumper mounting bracket over the fascia where needed. This allows the hitch to be properly positioned before securing it with M12 bolts and conical washers.
Yes. Step 4 requires you to hand-tighten all bolts first. Only after all bolts are hand-tightened should you use the torque wrench to tighten them to the specified values.
All M12 CL10.9 fasteners must be tightened with a torque wrench to 75 Lb.-Ft.
All 1/2-13 GR5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft.
The blocks are 1 inch by 1.5 inches. Two blocks are included in the fastener kit and are fed through the frame rail slots using the pull wire.
Four M12 hex bolts are included. These are used to secure the hitch to the existing weld nuts on the frame.
Six conical washers are included in the fastener kit. These are used with the M12 bolts to secure the hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to push the bolts into the frame when installing. Work on a level surface and use appropriate lifting equipment if needed.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted and that no bolts have loosened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, part numbers 44545, 75461, and 87412 are designed for the Toyota FJ Cruiser.
You need 19mm and ¾ inch wrenches and a torque wrench. Fastener kit 38066F is included.
Both M12 CL10.9 and 1/2-13 GR5 fasteners are tightened to 75 Lb.-Ft.
If present, remove the tie-down bracket from the frame rail and discard its bolts. It will be re-attached with new hardware.
Wear eye protection, work safely beneath the vehicle, and do not cut holes with a torch. Do not push bolts into the frame. Check all fasteners frequently after installation.

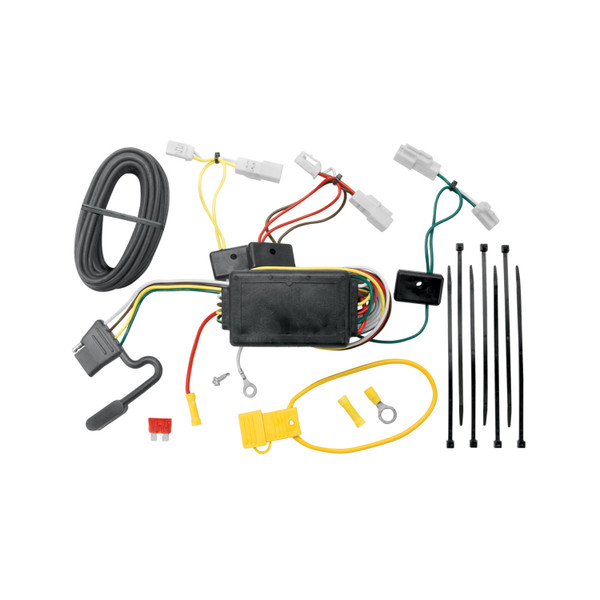

The T-Connector is a trailer wiring adapter that allows you to connect a trailer to your vehicle's electrical system. It taps into your vehicle's existing taillight wiring to provide power for trailer lights. The product includes a black box connector, wiring harnesses with colour-coded wires (red, yellow, green, black, and white), a fuse holder with a 10 amp fuse, butt connectors, an eyelet, a screw, foam-padded tape, double-sided tape, and cable ties.
The T-Connector 18405-037 is designed for Mazda 6 Sedan and Coupe, Toyota Camry, Mazda CX-7, and Toyota FJ Cruiser. Each vehicle has specific installation instructions. If your vehicle is not listed, this product will not fit.
Yes. The Toyota FJ Cruiser has significantly different installation instructions that begin on page 4 of the manual. The FJ Cruiser installation involves removing the jack storage compartment door, threshold plate, trim panels, and access panels. If your vehicle is equipped with an optional subwoofer unit on the passenger side, additional removal steps are required. The wiring connection points and routing are also different from the other supported vehicles.
You will need: a drill with a 3/32" drill bit, a Phillips head screwdriver, a 10mm socket and ratchet or 10mm wrench, wire crimpers, wire cutters, and a trim panel remover tool. These tools are required for the standard installation on Mazda 6, Toyota Camry, and Mazda CX-7. The Toyota FJ Cruiser installation requires the same tools.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery cable. This is done in step 7 of the installation. After all wiring connections are complete, you reconnect the negative battery cable in step 8 and install the 10 amp fuse.
Drilling is required only for the grounding connection (step 5). You must drill a 3/32" hole to secure the white ground wire using the supplied eyelet and screw. However, if your vehicle has an existing ground stud, you can use that instead by loosening the bolt, placing the screw eyelet on the stud, and re-tightening the bolt. Before drilling, you must verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Yes, depending on your vehicle. For Toyota Camry and Mazda CX-7, you must carefully slit a rubber grommet to route the black 12 gauge wire out underneath the vehicle. For Mazda 6 Sedan and Coupe, the wire is routed through the taillight socket opening instead. For Toyota FJ Cruiser, you must cut a hole in the rubber grommet located near the wheel well to route the black wire through.
The T-Connector uses colour-coded wires for different functions: Red wire connects to the driver's side taillight for stop/turn signals; Yellow wire connects to the driver's side taillight for additional stop/turn signals; Green wire connects to the passenger's side taillight for stop/turn signals; Black wire connects to the vehicle's positive battery through a 10 amp fuse for power; White wire is the ground connection to the vehicle's chassis or frame.
The 10 amp fuse protects the circuit from overload. It is installed in the yellow fuse holder provided with the T-Connector. The fuse holder is connected between the black 12 gauge wire (which runs from the vehicle's positive battery terminal) and the black wire from the T-Connector black box. The fuse must be installed in step 8 after all other connections are complete.
Approximately 2 feet (0.60 meters) of black 12 gauge wire is routed into the trunk area. The remaining wire is routed through the opening in the taillight socket and behind the bumper (for Mazda 6), or out underneath the vehicle (for Toyota Camry and Mazda CX-7), or along the frame rail and through a grommet near the wheel well (for Toyota FJ Cruiser).
The T-Connector has the following maximum load limits: Max. stop/turn light: 1 per side (2.1 amps); Max. tail lights: (4.2 amps). Do not exceed the lower of your towing manufacturer's rating or these limits. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information about your specific towing capacity.
After installation is complete, test and verify the installation with a test light or by connecting an actual trailer. All connections must be complete for the T-Connector to function properly. The manual emphasizes that testing is essential before using the T-Connector with a trailer.
After installation, verify that: all wiring connectors are fully inserted with locking tabs in place; the taillight housing is properly seated on its alignment tab (Mazda 6); the black wire is positioned between the taillight housing gasket and foam-padded tape (Mazda 6); all cable ties are secure and wires are protected from pinching or cutting; the T-Connector black box is securely mounted with double-sided tape; the 10 amp fuse is installed in the fuse holder; the negative battery cable is reconnected; and the installation functions properly with a test light or trailer.
The T-Connector black box is mounted on the driver's side on the floor of the rear cargo area. The area must be cleaned with a mixture of rubbing alcohol and water before mounting. The black box is secured using the double-sided tape provided with the T-Connector. After mounting, the trunk threshold and felt trunk liner are replaced.
The black 12 gauge wire must be routed carefully from the vehicle's positive battery terminal to the T-Connector black box. You must avoid hot pipes, heat shields, the fuel tank, and any other points that may pinch or break the wire. For Mazda 6, Toyota Camry, and Mazda CX-7, the wire is routed underneath the bumper and into the engine compartment. For Toyota FJ Cruiser, the wire is routed from the front of the vehicle along the frame rail rearward to the rear driver's side, then through a rubber grommet near the wheel well.
No. Only the Mazda 6 Sedan and Coupe require removal of the driver's side taillight housing. For Toyota Camry and Mazda CX-7, the taillight housing is not removed; instead, you access the wiring through the trunk area and route the black wire through a rubber grommet. For Toyota FJ Cruiser, the taillight connectors are accessed by removing interior trim panels and access panels, but the taillight housing itself is not removed.
The foam-padded tape is applied to the driver's side taillight socket area (Mazda 6 only) to cover any sharp edges on the sheet metal. The black 12 gauge wire is positioned between the taillight housing gasket and the foam-padded tape to protect the wire from being pinched or damaged. The area must be cleaned with a mixture of rubbing alcohol and water before applying the tape.
The yellow butt connector is used to join two wires together. In the T-Connector installation, it is used in two places: (1) to connect the black 12 gauge wire and the red wire from the T-Connector black box (step 4), and (2) to connect the fuse holder to the black 12 gauge wire from the battery (step 7). The yellow butt connector is supplied with the T-Connector kit.
The T-Connector has separate harnesses with colour-coded wires that plug into the vehicle's existing taillight connectors. On the driver's side, attach the T-Connector harnesses containing the red and yellow wires to the connection points on the back of the driver's side taillight housing. On the passenger's side, attach the T-Connector harness containing the green wire to the connection points on the back of the passenger's side taillight housing. Ensure that all connectors are fully inserted with locking tabs in place. For Toyota FJ Cruiser, the connections are made to the vehicle's 3-pin and 2-pin rear tail lamp connectors.
The 4-flat connector should be stored in the rear cargo area (trunk) when not in use. This keeps it protected and readily available when you need to connect a trailer.
The cable ties are used to secure the remainder of the T-Connector harness to prevent damage or rattling. They must be applied carefully to avoid any areas that would cut or pinch the wire. Proper cable tie placement protects the wiring from being damaged during vehicle operation.
If your Toyota FJ Cruiser is equipped with an optional subwoofer unit on the passenger side, you must remove it before installing the T-Connector. The subwoofer removal involves: removing the access panel below the subwoofer; removing the front trim/grill assembly (8 clips); removing four 10mm bolts (an extension is needed for the two upper bolts); disconnecting the wiring harness; and carefully removing the subwoofer unit. After the T-Connector installation is complete, you must reinstall the subwoofer unit and ensure its connection plug is fully inserted.
For Toyota FJ Cruiser: (1) Locate the trailer wiring harness on the driver's side and route the red and yellow wire harnesses behind the trim panel to the access panel location; (2) Locate the vehicle's 3-pin rear tail lamp connector, separate it, and plug the red wire harness between the separated halves; (3) Locate the vehicle's 2-pin rear tail lamp connector, separate it, and plug the yellow wire harness between the separated halves; (4) Route the green wire harness to the passenger's side by routing it out of the driver's side trim panel, along the rear threshold area, behind the passenger's side trim panel, to the access panel location; (5) Repeat the 2-pin connector connection using the green wire harness on the passenger's side.
On the Toyota FJ Cruiser, the white ground wire with the ring terminal is connected to the bolt on the left side of the jack inside the jack storage compartment. You remove the bolt using a 10mm socket, place the ring terminal on the bolt, and re-tighten the bolt to secure the ground connection.
Yes. Disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery terminal. Reconnect it after all wiring is complete and the 10 amp fuse is installed.
The T-Connector uses a 10 amp fuse installed in the yellow fuse holder provided. This fuse protects the circuit from overload. Do not exceed the maximum load limits: 1 stop/turn light per side (2.1 amps) or max. tail lights (4.2 amps).
Max. stop/turn light: 1 per side (2.1 amps); Max. tail lights: (4.2 amps). Do not exceed the lower of your towing manufacturer's rating or these limits. Overloading can cause fires.
Verify that all connections are complete and fully inserted. Check that all T-Connector harnesses are properly connected to the vehicle's taillight connectors with locking tabs in place. Verify that the black 12 gauge wire is properly connected to the red wire from the T-Connector black box using the yellow butt connector. Verify that the white ground wire is properly secured to a ground point. Verify that the fuse holder is properly connected to the vehicle's positive battery terminal and that the 10 amp fuse is installed. Verify that the negative battery cable is reconnected. Test the installation with a test light or trailer to confirm proper operation.
Ensure that the black 12 gauge wire is positioned correctly between the taillight housing gasket and the foam-padded tape. Verify that the foam-padded tape is properly applied to the taillight socket area and covers any sharp sheet metal edges. Carefully replace the taillight housing, ensuring it is properly seated on its alignment tab. Replace the two 10mm nuts and tighten them securely. The taillight housing should sit flush against the vehicle body with no gaps.
For Toyota FJ Cruiser, the tail lamp plug area is very small and may be difficult to reach with your hands. Long nose pliers may be used to assist in the removal and connection of the plugs. Ensure that you are inserting the connectors straight and fully, with locking tabs properly engaged. Do not force the connectors, as this may damage the locking tabs.
