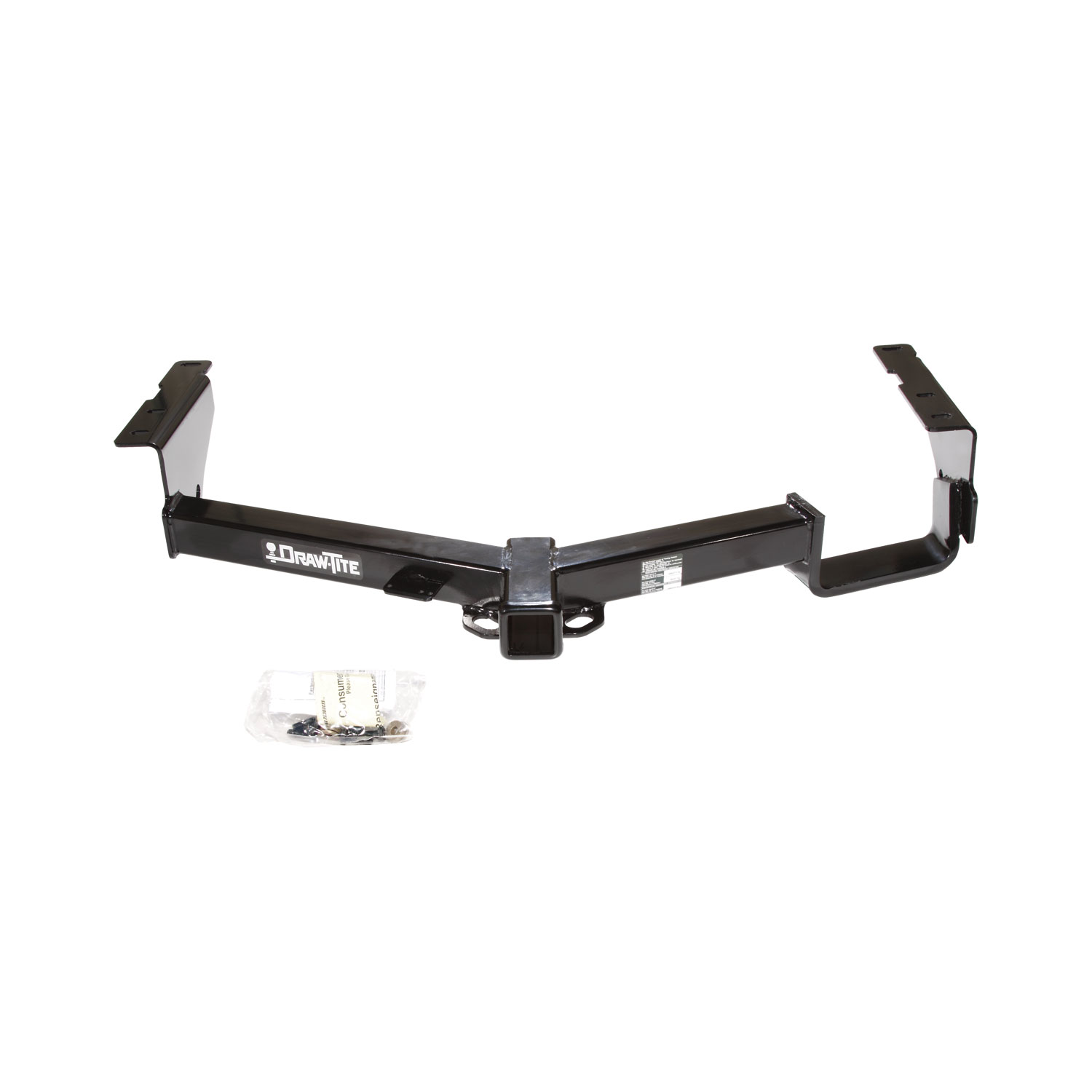

These durable custom hitches are manufactured for 2008-2013 Toyota Highlander and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2013 | Toyota Highlander | Except w/Full Size 19" Spare Tire |
The 2008-2013 Toyota Highlander Except w/Full Size 19" Spare Tire Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75586-118449) fits 2008-2013 Toyota Highlander models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2008-2013 Toyota Highlander Except w/Full Size 19" Spare Tire Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75586-118449) is designed to fit the 2008-2013 Toyota Highlander.
The 2008-2013 Toyota Highlander Except w/Full Size 19" Spare Tire Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75586-118449) fits the following vehicles: 2008-2013 Toyota Highlander. Always verify your specific year, make, and model before ordering.
The 2008-2013 Toyota Highlander Except w/Full Size 19" Spare Tire Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75586-118449) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. This hitch will not fit with a full-size 19" spare tire. If your vehicle is equipped with a full-size 19" spare, you will need to verify alternative fitment options or contact the manufacturer for compatibility.
Yes. Part number 75586 is designed for both Toyota Highlander and Toyota Highlander Hybrid vehicles. However, the hitch will not fit if your vehicle is equipped with a full-size 19" spare tire.
The maximum gross trailer weight is 5000 lb (2270 kg) and the maximum tongue weight is 500 lb (227 kg). However, you must not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating. Always verify your vehicle's towing capacity in your owner's manual.
You will need: a small flat head screwdriver, a Phillips head screwdriver, wrenches in 10mm, 14mm, and 17mm sizes, and a torque wrench. No drill bits are required because the hitch uses existing weldnuts in the vehicle frame.
Fastener kit 75586F includes 6 hex bolts (M10 x 1.25 x 30mm CL10.9) and 6 conical toothed washers (3/8"). These fasteners are installed on both sides of the vehicle frame.
Yes. You must remove the plastic appearance panels that cover the driver's and passenger's side frame rails, and remove the tow hooks from each frame rail. Return all removed panels, hooks, and their fasteners to the vehicle owner.
1. Remove the plastic appearance panels covering the driver's and passenger's side frame rails. 2. Remove the tow hooks from each frame rail. 3. Raise the hitch into position and install the fasteners as shown in the diagram. 4. Tighten all M10 x 1.25 CL10.9 fasteners with a torque wrench to 42 lb-ft (57 N·m).
All M10 x 1.25 CL10.9 fasteners must be tightened to 42 lb-ft (57 N·m) using a torque wrench.
No. This hitch installation does not require drilling. It uses existing weldnuts already present in the vehicle frame.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Perform this check regularly during the life of the hitch to maintain safe operation.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
No, this hitch will not fit with a full-size 19" spare tire.
Small flat head screwdriver, Phillips head screwdriver, 10mm/14mm/17mm wrenches, and a torque wrench. No drilling required.
All M10 x 1.25 CL10.9 fasteners must be tightened to 42 lb-ft (57 N·m) with a torque wrench.
Maximum gross trailer weight is 5000 lb (2270 kg) and maximum tongue weight is 500 lb (227 kg), but do not exceed your vehicle manufacturer's towing rating.
Yes, remove plastic appearance panels covering the frame rails and remove the tow hooks from each frame rail.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry.
Yes, the T-Connector is designed for Toyota Highlander 2008-2013 and 2014-Current models. Installation procedures differ between these model years: 2008-2013 models require accessing the 10-pin tow plug under the dash on the driver's side, while 2014-Current models have the 10-pin and 4-pin connectors located behind the rear interior trim panel. Consult your vehicle's owner's manual to confirm your model year and factory tow connector configuration.

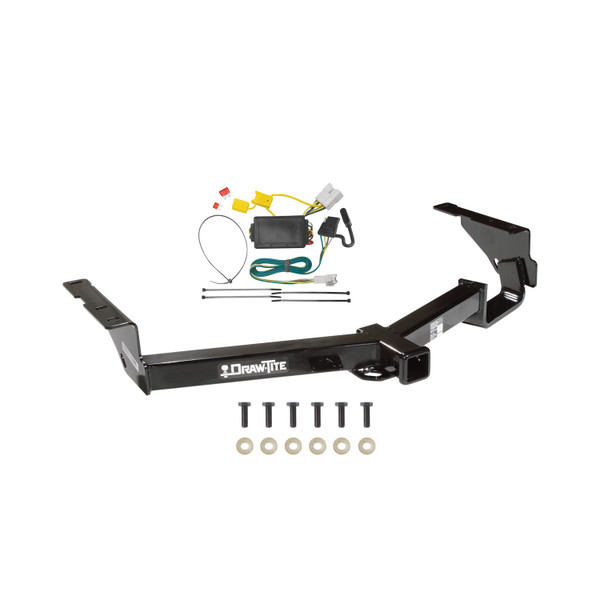

The kit includes the T-Connector black converter box, 10-pin and 4-pin tow-plug adapters, a 10A fuse, double-sided tape for mounting the converter box, and cable ties for securing the wire harness. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box. The 4-flat connector should be stored in the trunk or rear cargo area when not in use.
You will need a test-probe and a trim panel remover. The test-probe is used to verify electrical connections, and the trim panel remover is needed to safely remove interior trim panels without damage during installation.
The manual does not specify that the battery must be disconnected before installation. However, the manual does state that for the initial test after installation, you should reset the vehicle electrical system by temporarily removing the key from the ignition.
On 2008-2013 models, route the converter over to the driver's side kick panel area and mount the black box in the opening between the vehicle body and the emergency brake pedal bracket using the double-sided tape provided. Be careful to avoid areas that would cut or pinch the wire.
On 2014-Current models, locate a flat surface in an out-of-the-way place on the driver's side and mount the T-Connector's black converter box with the double-sided tape provided.
Locate the vehicle's 10-pin tow plug underneath the dash on the driver's side between the emergency brake pedal and the brake pedal. Check that the mating surfaces match, then insert the 10-pin tow plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place.
Open the vehicle's rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the vehicle's factory 4-pin tow harness connector. Check that the mating surfaces are clean and free of dirt, then insert the 4-pin tow-plug adapter and lock it into place. Be careful not to damage the locking tabs and ensure connectors are fully inserted with locking tabs in place.
Open the rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side. Locate the 10-pin connector behind the rear interior trim panel and insert the 10-pin tow-plug adapter, locking it into place. Then locate the 4-pin connector behind the rear interior trim panel and insert the 4-pin tow-plug adapter, locking it into place. Ensure all locking tabs are engaged.
After mounting the black box, use the cable ties provided to secure the remainder of the wire harness and prevent wires from being exposed underneath the dash area. Be careful to avoid any areas that would cut or pinch the wire.
After repositioning the trays, trunk floor panels and access panels and reattaching the threshold, proceed to Step 8: open the hood and locate the vehicle fuse panel on the driver's side. Consulting your owner's manual, locate the Towing Fuse location and insert the 10A fuse provided.
Use a 10A fuse only. Do not replace with any fuse that exceeds 10 amps. An additional 10 amp fuse is located on the wiring harness underneath the dash between the 10-pin tow plug and the black box.
Do not exceed the lower of your towing manufacturer's rating or the following limits: maximum stop/turn light is 1 per side (2.1 amps), and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the trunk or rear cargo area when not in use.
Yes, it fits Toyota Highlander 2008-2013 and 2014-Current models. Installation steps differ by model year.
You need a test-probe and a trim panel remover.
No, the manual does not mention drilling. The black box is mounted using double-sided tape provided, and connectors are inserted into existing factory tow plugs.
Use a 10A fuse only. Do not exceed 10 amps.
Maximum stop/turn light is 1 per side (2.1 amps) and maximum tail lights are 5.6 amps. Do not exceed the lower of your towing manufacturer's rating or these limits.
Test with a test light or trailer once all connections are complete. Reset the vehicle electrical system by temporarily removing the ignition key for the initial test.
