These dependable custom hitches are manufactured for 2008-2016 Chrysler Town Country, 2008-2020 Dodge Grand Caravan, 2012-2015 RAM C/V, 2009-2014 Volkswagen Routan and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2007 | Volkswagen Routan | — |

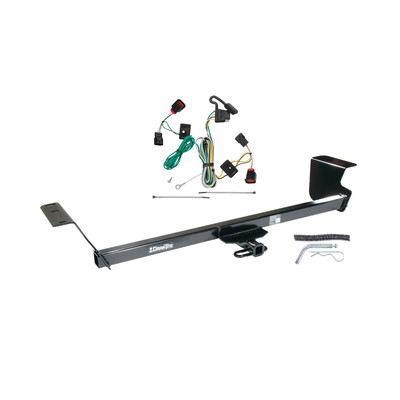

Yes, the 2009-2012 Volkswagen Routan Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36455-118490) is designed to fit the 2005-2007 Volkswagen Routan.
The 2009-2012 Volkswagen Routan Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36455-118490) fits 2005-2007 Volkswagen Routan models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2012 Volkswagen Routan Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36455-118490) fits the following vehicles: 2005-2007 Volkswagen Routan. Always verify your specific year, make, and model before ordering.
The 2009-2012 Volkswagen Routan Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB36455-118490) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

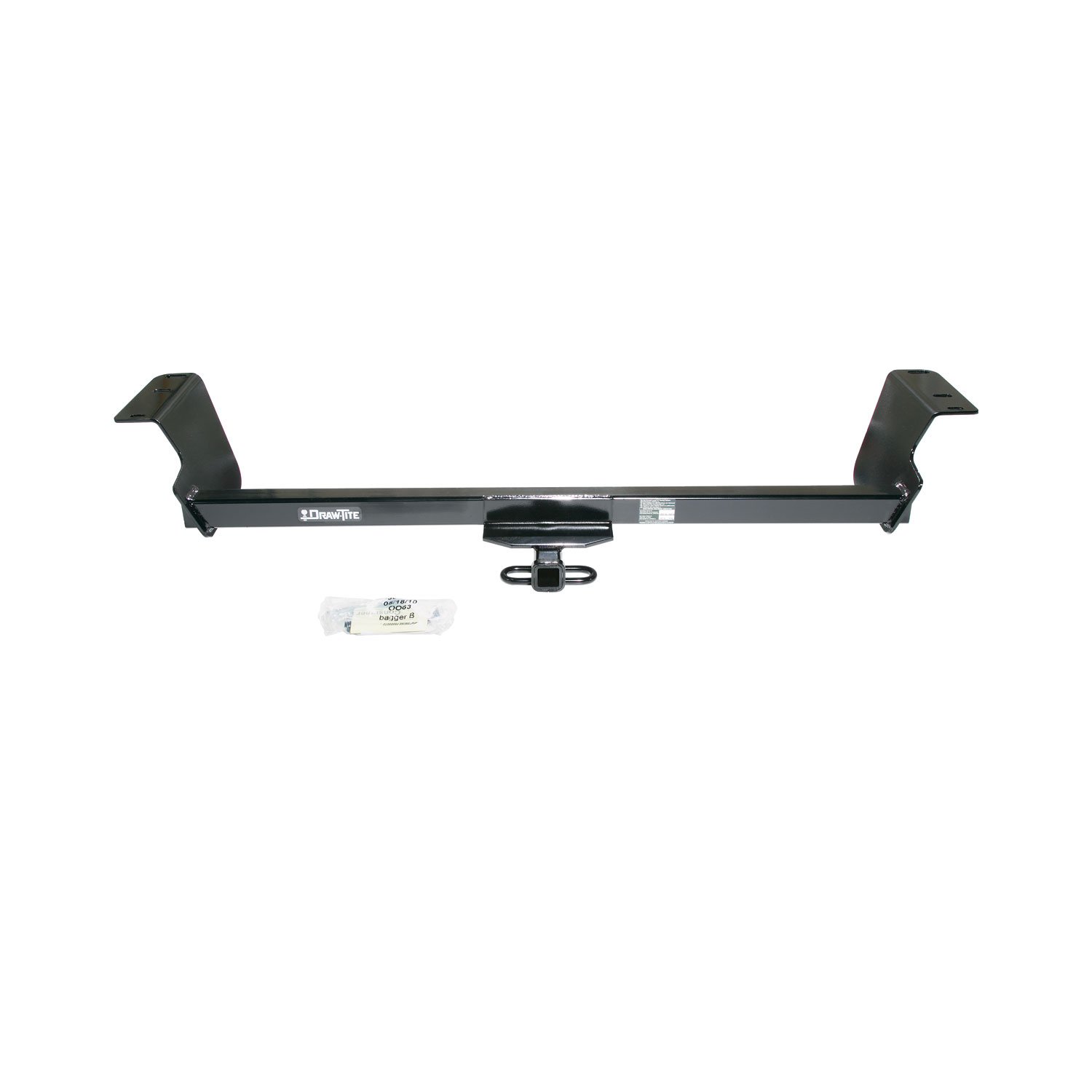

Hitch 36455 is designed for 2007, 2008, 2009, 2014, and 2015 Chrysler Town & Country, Dodge Grand Caravan, VW Routan, and RAM C/V Tradesman. Check your vehicle's year and model against this list. If your vehicle is not listed, contact the manufacturer or a fitment specialist to confirm compatibility.
The hitch 36455 is rated for a maximum gross trailer weight of 3500 lb (1589 kg) and a maximum tongue weight of 300 lb (136 kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating. Always consult your vehicle's owner manual for its specific towing capacity.
You will need wrenches in 13 mm, 15 mm, and 18 mm sizes, and a torque wrench. No drill bits are required because the hitch uses existing frame bolts on the vehicle—no new holes need to be drilled.
You do not need to fully remove the exhaust, but you must lower it first. Remove the bolt that attaches the rearmost exhaust hanger bracket to the passenger's side frame rail and retain it. After the hitch is installed and tightened, raise the exhaust back into position and reinstall that bolt. Rotating the exhaust hanger bracket before tightening will add clearance between the side bracket and exhaust if needed.
Yes. On some vehicles, air conditioning lines are very close to the hitch attachment point on the passenger's side. Be careful not to damage these lines during installation. The manual includes a plastic loom to snap in place over the AC line on the passenger's side near the bolt if present. See the installation instructions for the location and proper placement of this protective loom.
No. The hitch 36455 uses all existing bolts from your vehicle's frame rails. You will remove four existing bolts (two from the driver's side frame rail and two from the passenger's side frame rail) and reuse them to attach the hitch. A separate fastener kit 36455F is available if you need additional hardware.
1. Lower the exhaust by removing the bolt from the rearmost hanger bracket on the passenger's side frame rail. 2. Snap the plastic loom over the AC line on the passenger's side if present. 3. Remove the four existing bolts from the frame rails (two driver's side, two passenger's side). 4. Raise the hitch into position and attach with the existing bolts, hand-tightened. 5. Push the hitch toward the driver's side so the passenger's side bracket is against the trunk pan, then tighten all fasteners to specification. 6. Raise the exhaust back and reinstall the bolt removed in step 1.
Tighten all M10 CL10.9 fasteners to 53 lb-ft (72 N·m) using a torque wrench. Tighten all M12 CL10.9 fasteners to 92 lb-ft (125 N·m) using a torque wrench. These specifications apply to all frame rail attachment bolts.
After installation, check that all fasteners and the ball are properly tightened. The manual recommends checking the hitch frequently to ensure all fasteners remain tight. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering the vehicle.

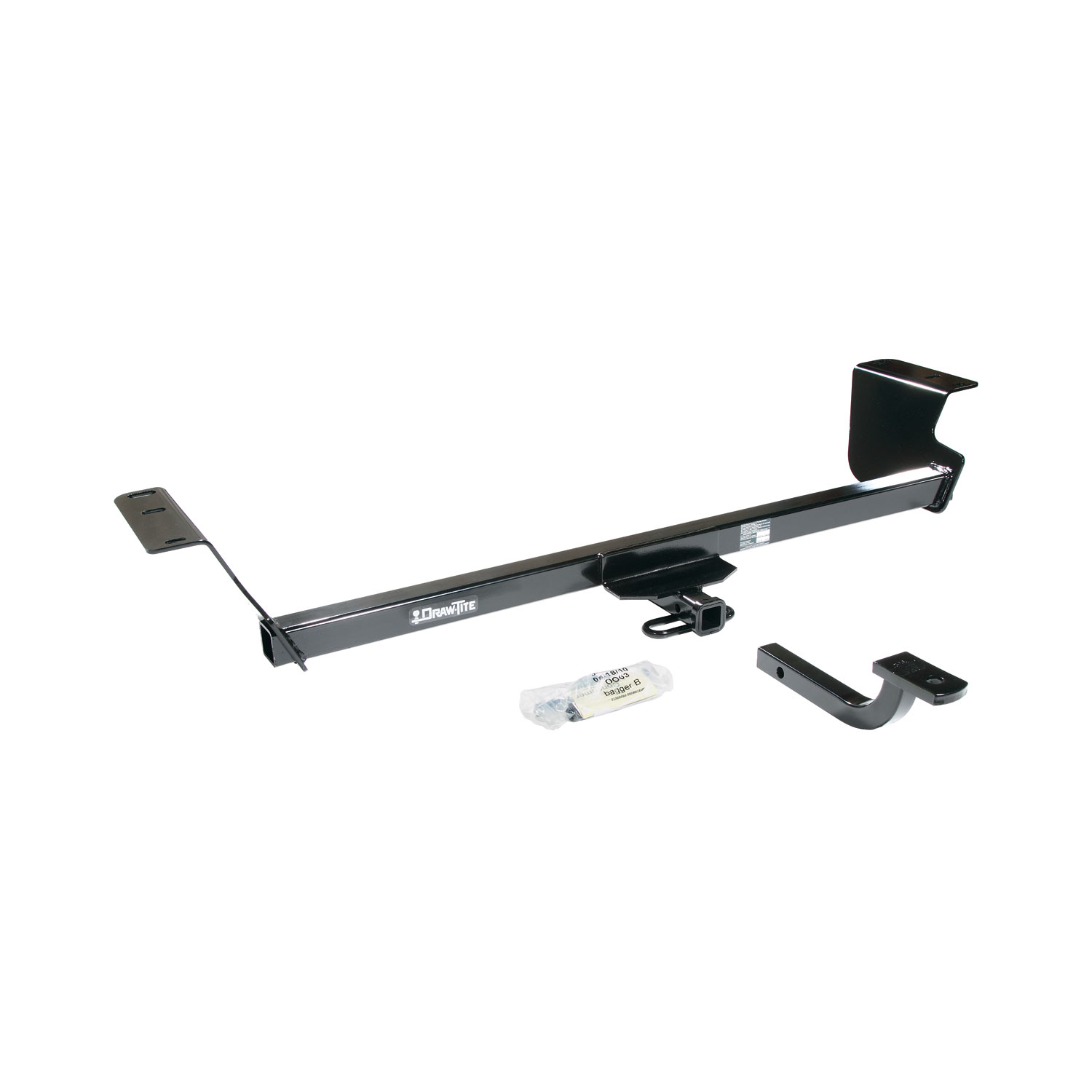

The drawbar kit 36455 (part number 36061) is sold separately and is not included with the hitch. The drawbar must be used in the Rise position only. Contact your supplier or the manufacturer to order the drawbar if needed.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection is recommended to maintain safe towing operation.
No. The hitch 36455 requires no drilling. It uses all existing bolts from your vehicle's frame rails. The equipment required list explicitly states 'Drill Bits: None'.
Pushing the hitch toward the driver's side ensures that the passenger's side bracket is fully seated up against the trunk pan. This positioning is required before tightening all fasteners to specification. This step ensures proper alignment and load distribution.
Hand-tighten the bolts first after raising the hitch into position. Then push the hitch toward the driver's side so the passenger's side bracket is against the trunk pan. Only after this positioning step should you tighten all fasteners to the specified torque values using a torque wrench.
Yes, if your vehicle is a 2007, 2008, 2009, 2014, or 2015 model year. The hitch is also compatible with Dodge Grand Caravan, VW Routan, and RAM C/V Tradesman of the same years.
You need 13 mm, 15 mm, and 18 mm wrenches, plus a torque wrench. No drill bits are required.
No. The hitch uses all existing bolts from your vehicle's frame rails. You remove four existing bolts and reuse them to attach the hitch.
M10 CL10.9 fasteners: 53 lb-ft (72 N·m). M12 CL10.9 fasteners: 92 lb-ft (125 N·m). Use a torque wrench for all fasteners.
Maximum gross trailer weight: 3500 lb (1589 kg). Maximum tongue weight: 300 lb (136 kg). Do not exceed your vehicle manufacturer's towing rating.
Wear eye protection. Do not cut holes with a torch. Work safely beneath the vehicle. Check the hitch frequently after installation to ensure all fasteners and the ball are tight.
Yes, the T-Connector (118490-037) is designed for the Volkswagen Routan. The installation instructions are specific to this vehicle model.
The T-Connector is a trailer wiring interface that connects between your vehicle's taillight wiring harness and a trailer connector. It allows you to plug in a trailer's 4-flat connector when needed, and stores in the jack storage compartment when not in use.
You will need: trim panel remover, Torx 30 driver, drill with 3/32" bit, 1/4" socket, utility knife, wire cutters, Phillips head screwdriver, and test-probe. Safety glasses are also required.
The manual does not specify whether the battery must be disconnected. Consult your vehicle's owner's manual or a qualified technician for guidance on electrical work safety.
Open the tailgate and remove the vehicle's taillight assemblies by removing the two T30 Torx head bolts on each side. Carefully pry the taillight housings rearward away from the vehicle, being careful not to break the alignment tabs.
The T-Connector end with the yellow wire goes on the driver's side. Plug it in between the mating plugs on the driver's side taillight socket and vehicle wiring harness. Ensure all connector surfaces are clean and free of dirt, and that connectors are fully inserted with locking tabs in place.
The T-Connector end with the green wire goes on the passenger's side. Repeat the same connection process as the driver's side: plug it in between the mating plugs on the passenger's side taillight socket and vehicle wiring harness, ensuring connectors are fully inserted with locking tabs in place.
Route the harness containing the green wire down the opening behind the taillight on the driver's side. Then route the harness across and underneath the vehicle behind the bumper fascia, and up through the opening behind the passenger's side taillight. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Yes, you must drill a 3/32" hole to secure the white ground wire. Locate a suitable grounding point near the connector such as the vehicle's frame or crossmember. Do not drill into the vehicle floor, bed, or any exposed surfaces. Clean dirt and rustproofing from the area before drilling. Verify what is behind any surface prior to drilling to avoid damage to the vehicle and personal injury.
Secure the white wire using the eyelet and screw provided. Drill a 3/32" hole at a suitable grounding point near the connector, such as the vehicle's frame or crossmember. Clean dirt and rustproofing from the area first. Insert the eyelet and screw through the white wire into the drilled hole.
On the driver's side, open the jack storage door and remove the jack, tools, and carpeting to gain access to the vehicle wiring and the grommet hole.
The grommet is a rubber seal on the vehicle's taillight wire harness. To install the T-Connector, you must unseat the grommet and remove it from the vehicle harness by untaping the tabs and slitting the grommet as shown in the manual. After routing the 4-flat connector through the grommet hole, place the grommet onto the T-Connector wiring between the T-Connector and the mating vehicle end, retape the tabs, and reseat the grommet into the hole.
Route the vehicle connector and the 4-flat end through the grommet hole into the jack storage area. When not in use, store the 4-flat connector in the jack storage compartment. When in use, route the 4-flat harness through the rear tailgate/door seal. Be careful not to pinch the harness in the door latch.
Secure all loose wires with cable ties. Reinstall the taillight assemblies and other items removed during installation, being careful not to pinch or cut the wires.
Do not exceed the lower of your towing manufacturer's rating or: maximum 7.5 amps for stop/turn lights, and maximum 7.5 amps for tail lights. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
All connections must be complete for the T-Connector to function properly. Test and verify the installation with a test light or by connecting an actual trailer once installed. Use the test-probe tool to verify proper electrical connections.
Before reinstalling the taillight assemblies, ensure all loose wires are secured with cable ties and that no wires will be pinched or cut when the assemblies are reattached. Verify that the grommet is properly reseated and that all connections are complete and secure.
The T-Connector has three colored wires: yellow (driver's side connection), green (passenger's side connection and harness routing), and white (ground wire). The yellow and green wires connect to the respective taillight sockets, while the white wire must be grounded to the vehicle's frame or crossmember.
Yes, the T-Connector (118490-037) is designed specifically for the Volkswagen Routan.
You need: trim panel remover, Torx 30 driver, 3/32" drill bit, 1/4" socket, utility knife, wire cutters, Phillips head screwdriver, test-probe, and safety glasses.
Maximum 7.5 amps for stop/turn lights and 7.5 amps for tail lights. Do not exceed the lower of your towing manufacturer's rating or these limits, as overloading can cause fires.
Yes, you must remove both taillight assemblies by removing the two T30 Torx bolts on each side and carefully prying the housings rearward.
Test and verify the installation with a test light or by connecting an actual trailer. All connections must be complete for proper function.
