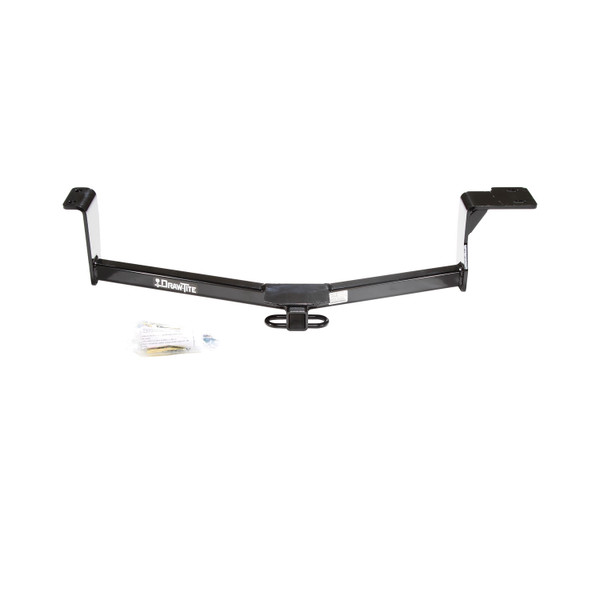

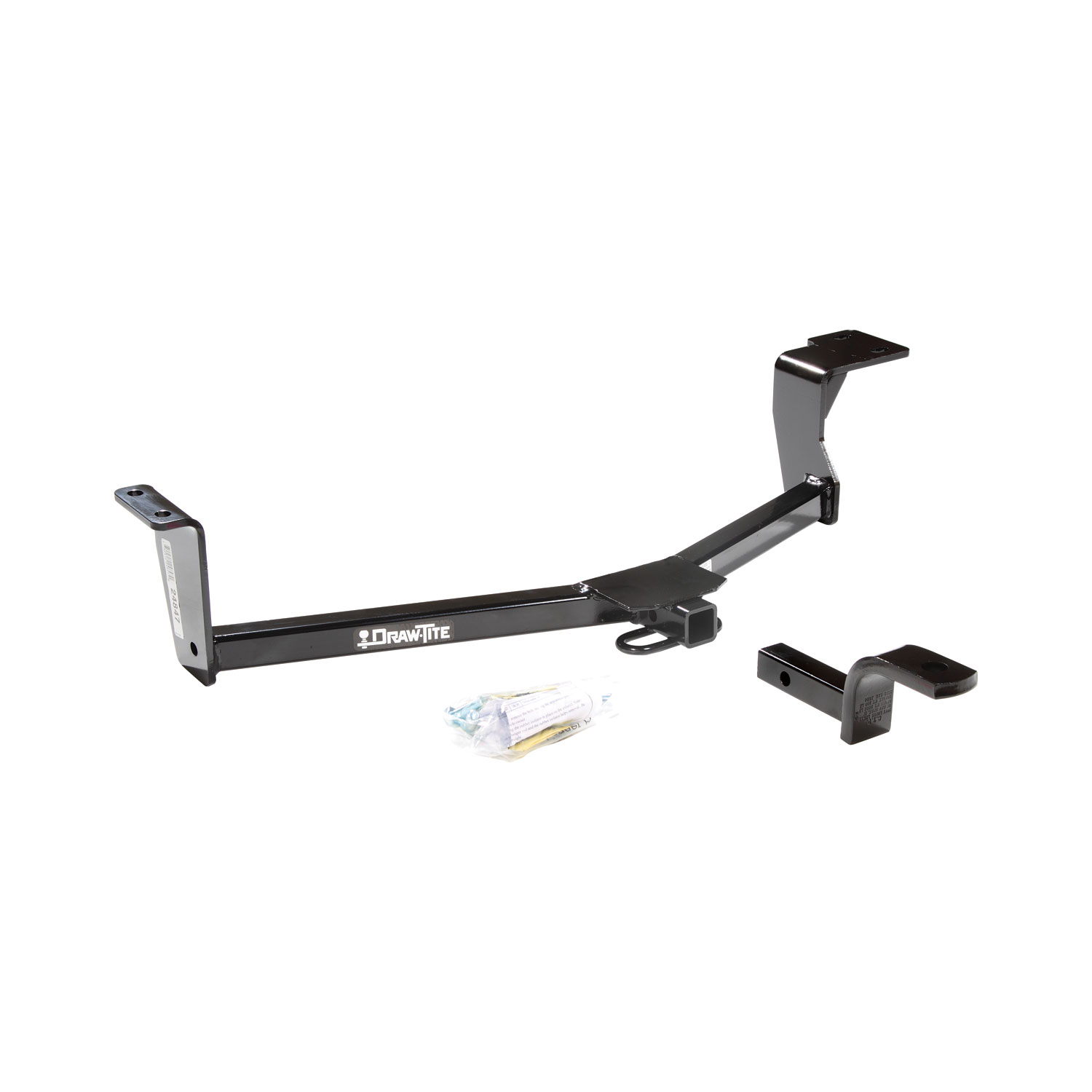

These dependable custom hitches are manufactured for 2010-2019 Toyota Prius, 2012-2017 Toyota Prius V and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions

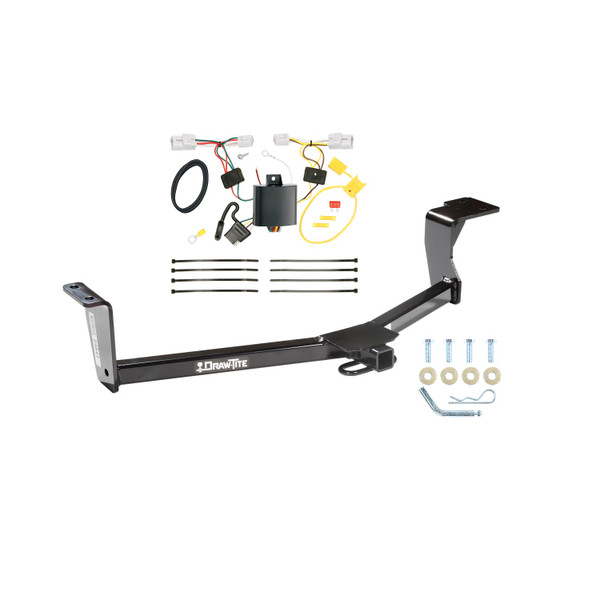

Call 888-634-9494The 2012-2017 Toyota Prius V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 24847 (Part #DTB24847-118610) fits 2018 Toyota Prius V models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2012-2017 Toyota Prius V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 24847 (Part #DTB24847-118610) is designed to fit the 2018 Toyota Prius V.
The 2012-2017 Toyota Prius V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 24847 (Part #DTB24847-118610) fits the following vehicles: 2018 Toyota Prius V. Always verify your specific year, make, and model before ordering.
The 2012-2017 Toyota Prius V Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness 24847 (Part #DTB24847-118610) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 24847 hitch is designed to fit all Toyota Prius models and all Toyota Prius V models.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.

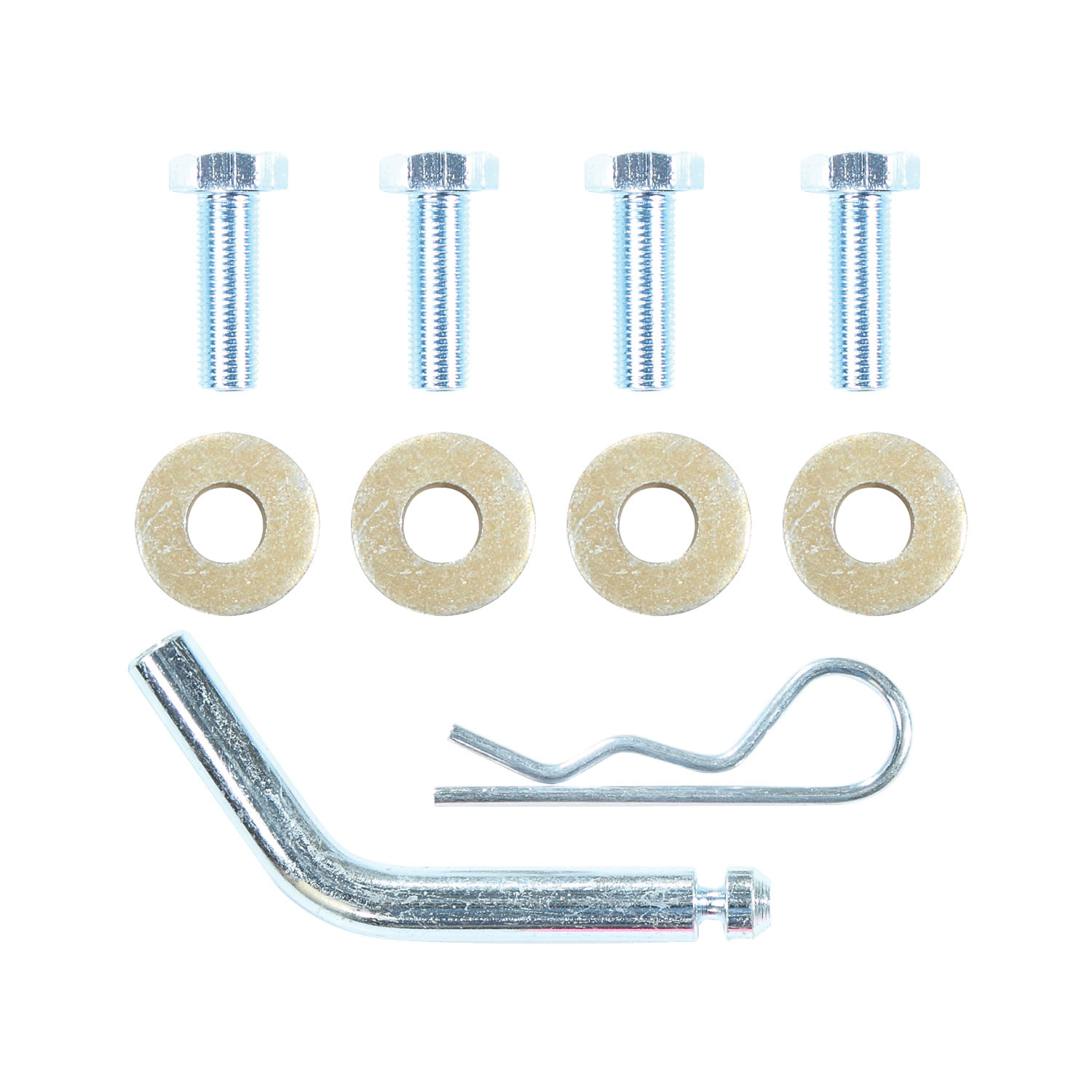

The hitch comes with 4 hex bolts M12 × 1.25 × 35 CL8.8 and 4 conical washers 1/2". These are part of fastener kit 24847F. The manual does not specify whether all fasteners are included or if additional fasteners must be purchased separately.
You will need a 6–8" ratchet extension, 17mm wrench, 19mm wrench, and a torque wrench. A jack, blocks, or second person is also required to support the hitch during installation.
No. The instructions state to remove the bolts from the tie-down hook while leaving the appearance panel in place on Prius models. The appearance panel is not removed during installation; it remains on the vehicle.
The tie-down hook and all fasteners removed from it must be returned to the vehicle owner. Do not discard them.
No, you do not need to remove the entire exhaust system. You must lower the exhaust system at the rubber isolator, leaving the rubber isolator in place on the exhaust. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. Be careful not to allow the muffler to fall under its own weight.
Two fasteners hold the rear muffler hanger. Both must be removed and returned to the vehicle owner.
1. Remove the tie-down hook on the driver's side, leaving the appearance panel in place. 2. Lower the exhaust system at the rubber isolator. 3. Remove the two fasteners holding the rear muffler hanger. 4. Raise the driver's side of the hitch through the tie-down bracket opening and rotate the passenger side through the cut-out. Support the hitch with a jack, blocks, or second person. 5. Raise the passenger side over the tail pipe, sandwiching the bracket between the frame rail and exhaust hanger bracket. Loosely install fasteners. 6. Install remaining fasteners. 7. Tighten all fasteners to 65 Lb.-Ft. (88 N·M). 8. Reinstall the exhaust.
Raise the driver's side of the hitch through the tie-down bracket opening. With the passenger side on the ground, rotate the hitch through the cut-out. The hitch must be supported (with a jack, blocks, or second person) while you raise the passenger side over the tail pipe, sandwiching the bracket between the frame rail and the exhaust hanger bracket.
No. Fasteners should be loosely installed first (step 5), then all fasteners should be tightened together to the required torque specification of 65 Lb.-Ft. (88 N·M) after all fasteners are in place (step 7).
All M12 CL8.8 fasteners must be tightened to 65 Lb.-Ft. (88 N·M) using a torque wrench.
The hitch uses 4 hex bolts with the following specifications: M12 × 1.25 × 35 CL8.8. These must be tightened to 65 Lb.-Ft. (88 N·M).
The hitch uses 4 conical washers with a 1/2" diameter.
No. The drawbar must be used in the Rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair it.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to allow the muffler to fall under its own weight when lowering the exhaust system.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. This should be done after installation and periodically during use.
No. The drawbar kit (part number 3598) is sold separately and must be purchased if you need a drawbar.
No. The fascia for Prius and Prius V is sold separately. The appearance panel is not removed during installation on Prius models; it remains in place.
Yes, the 24847 hitch fits all Toyota Prius and Prius V models.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a 6–8" ratchet extension, 17mm and 19mm wrenches, a torque wrench, and support equipment (jack, blocks, or second person).
Check that all fasteners and the ball are properly tightened. Perform this check frequently during use.
The T-One® T-Connector is a vehicle wiring harness that integrates trailer lighting connections into your vehicle's electrical system. It connects to your vehicle's taillight wiring on both driver and passenger sides, allowing you to safely power trailer lights. The system includes a black box module mounted on the passenger side, a 10-amp fuse for circuit protection, and color-coded wires (green, yellow, red, white, and black) that route power and ground connections throughout the installation.
Yes, the T-One® T-Connector (part number 118610-037) is designed for the Prius V. The installation instructions are specific to this vehicle model, including the location of the 12-volt battery in the cargo area on the passenger side and the taillight wiring harness configuration.
You will need: trim panel remover, 10mm socket and ratchet or 10mm wrench, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. These tools are required to access the wiring, remove panels, drill the ground connection hole (if using Option 1), and test the installation.

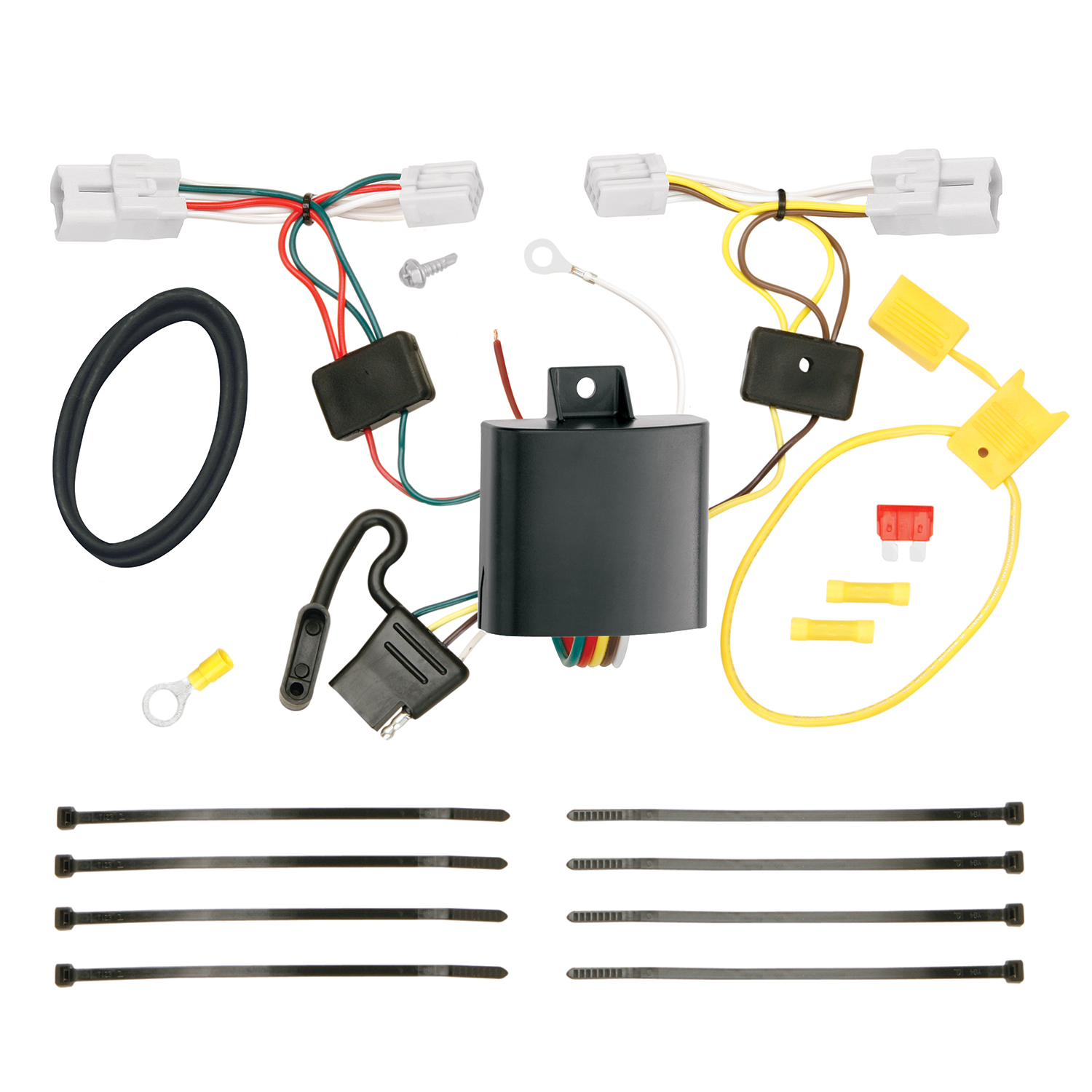

The T-One® T-Connector includes: the black box module, color-coded wires (green, yellow, red, white, and black), double-sided tape for mounting the black box, cable ties for securing the harness, a 10-amp fuse and yellow fuse holder, a ring terminal, an eyelet and screw for ground connection (Option 1), and a yellow butt connector for connecting the fuse holder to the black 12 ga. wire.
Yes. You must disconnect the vehicle's negative (-) battery cable before beginning installation. This is a critical safety step performed in Step 7. After all connections are complete and the 10-amp fuse is installed, you will reconnect the negative battery cable in Step 8.
The 12-volt battery is located inside the cargo area on the passenger side, underneath the floor covering in the rear corner. You will need to access this location to connect the power wire from the T-Connector to the battery's positive terminal.
On both driver and passenger sides, locate the vehicle's taillight wiring harness connector. Separate the connector carefully without breaking the locking tabs. On the passenger side, insert the T-One® T-Connector end with the green wire between the vehicle wiring connectors and lock into place. Route the T-One® T-Connector end with the yellow wire to the driver's side behind the panels and along the threshold, then repeat for the second yellow wire end. Ensure all connector surfaces are clean and free of dirt before connecting.
Drilling is required only if you choose Option 1 for the ground connection. You will need to drill a 3/32" hole on the passenger side near the connector to secure the white ground wire using the provided eyelet and screw. However, Option 2 allows you to use an existing ground stud instead, which requires no drilling. Do not drill into the vehicle floor, bed, or any exposed surfaces. Always verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury.
If using Option 1 for the ground connection, drill a 3/32" hole on the passenger side near the connector. The white ground wire is then secured to this hole using the provided eyelet and screw.
The T-One® T-Connector uses a 10-amp fuse. This fuse is installed in the yellow fuse holder provided with the product and protects the circuit from overload. The fuse must be installed in Step 8 after all connections are complete and before reconnecting the vehicle's negative battery cable.
The T-One® T-Connector uses 12 gauge (12 ga.) wires for the power and ground connections. The red 12 ga. power wire comes from the T-Connector box, and a black 12 ga. wire is provided for connection to the battery. These heavier gauge wires are necessary to safely handle the electrical load of trailer lighting.
The T-One® T-Connector uses color-coded wires for different functions: green wire connects to the passenger-side taillight wiring, yellow wires connect to the driver-side taillight wiring (two separate yellow wire ends), red 12 ga. wire is the power wire from the T-Connector box, white wire is the ground connection, and black 12 ga. wire connects the power circuit to the vehicle battery.
The red 12 ga. power wire from the T-Connector box is connected to a black 12 ga. wire provided with the product. This black wire is then routed to the vehicle's 12-volt battery in the cargo area on the passenger side. A ring terminal is attached to the black wire and secured to the vehicle's positive (+) battery cable. The connection is protected by a 10-amp fuse housed in a yellow fuse holder that connects between the ring terminal and the black wire.
The yellow butt connector is used to connect the other end of the fuse holder to the black 12 ga. wire. This connector joins the fuse holder circuit to the power wire that routes to the T-Connector box, completing the power circuit protection.
Do not exceed the lower of your vehicle manufacturer's rating or these limits: maximum stop/turn light is 1 per side (2.1 amps) and maximum tail lights are 5.6 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the T-Connector instruction sheet for additional information about your specific vehicle's electrical capacity.
Wear safety glasses during installation. Verify what is behind any surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into the vehicle floor, bed, or exposed surfaces. When securing the harness with cable ties, avoid areas that could cut, pinch, or melt the wires. Read and follow all warnings and cautions printed on the vehicle battery. Ensure all connections are complete before testing or using the system.
After installation is complete, test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition, then reconnecting it. All connections must be complete for the T-One® T-Connector to function properly. Use a test probe to verify power at the connector terminals if using a test light.
After installation, verify that: all connections are complete and secure, the black box is properly mounted on the passenger side using the double-sided tape, the harness is secured with cable ties to prevent damage or rattling, the 10-amp fuse is installed in the yellow fuse holder, the taillight assemblies and other removed items are reinstalled without pinching or cutting wires, and the system functions properly with a test light or trailer.
The T-One® T-Connector black box is mounted on the passenger side using the double-sided tape provided with the product. The tape should be applied to a clean, suitable surface near the taillight connector area. The remainder of the harness is then secured with cable ties to prevent damage, rattling, and to avoid areas that could cut, pinch, or melt the wires.
The manual indicates that taillight assemblies and other items are removed during installation and must be reinstalled in Step 11. However, the specific instructions for removal are not detailed in the provided text. The manual references accessing the taillight wiring harness by partially removing plastic threshold covers, side access panels, or carpet panels and cargo trays, which may allow access without full taillight assembly removal. Consult the vehicle-specific diagrams or contact the manufacturer if clarification is needed.
The T-One® T-Connector uses a 10-amp fuse installed in the yellow fuse holder provided.
Verify that all connections are complete and secure. Check that the 10-amp fuse is properly installed in the yellow fuse holder. Ensure the vehicle's negative (-) battery cable is fully reconnected. Reset the vehicle's electrical system by temporarily removing the ignition key and reinserting it. Test the installation with a test light or trailer. If the system still does not function, verify that all connector surfaces are clean and free of dirt, and that the green and yellow wires are properly locked into the vehicle's taillight connectors.
A repeatedly blown 10-amp fuse indicates an electrical overload or short circuit. Verify that you are not exceeding the maximum electrical load: 1 stop/turn light per side (2.1 amps) or maximum tail lights (5.6 amps). Check that the vehicle manufacturer's rating is not being exceeded. Inspect all wire connections for damage, corrosion, or improper crimping that could cause a short. Ensure the ground connection (white wire) is secure and making good contact. If the problem persists, discontinue use and consult the manufacturer or a qualified technician.
