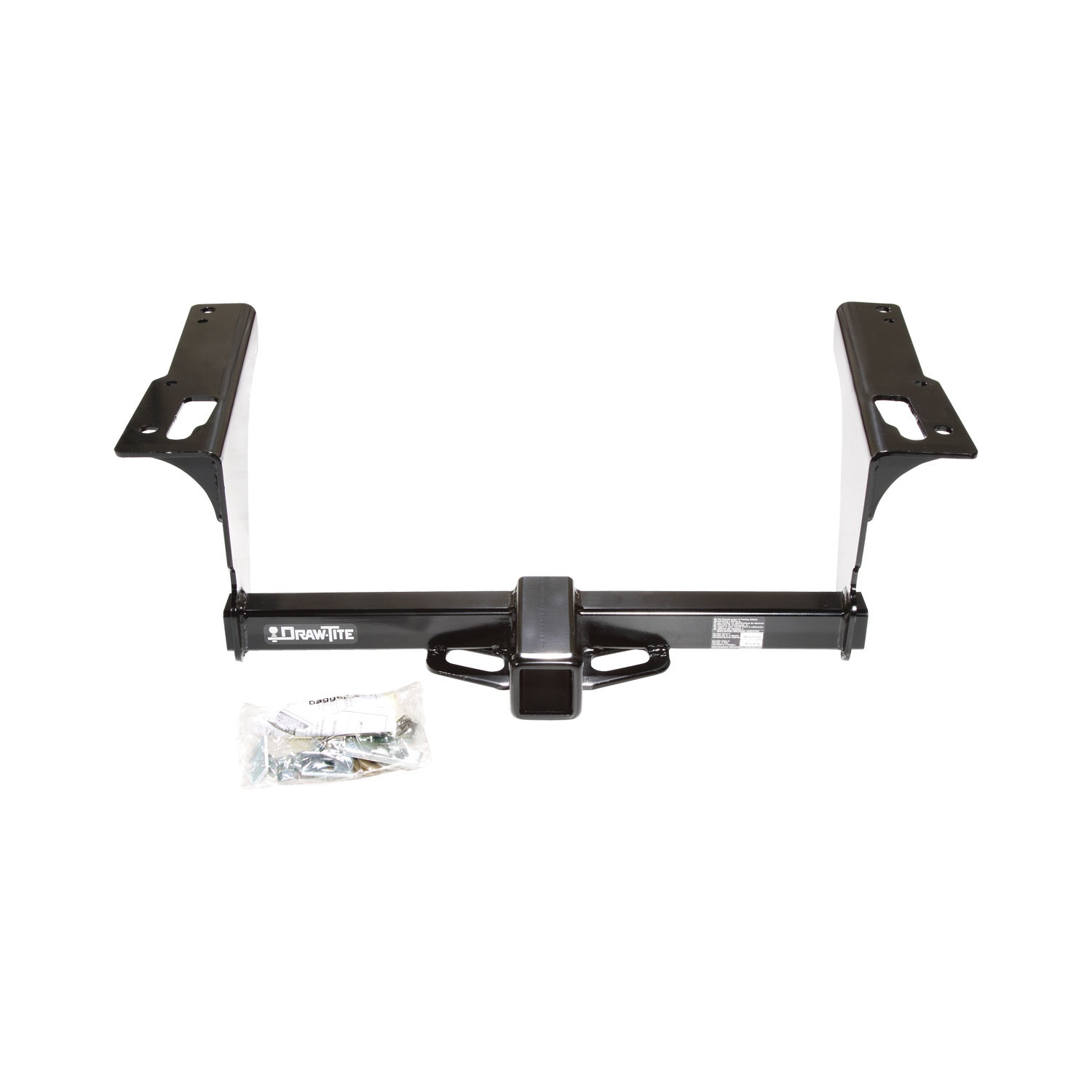

These durable custom hitches are manufactured for 2010-2019 Subaru Legacy, 2010-2019 Subaru Outback and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2019 | Subaru Legacy | Sedan |

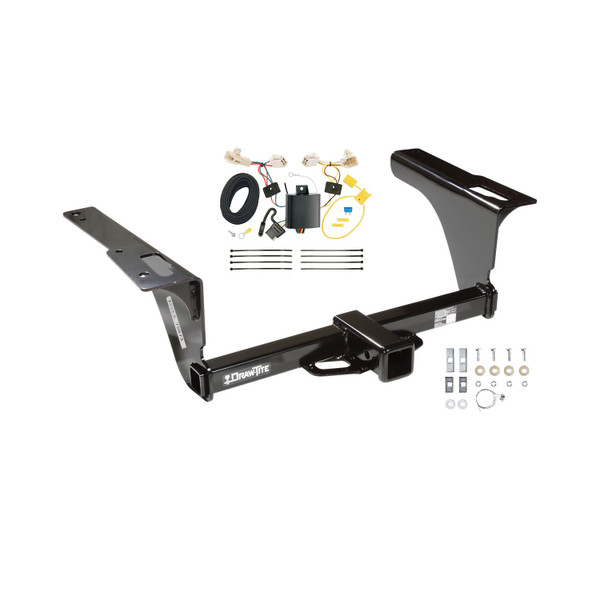

The 2015-2019 Subaru Legacy Sedan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75673-118671) fits 2015-2019 Subaru Legacy models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2015-2019 Subaru Legacy Sedan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75673-118671) is designed to fit the 2015-2019 Subaru Legacy.
The 2015-2019 Subaru Legacy Sedan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75673-118671) fits the following vehicles: 2015-2019 Subaru Legacy. Always verify your specific year, make, and model before ordering.
The 2015-2019 Subaru Legacy Sedan Draw-tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB75673-118671) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75673 is designed to fit all Subaru Legacy and Outback models, including both sedan and wagon body styles.
The maximum gross trailer weight is 4000 lb (1814 kg) and the maximum tongue weight is 600 lb (272 kg). However, you must not exceed the lower of this hitch rating or your vehicle manufacturer's towing rating.
The 75673 is a weight-distributing hitch. It is not compatible with spring bars and must not be used with them.
You will need: tin snips, spray lubricant, a 1-1/8" hole saw drill bit, a 10 mm wrench, an 11/16" wrench, and a torque wrench. A torque wrench is essential because all 7/16 GR5 fasteners must be tightened to exactly 50 Lb.-Ft. (68 N·M).

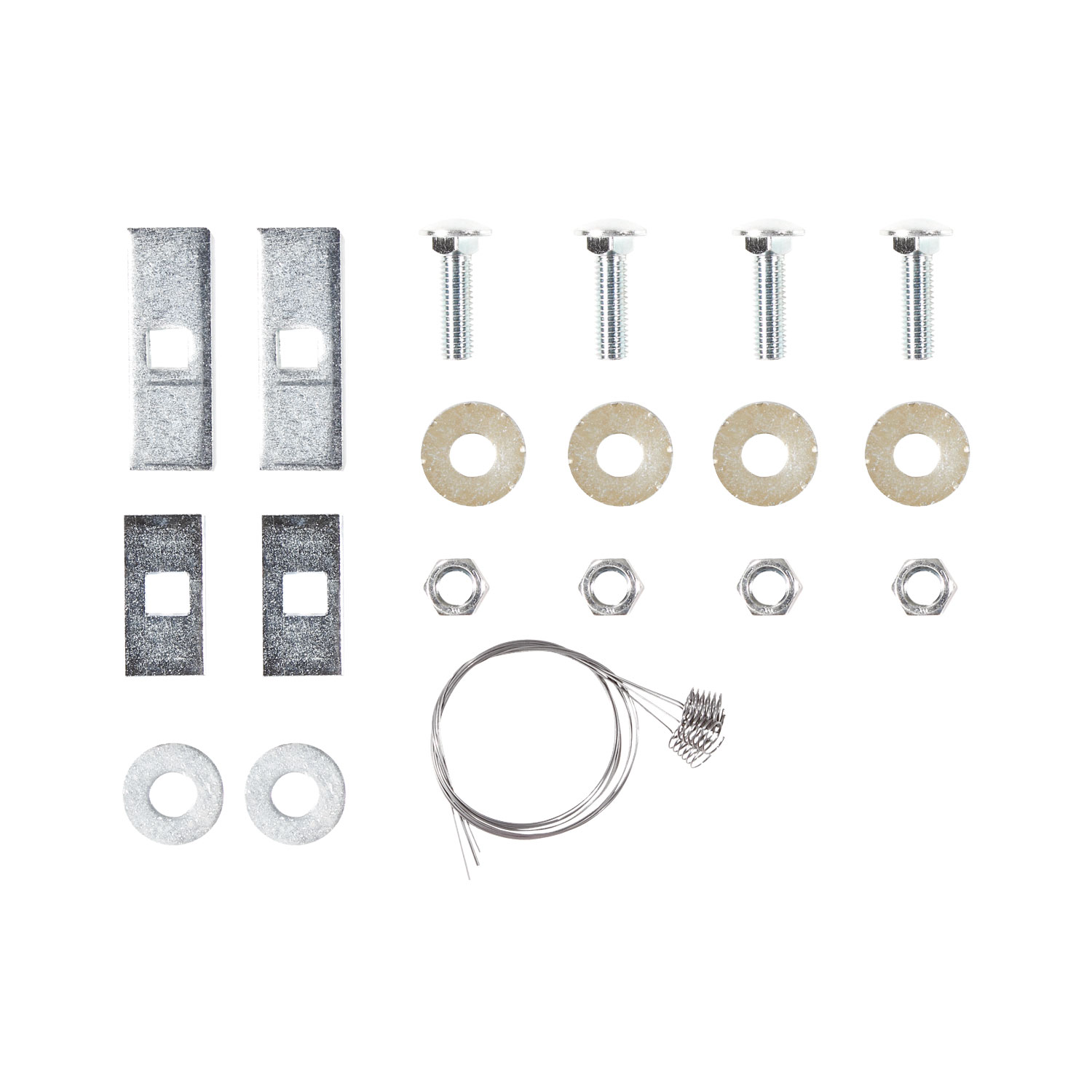

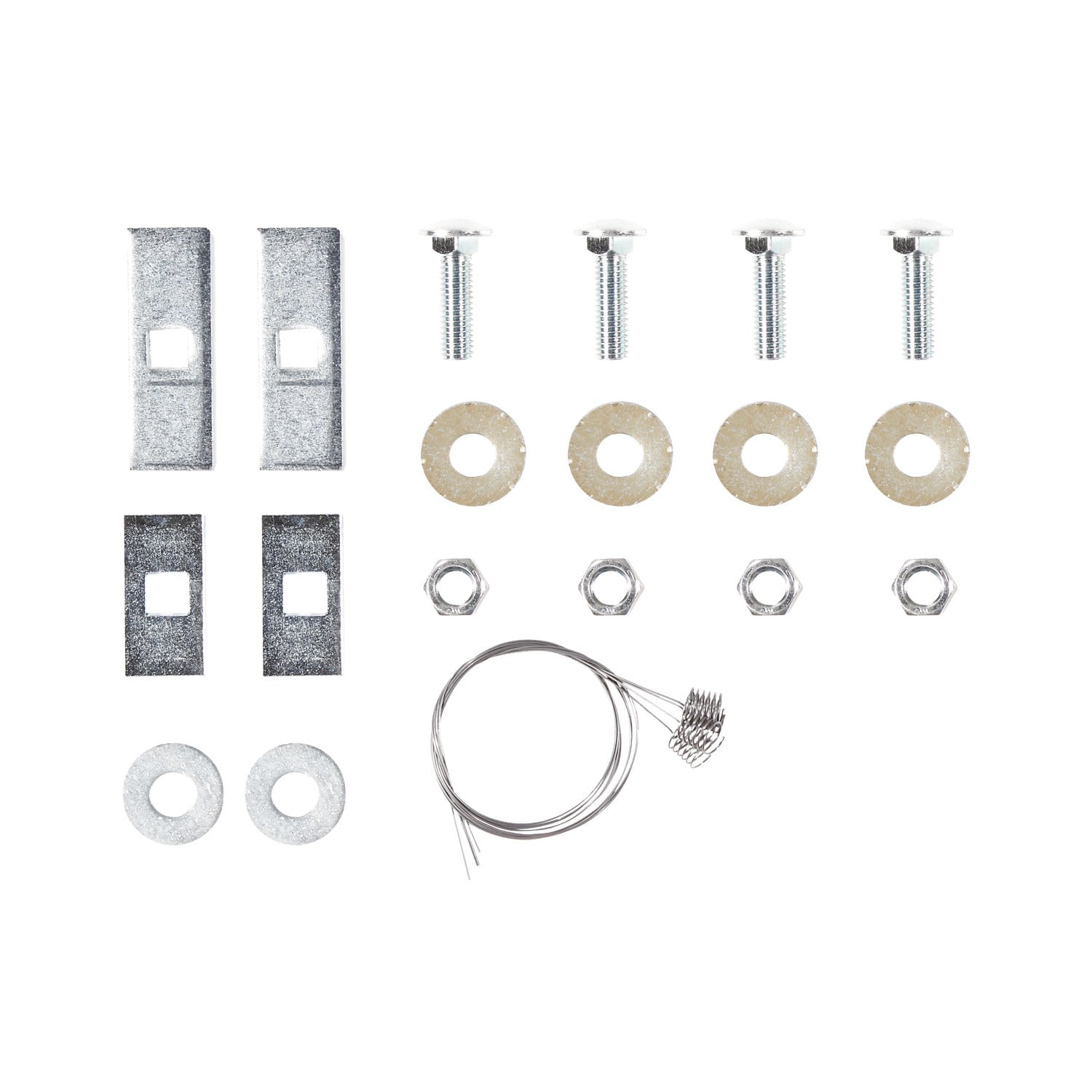

The 75673F kit includes: 4 carriage bolts 7/16-14 x 1.50 GR5, 2 flat washers 7/16", 2 spacers 3/16" x 1 x 2, 2 spacers 1/4" x 1 x 3, 4 conical toothed washers 7/16", 4 fish wires 7/16", and 4 hex nuts 7/16-14.
Yes. You must temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one isolator below the rear axle. Spray the hangers with lubricant to ease removal. For dual exhaust systems, this is typical on both sides. The exhaust system is raised back into position after the hitch is secured.
Yes. You must temporarily lower the heat shields by removing four M6 bolts. Save these bolts because they are re-installed after the hitch is secured. The heat shields are then trimmed around the forward attachment bolt area and re-attached on top of the hitch brackets.
Yes. You must drill a 1-1/8" access hole in the bottom of the frame approximately 2" forward of the heat shield attachment point. This hole is used to fish the carriage bolts and spacer blocks through the frame. Do not use a torch to cut this hole.
Yes. After the hitch is positioned, you must trim the heat shields around the area near the forward attachment bolt so that the heat shield sits flat against the hitch bracket. Tin snips are used for this trimming.
The fish-wire method is used to route the carriage bolts and spacer blocks through the frame holes. You thread a carriage bolt and 1 x 2 spacer block through the access hole and down through the rearmost hole in the frame, and a carriage bolt and 1 x 3 spacer block through the access hole and down through the forward hole. The fish wires remain attached to the bolts and are fed through the hitch holes to guide the hitch into position.
For the rearmost carriage bolts, loosely install the conical toothed washers and hex nuts first. For the forward carriage bolts, place a flat washer between the frame and hitch bracket, then install the conical toothed washers and hex nuts. All fasteners are then tightened to 50 Lb.-Ft. (68 N·M) in the final step.
All 7/16 GR5 carriage bolts and hex nuts must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·M).
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval, but regular inspection is recommended to maintain safety.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fume entry. A damaged hitch or ball must be removed and replaced.
Yes, the 75673 is designed for all Subaru Legacy and Outback models, including sedan and wagon body styles.
You need tin snips, spray lubricant, a 1-1/8" hole saw, 10 mm and 11/16" wrenches, and a torque wrench (essential for tightening to 50 Lb.-Ft.).
No, but you must temporarily lower it by removing two rubber isolators from the muffler hangers and one below the rear axle. Spray the hangers first. The exhaust is raised back after installation.
All 7/16 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not use a torch to cut holes. If removed, plug all holes to prevent water and exhaust fume entry.

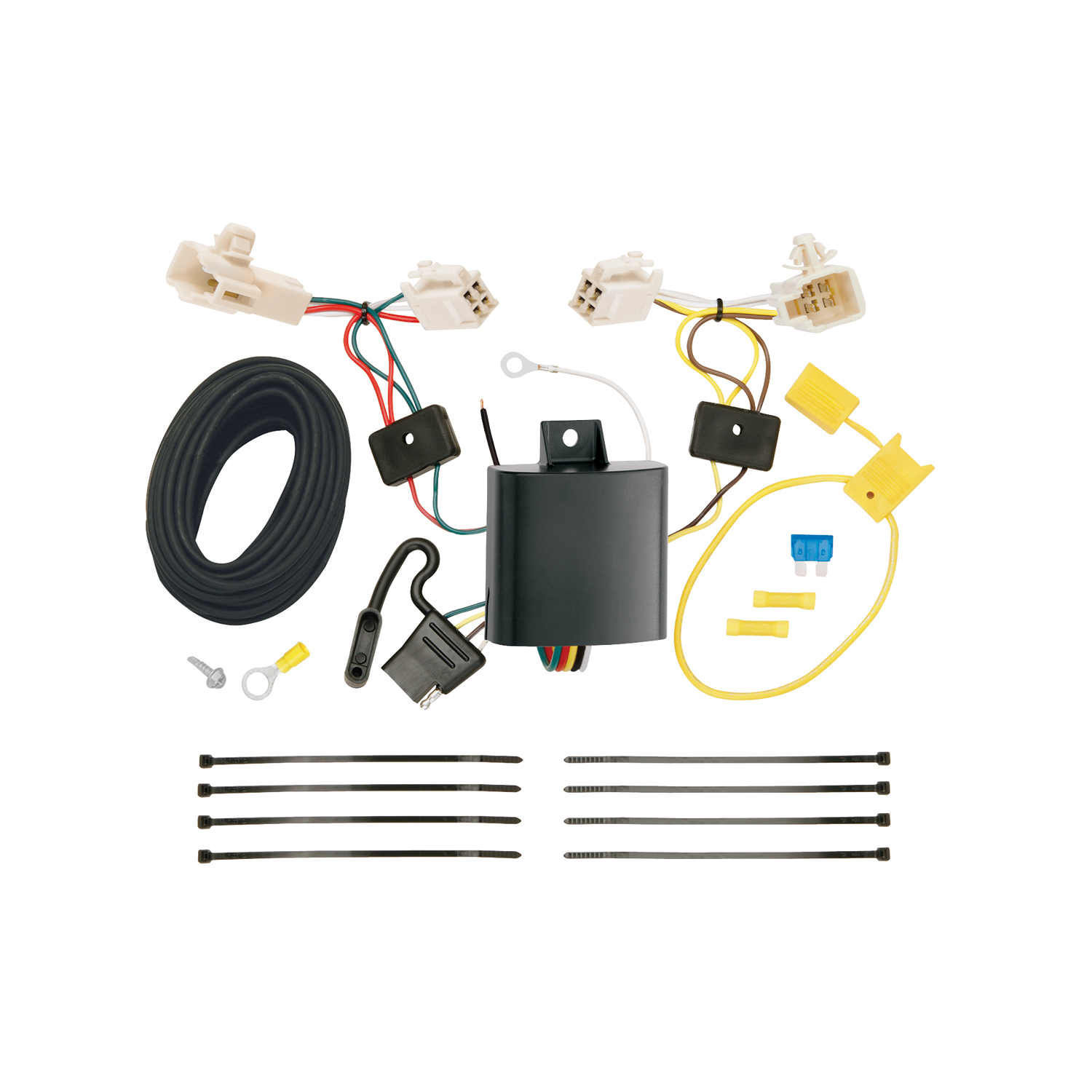

The T-One® T-Connector is a trailer wiring harness that integrates with your vehicle's taillight wiring to provide trailer lighting connections. It uses a 4-flat connector that you store in the trunk when not in use. The system connects to your vehicle's existing taillight wiring on both the driver and passenger sides, allowing you to safely tow a trailer with integrated lighting.
Yes, the T-One® T-Connector part number 118671-037 is designed for the Subaru Legacy. The manual confirms this application.
You will need: a trim panel remover, a drill with a 3/32" drill bit, a Phillips head screwdriver, and a test-probe. These tools are required to remove interior panels, drill the ground wire hole, and verify electrical connections.
The kit includes: two T-Connector ends (one with yellow wire, one with green wire), a black box-module, cable ties, a white wire with eyelet and screw for grounding, a 15 amp fuse, a yellow fuse holder with wire, two yellow butt connectors, and a 4-flat connector for storage in the trunk when not in use.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the fuse holder to the positive battery terminal. This is a required safety step performed in step 7. After all other connections are complete, you reconnect the negative battery cable in step 8.
Open the trunk and temporarily remove the rear threshold plate. Partially remove the felt trunk liner behind the taillights. You will also need to remove interior panels and carpet to route the wiring harness from the taillights to the engine compartment and battery. These panels and carpet are reinstalled after installation.
Locate the taillight wiring harness on both the driver and passenger sides of the vehicle. The harness has a connection point on each side that matches the T-Connector ends. Separate the vehicle's connector carefully without breaking the locking tabs. Insert the T-Connector end with the yellow wire on the driver's side between the vehicle connectors and lock into place. Route the T-Connector end with the green wire to the passenger's side and repeat the process. Ensure all connector surfaces are clean and connectors are fully inserted with locking tabs in place.
Yes. You must drill a 3/32" hole to secure the white ground wire. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area first, then drill the hole and secure the white wire using the eyelet and screw provided.
From inside the vehicle, connect the black 12 gauge wire from the T-Connector black box to the vehicle's wiring using the supplied yellow butt connector. Route the black wire either through a grommet and along the exterior frame, or follow the existing wiring along the thresholds into the engine compartment up to the battery. Avoid areas that may pinch or break the wire. If routing through a grommet and along the exterior, carefully avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
Disconnect the vehicle's negative (-) battery cable first. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery terminal. Connect the other end of the fuse holder to the black 12 gauge wire using the supplied yellow butt connector. The fuse holder contains a 15 amp fuse, which you install after reconnecting the negative battery cable.
The system uses a 15 amp fuse installed in the yellow fuse holder provided. This fuse is installed after all other connections are complete and the negative battery cable is reconnected.
The T-Connector uses: yellow wire (driver's side taillight connection), green wire (passenger's side taillight connection), white wire (ground connection secured with eyelet and screw), and black wire (12 gauge, connects to vehicle battery positive terminal through the fuse holder). The black wire from the T-Connector black box also connects to the vehicle's wiring using a yellow butt connector.
Do not exceed the lower of your towing manufacturer's rating or: maximum stop/turn light 2 per side (4.2 amps total), or maximum tail lights (7.5 amps total). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the T-Connector instruction sheet for additional information on your specific towing capacity.
All connections must be complete for the T-One® T-Connector to function properly. Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are working correctly before towing.
Locate a flat surface in an out-of-the-way place inside the vehicle and mount the black box-module there. This prevents damage or rattling during vehicle operation.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire. After securing the harness, replace the carpet and any other clips or panels that were removed during installation, being careful not to cut or pinch the wires.
Store the 4-flat connector in the trunk area when not in use. This protects it from damage and keeps it readily available when you need to tow a trailer.
Yes, the T-One® T-Connector part number 118671-037 is designed for the Subaru Legacy.
You need a trim panel remover, drill with 3/32" bit, Phillips head screwdriver, and test-probe.
Yes, you must drill a 3/32" hole for the ground wire. Verify what is behind the surface before drilling to avoid damage.
Yes, disconnect the negative battery cable before connecting to the positive terminal. Reconnect it after all other connections are complete.
The system uses a 15 amp fuse installed in the yellow fuse holder provided with the kit.
Do not exceed 2 stop/turn lights per side (4.2 amps) or 7.5 amps for tail lights. Do not exceed your vehicle's towing manufacturer rating.
Test with a test light or trailer after installation. Reset the electrical system by temporarily removing the ignition key to verify all connections work properly.
Store the 4-flat connector in the trunk area when not in use.
All connections must be complete for the T-One® T-Connector to function properly. Verify that: (1) both taillight connectors are fully inserted with locking tabs in place, (2) the white ground wire is securely fastened, (3) the black 12 gauge wire is properly connected to the vehicle's wiring and battery through the fuse holder, (4) the 15 amp fuse is installed in the fuse holder, and (5) the negative battery cable is reconnected. Test the installation with a test light or trailer. If the system still does not function, reset the vehicle's electrical system by temporarily removing the key from the ignition.
