These dependable custom hitches are manufactured for 2019-2020 Hyundai Santa Fe, 2016-2020 KIA Sorento and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 2 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2015 | Kia Sorento | w/V6 Engine |

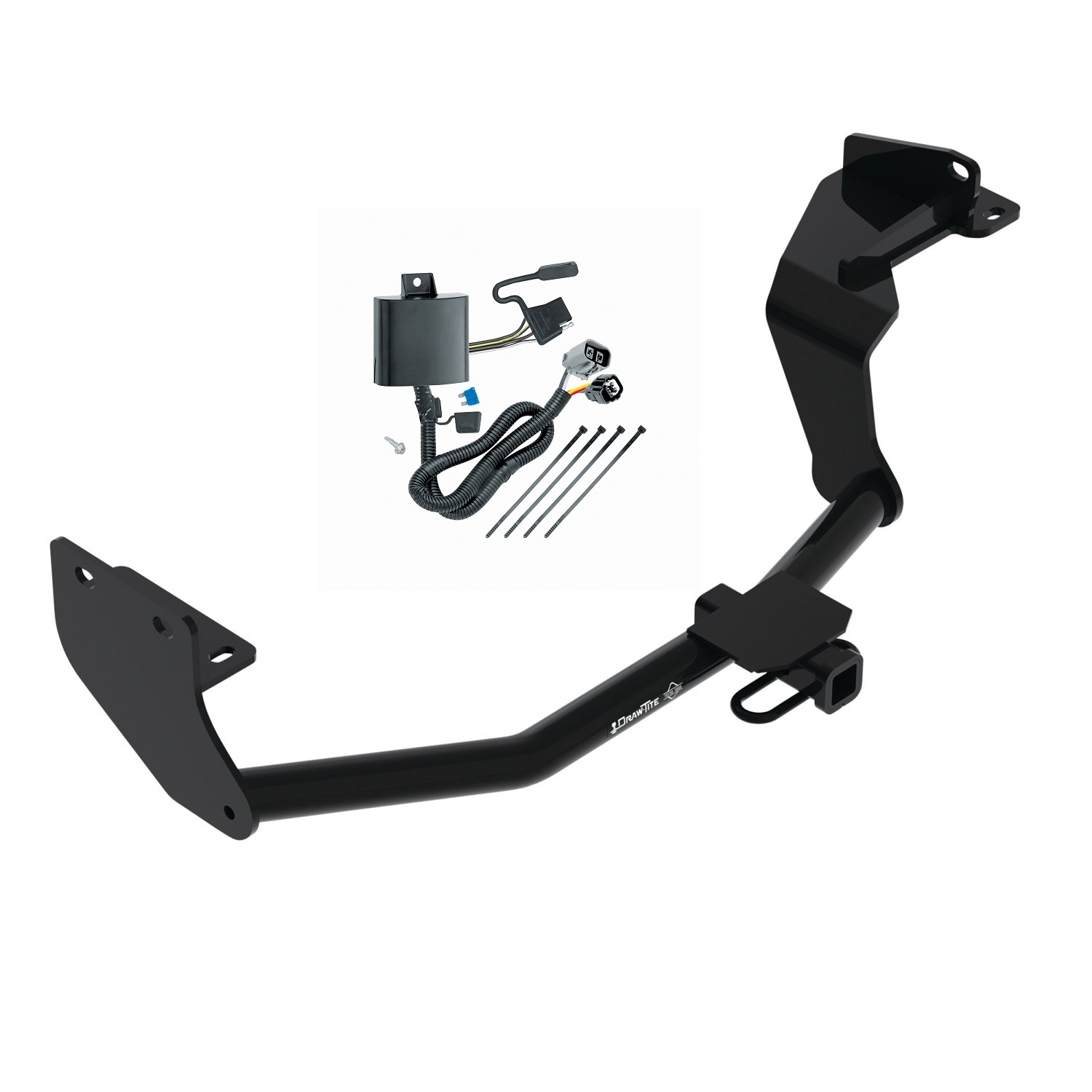

The 2016-2020 KIA Sorento w/V6 Engine Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB37132-118269) fits the following vehicles: 2009-2015 Kia Sorento. Always verify your specific year, make, and model before ordering.
Yes, the 2016-2020 KIA Sorento w/V6 Engine Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB37132-118269) is designed to fit the 2009-2015 Kia Sorento.
The 2016-2020 KIA Sorento w/V6 Engine Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB37132-118269) fits 2009-2015 Kia Sorento models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2016-2020 KIA Sorento w/V6 Engine Draw-tite Class 2 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB37132-118269) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 37132 is designed for 2016-Current Kia Sorento models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
No, part number 37132 is designed for 2016-Current Kia Sorento models only. Check the Horizon Global website for fitment information on earlier model years.
The 37132 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1587 kg) and a maximum tongue weight of 350 lb (158 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
No, the 37132 is a weight-carrying hitch only. Weight-distributing capability is listed as NA (not available) for this model.
Required tools include: ratchet, torque wrench, safety glasses, sockets (3/4", 14 mm, 16 mm, 17 mm, 18 mm, 19 mm), 6" socket extension, and Phillips screwdriver. Lubricant or soapy water is also recommended to help with exhaust hanger removal.
The fastener kit 37132F includes: (2) hex bolts ½-13 x 4.50 GR5, (5) conical washers ½", (2) hex nuts ½-13, (1) bolt M12x1.75x120 CL8.8, (1) flat washer ½" hardened, (1) hex nut M12x1.75 CL8, (4) bolts M10x1.25x30 CL10.9, and (4) conical washers 7/16".
Yes, the spare tire must be lowered and removed before installation. The tire release is located underneath the storage compartment in the back of the vehicle. The spare tire is reinstalled after the hitch installation is complete.
Yes, the exhaust must be lowered by removing the rear and side hangers before hitch installation. Support the exhaust to prevent damage. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position after the hitch is secured.
The driver side rear plastic cover, located underneath the vehicle, must be removed using a small Phillips head screwdriver. Also remove (5) plastic push pins and (2) nuts. This cover is reinstalled after the hitch installation is complete.
The bumper locator pin may interfere with the hitch hardware. If necessary, use an angle grinder to trim the locator pin at the shoulder to allow proper hardware clearance. This is a conditional modification required only if interference is present.
No drilling is required. The hitch uses existing weldnuts in the frame rail. The installation involves removing rubber plugs from the bottom of the frame rail and inserting bolts into existing weldnuts.
M10 CL10.9 fasteners must be tightened to 40 Lb.-Ft. (54 N·M) using a torque wrench.
Both ½ GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
M12 GR8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N·M) using a torque wrench.
1. Lower and remove spare tire. 2. Remove driver side rear plastic cover, push pins, and nuts. 3. Lower exhaust by removing hangers and support it. Remove rubber plugs from frame rail. 4. Run M10 bolts into existing weldnuts to remove debris, then remove bolts. 5. Raise hitch into position and insert items 1 & 2 (driver side) and items 4 & 5 (passenger side). 6. Insert M10 bolts (items 8 & 7) and hand tighten. 7. Install conical washers and hex nuts. 8. Torque all fasteners to specification. 9. Raise exhaust back into position. 10. Reinstall plastic cover. 11. Reinstall spare tire.
Yes, M10 bolts (items 8 & 7) should be hand-tightened first (Step 6), then conical washers and hex nuts are installed (Step 7), and finally all fasteners are torqued to specification using a torque wrench (Step 8).
Items 1 & 2 (hex bolts ½-13 x 4.50 GR5 and conical washers ½") are inserted on the driver's side during Step 5.
Items 4 & 5 (bolt M12x1.75x120 CL8.8 and flat washer ½" hardened) are inserted on the passenger's side during Step 5.
Conical washers should be installed with the teeth side against the hitch or frame. Sort hardware prior to installation to confirm conical washers are kept with coordinated bolts.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust system to prevent damage during removal. Wear eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The maximum tongue weight is 350 lb (158 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or this limit.
After installation, make sure the spare tire is seated properly. Check the hitch frequently to ensure all fasteners and ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The authorized drawbar kit is 36071 (sold separately). The drawbar must be used in the RISE position only.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes, part 37132 fits 2016-Current Kia Sorento. Check the Horizon Global website for specific trim level compatibility.
Maximum gross trailer weight is 3500 lb (1587 kg) and maximum tongue weight is 350 lb (158 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, safety glasses, sockets (3/4", 14 mm, 16 mm, 17 mm, 18 mm, 19 mm), 6" socket extension, and Phillips screwdriver. Lubricant or soapy water is recommended.
Yes, both must be removed. The spare tire is lowered and removed first, and the exhaust is lowered by removing rear and side hangers. Both are reinstalled after the hitch is secured.
M10 CL10.9: 40 Lb.-Ft. (54 N·M); ½ GR5: 75 Lb.-Ft. (102 N·M); M12 GR8.8: 68 Lb.-Ft. (92 N·M). Use a torque wrench for all fasteners.
Use an angle grinder to trim the locator pin at the shoulder to allow proper hardware clearance. This will resolve the interference and allow the hitch to be properly positioned.

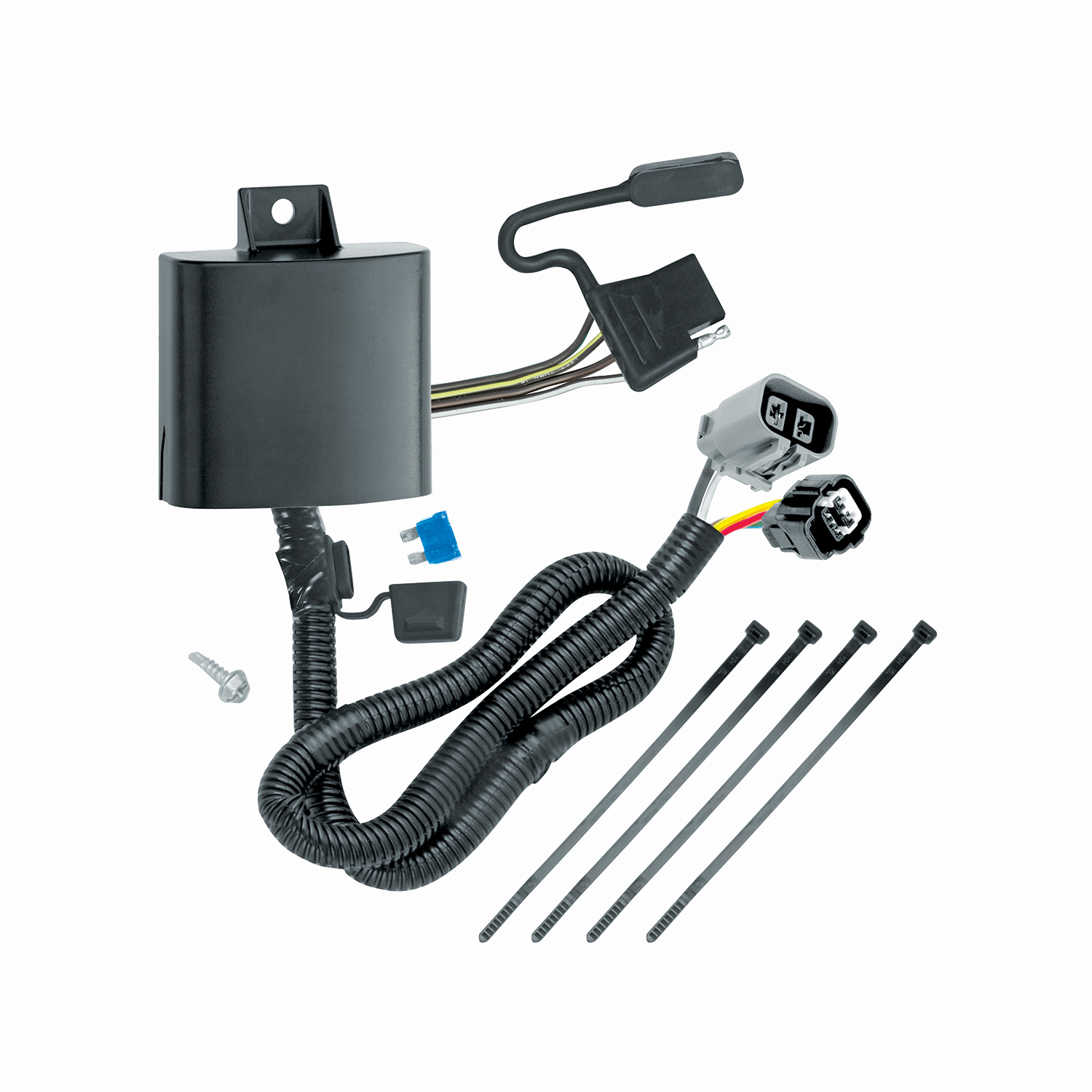

Yes, the T-Connector is designed for the Kia Sorento. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
Yes, the T-Connector is designed for the Hyundai Veracruz. Your vehicle must have a factory tow-plug harness underneath the vehicle on the passenger's side frame near the rear tire. The manual does not specify which model years are compatible, so confirm with the manufacturer or your dealer if your vehicle has the factory tow-plug harness.
No. The T-Connector requires a factory tow-plug harness to function. It connects directly to the vehicle's existing tow-plug harness, which is located underneath the vehicle on the passenger's side frame rail near the rear tire. If your vehicle does not have this factory harness, the T-Connector cannot be installed.
Yes. On the Kia Sorento, you must lower the spare tire to gain access to the vehicle wiring. This is the first step in the installation process.
On the Hyundai Veracruz, the access hole is located inside the bumper support channel, above the passenger side exhaust. Route the T-Connector harness plugs through this hole to access the vehicle's tow-plug harness.
The required tools are: trim panel remover, wire cutters, 10 mm socket and ratchet or 10 mm wrench, Phillips head screwdriver, and test-probe.
The package includes the T-Connector harness, a black box (control module), double-sided tape for mounting, and cable ties for securing loose wires. A bracket or electrical box for mounting the 4-Flat connector end is not included and must be sourced separately.
1. Locate the vehicle's tow-plug harness underneath the vehicle on the passenger's side frame rail near the rear tire. 2. Remove the protective cap carefully without breaking the locking tabs. 3. Ensure all connector surfaces are clean and free of dirt. 4. Insert the T-Connector harness into the vehicle's tow-plug harness and lock into place. 5. Verify that connectors are fully inserted with locking tabs in place. 6. Return the protective caps to the customer.
Route the T-Connector harness rearward to the back of the bumper fascia. Then route it along the inside of the bumper toward the center of the vehicle. Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Route the T-Connector harness along the inside of the bumper support channel toward the center of the vehicle. Mount the 4-Flat end in an accessible location with a bracket or electrical box (not included). Avoid routing near hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire.
Mount the T-Connector black box using the double-sided tape provided onto the bottom of the bumper support channel. Secure all loose wires with the cable ties provided.
On some Kia Sorento vehicles, the vehicle wiring harness is located behind a protective cover on the driver's side frame rail. Remove the plastic trim fasteners securing the protective cover to access the vehicle's wiring harness.
1. Ensure all connections are complete. 2. Reset the vehicle electrical system by temporarily removing the key from the ignition. 3. Test and verify the installation with a test light or by connecting a trailer once installed.
Do not exceed the lower of your vehicle's towing manufacturer rating or: Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Overloading the circuit can cause fires. Refer to your vehicle's owner's manual and instruction sheet for additional information.
Wear safety glasses during installation. Route the wire carefully to avoid hot pipes, heat shields, the fuel tank, or any points that may pinch or break the wire. Remove protective caps carefully without breaking the locking tabs. Keep all connector surfaces clean and free of dirt. Read and follow all vehicle warnings and installation instructions before beginning.
All connector surfaces must be clean and free of dirt to ensure proper electrical connection and function of the T-Connector. Dirt or debris can prevent the connectors from seating fully and may cause electrical faults.
The T-Connector fits Kia Sorento and Hyundai Veracruz models equipped with a factory tow-plug harness. Confirm your vehicle has the factory harness before purchasing.
You need: trim panel remover, wire cutters, 10 mm socket and ratchet (or 10 mm wrench), Phillips head screwdriver, and test-probe.
Yes, you must lower the spare tire on a Kia Sorento to gain access to the vehicle wiring.
Maximum stop/turn light: 2 per side (4.2 amps); Maximum tail lights: (7.5 amps). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits, as overloading can cause fires.
