These durable custom hitches are manufactured for 2016-2023 Subaru Crosstrek, 2018-2022 Subaru Impreza and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 2 inch square receiver tube opening ? the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! DRAW-TITE Class 3 Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you are tackling a project at home and need to haul the materials home, choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2024 | Subaru Impreza | Wagon, Except WRX STi & w/Quad Exhaust Outlets |

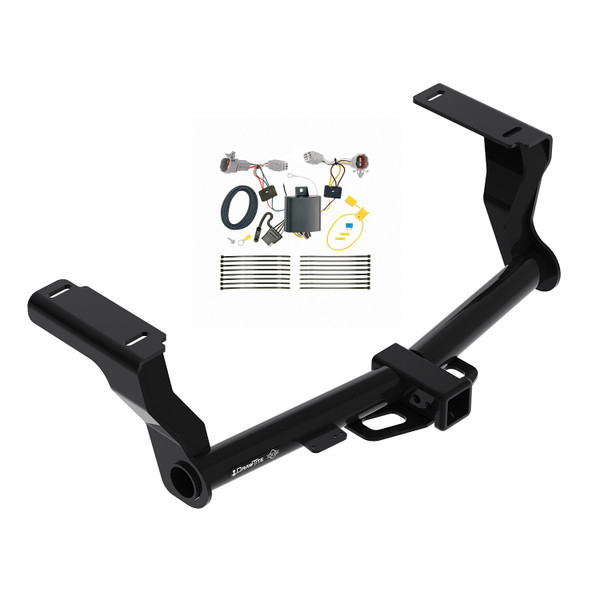

The 2018-2024 Subaru Impreza Wagon, Except WRX STi & w/Quad Exhaust OutletsDraw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76209-118744) fits 2018-2024 Subaru Impreza models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2018-2024 Subaru Impreza Wagon, Except WRX STi & w/Quad Exhaust OutletsDraw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76209-118744) fits the following vehicles: 2018-2024 Subaru Impreza. Always verify your specific year, make, and model before ordering.
Yes, the 2018-2024 Subaru Impreza Wagon, Except WRX STi & w/Quad Exhaust OutletsDraw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76209-118744) is designed to fit the 2018-2024 Subaru Impreza.
The 2018-2024 Subaru Impreza Wagon, Except WRX STi & w/Quad Exhaust OutletsDraw-Tite Class 3 Trailer Hitch, 2 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB76209-118744) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 76209 hitch fits 2018-Current Subaru Crosstrek and 2018-Current Subaru Impreza Hatchback. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The 76209 is a weight-carrying hitch with a maximum gross trailer weight of 4500 lb (2043 kg) and maximum tongue weight of 675 lb (306 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, sockets, 6" socket extension, 11/16" universal joint socket, flat head screwdriver, exhaust removal pliers, and utility knife. Installation time is approximately 60 minutes for professional installers.
No drilling is required. The hitch uses existing frame holes. You will remove two rubber plugs from pre-drilled holes in the frame bottom on each side of the vehicle and use a pull wire technique to feed fasteners through the frame.
Yes. You must lower the muffler by removing four rubber hangers (two on the left side, one on the right side, and one in the middle) using exhaust removal pliers. The muffler is then raised and reattached after hitch installation.
All 7/16-14 Gr5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. A universal joint socket may be required to tighten the rearmost bolts.
Always wear your seatbelt. Load the trailer heavier in front. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady—do not apply brakes or speed up. Always read and follow your vehicle manufacturer's towing instructions.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Periodically verify that all fasteners and the ball remain properly tightened during use.
The part numbers are 76209, 84209, and CQT76209. These are equivalent part numbers for the same hitch model.
No. The 76209 is designed for 2018-Current Subaru Crosstrek models. The 2017 model year is not listed as compatible. Contact the manufacturer or visit their website to confirm fitment for your specific year and trim level.
No. The 76209 is compatible only with the Subaru Impreza Hatchback (2018-Current). Sedan models are not listed as compatible applications.
The fastener kit (76209F) includes: four 7/16" carriage bolts (7/16-14 x 1.50), four conical tooth washers (7/16"), four hex nuts (7/16-14), four spacers (1/4 x 7/8 x 3, part no. HE-2370-000), two blocks (0.250 x 1.50 x 2.00, part no. 01097002), and four pull wires (7/16, part no. 5481).
The manual does not specify battery disconnection as a requirement for this hitch installation.
The pull wire technique (also called reverse fishwire) works as follows: Feed the coiled end of the pull wire through the rearmost attachment hole and out through the forward-most access and attachment hole in the frame bottom. Attach the 7/16" carriage bolt and spacer to the pull wire, then pull the fasteners into position on both sides. Kink the pull wire to keep the spacer independent of the bolt. Refer to Figures 2 and 3 in the manual for detailed visual guidance.
Using tape, install the block (part no. 01097002) between the hitch and the frame at the access hole. This block is positioned after the fasteners are fed through the frame and before the hitch is raised into final position.
The conical washer teeth side must be against the hitch. This is shown in the fastener diagram on page 3.
Leave the fasteners loose initially. After raising the hitch into position, loosely install the conical washers and hex nuts onto the carriage bolts at all four locations. Only after the hitch is properly positioned should you tighten all fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Using a flat head screwdriver, remove the two rubber plugs (one rear and one forward) from the holes in the bottom of the frame on each side of the vehicle. Return the plugs to the customer. Use a utility knife to remove excess caulk near the access hole. If the seam is exposed, reseal it.
If the seam is exposed after removing the rubber plugs and excess caulk, reseal the seam to prevent water and exhaust fume entry.
The muffler has four rearmost rubber hangers: two on the left side of the exhaust, one on the right side, and one in the middle of the vehicle. All four must be removed to lower the muffler during installation.
The manual recommends spraying lubricant on the rubber hangers to make them slide off the metal pins more easily. The specific type of lubricant is not specified.
Yes. The manual explicitly states: 'Be careful that exhaust is supported before removing rubber hangers.' Ensure the exhaust is properly supported to prevent it from falling or being damaged during hanger removal.
Raise the muffler back into position and reattach the rubber hangers: two per side and one in the middle (four total). Ensure all hangers are properly seated on the metal pins.
The carriage bolts are 7/16-14 x 1.50 inches. There are four bolts total, one at each attachment point.
The spacers are 1/4 x 7/8 x 3 inches, part number HE-2370-000. Four spacers are included in the fastener kit.
The blocks are 0.250 x 1.50 x 2.00 inches, part number 01097002. Two blocks are included in the fastener kit and are installed between the hitch and frame at the access holes.
The pull wire part number is 5481. Four pull wires (7/16 inch) are included in the fastener kit.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. These actions will help stabilize the trailer.
Load the trailer heavier in front. This helps maintain proper weight distribution and improves towing stability.
Yes. The manual explicitly states: 'Always wear SAFETY GLASSES when installing hitch.' Safety glasses are also listed as required equipment.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use the existing pre-drilled holes in the frame.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue towing with a damaged hitch or ball.
Observe safety precautions when working beneath a vehicle and wear eye protection. The manual does not specify additional details beyond these general safety requirements.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes periodic inspection during use.
The manual does not specify a retorque interval. It recommends checking fasteners frequently to ensure they remain tight, but does not state when or how often to retorque them.
The 76209 is a weight-carrying hitch. Weight-distributing specifications are listed as N/A in the manual.
No. The manual explicitly states: 'DO NOT cut, weld or modify this receiver.' Any modifications will void the warranty and may compromise safety.
The 76209 includes a Limited Lifetime Warranty covering material defects and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used according to the manual instructions. Product replacement is the sole remedy. Contact Horizon Global Americas Inc. at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim. You must provide the product and purchase receipt.
The manual states that the average installation time for professional installers is 60 minutes. It recommends: 'If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.'
The manual does not specify whether additional people or lifting equipment are required for installation.
No permanent modifications are required. The hitch uses existing pre-drilled holes in the frame. You will remove rubber plugs from these holes and remove excess caulk, but the holes already exist. After installation, if the hitch is removed, you should plug the holes to prevent water and exhaust fume entry.
Spray lubricant on the rubber hangers to make them slide off the metal pins more easily. Allow the lubricant to penetrate for a moment before attempting removal.
Ensure all fasteners are tightened to the correct torque specification of 50 Lb.-Ft. (68 N·M) using a torque wrench. The manual emphasizes that 'proper torque is needed to keep the hitch secure to the vehicle when towing.' Check fasteners frequently during use and retighten if necessary. If fasteners continue to loosen, verify that conical washers are installed with teeth side against the hitch, as this provides a locking action.
The manual warns to 'Raise hitch into position being careful not to push fasteners back into the frame.' If fasteners are pushed back, you will need to use the pull wire technique again to reposition them before raising the hitch.
Yes, this T-Connector is designed for the Subaru Impreza Hatchback. The installation instructions are specific to this vehicle model.

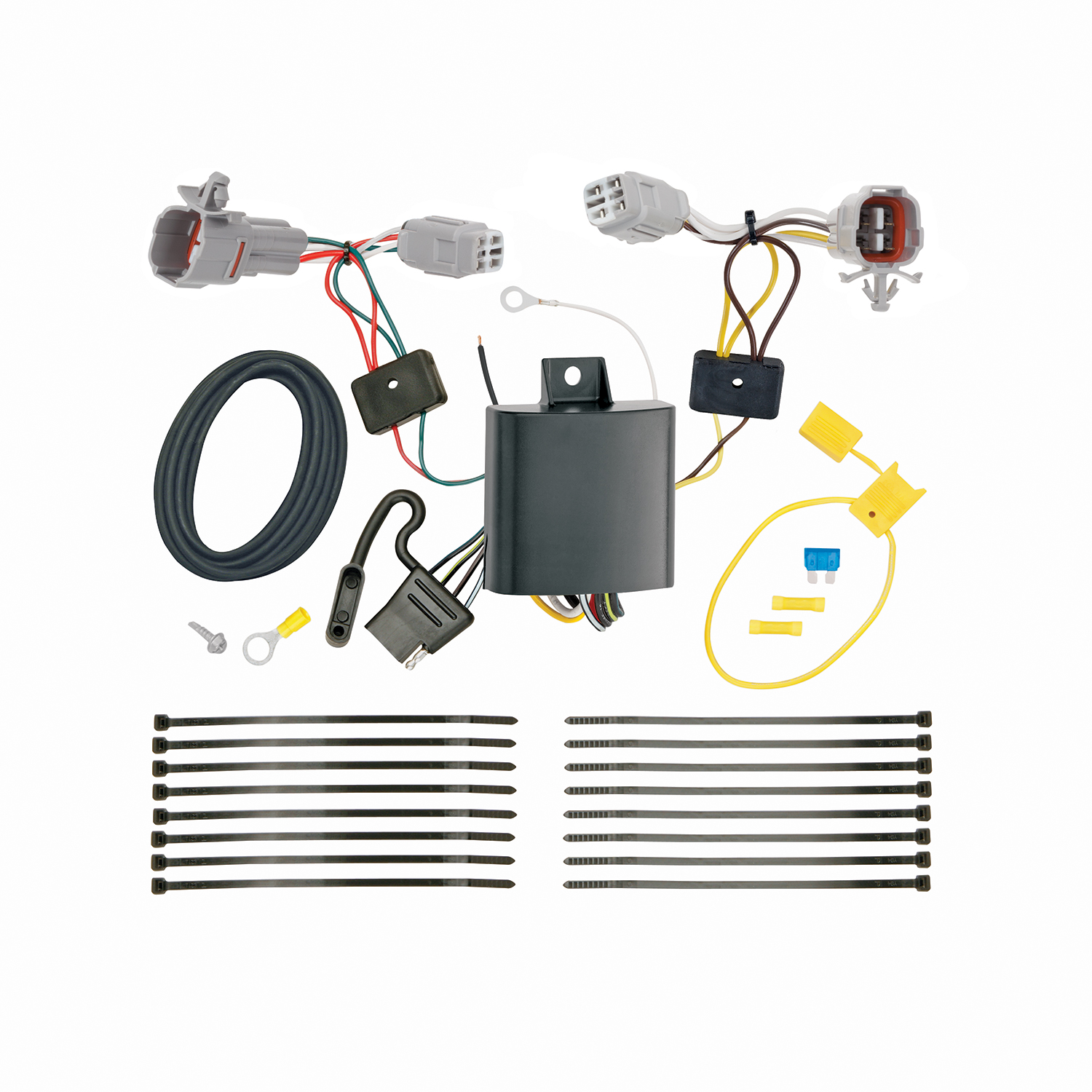

The kit includes: a black converter box with double-sided tape, a T-Connector harness with yellow, brown, and green wires, a white ground wire with eyelet and screw, a black 12 ga. power wire, a ring terminal, a yellow fuse holder with 15 amp fuse, a yellow butt connector, and cable ties for securing the harness.
Required tools are: Trim Panel Remover, 10mm Socket & Ratchet or 10mm Wrench, Drill with 3/32" Drill Bit, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the battery. This is done in Step 9 before attaching the ring terminal to the positive battery cable.
Open the tailgate and carefully pull the taillight assembly away from the vehicle, being careful not to damage the alignment pins. Set the assembly aside. You will need to access the taillight pocket on both the driver's and passenger's sides during installation.
Mount the black converter box on the driver's side in a flat, out-of-the-way location using the double-sided tape provided. The module must be mounted so that the epoxy side points toward the ground to prevent water buildup.
You may use an existing ground stud if available. If not, you must drill a 3/32" hole to secure the white ground wire using the eyelet and screw provided. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Clean dirt and rustproofing from the area before securing the wire.
On the driver's side, separate the vehicle's wiring connectors carefully without breaking the locking tabs. Insert the T-Connector end with the yellow and brown wires between the vehicle wiring connectors and lock into place. Ensure all connector surfaces are clean and free of dirt. Repeat this process on the passenger's side with the T-Connector end containing the green wire.
Route the harness with the yellow wire underneath the vehicle and up through the opening between the bumper and body to the driver's side taillight pocket. Route the T-Connector end with the green wire up through the opening on the passenger's side. Route the black 12 ga. power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment to the battery. Avoid hot pipes, heat shields, fuel tank, and any points that may pinch or break the wires.
Disconnect the vehicle's negative (-) battery cable first. Locate the black 12 ga. power wire from the T-Connector box. Attach the black 12 ga. wire provided. Remove the fuse from the yellow fuse holder if not already removed. Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle's positive (+) battery cable. Connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Finally, reconnect the vehicle's negative (-) battery cable and install the 15 amp fuse into the fuse holder.
Install a 15 amp fuse into the fuse holder. This fuse is provided with the kit and must be installed after the battery cable is reconnected.
Secure the remainder of the T-Connector harness with the cable ties provided to prevent damage or rattling. Be careful to avoid any areas that would pinch, cut, or melt the wire.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the T-Connector to function properly.
Yes. After completing the T-Connector installation, reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items that may have been removed during installation. Be careful not to pinch or cut the wires when reinstalling these components.
The manual mentions attaching a flat 4 mounting bracket to the trailer hitch using provided screws and nuts, but does not explicitly state whether the bracket is included in the kit or must be purchased separately.
The manual states that you must not exceed the stated product ratings and must follow the lower of the towing manufacturing rating (including in your vehicle owner's manual) or specific amperage ratings stated on the product. However, the specific amperage rating is not provided in this manual. Refer to the product label or your vehicle's owner's manual for the exact rating.
Overloading circuits can cause fires. You must not exceed the stated product ratings or the towing manufacturing rating in your vehicle's owner's manual. Always read and follow all warnings and instructions printed on the tow vehicle's battery.
Always wear safety glasses and use all safety precautions during installation. Before drilling, verify what is behind any surface to avoid damage to the vehicle or personal injury. Do not drill into exposed surfaces. When routing wires, avoid hot pipes, heat shields, fuel tank, and any points that may pinch or break the wire. Ensure the module epoxy side points toward the ground to prevent water buildup.
Yes, the T-Connector (118744-037) is designed specifically for the Subaru Impreza Hatchback.
You need: Trim Panel Remover, 10mm Socket & Ratchet or 10mm Wrench, Drill with 3/32" Drill Bit, Wire Crimpers, Wire Cutters, Philips Head Screwdriver, and Test-probe.
Drilling may be required for the ground wire. If an existing ground stud is not available, you must drill a 3/32" hole. Do not drill into the vehicle floor or bed, and verify what is behind the surface before drilling.
Yes, you must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the battery in Step 9.
The T-Connector uses a 15 amp fuse, which is provided in the kit and installed in the yellow fuse holder.
Overloading circuits can cause fires. Do not exceed the stated product ratings or the towing manufacturing rating in your vehicle's owner's manual. Always wear safety glasses during installation.
Verify that all connections are complete. Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. Ensure the 15 amp fuse is installed in the fuse holder and that the negative battery cable is properly reconnected. Check that all connector surfaces are clean and free of dirt, and that the T-Connector ends are fully locked into the vehicle's wiring connectors.
The module epoxy side is not pointing toward the ground. The module must be mounted so that the epoxy side points toward the ground to prevent water buildup. Remount the module in the correct orientation.
Verify that the wires are routed away from hot pipes, heat shields, fuel tank, and any other points that may pinch or break the wire. Ensure the harness is secured with cable ties to prevent movement and damage. Check that the wires are not pinched by trim panels, thresholds, or storage covers when reinstalling these components.
